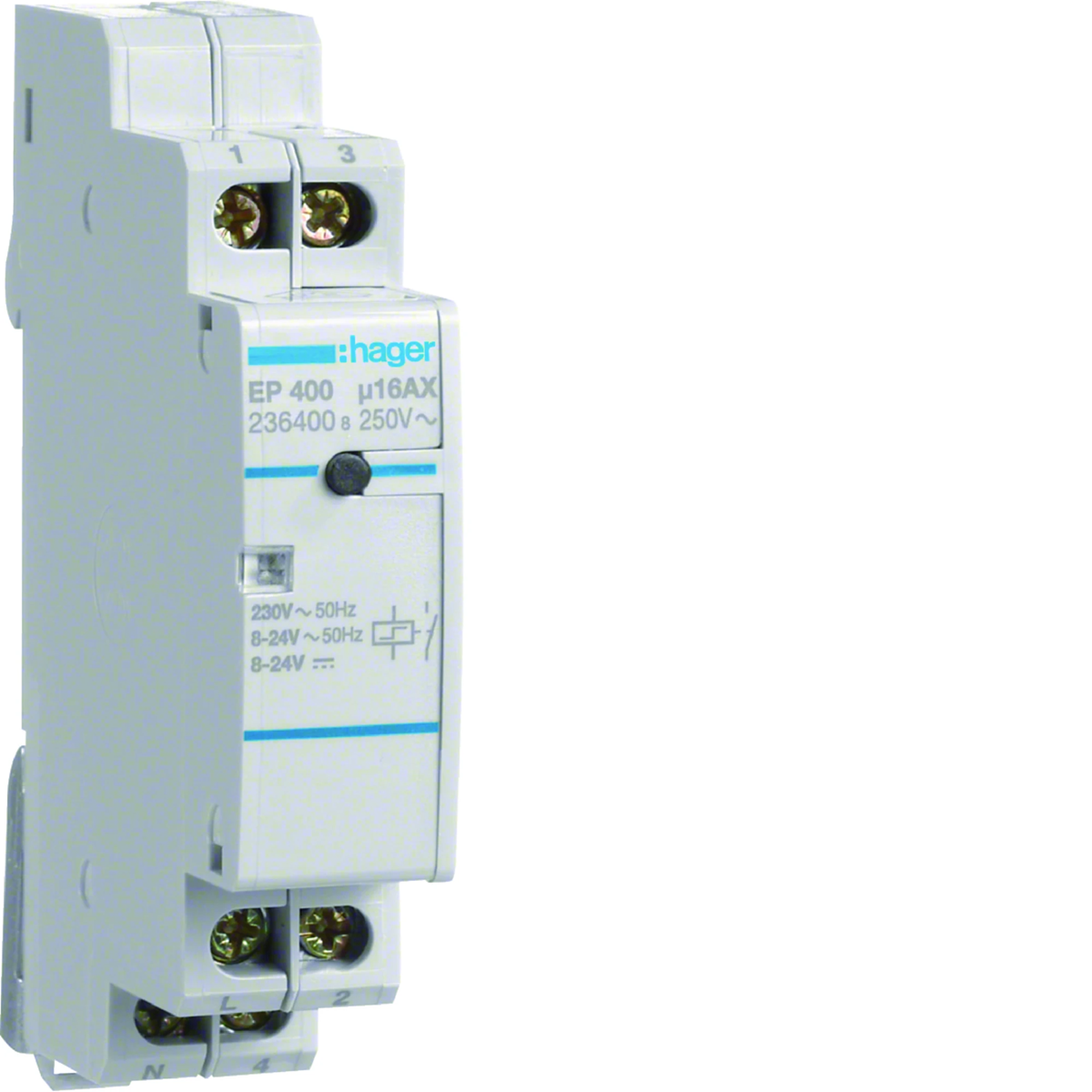

Electronic bistable relay 2 inputs 8-24VAC/DC + 230VAC 1NO 16A EP400
local index:
APC005HAGE
Catalog No:
EP400
EAN code:
3250612364008
Price:
89,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electronic bistable relay 2 inputs 8-24VAC/DC + 230VAC 1NO 16A
Technical data
-
Rated frequency [Hz]60
-
Maximum input power [VA]1
-
Rated current [A]16
-
power loss [W]1.2
-
Connection typeWith a screw
-
Operating temperature range [°C]from -10 to 50
-
Number of modules1
-
Manual controlYes
-
Wire cross-section (cord) [mm²]1 - 6
-
PKWIU27.12.24.0
-
Depth [mm]60
-
AC control voltage [V]8/12/24/230
-
Contact type1 no
-
Width [mm]17.5
-
Height [mm]85
-
Rated switching voltage [V]250
-
Setting [A]16
-
storage temperature [°C]from -20 to 60
-
Conductor cross-section (wire) [mm²]1 - 10
Other technical data
-
FunctionElectronic switch
-
Width in number of modular spacings17.5
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Type of control voltage 1AC
-
Control voltage 28 ... 24 V
-
Frequency control voltage 250 ... 60 Hz
-
Supply voltage250 ... 250 V
-
Max. incandescent lamp load1500 W
-
Max. load fluorescent lamp (Duo circuit)600 VA
-
Max. switching current (cos phi = 0.6)16 A
-
Mounting methodDIN rail
-
Built-in depth60 mm
-
Number of contacts as normally closed contact0
-
Control voltage 18 ... 230 V
-
Frequency control voltage 150 ... 60 Hz
-
Type of control voltage 2AC/DC
-
Rated switch current16 A
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp1200 VA
-
Max. load fluorescent lamp (parallel compensated)300 VA
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,081 | 0,090 | 9,890 | 260,360 |
| Width (m) | 0,018 | 0,080 | 0,320 | 0,800 |
| Length (m) | 0,087 | 0,025 | 0,215 | 1,006 |
| Depth (m) | 0,065 | 0,095 | 0,360 | 1,200 |
