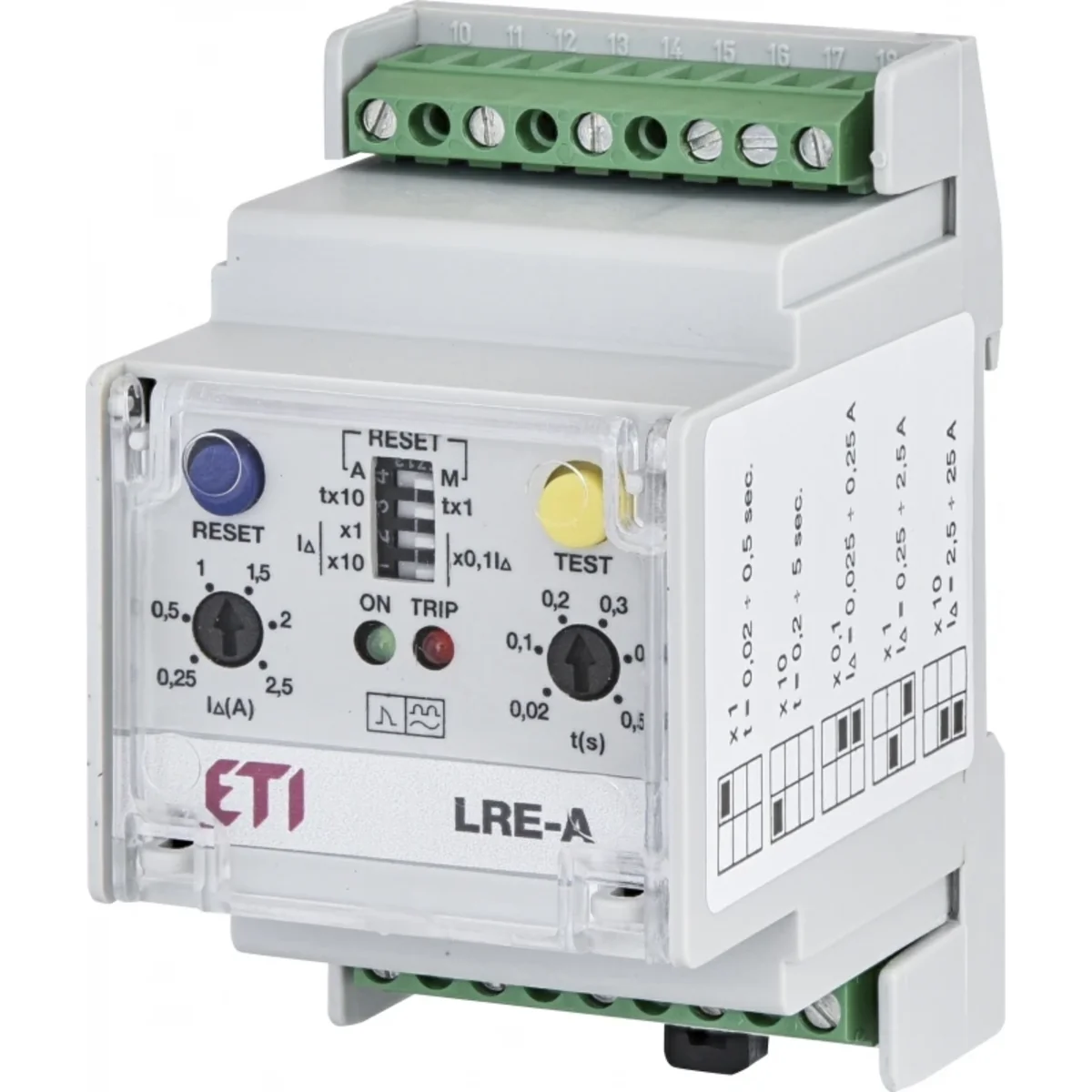

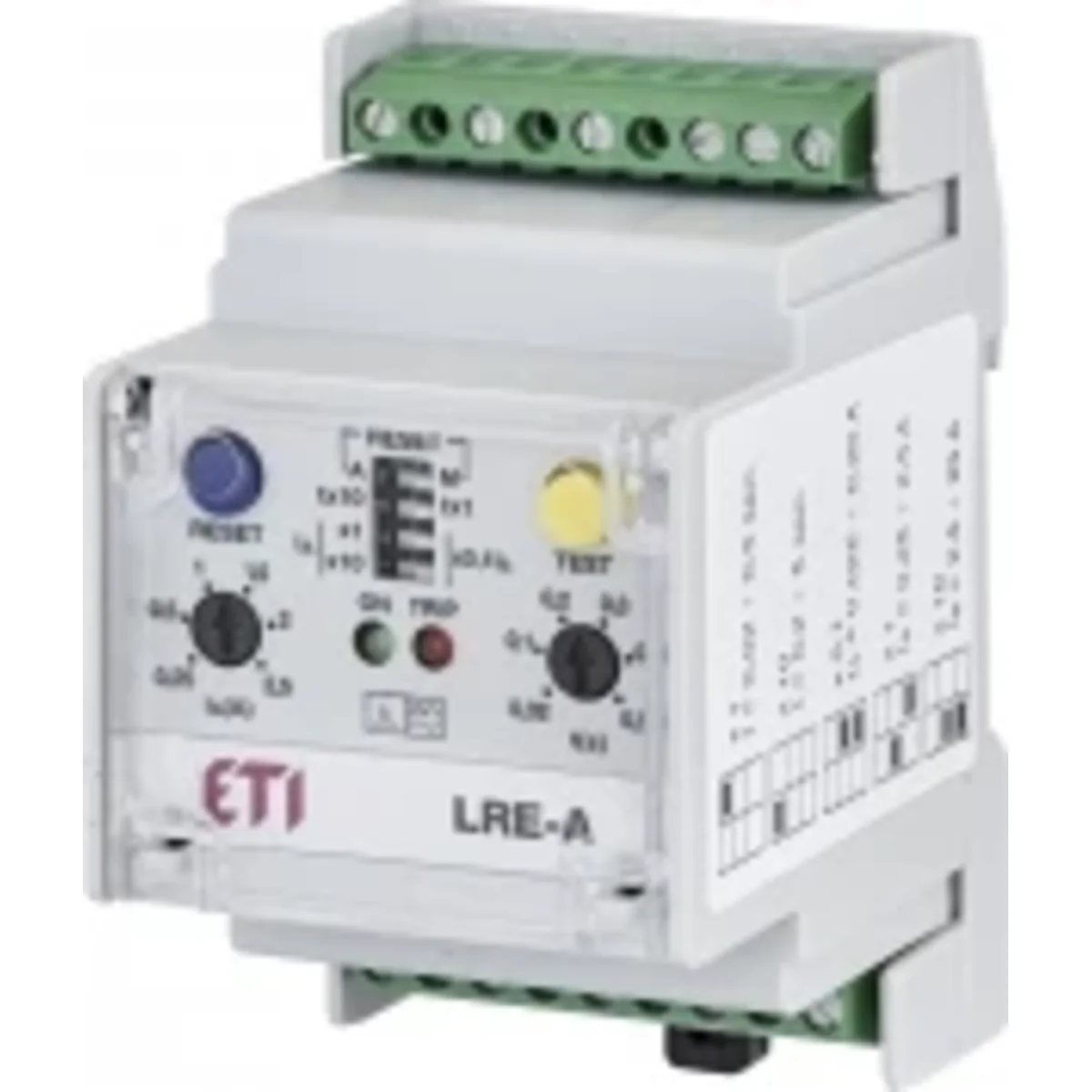

Earth leakage relay LRE-A 110-230-380V 004671603
local index:
APL004ETIP
Catalog No:
004671603
EAN code:
3838895505242
Manufacturer:
ETI POLAM
Operating voltage range [V]: 110-230-380
Price:
329,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The new LRE residual current relays and the CTE toroidal transformers used with them cover the protection of energy receivers and motors. They are designed in particular to cooperate with the ETIBREAK series compact circuit breakers equipped with a shunt voltage release. Universal versions of the relays allow you to easily protect the installation individually or ensure proper selectivity of the residual current protections.
Technical data
-
Operating voltage range [V]110-230-380
-
PKWIU27.12.22.0
Other technical data
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 60 Hz110 ... 415 V
-
Voltage type for actuatingAC/DC
-
FunctionFor AC-current system
-
Response value amperage 125 ... 25 mA
-
Min. adjustable delay-on energization time0.02 s
-
Indication of difference currentYes
-
Number of contacts as change-over contact1
-
Height85 mm
-
Rated control supply voltage AC 50 Hz110 ... 415 V
-
Rated control supply voltage DC110 ... 127 V
-
With detachable clampsYes
-
Rated frequency50 ... 60 Hz
-
Response value amperage 2250000 ... 250000 mA
-
Max. permitted delay-on energization time5 s
-
Error registration possibleYes
-
Width52.5 mm
-
Depth73 mm
