Temperature and lighting probe with battery operation RH-T1X1

local index:
APL113FIFQ
Catalog No:
RH-T1X1
EAN code:
5908312596790
Manufacturer: F&F
Number of channels: 2
Color: Black
maximum range [m]: 100
Price:
66,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

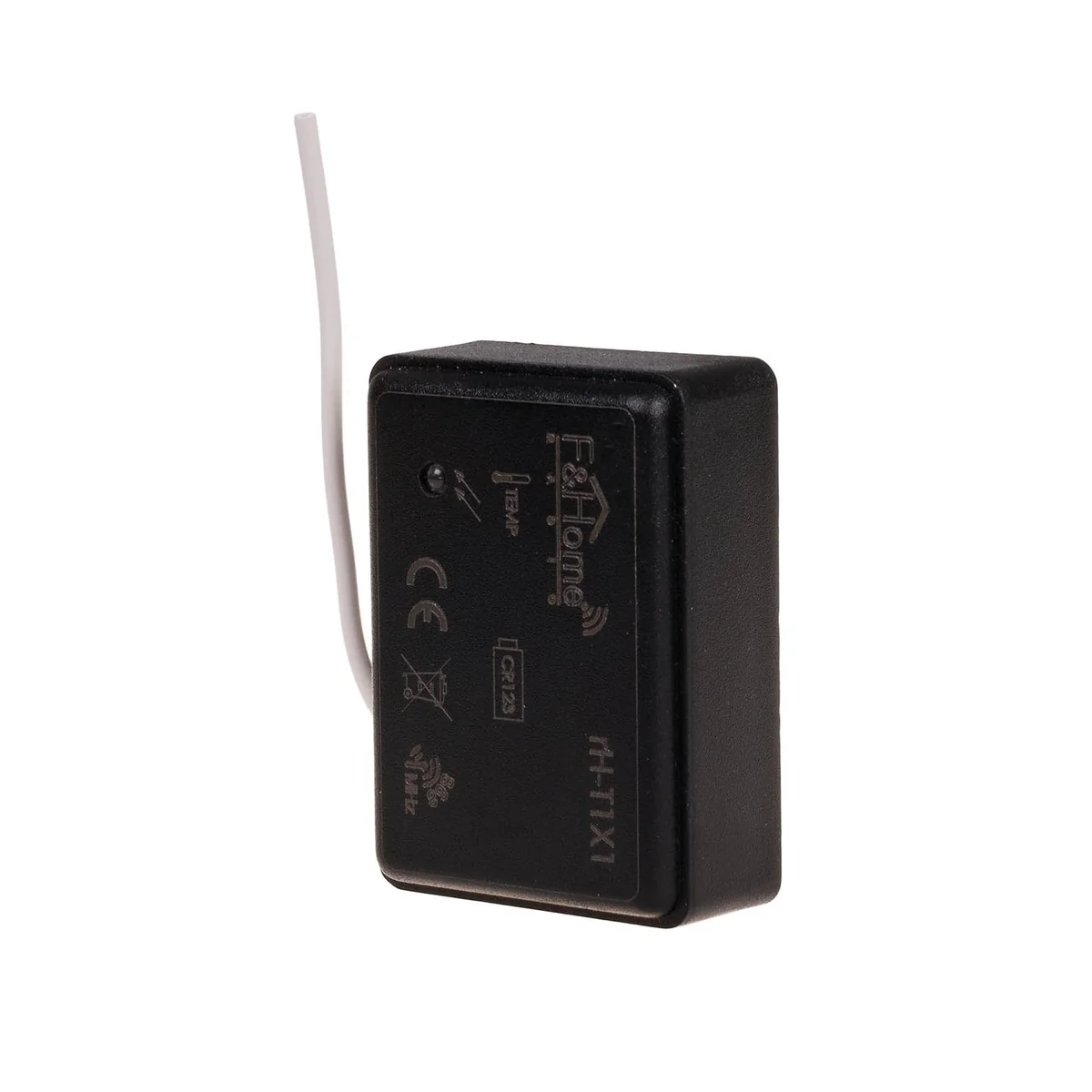

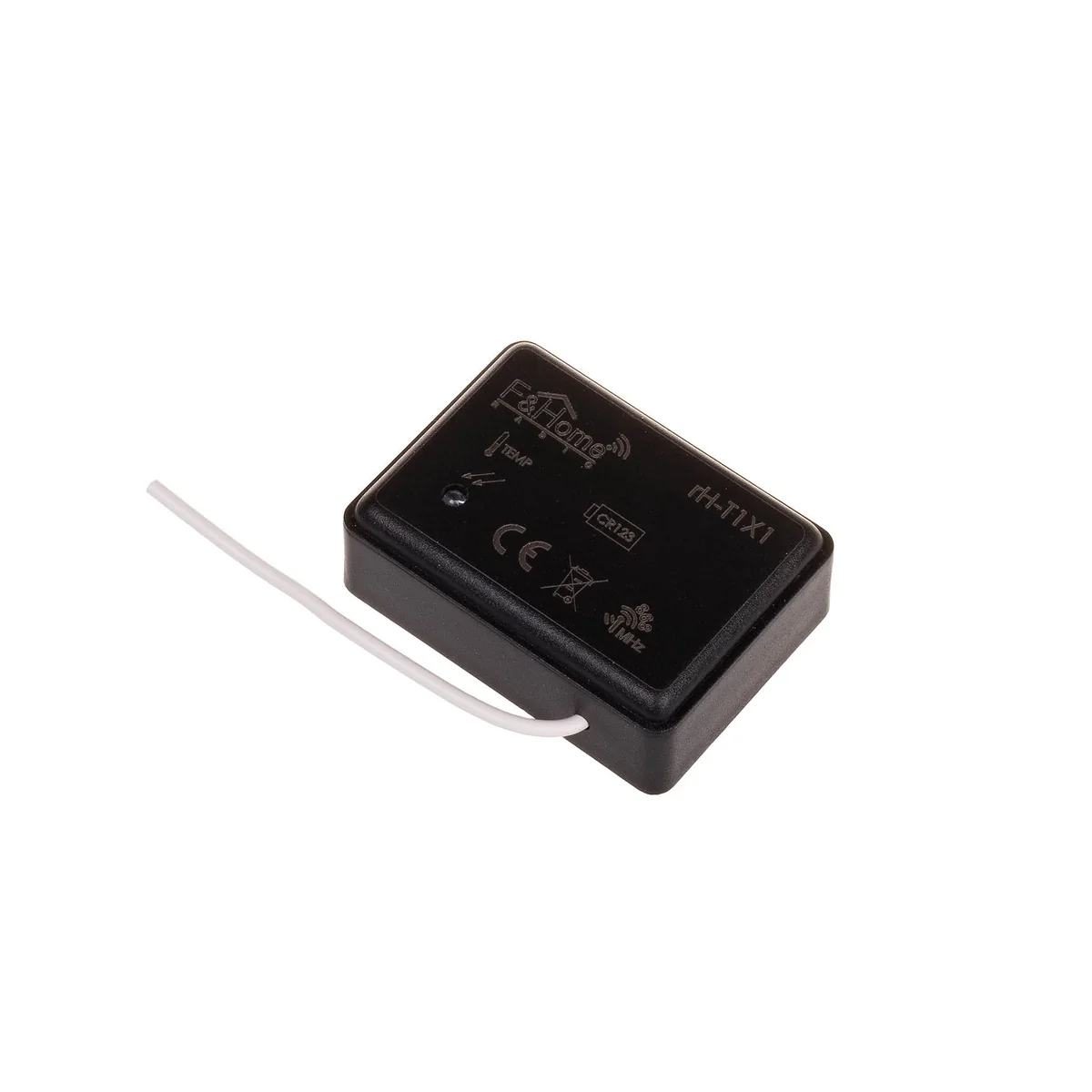

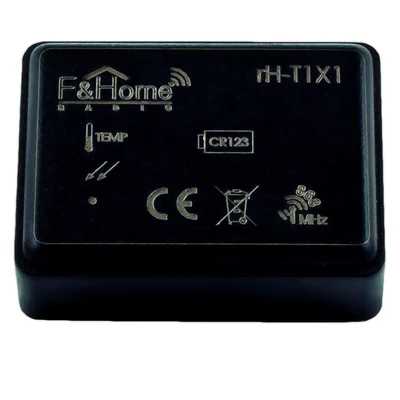

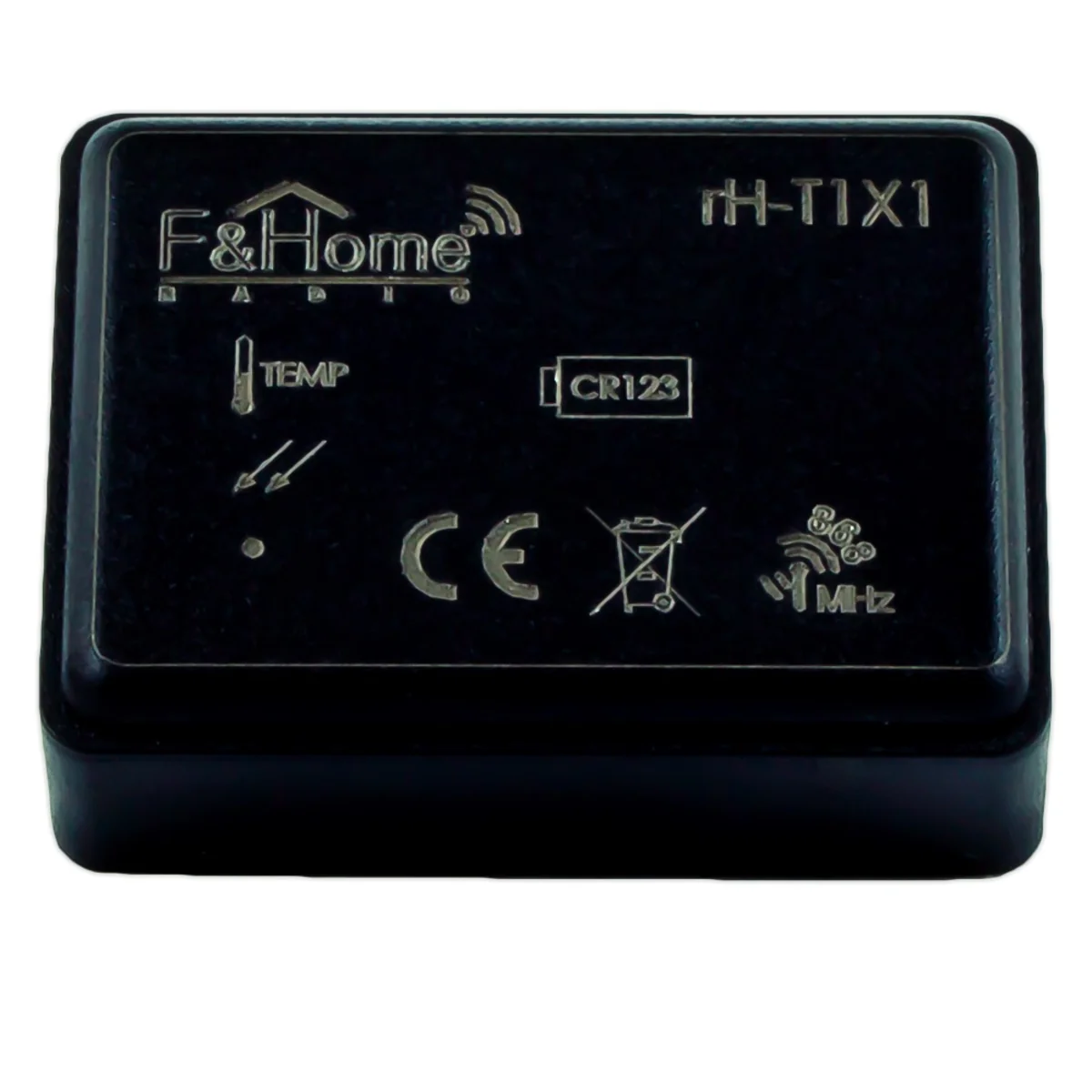

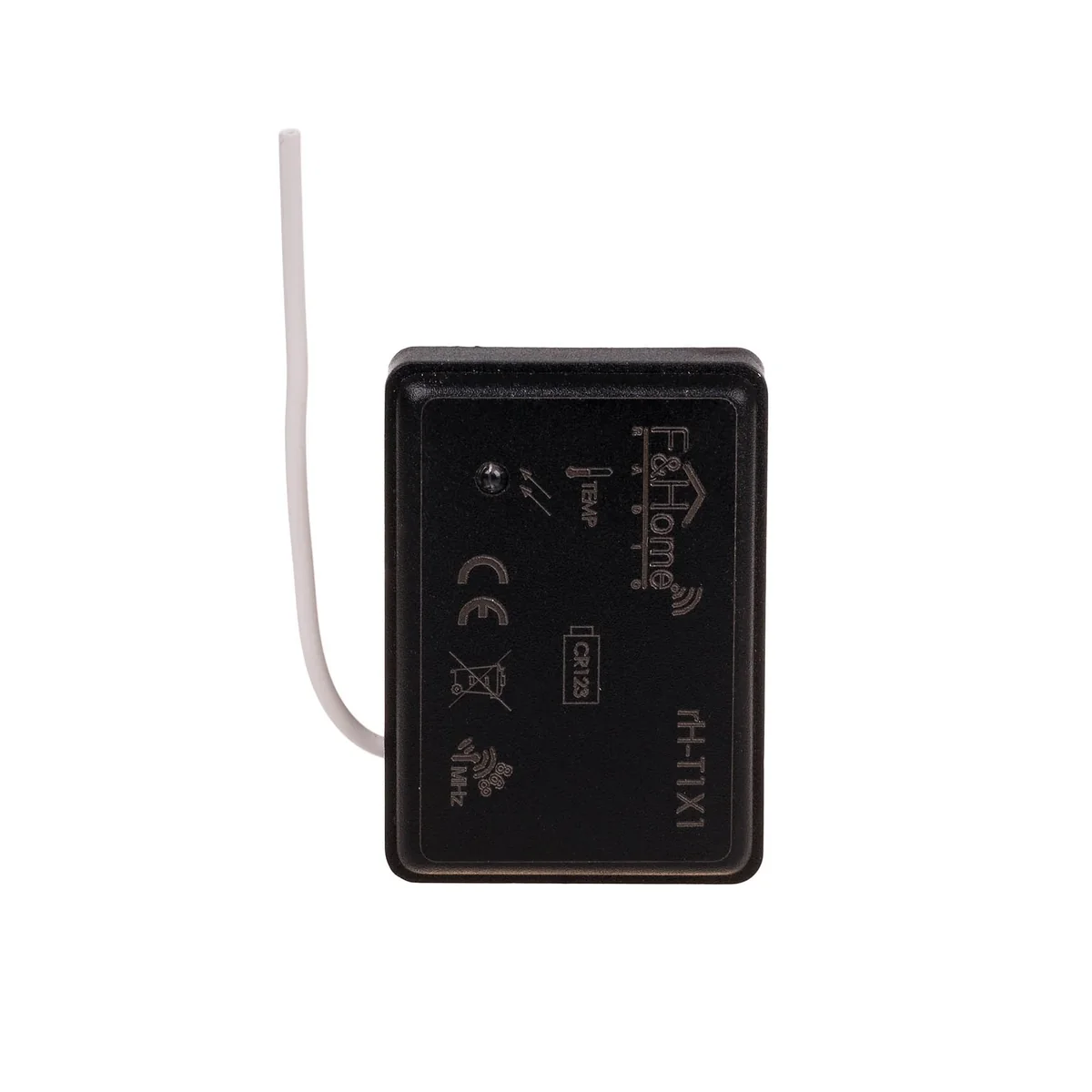

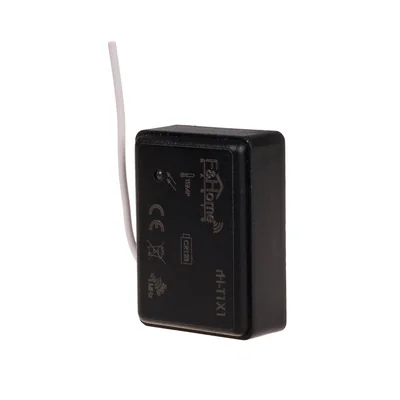

The rH-T1X1 battery powered temperature and lighting probe is used to measure ambient temperature and light intensity and send these data to the system. The connection to the server is done by radio. The sensors (temperature and intensity) are enclosed inside the casing.


Illuminance measurement is made through a hole in the casing. Due to the housing, the temperature measurement is burdened with a time delay.


This probe is particularly suitable for assisting room temperature control and control automatic lighting by measuring outside the building.

Technical data

  • Number of channels
    2
  • maximum range [m]
    100
  • Family
    F&HOME RADIO
  • Package height [mm]
    51
  • Packaging diameter [mm]
    37
  • PKWIU
    26.51.70.0
  • Color
    Black
  • Installation
    Flush-mounted
  • Range [m]
    100
  • Package weight [kg]
    0.2
  • Accurate color
    Black

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    Flush-mounted
  • Type of sensor
    Separate light sensor/cable
  • Number of channels
    1
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • With LED indication
    No
  • With bus connection
    No
  • Setting
    2 ... 5000 lx

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,060
Width (m) 0,090
Length (m) 0,105
Depth (m) 0,030
