Hermetic switchgear RH-8 36.8

local index:
RIH010ELOP
Catalog No:
36.8
EAN code:
5905548284026
Depth [mm]: 138
Number of modules: 8
Level of security: IP65
Price:
22,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 38 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

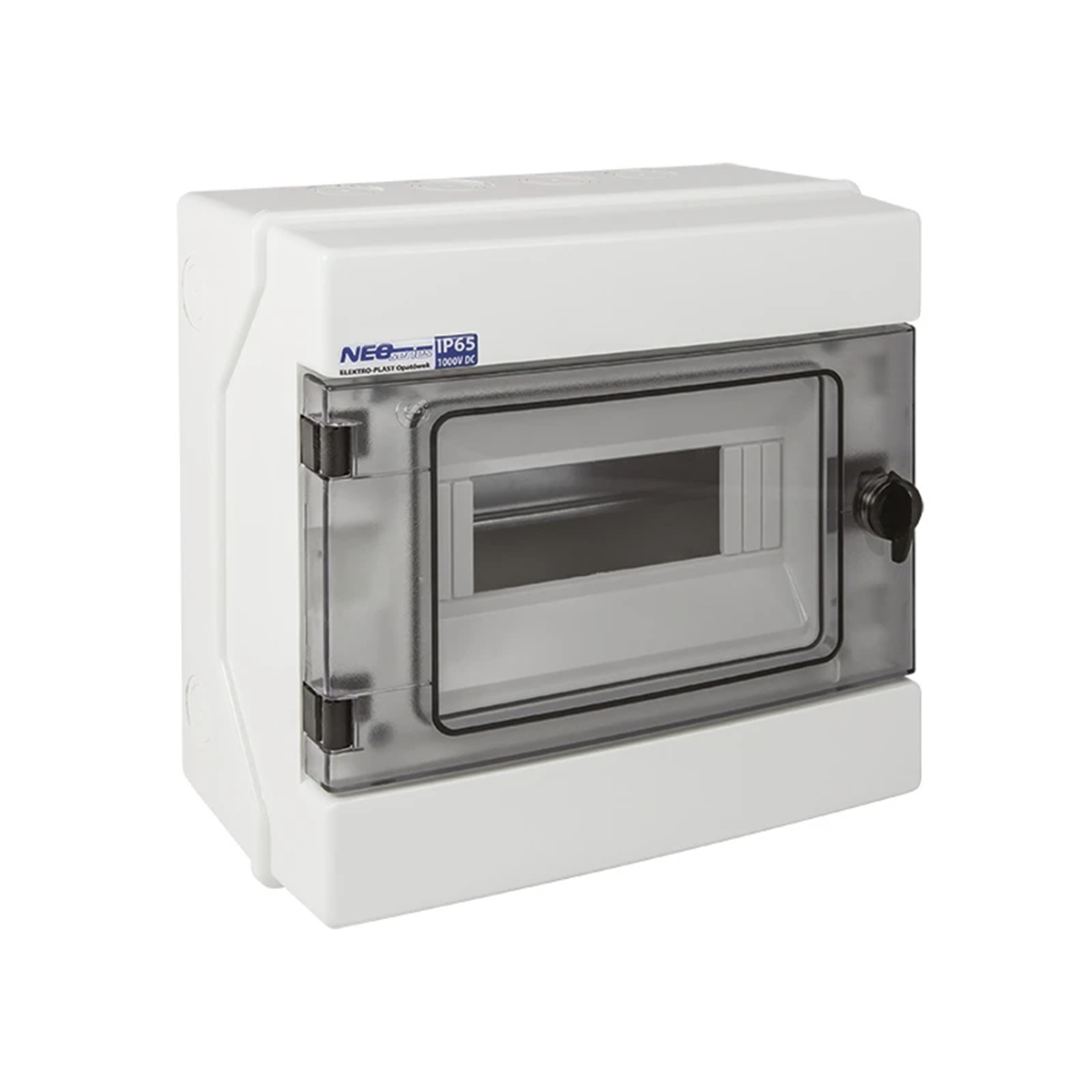

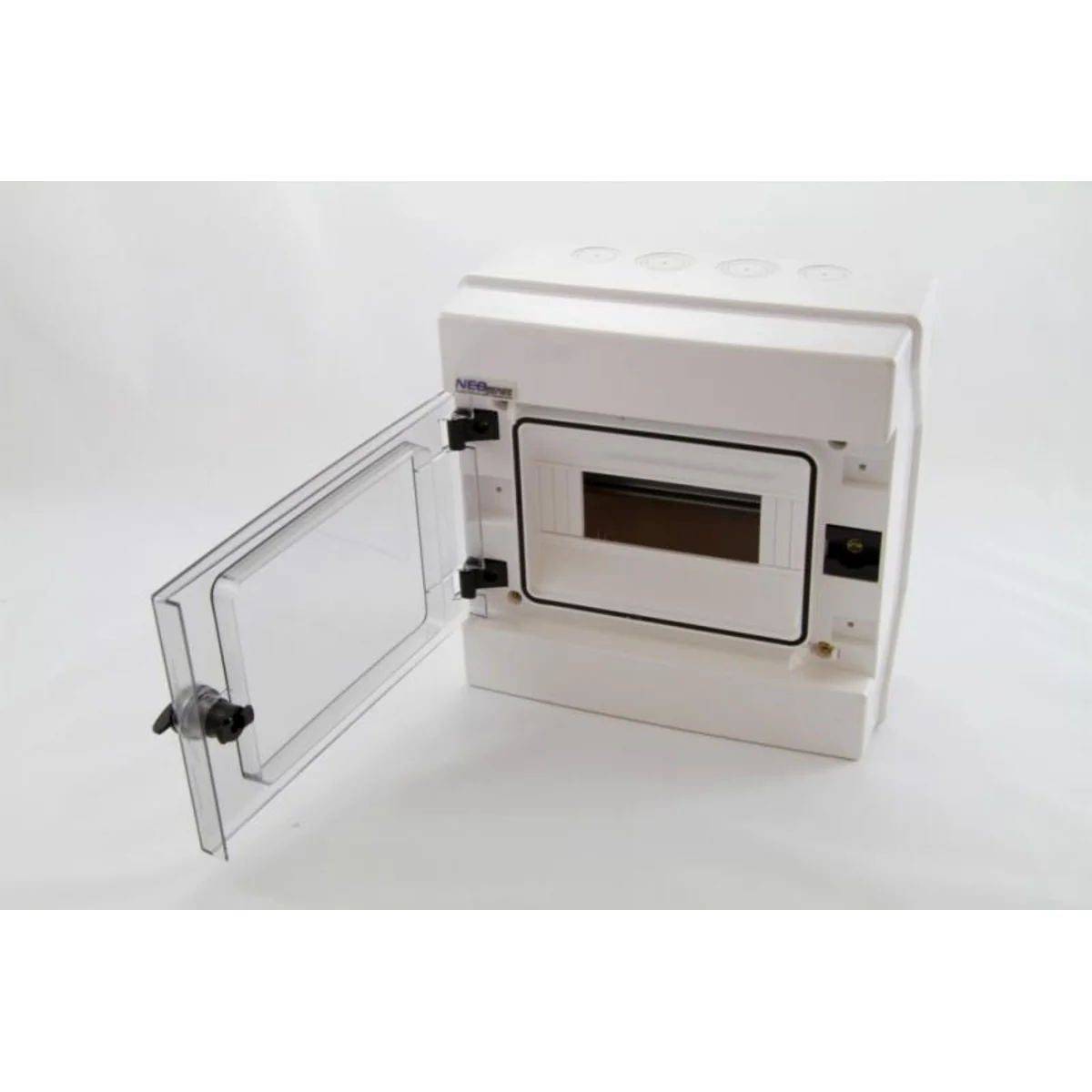

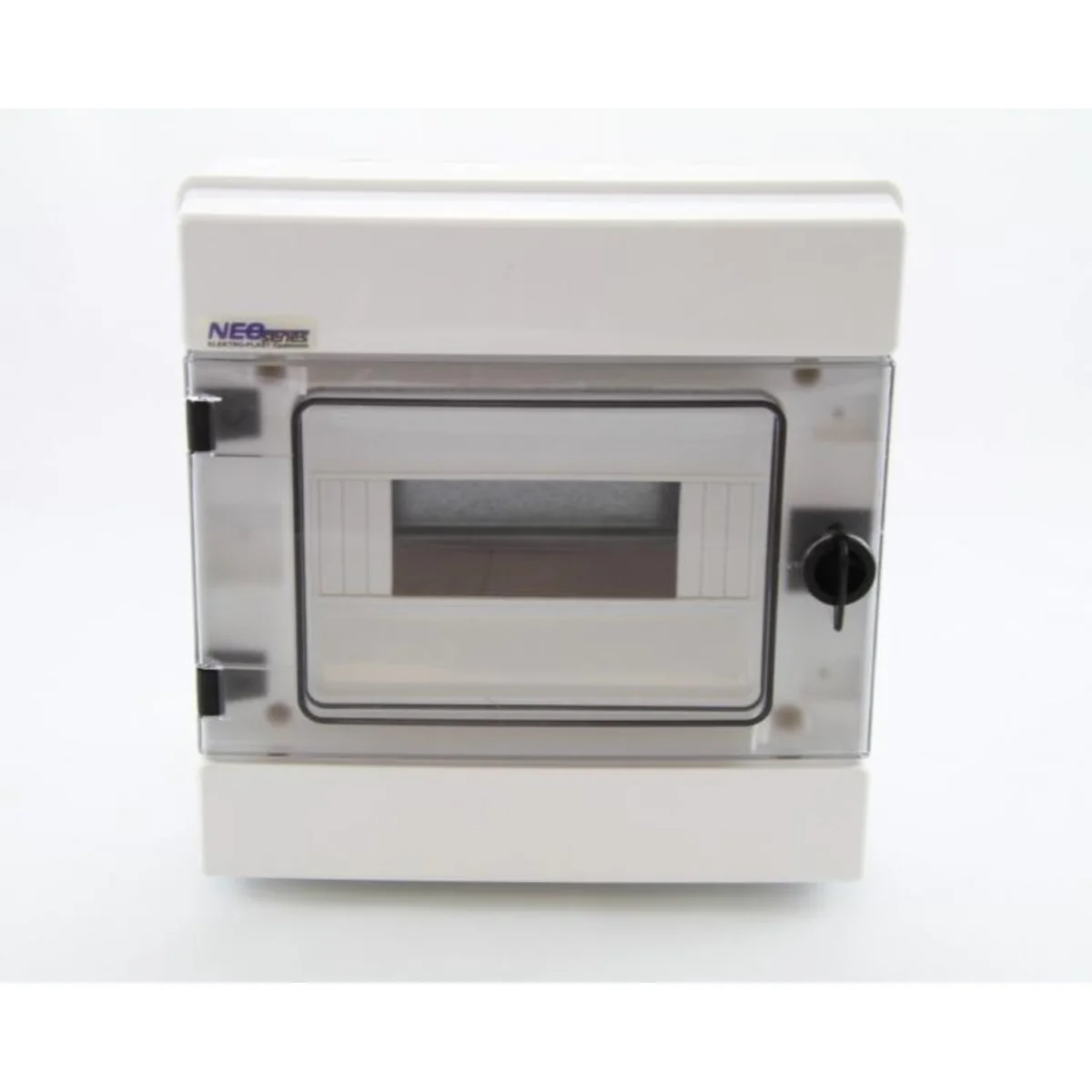

Hermetic switchgears of the RH "NEO" series are intended for domestic and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices. They are available in a surface-mounted version and are widely used in outdoor installations. Technical characteristics: switchboards equipped with a transparent tinted door that opens to the side (left or right), adapted to be fitted with a key lock, available in white, made of high-quality >ABS< material, resistant to high temperature up to 960oC (hot rod test - applies to the terminal strip), operation stability from -25oC to +60oC, impact resistance (IK 07 grade), possibility of installing devices with a depth of 68 and 75mm, 12-module and larger models equipped with knockouts in the walls for cable glands and installation pipes, possibility of sealing the door, switchboards equipped with: terminal strips for N and PE lines, TH 35 mounting bracket, self-adhesive label for descriptions.

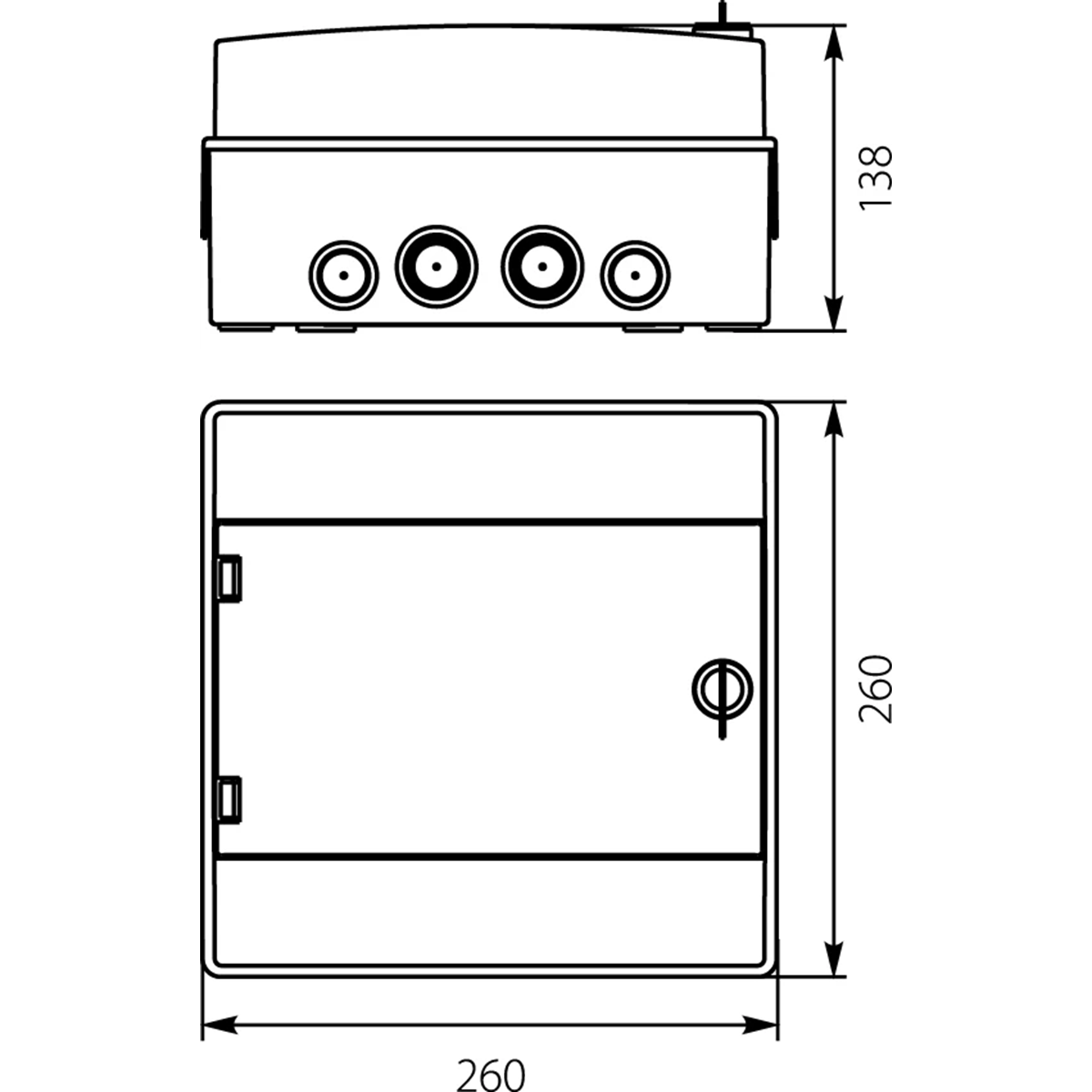

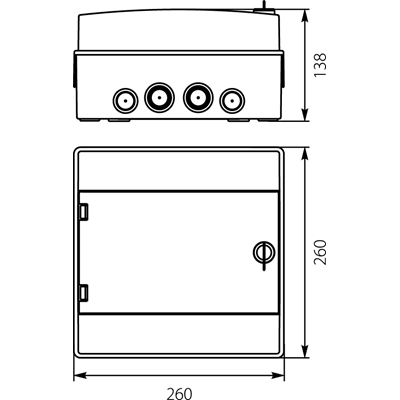

Technical data

  • Depth [mm]
    138
  • Level of security
    IP65
  • Height [mm]
    260
  • Number of modules
    8
  • Width [mm]
    260
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    8
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    260 mm
  • Built-in depth
    42 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP65
  • Type of closure
    Cylinder
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    260 mm
  • Depth
    138 mm
  • Inner depth
    138 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 1,274 0,170
Width (m) - 0,150
Length (m) - 0,270
Depth (m) - 0,275
