Folded earth electrode set fi16 / 2x1500mm + hot-dip galvanized earth connection F195128

Name: Folded earth electrode set fi16 / 2x1500mm + hot-dip galvanized earth connection
Brand: AN-KOM
SKU: AOM001ANKO
Price: 131.49 PLN
Availability: InStock

local index:

AOM001ANKO

Catalog No:

F195128

EAN code:

5907770517248

Folded earth electrode set fi16 / 2x1500mm + hot-dip galvanized earth connection

Click on the photo to enlarge

Manufacturer: AN-KOM

Length [mm]: 3000

Material: galvanized steel

Maximum tape width [mm]: 40

See full description

Large-size product

Price:

131,49 zł

gross / set

(including VAT 23%)

Delivery in 3h

Accessible 468 set

Quantity set

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

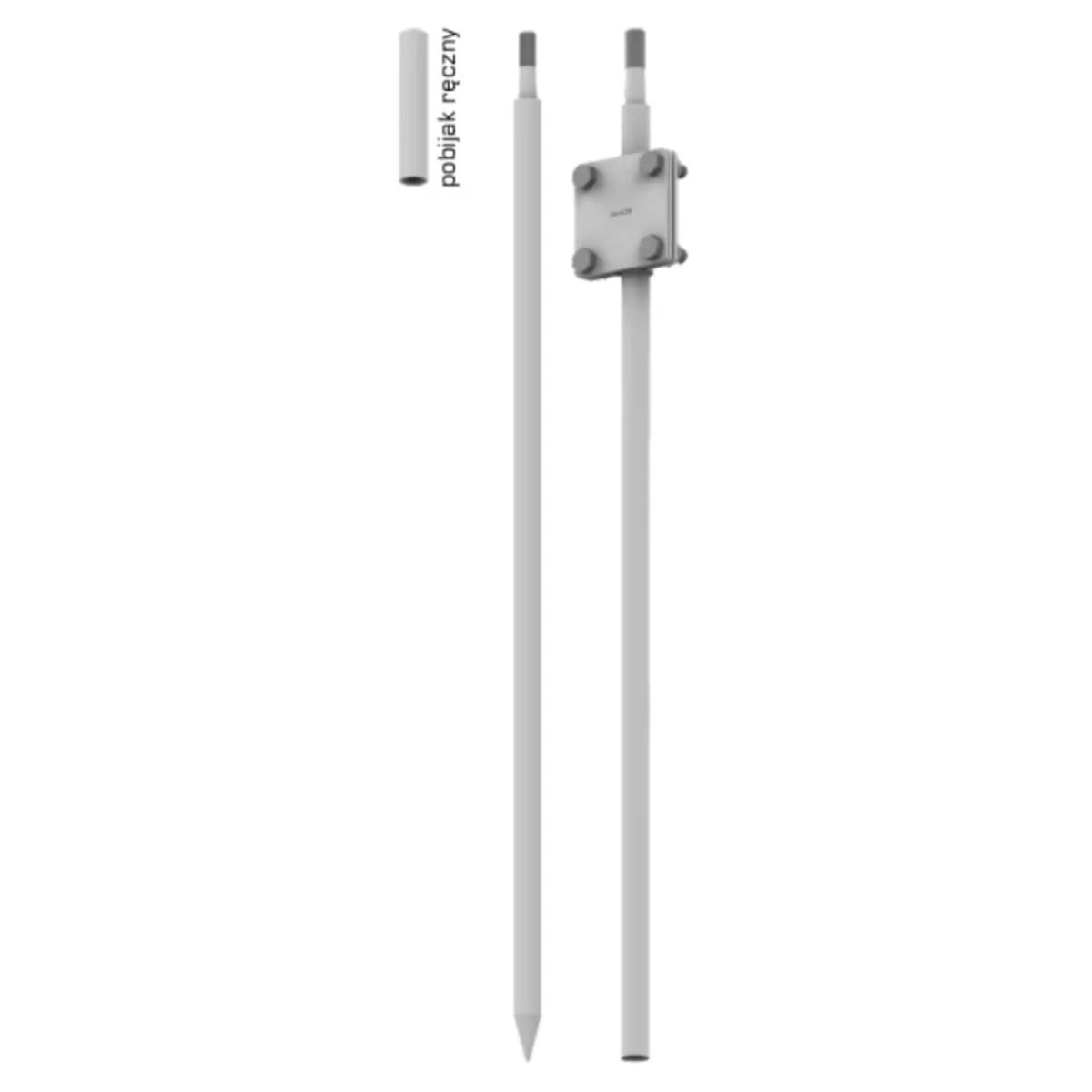

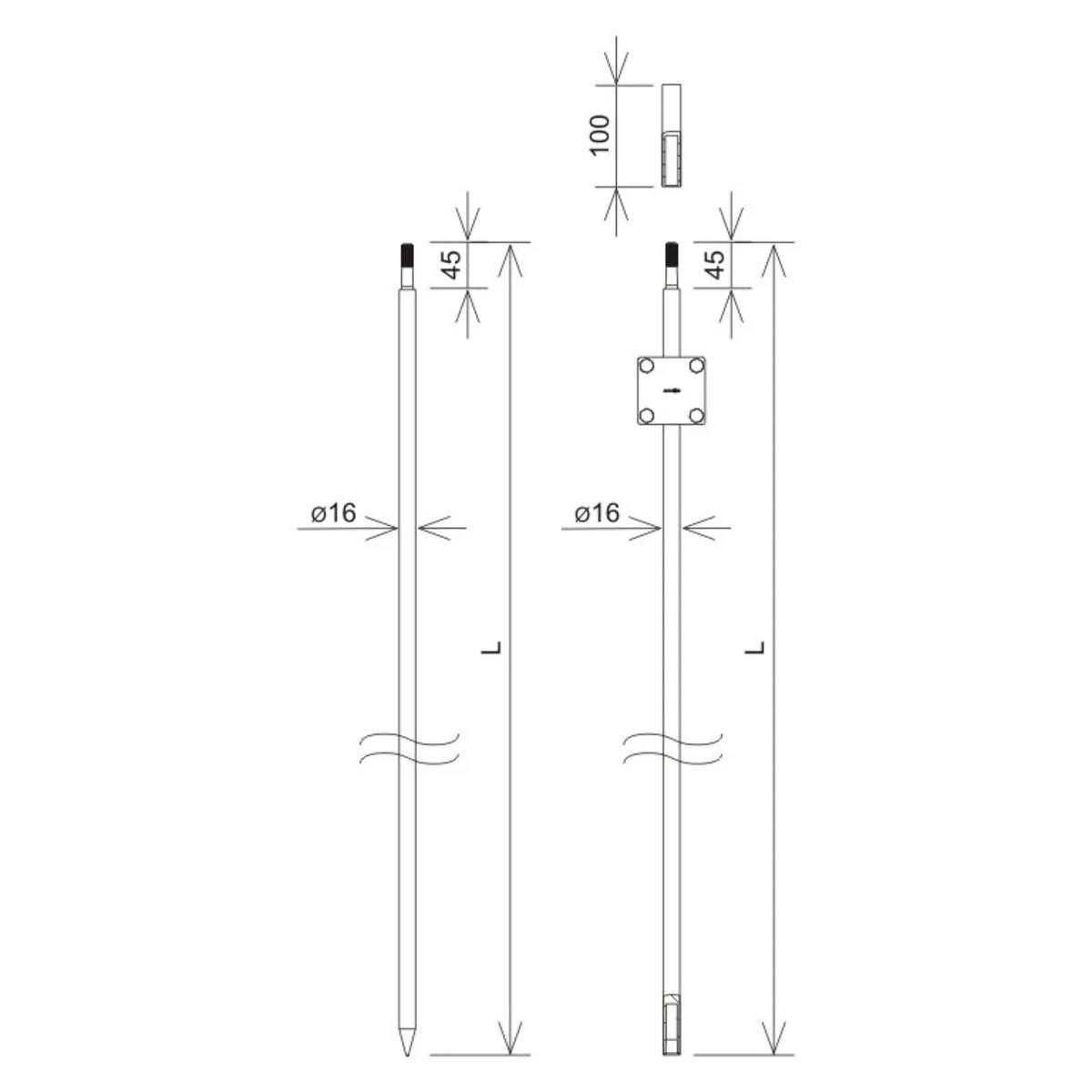

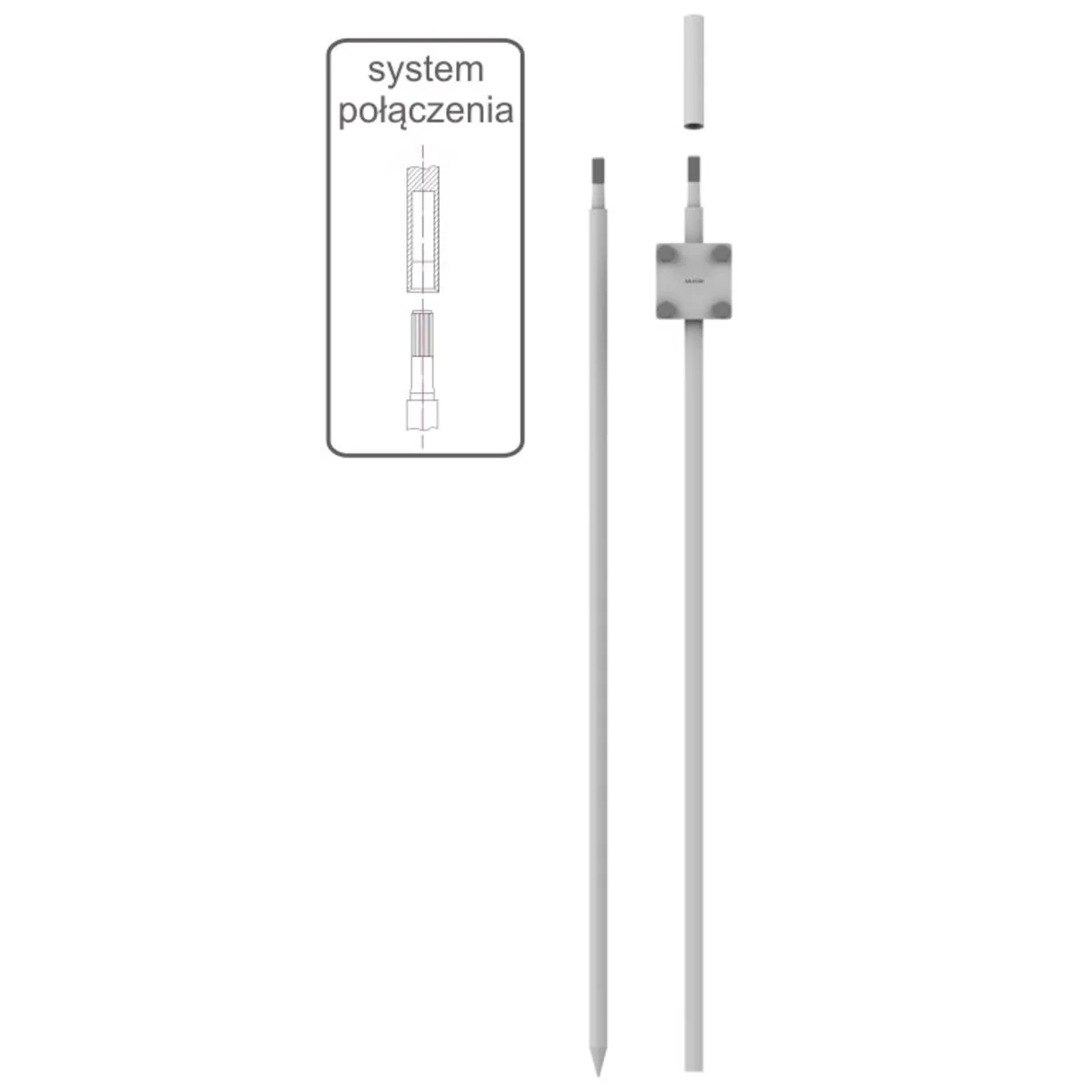

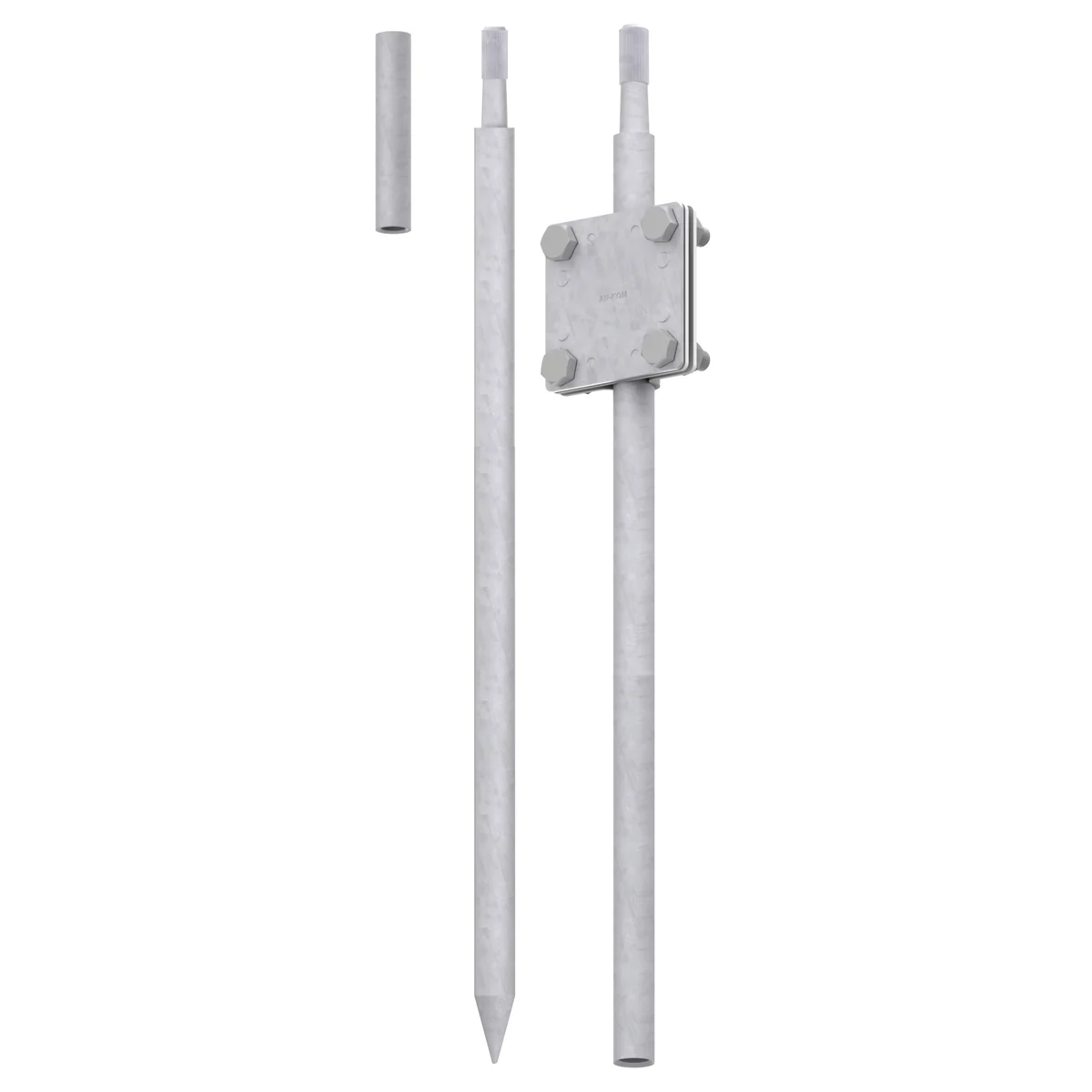

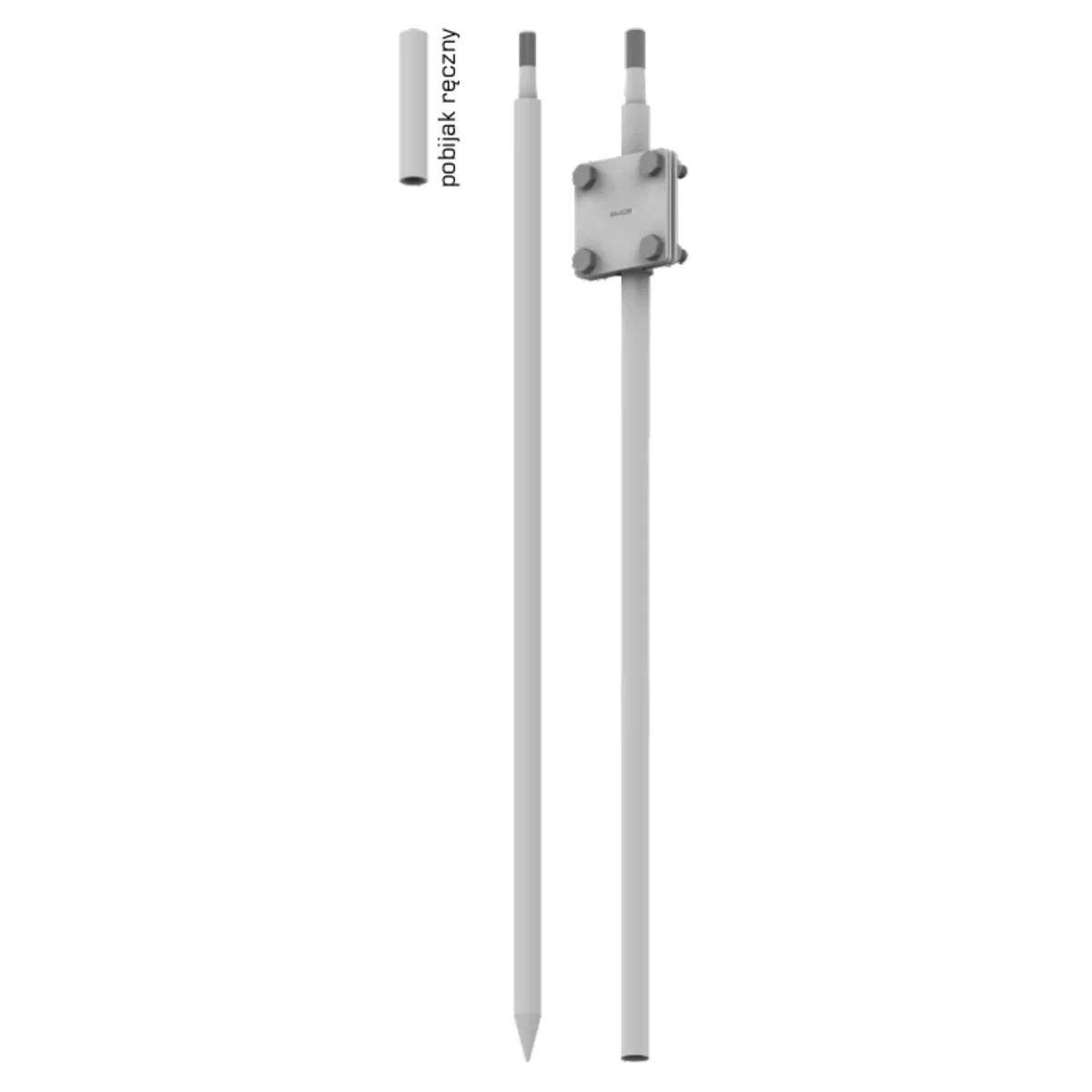

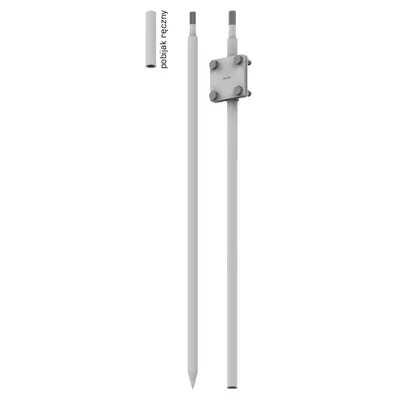

Folded earth electrode, complete, 3 m long. It consists of two rods (base, extension) L=1500mm, earthing connector for connection to the hoop iron and a mallet. It is possible to expand the earthing system by using the AN-54Z extension.

Technical data

Length [mm]

3000
Maximum tape width [mm]

40
screws

4xM8x30
PKWIU

25.99.29.0

Material

galvanized steel
Earth electrode diameter [mm]

16
Surface protection

hot-dip galvanized

Other technical data

Model

Equipped with connection lug
Type of connection

With tappet/bore hole
Material

Steel

Type of profile

Okrągły D=16 mm
Length

1500 mm
Surface protection

Ocynk ogniowy zanurzeniowy

Manufacturer details

Manufacturer

AN-KOM 2 Sp. z o.o.
Address

34-120 Inwałd ks. W. Bukowińskiego 15 Polska
E-mail

biuro@an-kom.pl

Bulk packaging

A kind of package		Paczka
Quantity	1 set	1 set
Weight (kg)	5,100	5,200
Volume (m3)	-	0,008
Width (m)	0,045	0,065
Length (m)	1,500	1,520
Depth (m)	0,065	0,085
