Radio two-channel LED driver 12V - assembly PDT 10÷16V DC FW-LED2P

local index:
APL015FIFQ
Catalog No:
FW-LED2P
EAN code:
5908312599319
Manufacturer: F&F
Rated voltage [V]: 12
Power consumption in standby mode [W]: 0.25
Family: F&WAVE
Price:
28,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

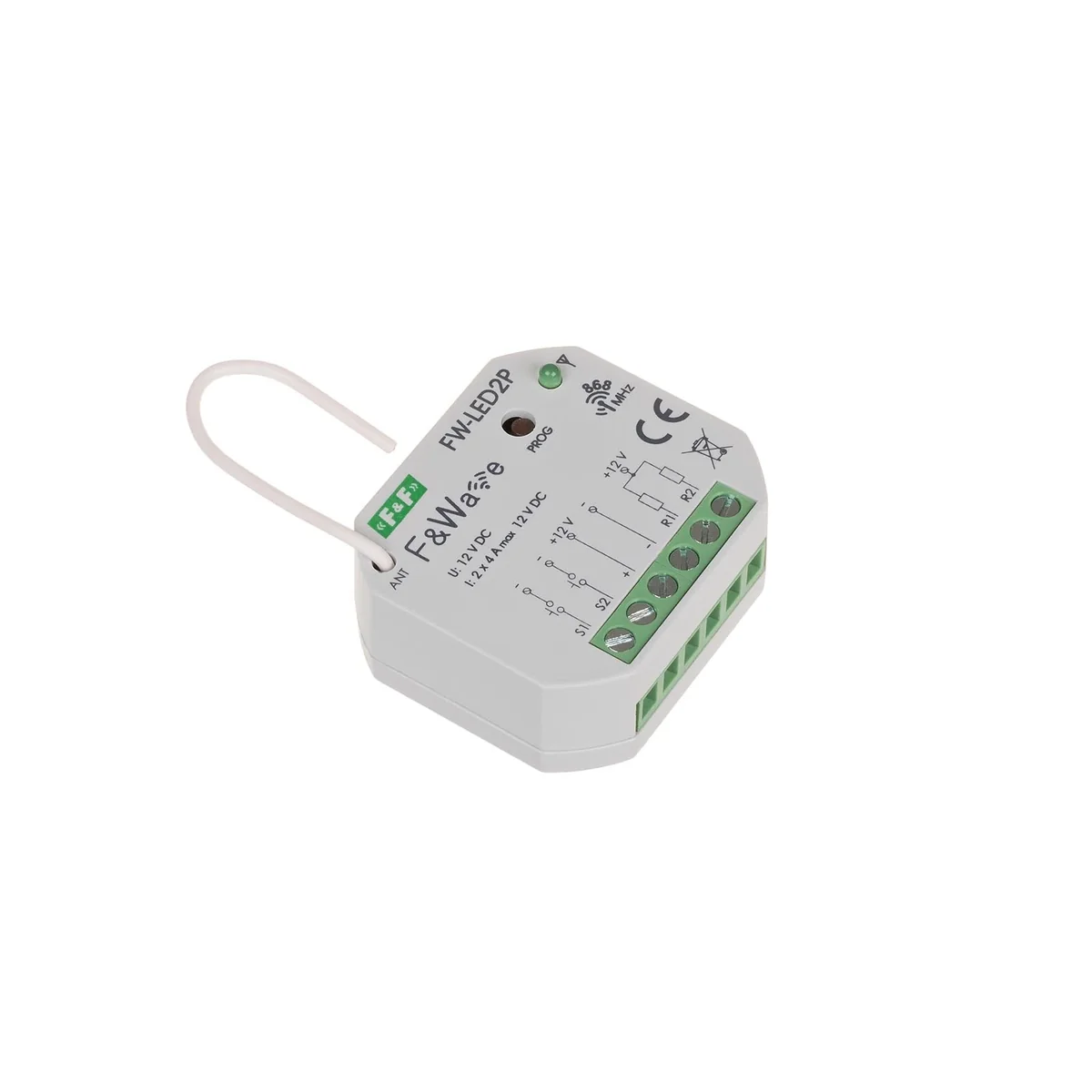

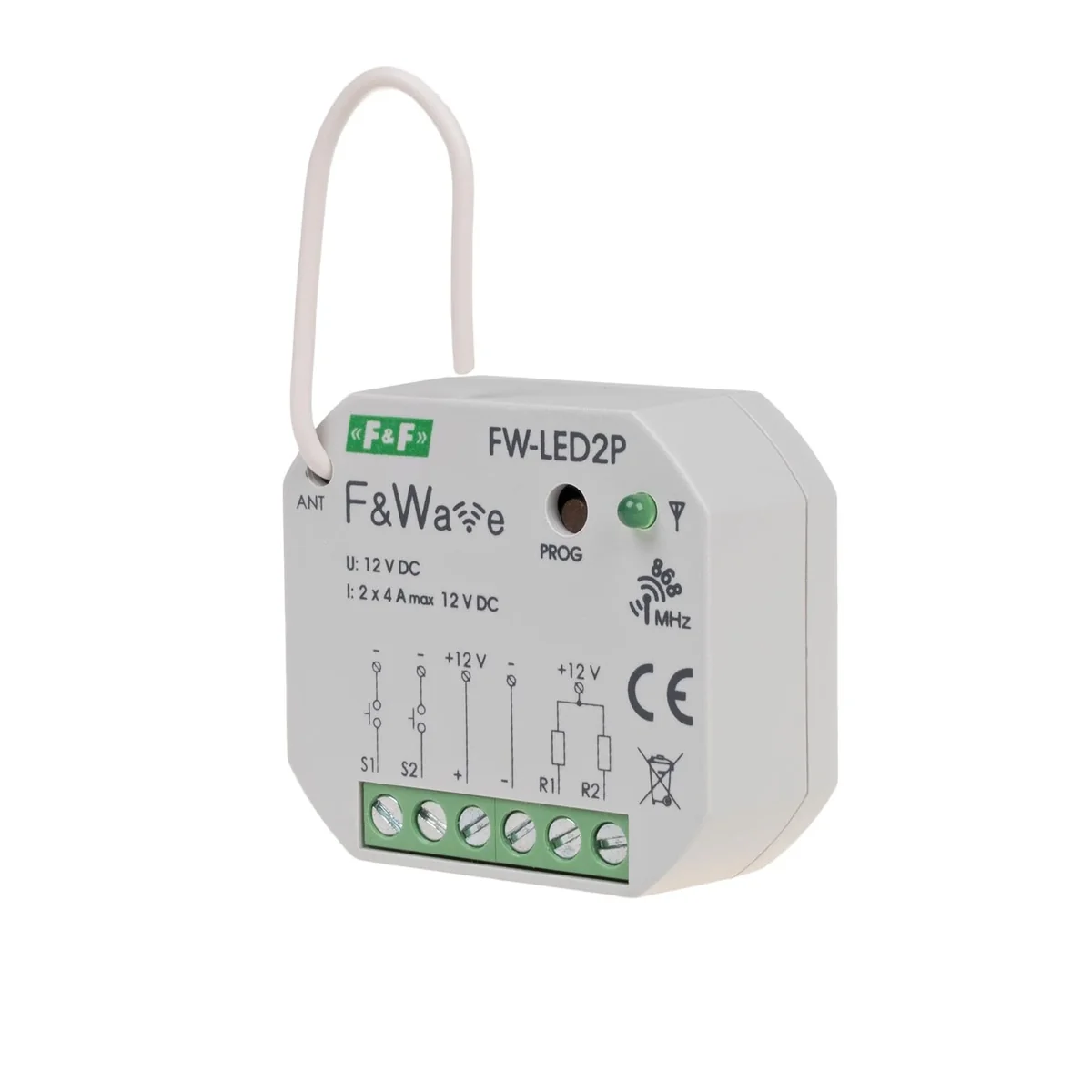

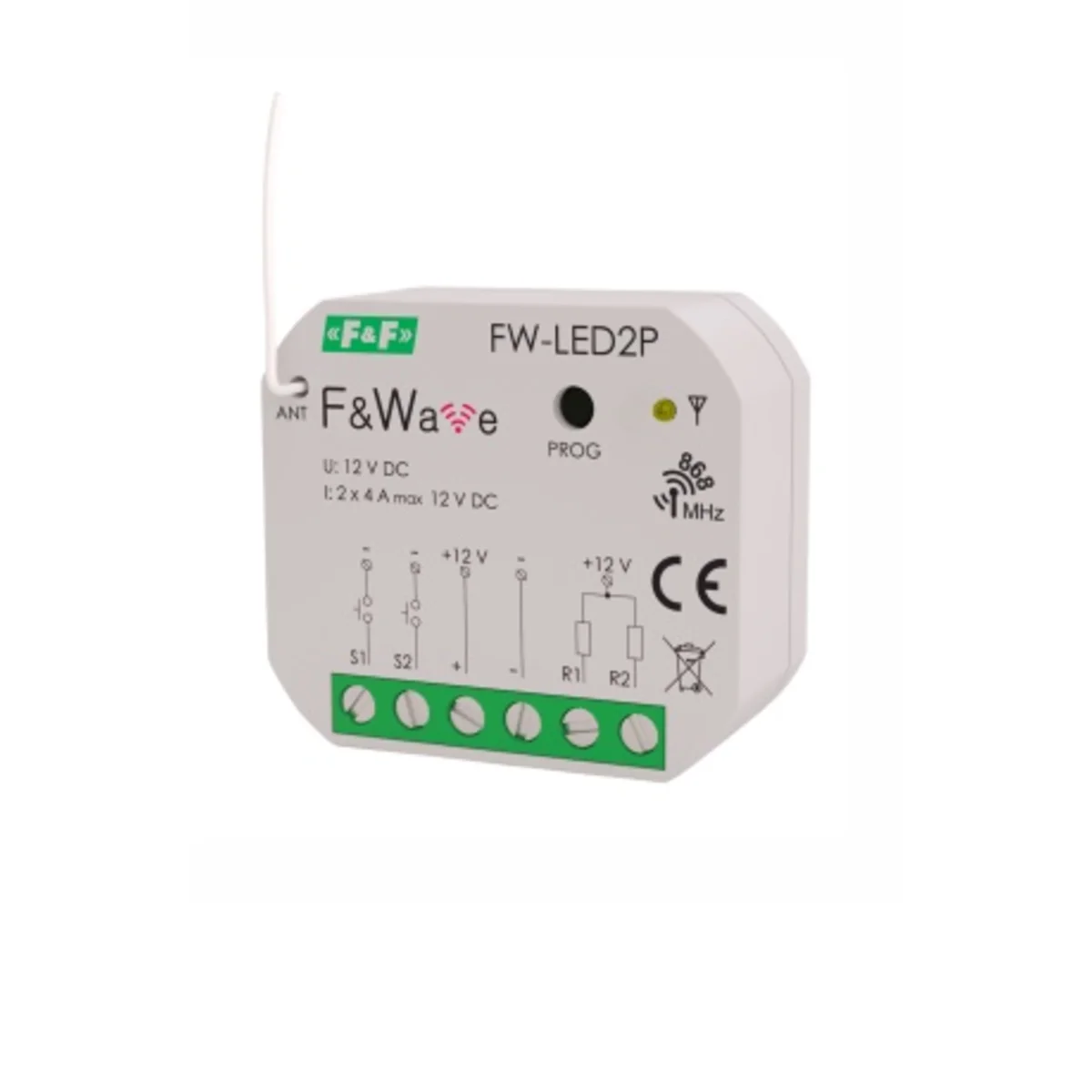

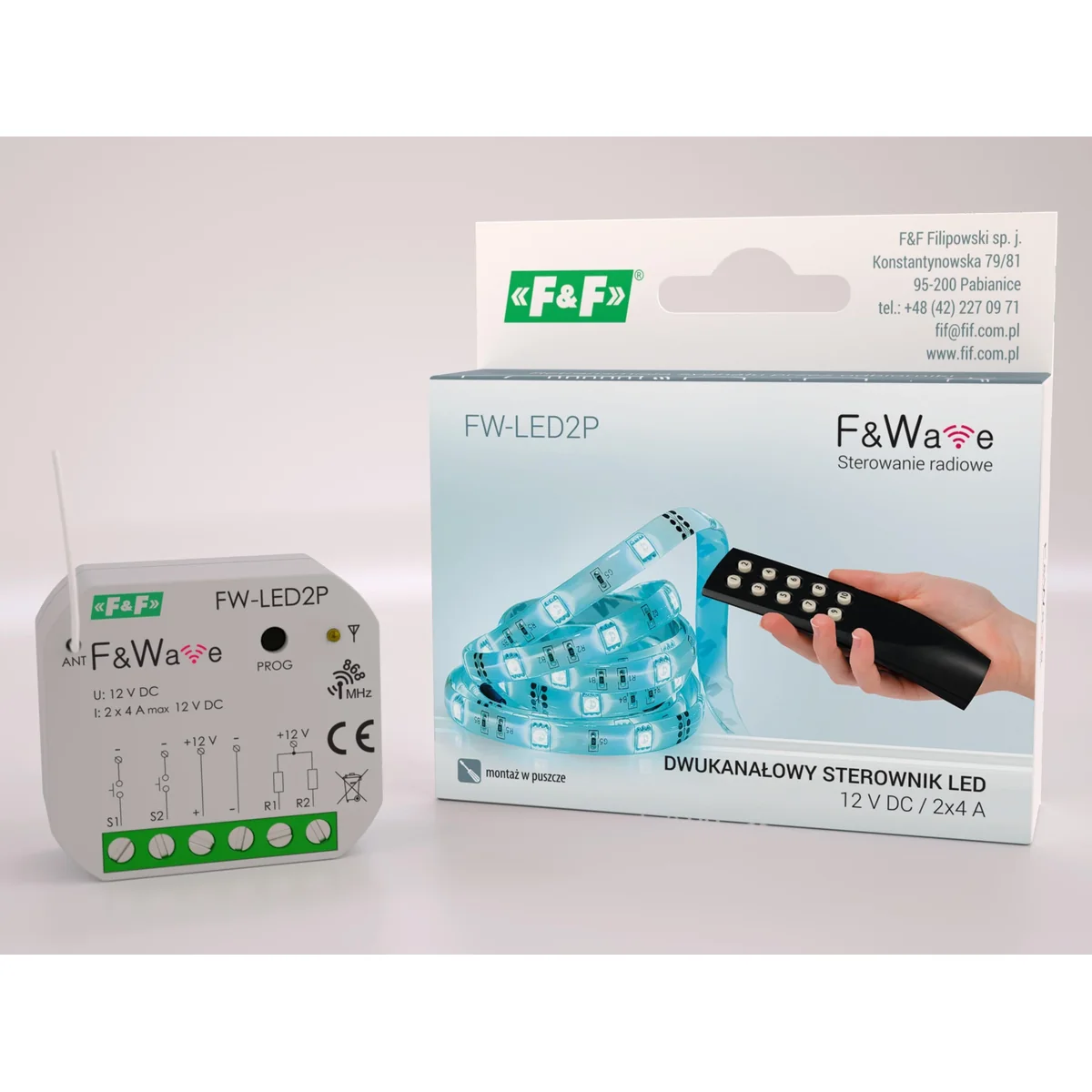

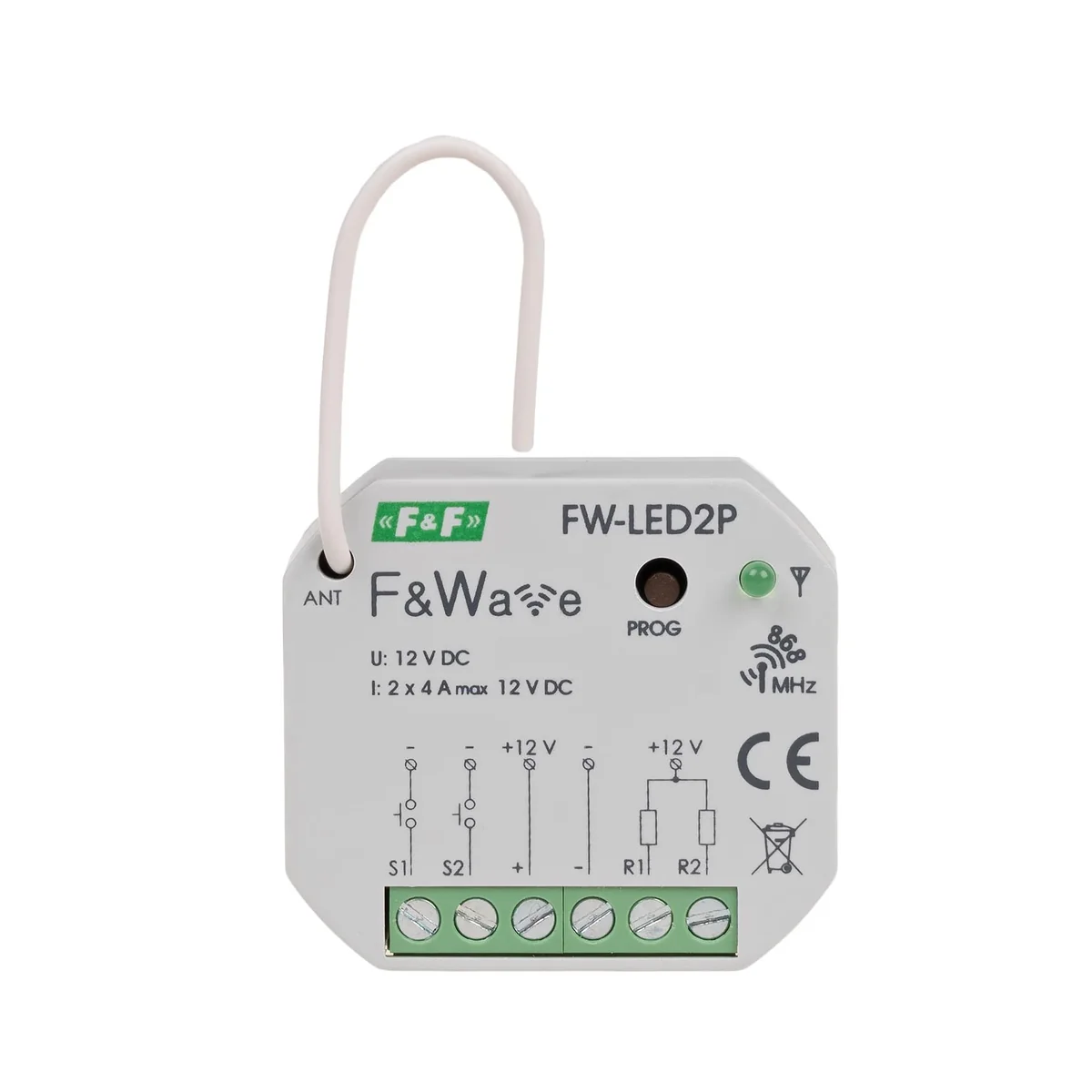

2-channel 12V DC LED driver. For flush-mounted box Ø60.


Module features



  • 12V DC Dual Channel LED Driver;


  • Compatibility with F&Wave remote control transmitters;


  • Control with up to 8 transmitters ;


  • Two local control inputs - possibility of direct lighting control using any monostable buttons (e.g. bell);

  • Ability to control 12V LED strips, 12V dimmable LED bulbs;


  • Soft start - smooth lighting on/off;


  • Slight housing size;


  • Screw terminals for easy mounting in a Ø60 flush-mounted box;


  • Retransmission of commands from the transmitter - the ability to increase the remote control range;


  • Low power consumption - low cost of ownership;


  • Built-in electronic thermal protection to prevent damage in case of excessive load dimmer.


Specifications
















operating mode










< br/>

< /tr>
























power supply

10÷16 V DC

control input

10÷16 V DC; <3mA

power consumption



0.40W

standby

0.25W
output load
2 × 4 A/ 12 V DC

radio frequency

868 MHz

operating temperature

-25÷65°C

connector

2.5 mm² screw terminals

tightening torque (max)

0.4Nm

assembly< /td>

Ø60 flush-mounted box
< br/> dimensions
48×43×20 mm

degree of protection

IP20





Operating range

In open space without interfering factors, the range of radio-controlled devices oscillates within 100 m.  In built-up conditions and in the presence of sources of interference (power lines, transmitters, etc.) the actual range may be less. The range can be improved by direct retransmission of modules within each other's range.

Technical data

  • Rated voltage [V]
    12
  • Family
    F&WAVE
  • Working temperature [°C]
    25 - +65
  • PKWIU
    27.12.24.0
  • Power consumption in standby mode [W]
    0.25
  • Level of security
    IP20
  • Power consumption in operating mode [W]
    0.4

Other technical data

  • Suitable for dimmer
    Yes
  • Suitable for roller shutter switch
    No
  • Suitable for venetian-/roller shutter switch
    No
  • In housing
    Yes
  • Printed circuit board/module
    No
  • Push button mode
    Yes
  • With manual radio transmitter
    Yes
  • With radio controlled push button
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Other
  • Colour
    Grey
  • Transparent
    No
  • Radio frequency
    868 MHz
  • Suitable for pulse button
    Yes
  • Suitable for venetian shutter switch
    No
  • Suitable for switch
    No
  • In tube base housing
    No
  • Current supply
    12 - 24 V AC/DC
  • Switching mode
    No
  • With radio coding device
    Yes
  • Number of relays
    2
  • Material
    Plastic
  • Halogen free
    Yes
  • Type of fastening
    Other
  • RAL-number (similar)
    9018
  • Suitable for degree of protection (IP)
    IP20
  • Rolling code system
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,026
Length (m) 0,095
Depth (m) 0,070
