F&F

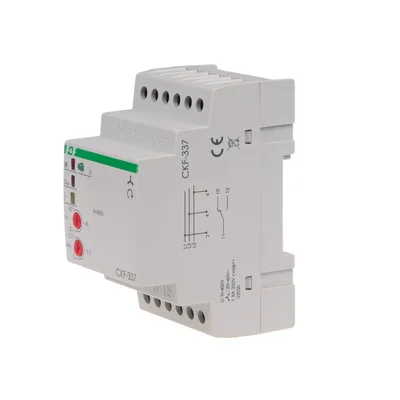

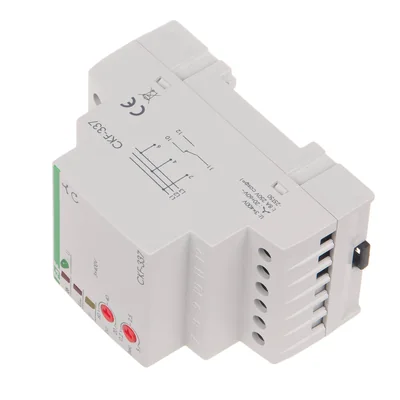

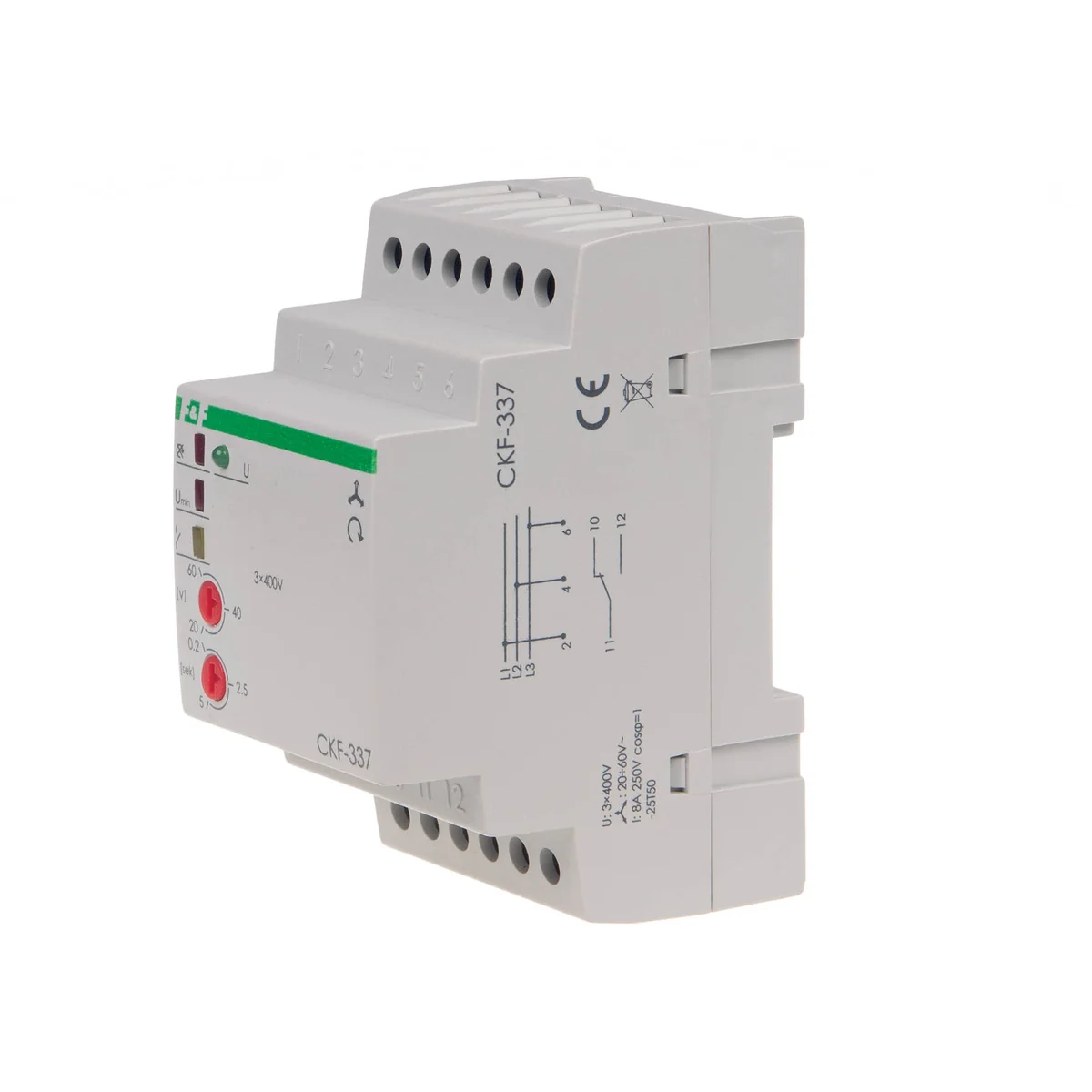

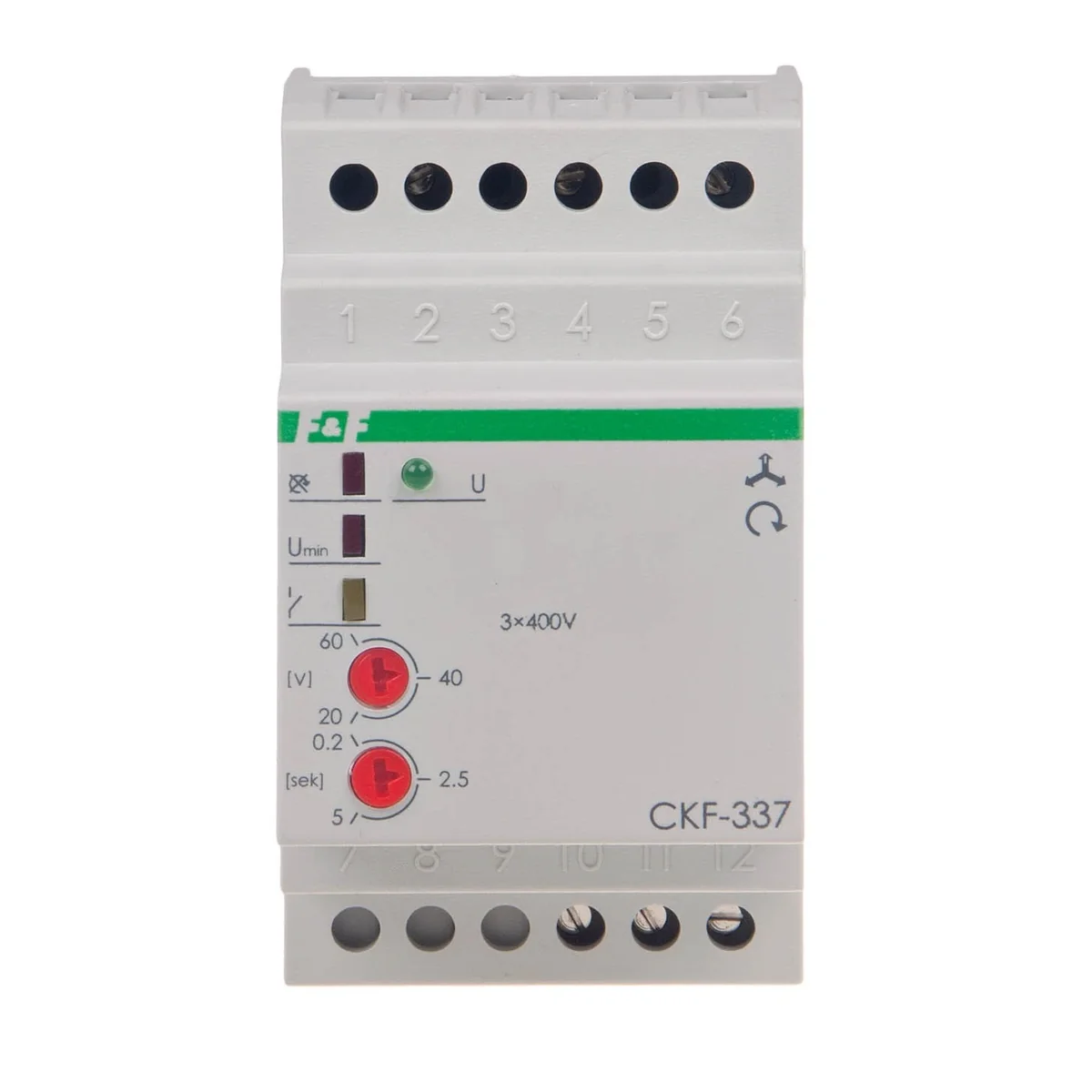

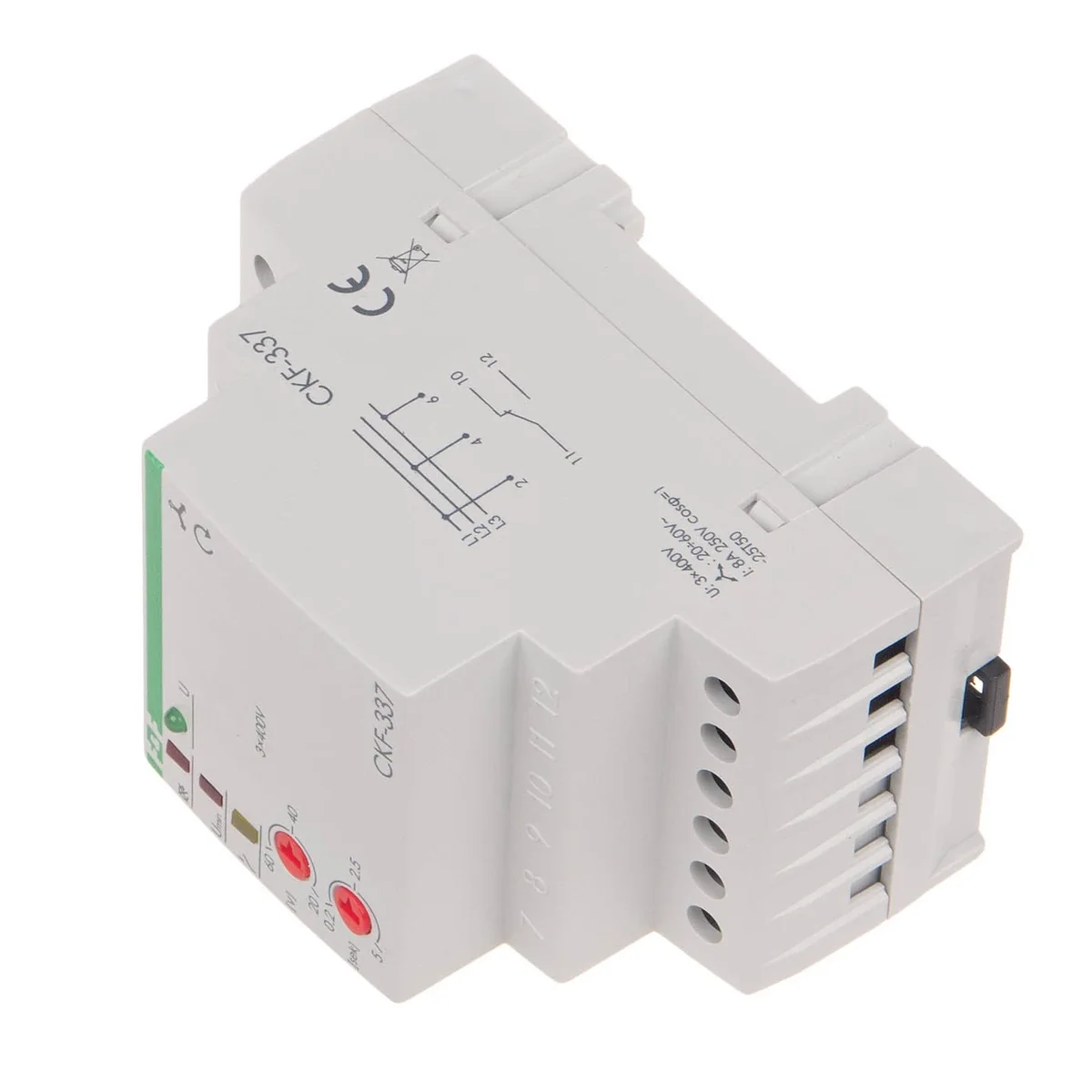

CKF-337 phase sequence and phase loss sensor CKF-337

local index:
APL155FIFQ
Catalog No:
CKF-337
EAN code:
5908312593225
Price:
35,92 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Intended use
The phase loss sensor is designed to protect the motor  power supply from a three-phase network in the event of a voltage failure in at least one phase, symmetrical voltage drop in three phases or voltage asymmetry between phases, which may damage the motor, and protection of the direction of rotation in the event of a change in the phase sequence in front of the sensor.
Action
Voltage decay in at least one, any phase or Trip voltage asymmetry [V] between phases above the set threshold will cause the motor to be switched off. The motor will also be switched off in the event of a symmetrical drop in phase-to-phase voltage in all three phases below 320V. The shutdown will take place with a delay set by the user (0, 2÷5sec). Reactivation will take place automatically when the asymmetry drops by 5V below the set threshold (i.e. by the value of the voltage hysteresis). With the above anomalies, starting the engine is impossible. In the event of a change in the sequence of phases before the sensor, causing an undesirable change in the direction of rotation of the motor, the sensor will not allow the motor to start. Reactivation is possible after the return of the correct phase sequence.

Technical data

  • Trip voltage unbalance [V]
    20-50
  • Number of contacts
    1NO 0NC
  • Installation
    On the TH-35 rail
  • Shutdown delay - adjustable
    0.2-5.0
  • connection
    2.5mm screw terminals
  • Signaling correctness of parameters
    yellow LED
  • Power indication
    LED green
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0, 1
  • Voltage hysteresis [V]
    5
  • Power [W]
    1.6
  • Operation phase-to-phase voltage [V]
    <320
  • load current [A]
    <8
  • Incorrect phase sequence signaling
    red LED
  • Signaling of symmetrical voltage drop
    red LED
  • Working temperature [°C]
    -25-40
  • Power
    3×400V
  • Package width [mm]
    60

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    230 ... 400 V
  • Phase sequence monitoring
    yes
  • Function under voltage detection
    no
  • Phase imbalance monitoring
    yes
  • Min. adjustable off-delay time
    4 s
  • Width
    52.5 mm
  • Depth
    65 mm
  • With detachable clamps
    no
  • Voltage type for actuating
    AC
  • Phase failure detection
    yes
  • Function over voltage detection
    no
  • Voltage measuring range
    190 ... 270 V
  • Number of contacts as normally open contact
    1
  • Height
    90 mm
