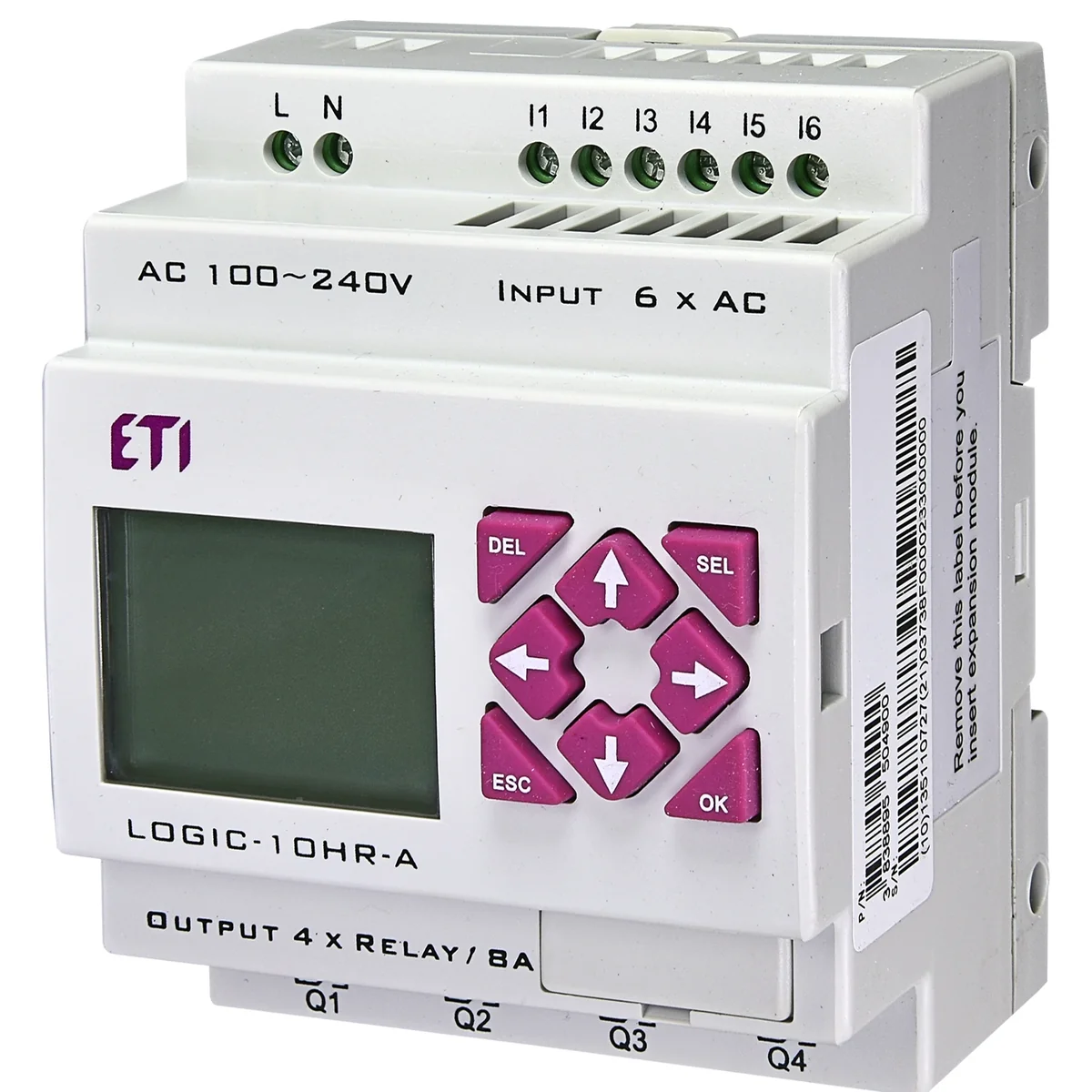

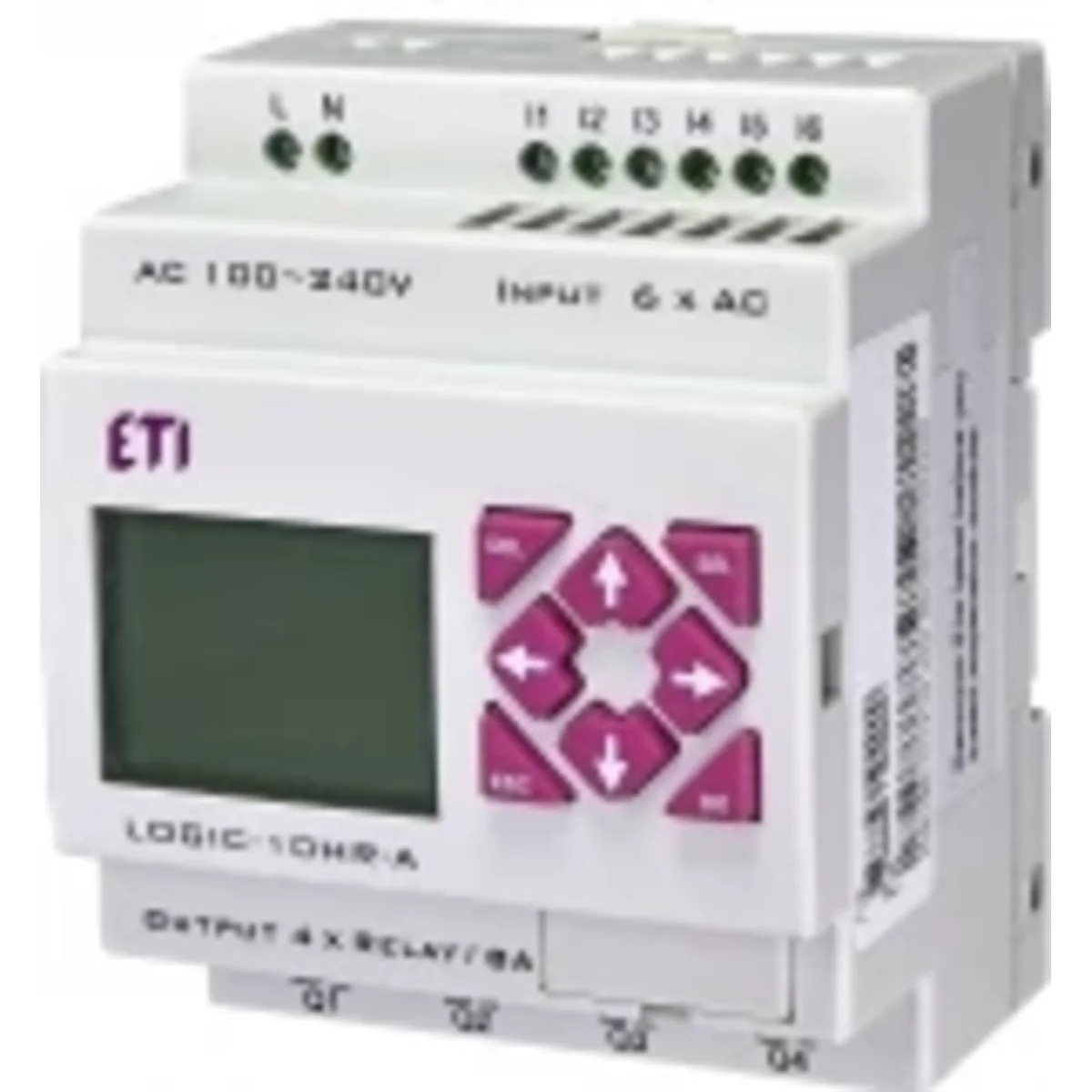

Smart Relay 100-240VAC, 6/4 Relay I/O LOGIC-10HR-A 004780001

local index:
APL002ETIP
Catalog No:
004780001
EAN code:
3838895504900
Manufacturer: ETI POLAM
Installation: On the TH-35 rail
Wire: AWG 12/3.5mm2
Level of security: IP20
Price:
197,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Features - Maximum system expansion up to 44 I/O with 3 modules of 8 points each (4 inputs, 4 outputs), 1 analog input module, 1 temperature module (PT-100), 2 analog output modules, 1 communication module
- Possibility of extending the analog input to 8 points, of which 4 are 12-bit
- Available communication modules: Profibus-DP, DeviceNet, Modbus RTU, Ethernet TCP/IP.
- Built-in 16x4 display LCD
- Menu in Polish, English, French, Spanish, Italian, German and Portuguese.
- Programming from the keyboard or PC software
- Up to 300 rungs in LADDER language
- Up to 260 blocks in FBD language
- High-speed counter input (1kHz) and pulse output
- Built-in 31 Timer, 31 counters, 31 RTC, 126 pins in auxiliary, analog comparator
- Built-in RTC operation time (summer/winter time) is about 240 hours after power off.
- Outputs: relay - max 8A/point, transistor - max 0.5A/point .
- Ability to set security passwords – 2 levels
- 2 PWM outputs available (one can be used as PLSY- pulse at 1kHz)

Advantages:
→ compact dimensions
→ mounting on a TH-35 rail
→ LCD
→ the ability to program withóbuttons on the controller or via a PC
→ controller power supply 24VDC or 100-240VAC
→ additional expansion modules
→ free software

Technical data

  • Installation
    On the TH-35 rail
  • Level of security
    IP20
  • PKWIU
    27.12.31.0
  • Wire
    AWG 12/3.5mm2
  • Humidity
    5 - 90% RH

Other technical data

  • Supply voltage AC 50 Hz
    100 ... 240 V
  • Voltage type (supply voltage)
    AC
  • Max. number of time switches
    31
  • Number of digital inputs
    6
  • Supporting protocol for Modbus
    Yes
  • Rail mounting possible
    Yes
  • Width
    72 mm
  • Depth
    59.6 mm
  • Supply voltage AC 60 Hz
    100 ... 240 V
  • Number of relay outputs
    4
  • Model
    Modular
  • Number of digital outputs
    4
  • With display
    Yes
  • Wall mounting/direct mounting
    Yes
  • Height
    90 mm

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 1 pcs. 50 pcs.
Weight (kg) 0,330 12,500
Volume (m3) 0,001 -
Width (m) 0,105 0,420
Length (m) 0,065 0,340
Depth (m) 0,083 0,230
