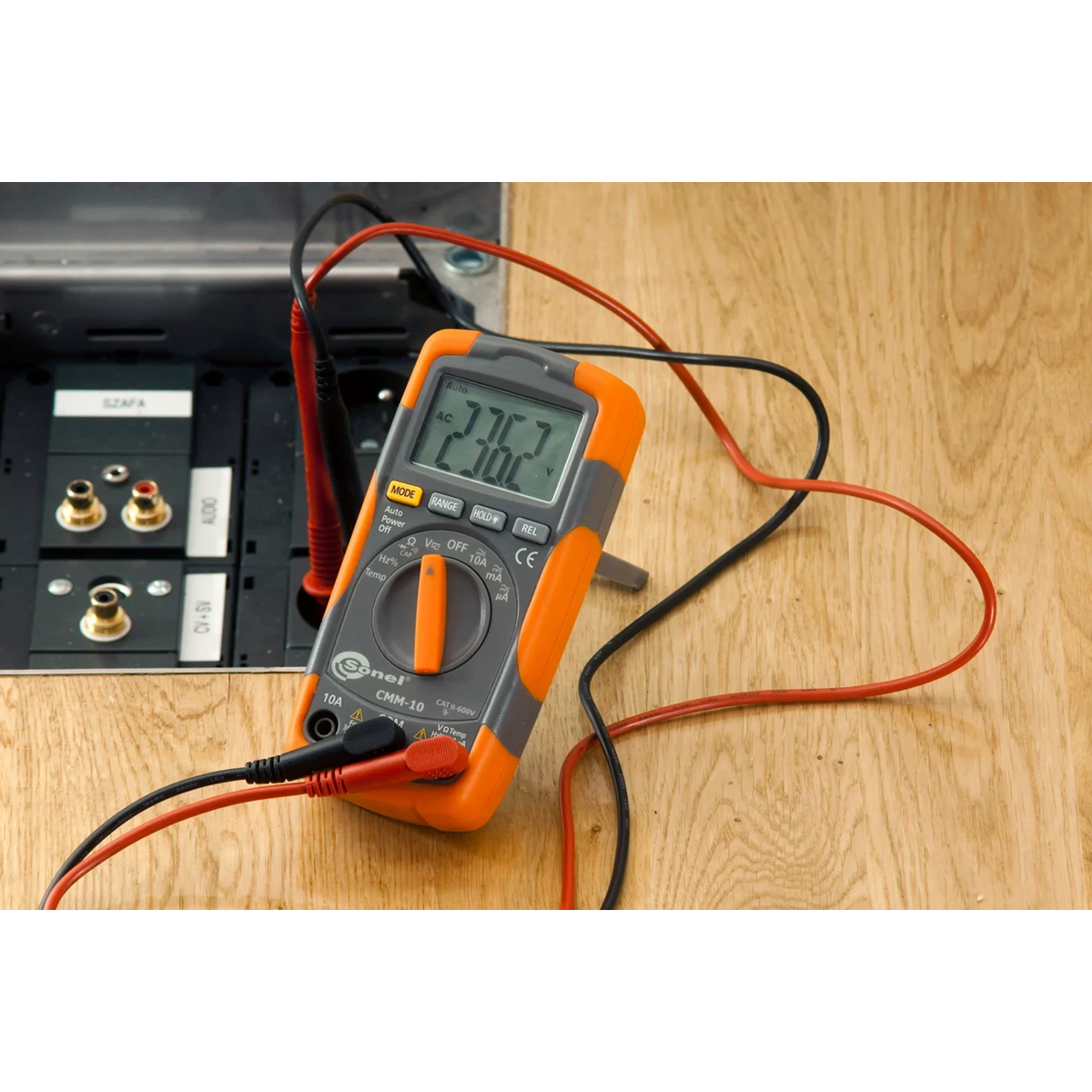

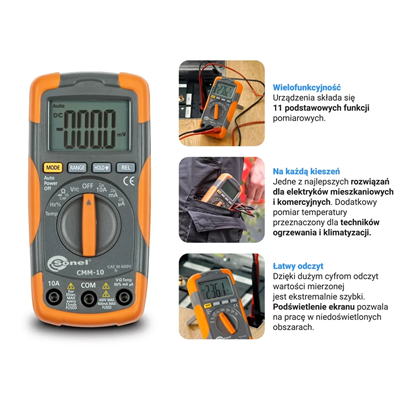

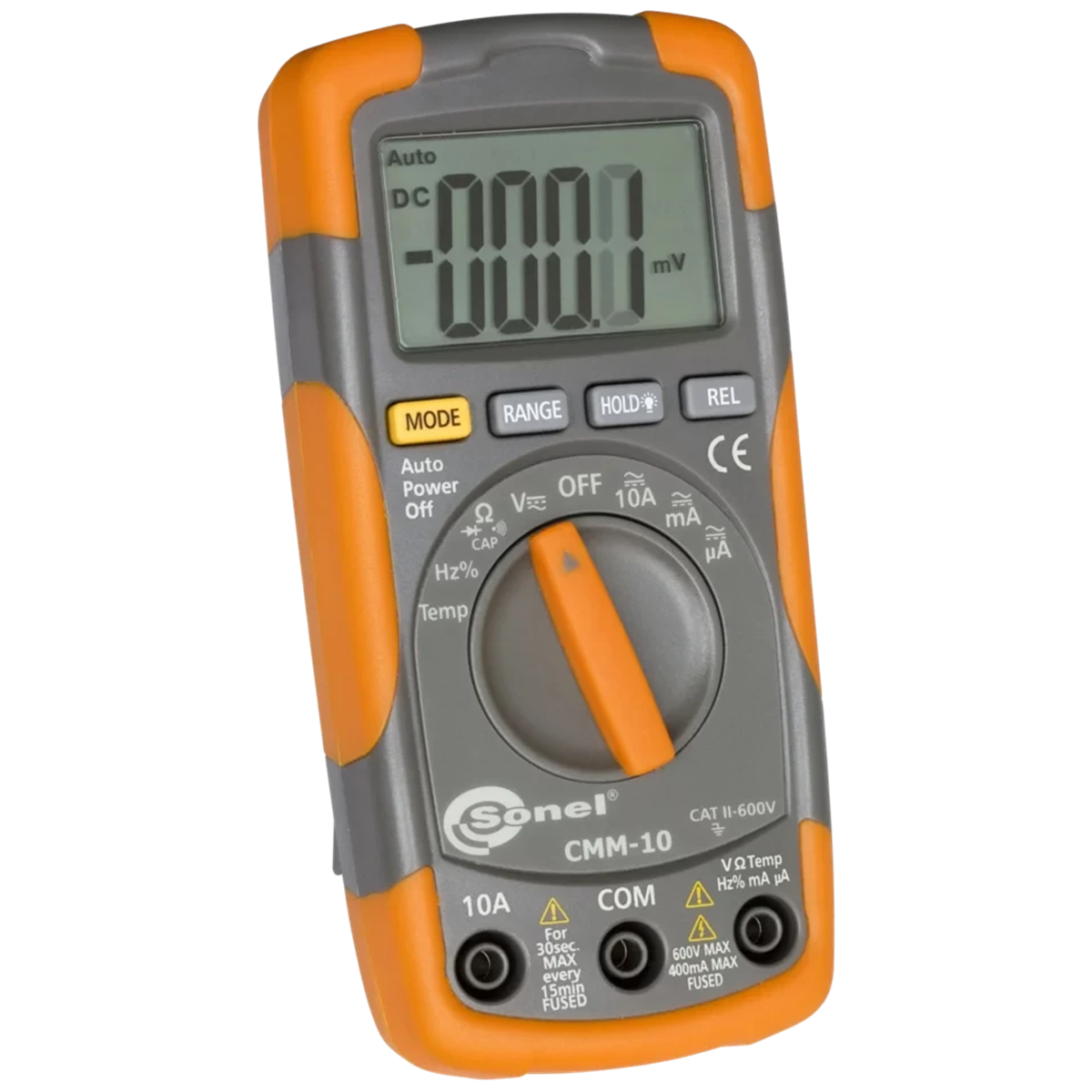

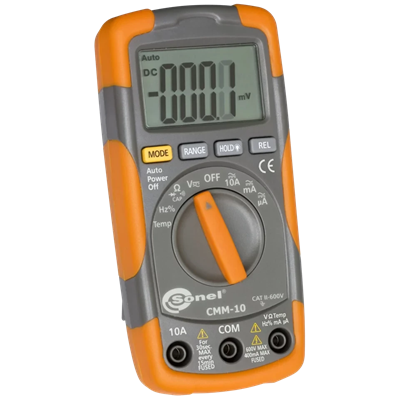

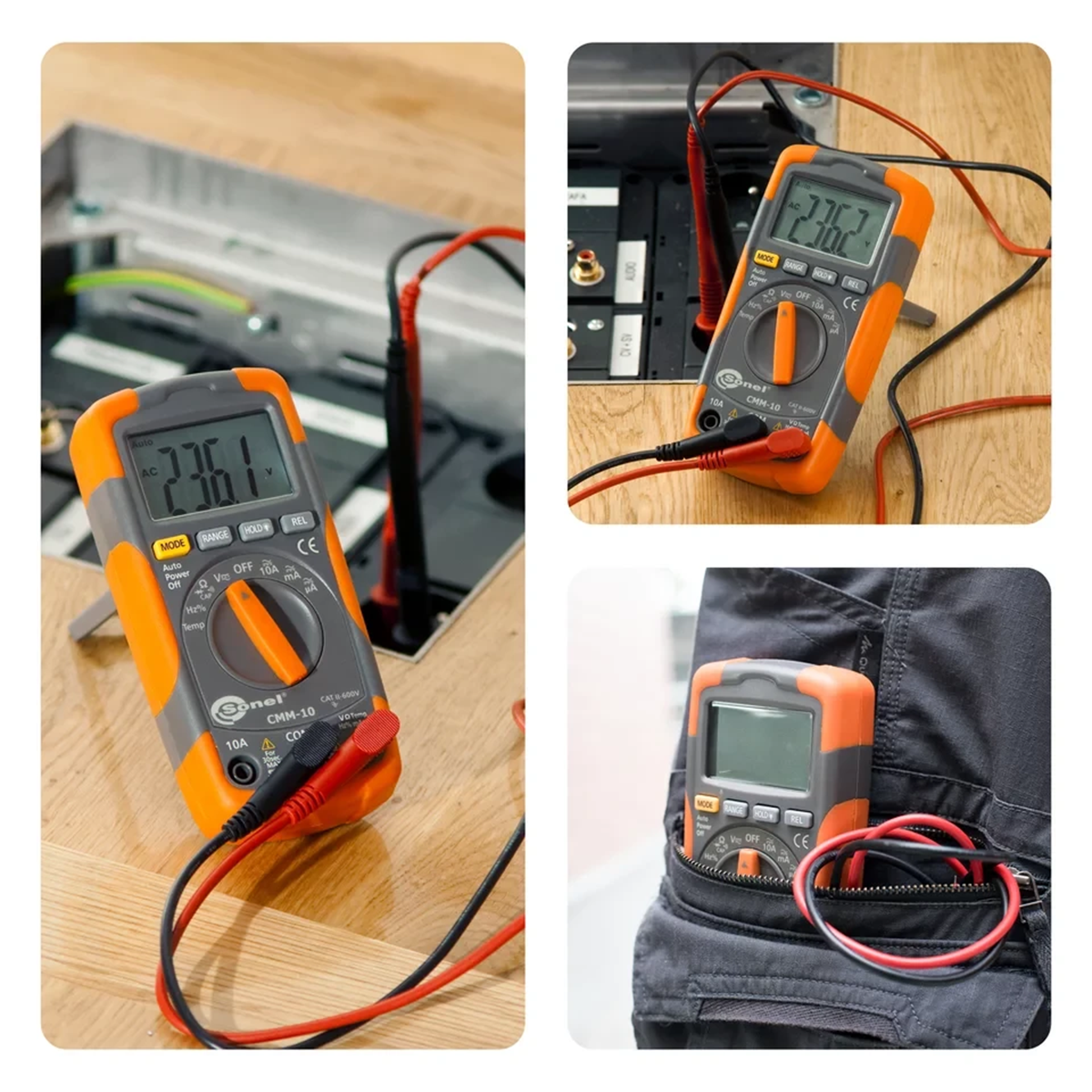

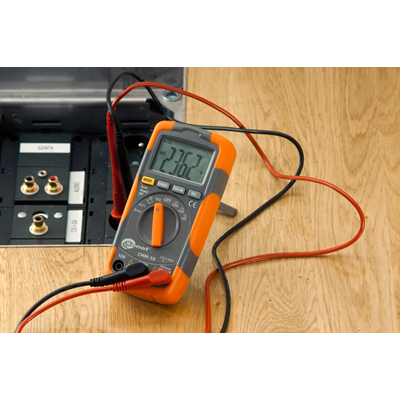

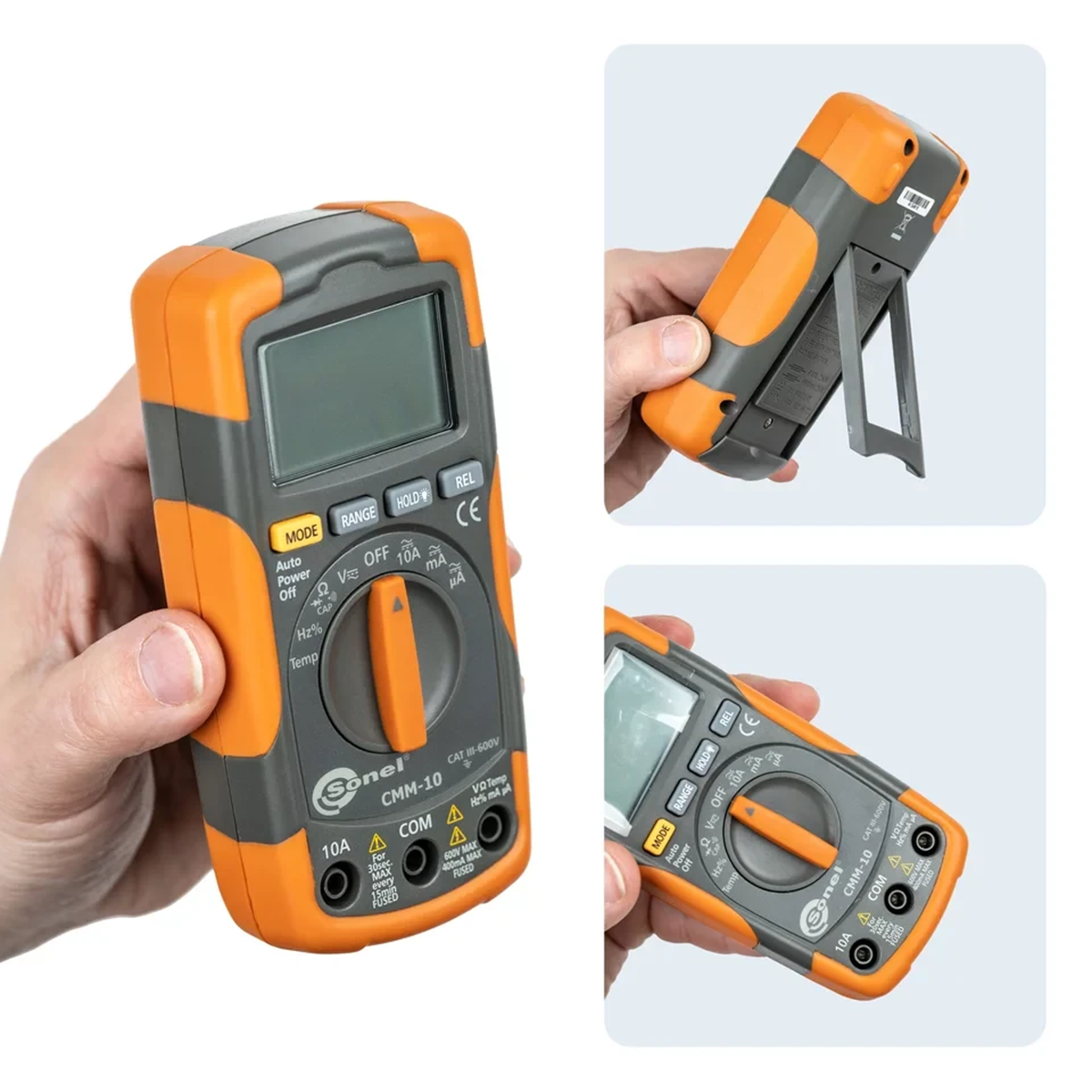

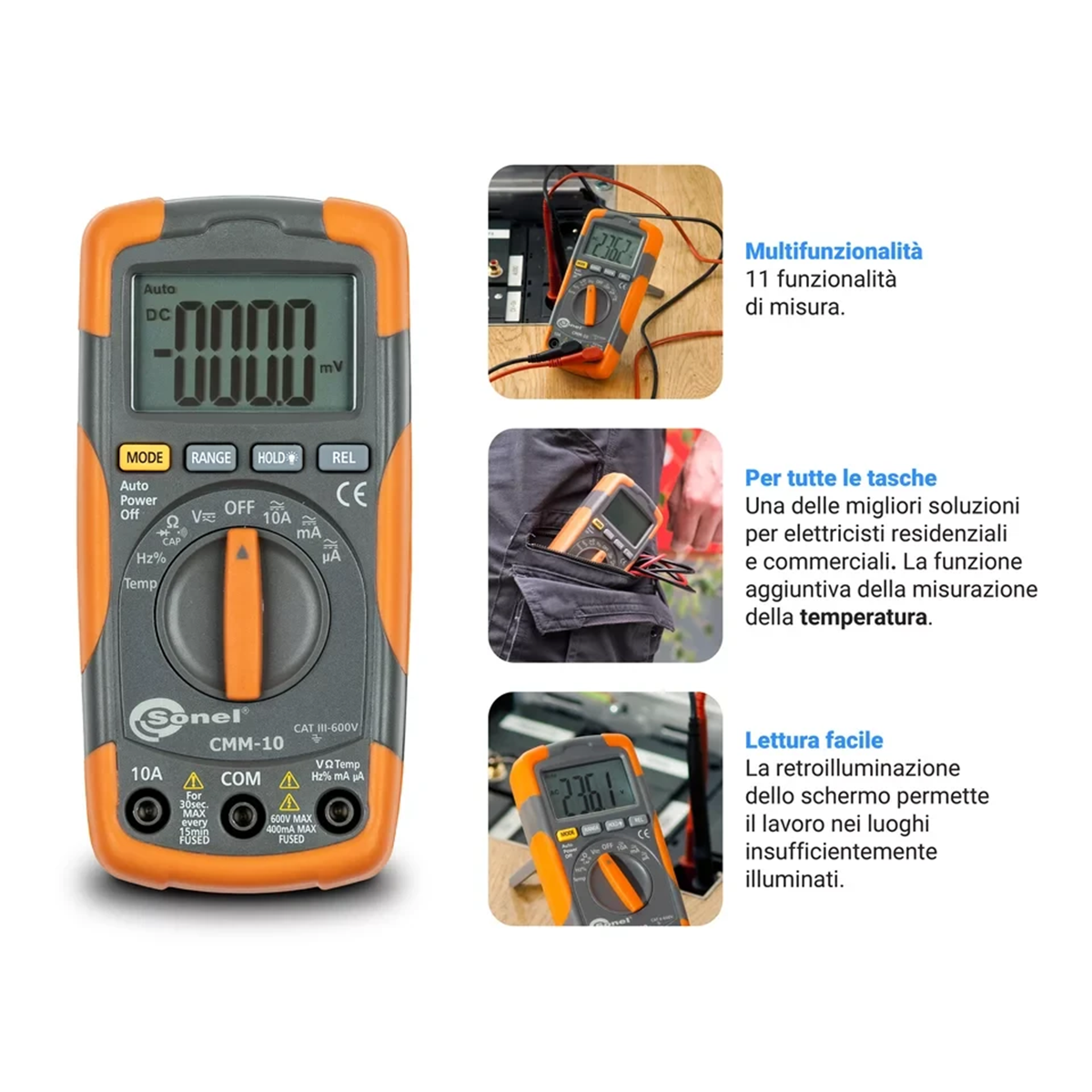

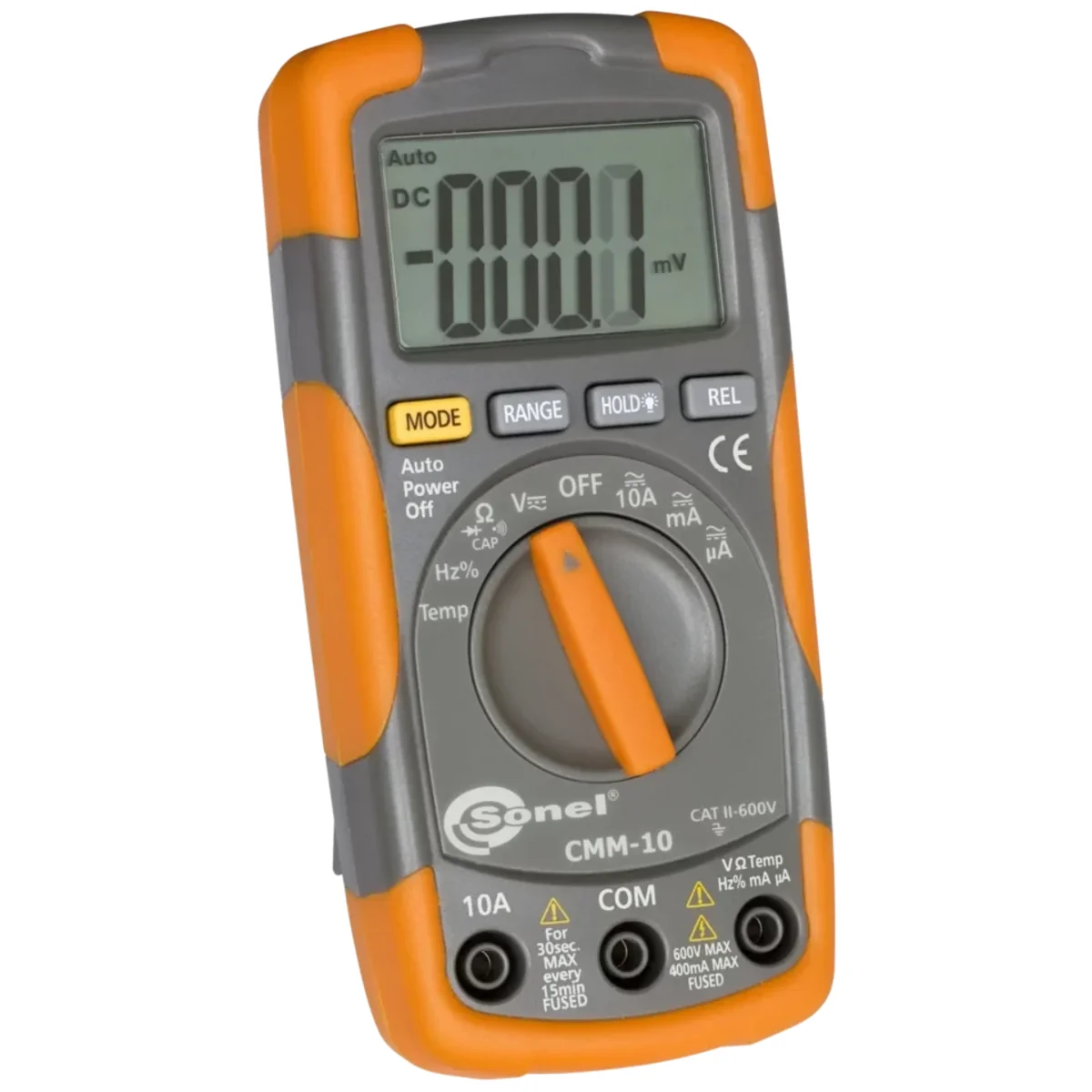

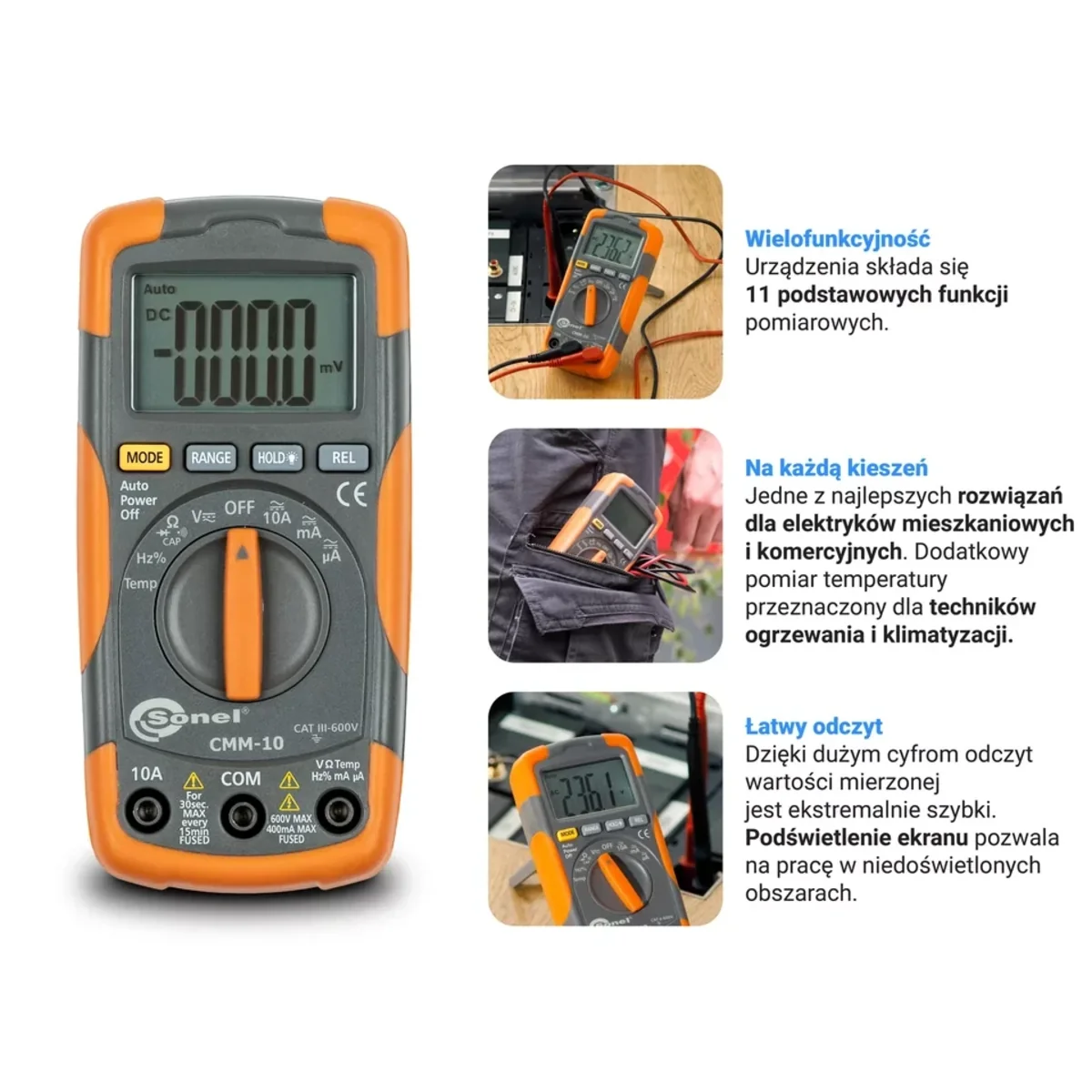

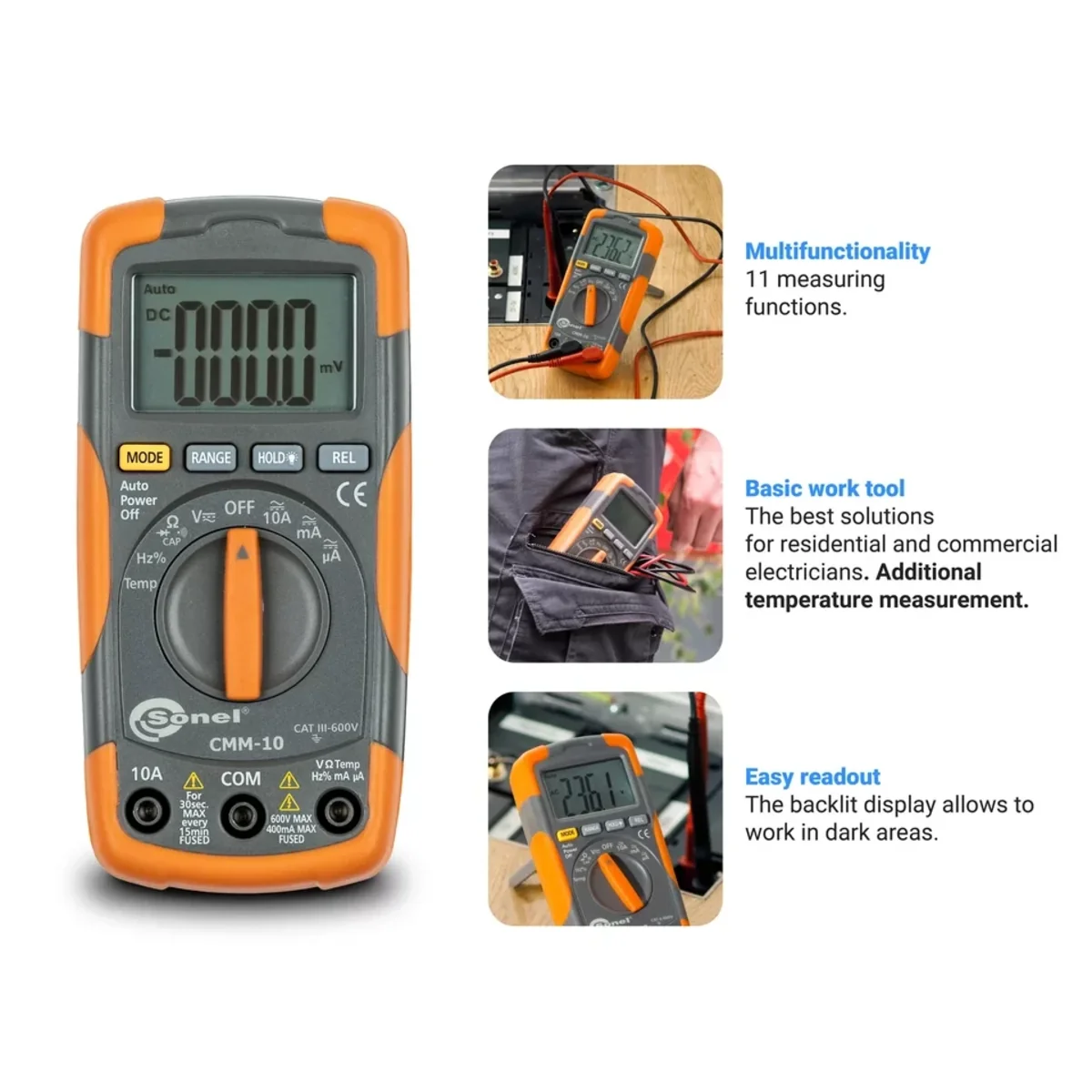

A simple and reliable multimeter for measuring AC and DC voltages, current, resistance, capacitance, temperature and duty cycle; with automatic and manual range selection.
- automatic or manual range change,
- HOLD function for reading measurements in poor lighting or in hard to reach places,
- REL function for relative measurements,
- acoustic signaling of circuit continuity (Beeper),
- automatic shutdown of the device when not in use,
- 3 7/8 digit display (max. . 5000).
Electrical safety:
- type of insulation: double, in accordance with PN-EN 61010-1 and IEC 61557
- measurement category: II 600 V
- housing protection degree: IP40
Other technical data: p>
- meter power supply: 9 V battery type 6LR61
- diode test: I=0.3 mA, U0 = 1.5 V DC
- continuity test: I<0.3 mA, sound signal for R<50 Ω
- indication of exceeding the range: 0L symbol
- measurement frequency: 2 readings per second
- input impedance : 7.8 MΩ (V AC/DC)
- display: LCD, 5000 reading with function indicators
- fuses: mA range, µA: 0.5 A/250 V fast range A: 10A/250V fast
- Idle time to self-off: 30 minutes
Nominal usage conditions:
- operating temperature: 0...+50°C with <70% humidity
- storage temperature: -20...+60°C with <80% humidity
