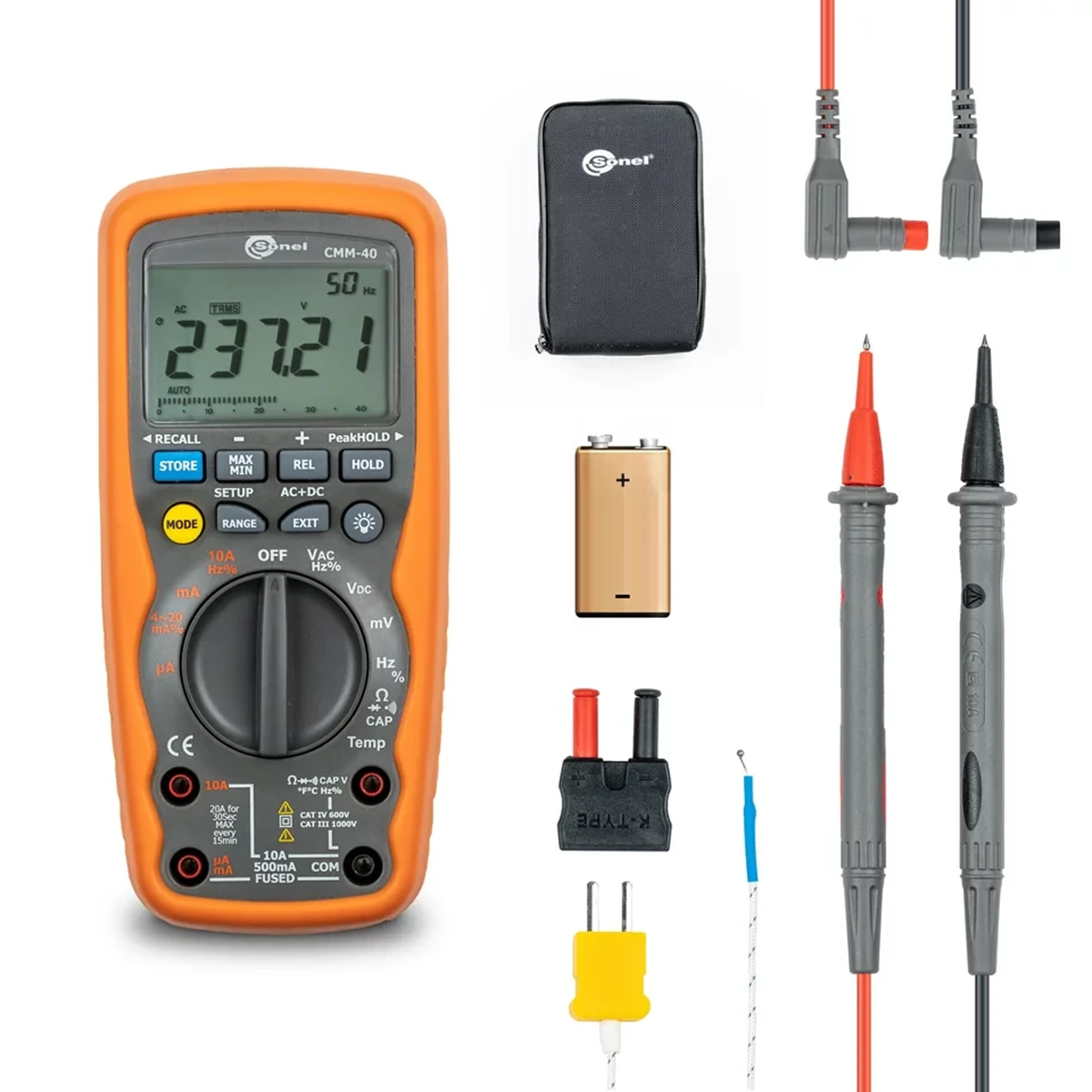

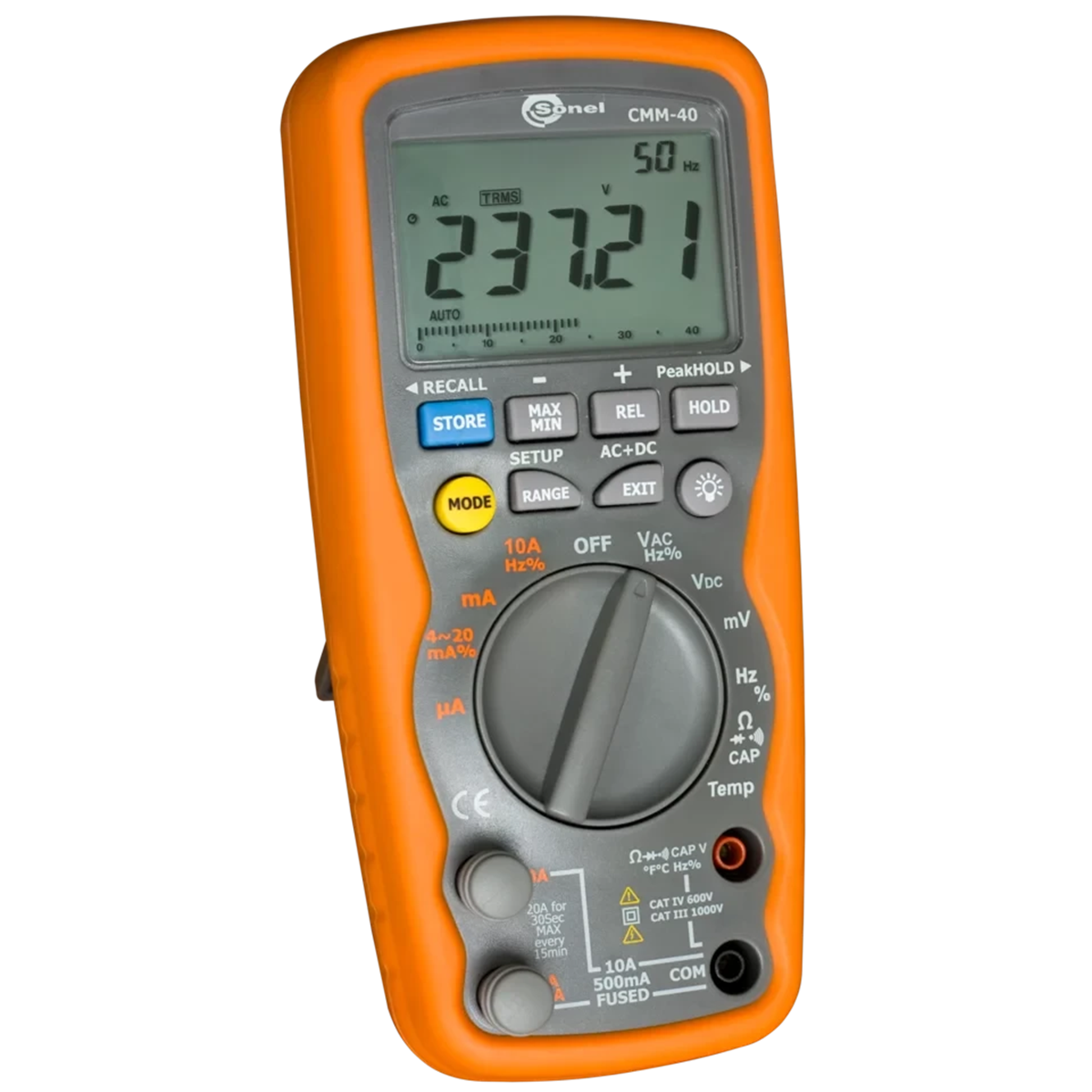

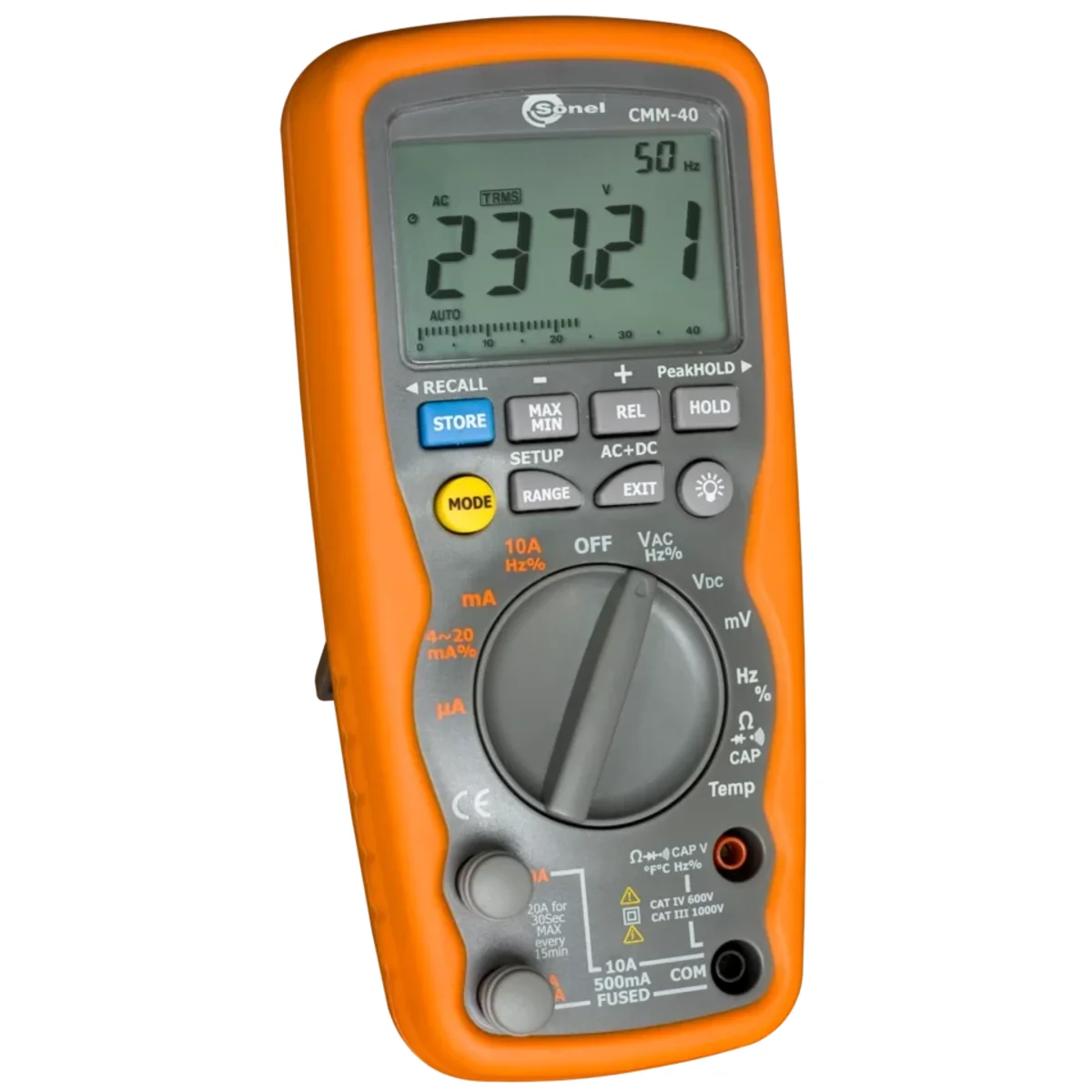

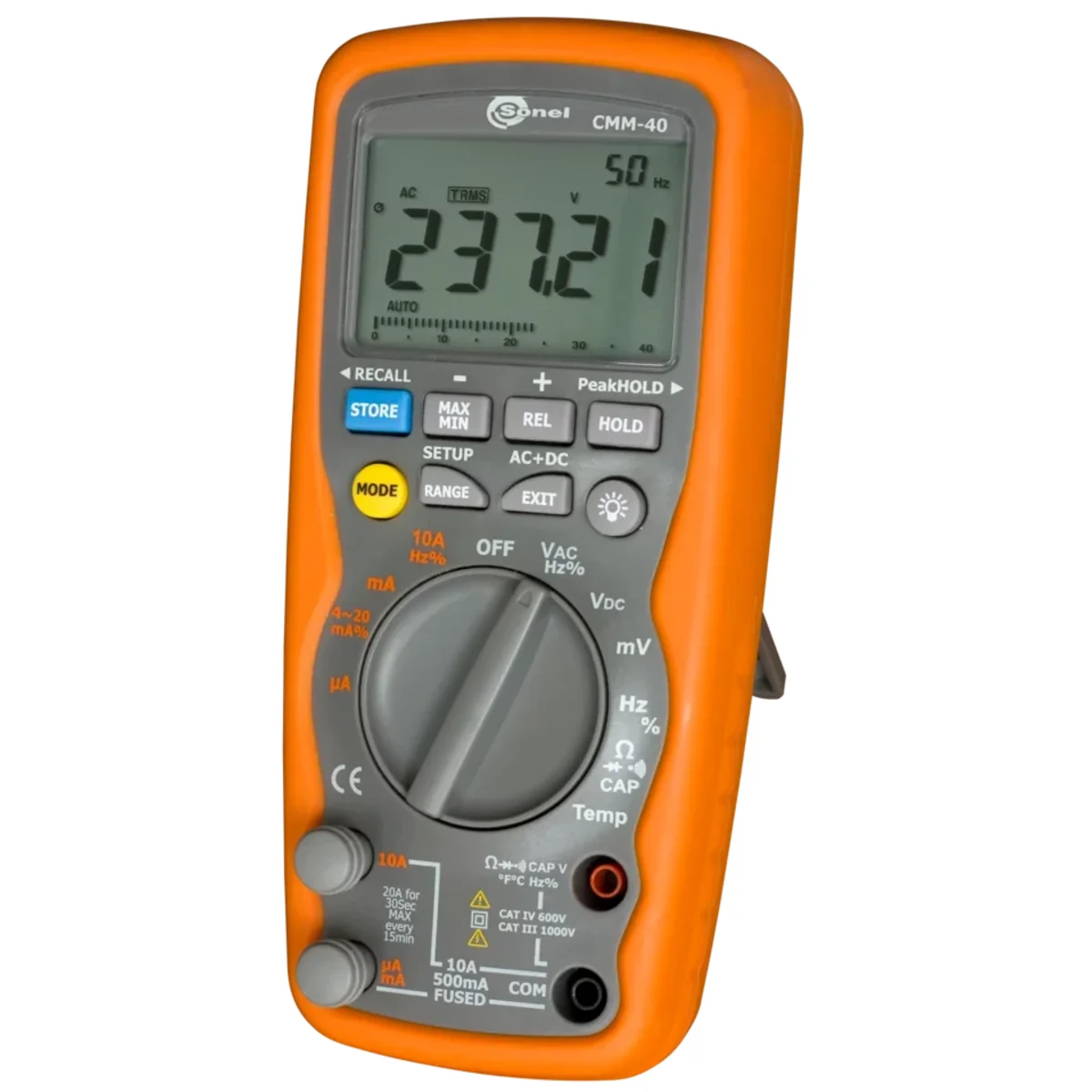

Industrial multimeter, which is a universal device that measures voltage and current (constant and alternating TRUE RMS), and additionally capacity, frequency, duty cycle (filling), continuity of connections, resistance, temperature. The meter is characterized by high resistance to weather conditions and external factors (IP67).
The most important features of the CMM-40 device include:
- Automatic or manual ranging.
- HOLD function for reading measurements in low light or in hard to reach places.
- REL function for relative measurements.
- MAX function/ MIN.
- Peak hold function.
- Beeper for continuity.
- Automatic shutdown when not in use.
- 4¾ display digits (max. 40000).
- Waterproof two-component housing.
Other technical data:
- meter power supply: 9 V battery type 6LR61
- diode test: I=0.9 mA, U0 = 2.8 V DC
- continuity test: I<0.35 mA, signal audible for R<35 Ω
- over range indication: symbol 0L
- crest factor: ≤ 3 for full range 500 V,
- decreasing linearly to ≤ 1 .5 at 1000 V
- PEAK value: captures >1 ms peaks
- measurement rate: 2 readings per second
- input impedance: 10 MΩ (V DC), 9 MΩ (V AC)
- display: LCD with bargraph, 4¾ digits (max. 40000)
- number of results in memory: 2000
- fuses: mA, µA range: 0.5 A/1000 V fast ceramic
- A range: 10 A /1000V ceramic fast
- 15 minutes idle time to self-off
Electrical safety:
- type of insulation: double, in accordance with PN-EN 61010 - 1 and IEC 61557
- measurement category: III 1000 V
- degree of protection: IP67
< p>
Nominal conditions of use: - operating temperature: 0...+40°C
- storage temperature: -20...+ 60°C
- humidity: max. 80% to 31°C linearly decreasing to 50% at 40°C
- working altitude: max. 2000 m
