el12 Cables and wires Power cables Power cables cu up to 1 kV

Power cable YKY 5x16 NYY-J 0.6/1kV 112194015

local index:
KEC460NKTQ
Catalog No:
112194015
EAN code:
8591462018495

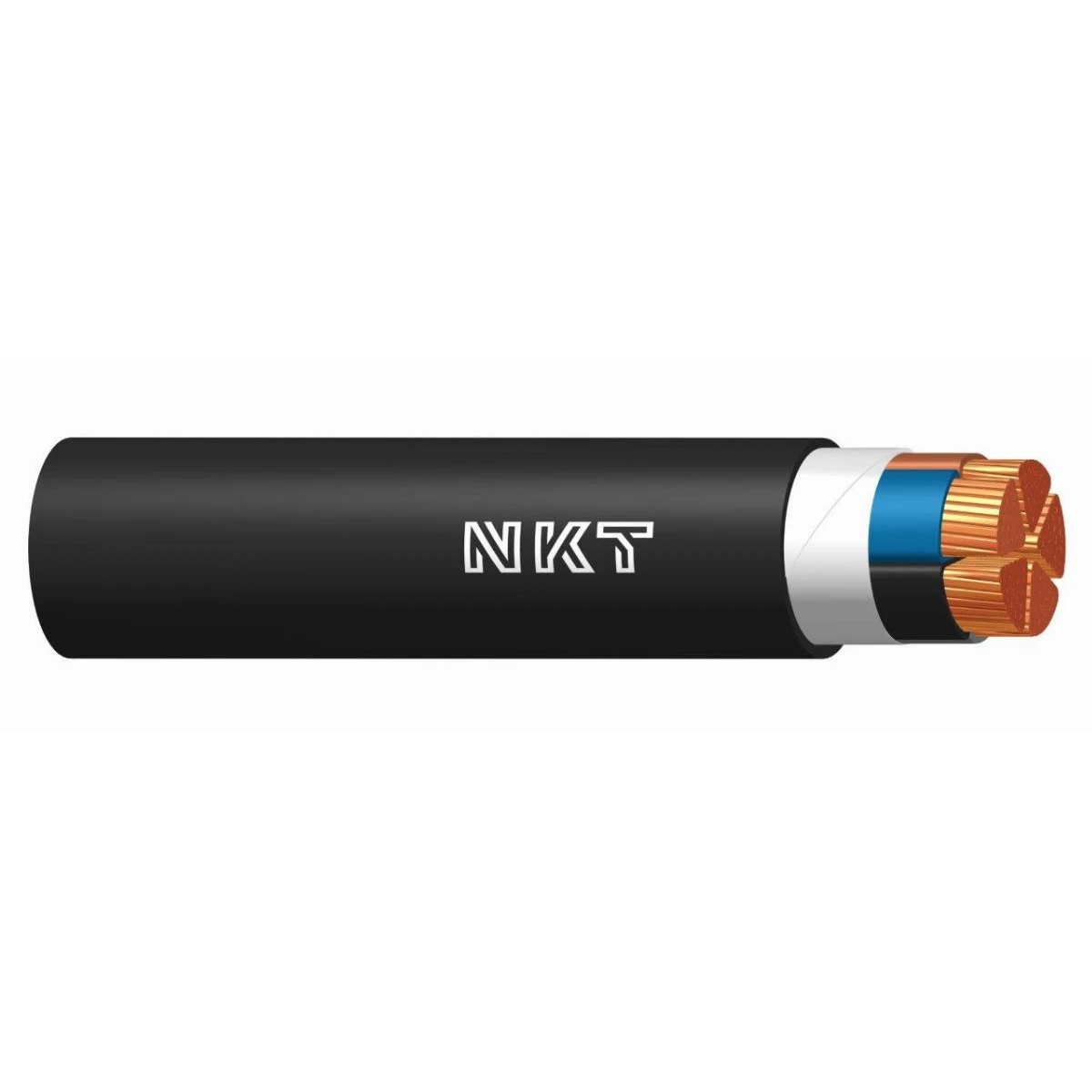

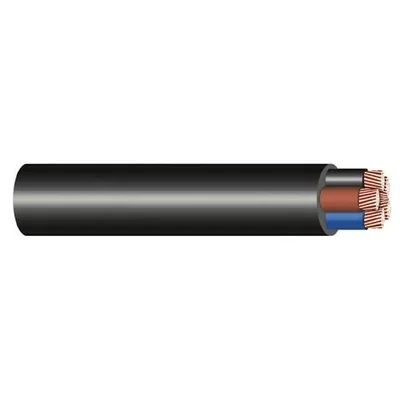

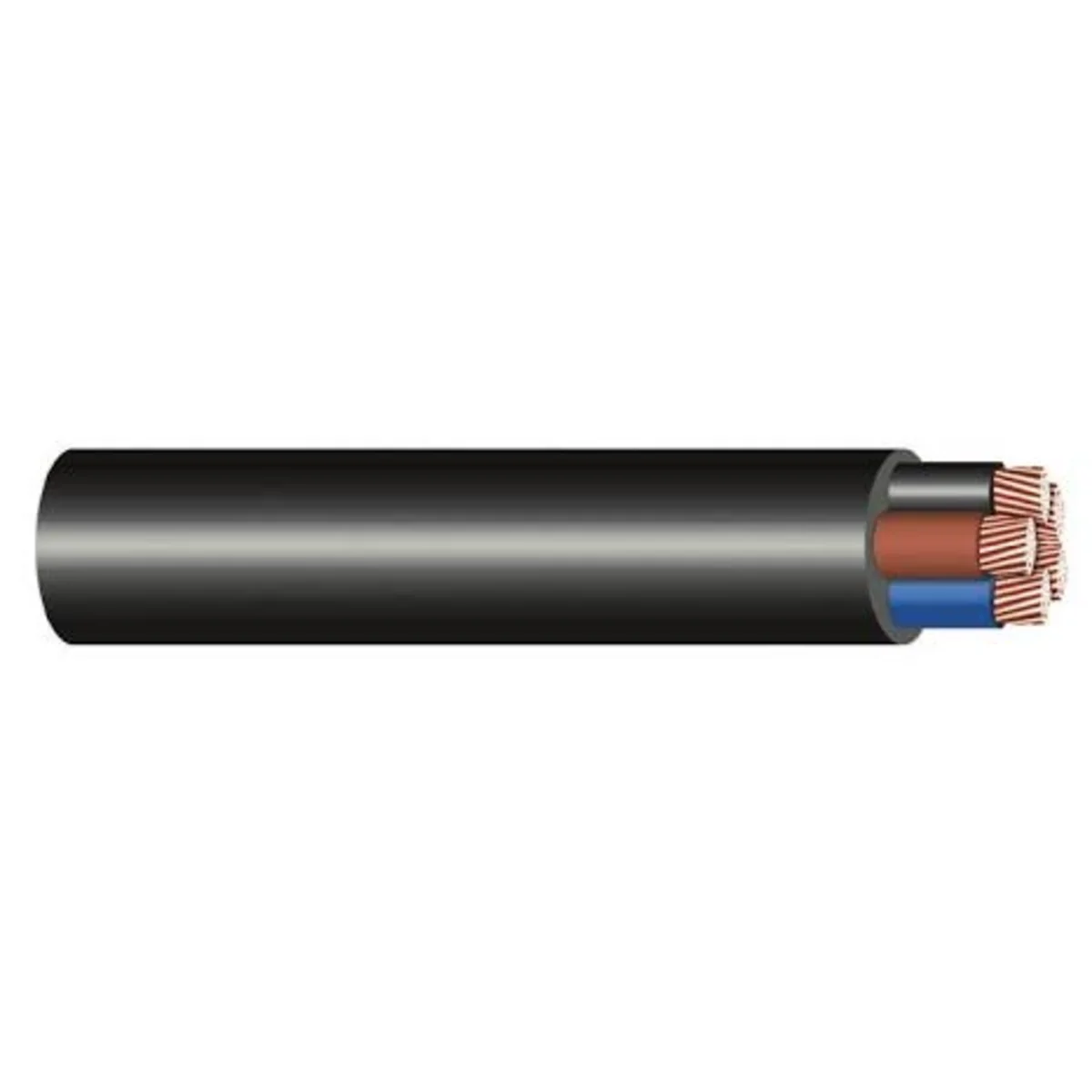

Power cable YKY 5x16 NYY-J 0.6/1kV
Power cable YKY 5x16 NYY-J 0.6/1kV
Power cable YKY 5x16 NYY-J 0.6/1kV
Power cable YKY 5x16 NYY-J 0.6/1kV

Click on the photo to enlarge

Manufacturer: NKT
Number of veins: 5
Color: Black
Vein material: Copper
See full description
Large-size product
Price:
11,65 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 2728 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Product description Technical data Manufacturer details

Product description

Power cable YKYż 5x16 NYY-J 0.6/1kV  with copper conductors, PVC insulation, flame-retardant PVC sheath with a green-yellow protective conductor.

Used for electricity transmission, outdoor power lines, indoors and outdoors, for laying in channels, on structures and directly in the ground, in water and in the air, in places with little exposure to mechanical damage.

Technical data

  • Number of veins
    5
  • Vein material
    Copper
  • Core cross-section [mm²]
    16
  • Libra
    1183 kg/km
  • Insulation material
    PVC
  • Color
    Black
  • Rated voltage [V]
    600/1000
  • Core
    Wire
  • Accurate color
    Black
  • PKWIU
    27.32.13.0

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    16 mm²
  • Shape of conductor
    Round
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification
    Colour
  • Fibre optic elements
    No
  • Inner semi-conducting layer
    No
  • Screen
    No
  • Lead sheath
    No
  • Concentric conductor
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Black
  • Longitudinal water blocking conductors
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low smoke according to EN IEC 61034-2
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Olejoodporny zgodnie z IEC 60811-404
    No
  • Max. conductor temperature
    70 °C
  • Nominal voltage U0
    0.6 kV
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Number of cores
    5
  • Specification core insulation
    Other
  • Laminated sheath
    No
  • Żyła ochronna
    Yes
  • Outer semi-conducting layer
    No
  • Drain wire
    No
  • Number of pilot/reduced conductors
    0
  • Armouring
    No
  • Specification material outer sheath
    Other
  • Conductive coating
    No
  • Longitudinal water blocking screen
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Halogen free according to EN IEC 60754-2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Trwałość izolacji zgodnie z IEC 60331
    No
  • Circuit integrity
    No
  • Outer diameter approx.
    21.1 mm
  • Permitted cable outer temperature after assembling without vibration
    -35 ... 70 °C
  • Nominal voltage U
    1 kV

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    NB 1014
  • Numer referencyjny DoP (DWU)
    DOP000061_PL_Rev.3
  • Oznaczenie produktu
    YKYżo 5x16 RE
  • Nazwa producenta:
    NKT s.r.o. Kladno, ul. Průmyslová 1130, 272 01, Kladno
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575:2014+A1:2016
  • Zastosowanie:
    Do przesyłu energii elektrycznej do zastosowania w obiektach objętych uregulowaniami odnośnie reakcji wyrobów budowlanych na oddziaływanie ognia.
