DOMNET U/UTP cat.5e PVC telecommunication cable DOM5EUTP
local index:
KRD005CICQ
Catalog No:
DOM5EUTP
EAN code:
5904169100012
Price:
0,34 €
gross / m.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

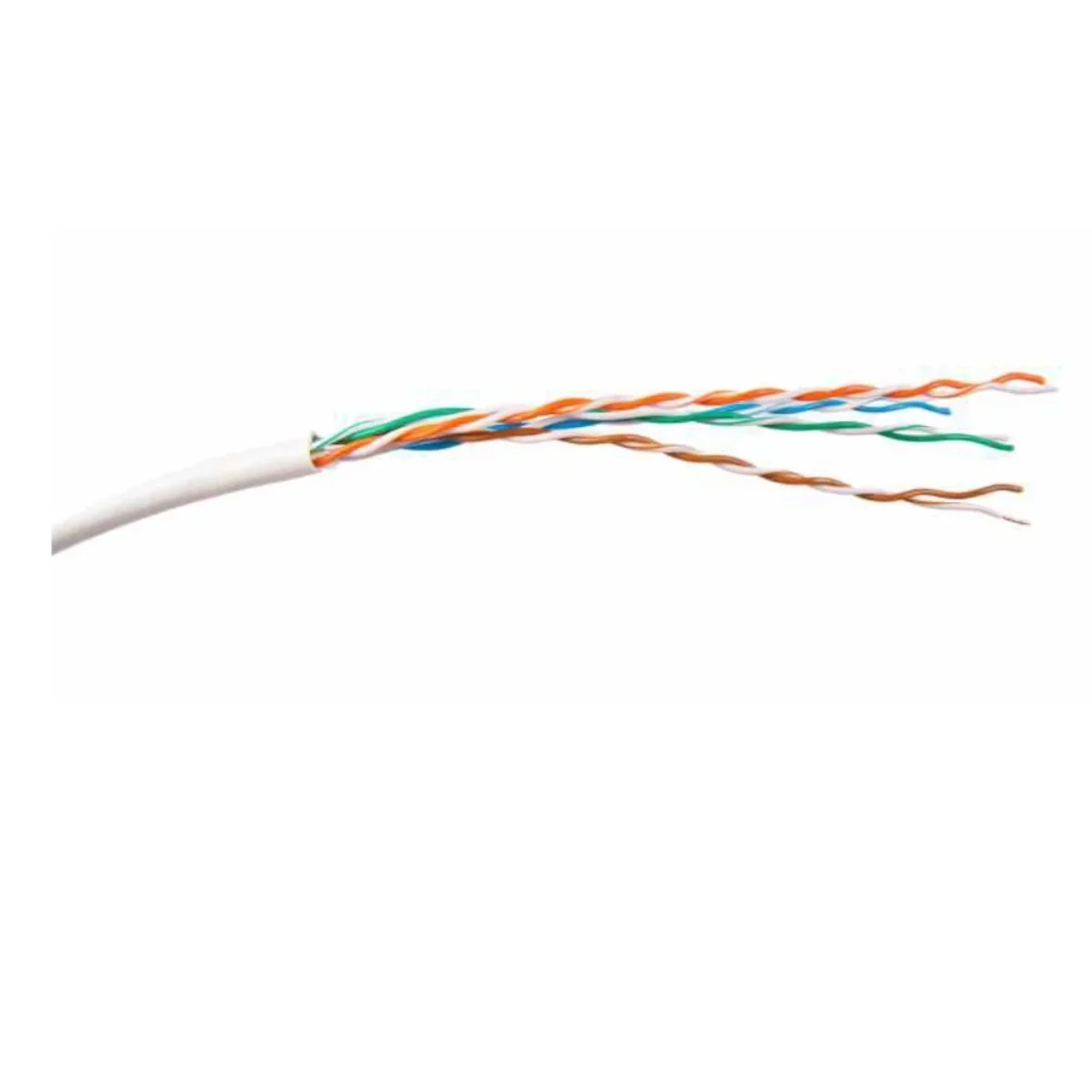

DOM5EUTP Cat. 5e UTP cable - installation twisted cable designed to make connections between distribution points of multimedia signals and connection sockets of users not exposed to electromagnetic interference. It has an outer PVC coating. The cable meets the requirements of the standard:
- ISO/IEC 11801,
- EN 50173,
- EIA/TIA 568-B .2.
UTP twisted pair cable (unshielded) is ideal for:
- installations in computer networks,
- installations in telephone networks,
- CCTV systems,
Technical data
-
Number of veins8
-
ColorWhite
-
Working temperature [°C]from -15 to +60
-
Vein class1
-
Category5e
-
Cable diameter [mm]5
-
Insulation materialPolyvinyl chloride
-
PKWIU27.32.13.0
Other technical data
-
Conductor materialCopper
-
AWG size24
-
Number of cores8
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingNone
-
Longitudinal water blocking cableNo
-
Suitable for underground installationNo
-
Protective sheathPolyvinyl chloride (PVC)
-
Specification material outer sheathOther
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Halogen free according to EN IEC 60754-2No
-
Low smoke (according to EN 61034-2)No
-
Oil resistant according to EN IEC 60811-404No
-
Trwałość izolacji zgodnie z IEC 60331Yes
-
Outer diameter approx.5 mm
-
Min. permitted bending radius, moving application/free movement50 mm
-
Permitted cable outer temperature during assembling/handling-20 ... 60 °C
-
Category5E
-
UV resistantNo
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Number of stranding elements4
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Radial water blocking cableNo
-
Approved type of underground installationOther
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathGrey
-
Material armouringOther
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN 60754-1/2No
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Low smoke according to EN IEC 61034-2No
-
Olejoodporny zgodnie z IEC 60811-404No
-
Circuit integrityNone
-
Min. permitted bending radius, moving application with forced guidance50 mm
-
Min. permitted bending radius, stationary application/permanent installation40 mm
-
Permitted cable outer temperature after assembling without vibration0 ... 60 °C
-
NVP value69 %
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight27.8
Manufacturer details
-
ManufacturerC&C Partners Sp. z o.o.
-
Address64-100 Leszno 17 Stycznia 119,121
-
Tax identification number6970013242
-
GLN2069700132426
Bulk packaging
| A kind of package | Karton | Paleta |
| Quantity | 305000 m. | 16470000 m. |
| Weight (kg) | 8,185 | 441,990 |
| Width (m) | 0,352 | 1,060 |
| Length (m) | 0,352 | 1,100 |
| Depth (m) | 0,197 | 1,400 |
