A-SERIES A11 junction box without IP55 terminal block 2000342

Name: A-SERIES A11 junction box without IP55 terminal block
Brand: OBO BETTERMANN
SKU: MVN005OBOB
Price: 6.36 PLN
Availability: InStock

Index local:

MVN005OBOB

Numéro de catalogue:

2000342

Code EAN:

4012195152170

A-SERIES A11 junction box without IP55 terminal block

Cliquer sur la photo pour l'agrandir

Producteur: OBO BETTERMANN

Halogen free: Yes

Depth [mm]: 40

Color: Gray

Voir la description complète

Prix:

6,36 zł

gross / pcs.

(y compris la TVA 23%)

Accessible 968 pcs.

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

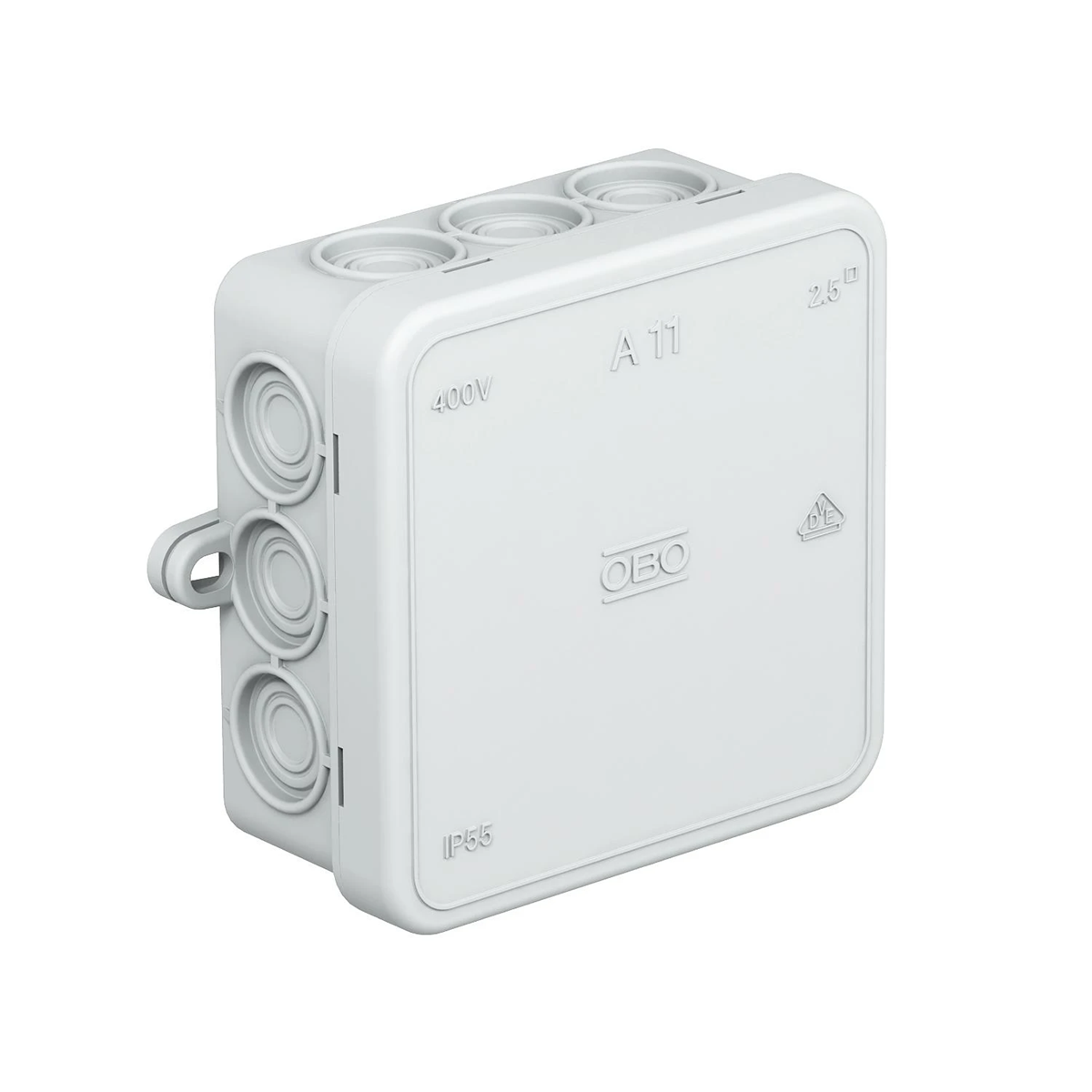

A-series junction box with membrane glands.

Classic and updated: the well-known A-series boxes have been given a facelift. Halogen-free, thermoplastic material is the hallmark of the A-series - as well as the clamping cover and flexible cable entries. IP55 degree of protection and stable mounting brackets are a classic solution.

12 entries for cables with a diameter of 5 - 14 mm.

Données techniques

Halogen free

Yes
Color

Gray
Material

PE
Rated voltage [V]

400
Type

Wall-mounted
Level of security

IP55
Type

branching
Operating temperature range [°C]

-5 to +45
Maximum conductor cross-section [mm²]

2.5
Fire resistance

Not applicable
For modular equipment

Not applicable
Number of stuffing boxes

12
Groove diameter [mm]

5-14

Depth [mm]

40
Shape

Square
Installation

Surface-mounted
Cover

Yes
Family

A-SERIES
Width [mm]

85
Height [mm]

85
Degree of mechanical protection

IK07
Accurate color

light gray
Fire resistance [°C]

650
With terminal strip

NO
Stuffing box type

Membrane
PKWIU

22.29.29.0

Détails du fabricant

Producteur

OBO Bettermann Holding GmbH & Co. KG
Adresse

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Emballage en vrac

Une sorte de paquet	Torebka	Karton	Paleta
Quantité	10 pcs.	80 pcs.	1600 pcs.
poids (kg)	0,621	5,386	130,220
Volume (m3)	0,003	0,029	0,912
Largeur (m)	0,095	0,360	0,800
Longueur (m)	0,425	0,420	1,200
Profondeur (m)	0,085	0,195	0,950
