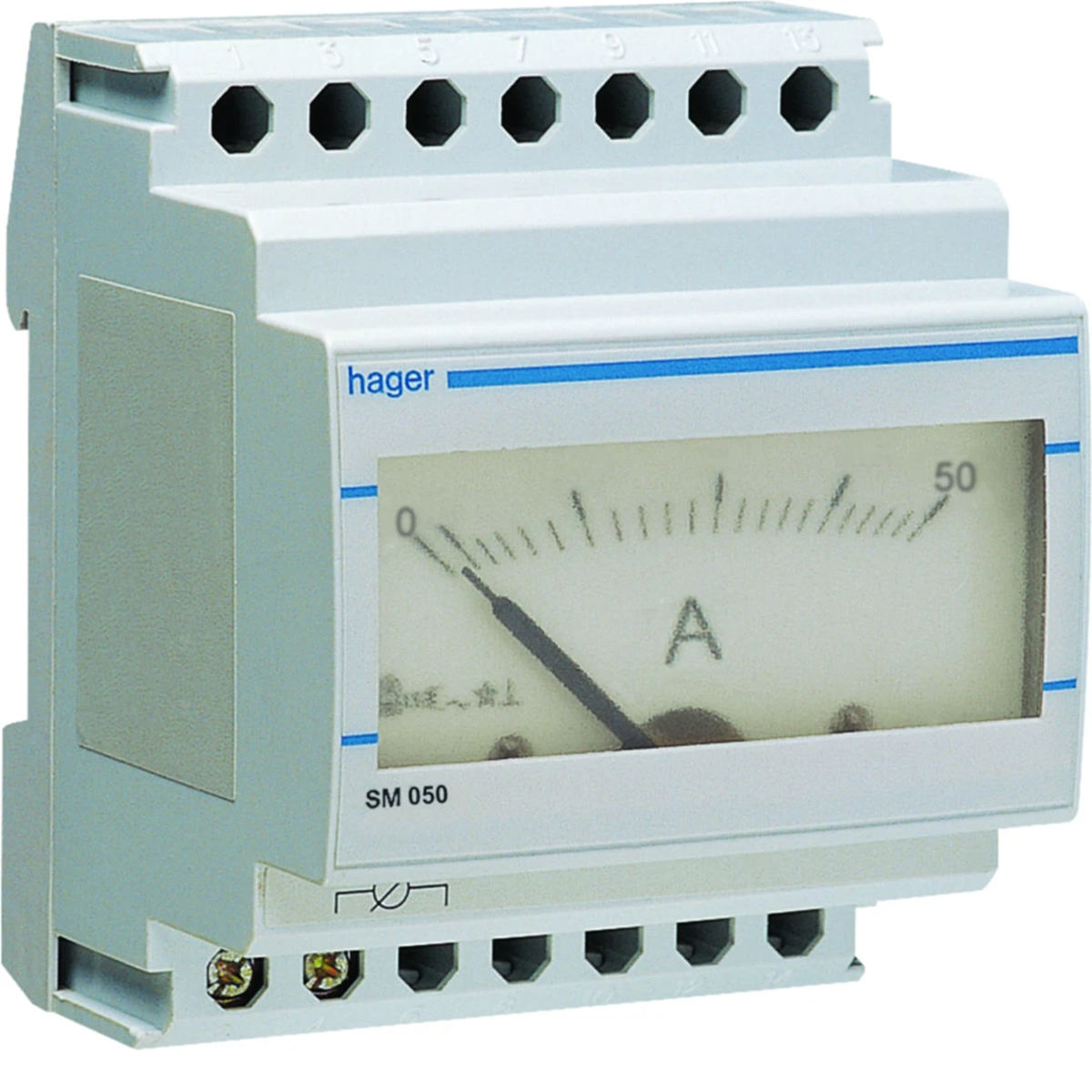

Analog ammeter 0-50A, indirect SM050

local index:
NPI005HAGE
Catalog No:
SM050
EAN code:
3250615630506
Manufacturer: HAGER
Rated frequency [Hz]: 45/65
Depth [mm]: 54
Input power [VA]: 1.1
Price:
59,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Characteristics
ammeters for measurement with transformers can be loaded with a maximum input current of 5 A.
for direct measurement with a measuring range of 0 - 20 A.
instruments up to 600 A can be installed for measurement with a transformer.
accuracy class: 1,
own needs: ≤ 1 VA.

Technical data

  • Rated frequency [Hz]
    45/65
  • Input power [VA]
    1.1
  • Width [mm]
    70
  • Measuring device type
    Analog ammeter
  • Measuring range [A]
    0/50
  • PKWIU
    26.51.43.0
  • Depth [mm]
    54
  • power loss [W]
    1.1
  • Working temperature [°C]
    -25 to 50
  • Height [mm]
    85
  • Number of modules
    4

Other technical data

  • Nominal end value of the scale
    50 A
  • Transformer connection
    Yes
  • Power loss
    1.1 W
  • Overcurrent scale
    No
  • Modular version
    Yes
  • Height
    85 mm
  • Measurement system
    Moving coil
  • Scales lighting
    No
  • Measuring range
    0 ... 50 A
  • Accuracy class
    1
  • Voltage type
    AC
  • Model
    DIN rail
  • Width
    70 mm
  • Max. needle deflection
    90 °
  • Stay-set indicator
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,142 0,147 5,732 162,568
Width (m) 0,070 0,080 0,326 0,800
Length (m) 0,085 0,074 0,244 1,126
Depth (m) 0,054 0,095 0,369 1,200
