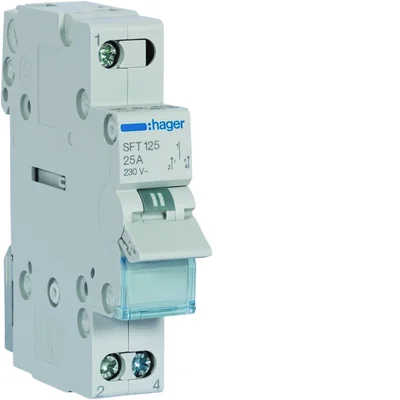

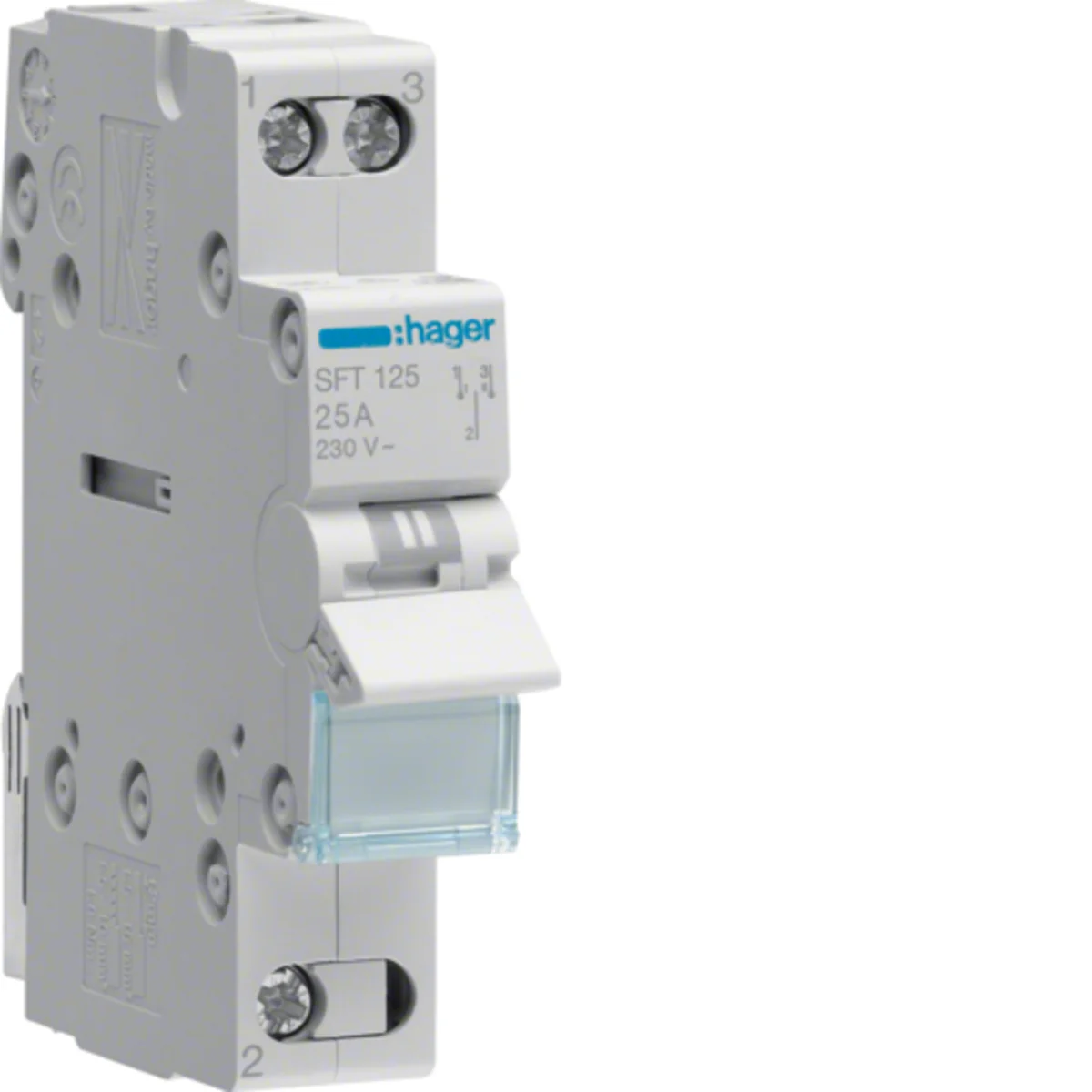

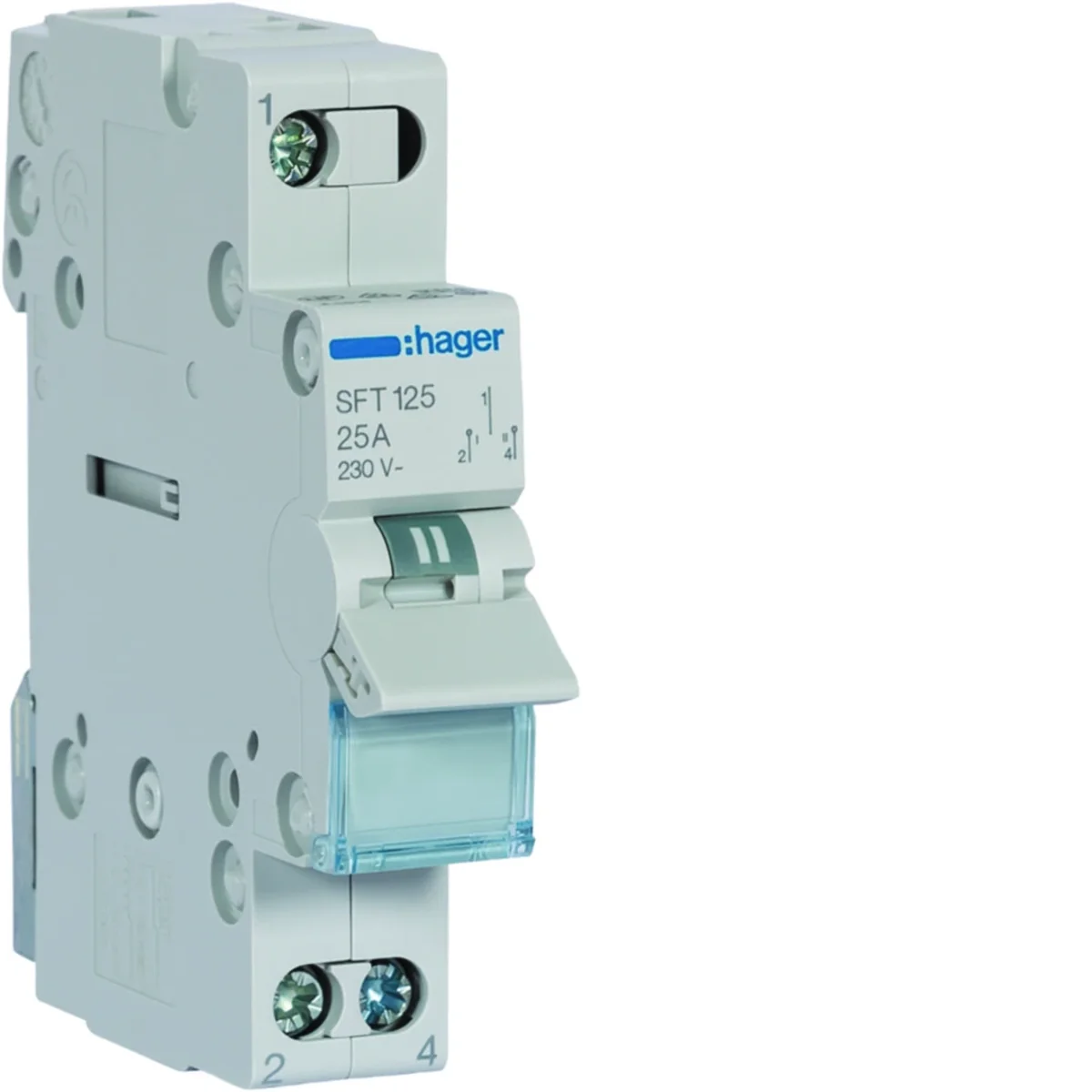

Switch with pos. central OFF I-0-II top power connection 1P 25A SFT125

Name: Switch with pos. central OFF I-0-II top power connection 1P 25A
Brand: HAGER
SKU: ALI043HAGE
Price: 16.41 PLN

local index:

ALI043HAGE

Catalog No:

SFT125

EAN code:

3250615510747

Switch with pos. central OFF I-0-II top power connection 1P 25A

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 70

Number of modules: 1

Number of poles: 1

See full description

Price:

16,41 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

For switching all types of current circuits. Compliance with: PN-EN 60943-3 and PN-EN 60669-1. Characteristics: all switches have green/red fields on the operating lever for clear visualization of the switch position.
Technical data
Operating category AC-22A 230V/400V
Ie: 16A to 40A size 1.
Connection terminals: 16mm² - wire, 10mm² - cord
MZ2xx series shunt, undervoltage and overvoltage releases cannot be used.

Technical data

Depth [mm]

70
Number of poles

1
Rated voltage [V]

230
Rated current [A]

25
Width [mm]

17.5
Number of modules

1

Number of modules

1
Surge voltage [kV]

4000
Rated insulation voltage [V]

440
Power dissipation [W]

1
Height [mm]

83
PKWIU

27.33.11.0

Other technical data

Switching function

Two-way switch
Number of contacts as normally closed contact

0
Number of poles

1
Rated voltage

230 V
Rated switching capacity

0.529 kA
Voltage type

AC
Max. lamp power

0 W
Built-in depth

70 mm

Number of contacts as normally open contact

0
Number of contacts as change-over contact

1
Rated current

25 A
Min. rated voltage

230 V
Short-circuit breaking capacity (Icw)

0.375 kA
With signal lamp

No
Width in number of modular spacings

1
Degree of protection (IP)

IP20

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	144 pcs.	3456 pcs.
Weight (kg)	0,067	0,863	10,750	281,000
Width (m)	0,070	0,100	0,315	0,800
Length (m)	0,020	0,082	0,235	1,090
Depth (m)	0,080	0,229	0,360	1,200
