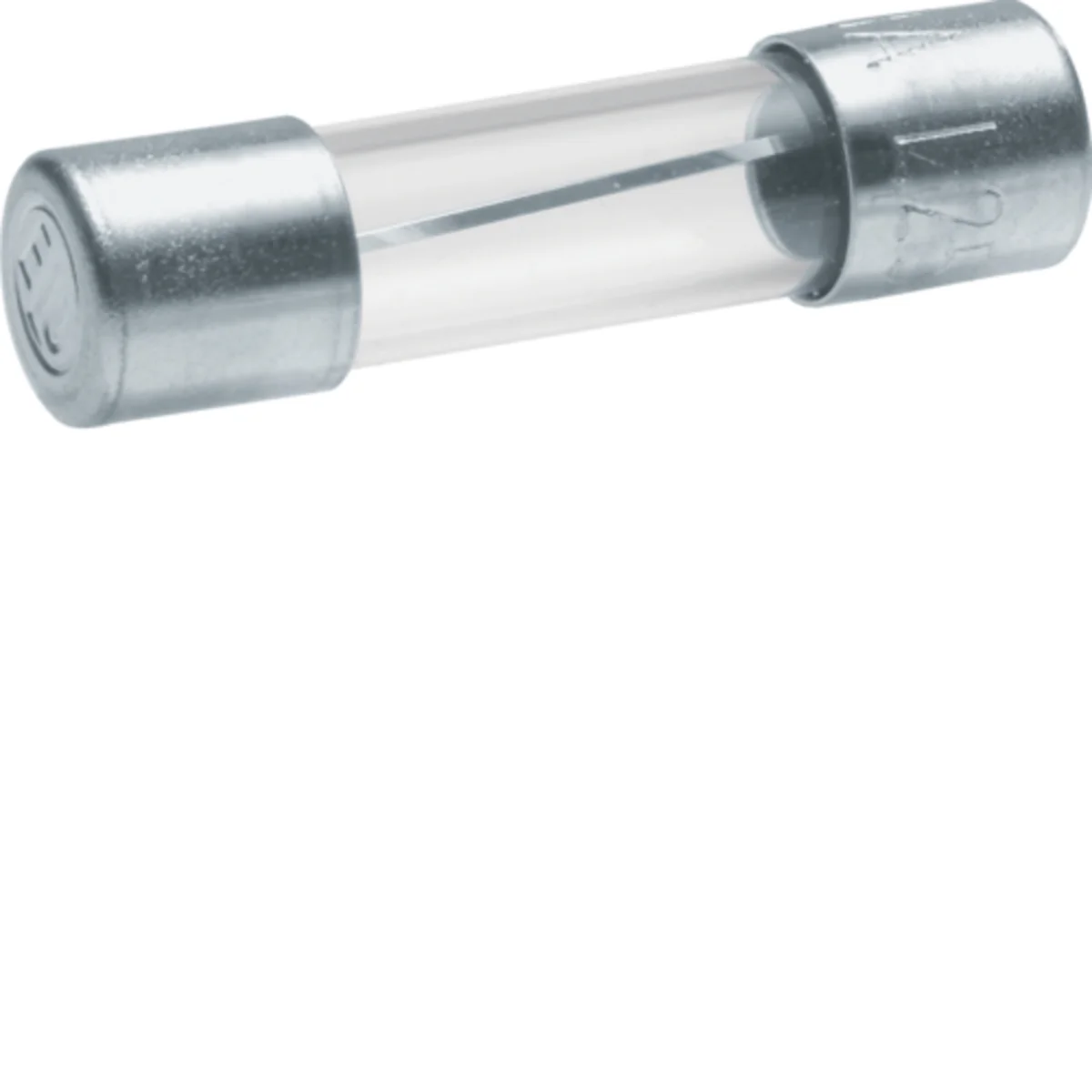

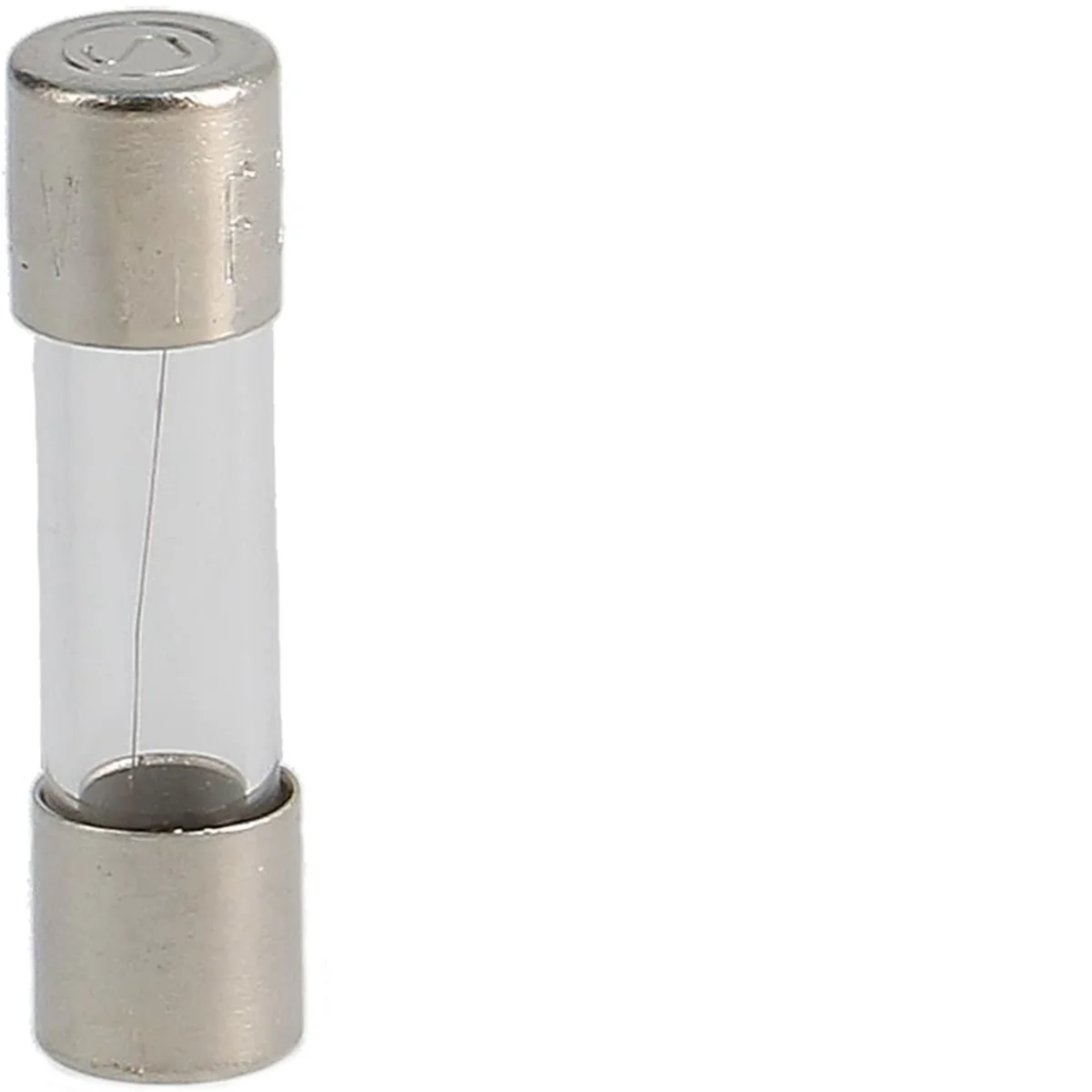

Glass fuse 5x20mm, T, 250V 0.8A L520TK00-800

local index:
ABI037HAGE
Catalog No:
L520TK00-800
EAN code:
3250614127250
Manufacturer: HAGER
Rated current [A]: 0.8
Type of fuse: Delayed
Dimensions [mm]: 5x20
Price:
0,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

< tr style="margin: 0px; padding: 0px;">
Specifications
Rated current In: 0.8A
Fuse link size: 5 x 20
Rated operational voltage Ue (AC): 250V
Total power loss for rated current: 0.3W

Technical data

  • Rated current [A]
    0.8
  • Dimensions [mm]
    5x20
  • Type of fuse
    Delayed
  • PKWIU
    27.12.21.0

Other technical data

  • Size
    Other
  • Rated operating frequency
    50 ... 60 Hz
  • Breaking capacity
    0.035 kA
  • Voltage type
    AC
  • Release characteristic
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 1200 pcs. 36000 pcs.
Weight (kg) 0,001 0,010 1,270 68,180
Width (m) 0,005 0,021 0,130 0,800
Length (m) 0,005 0,006 0,070 0,450
Depth (m) 0,020 0,051 0,130 1,200
