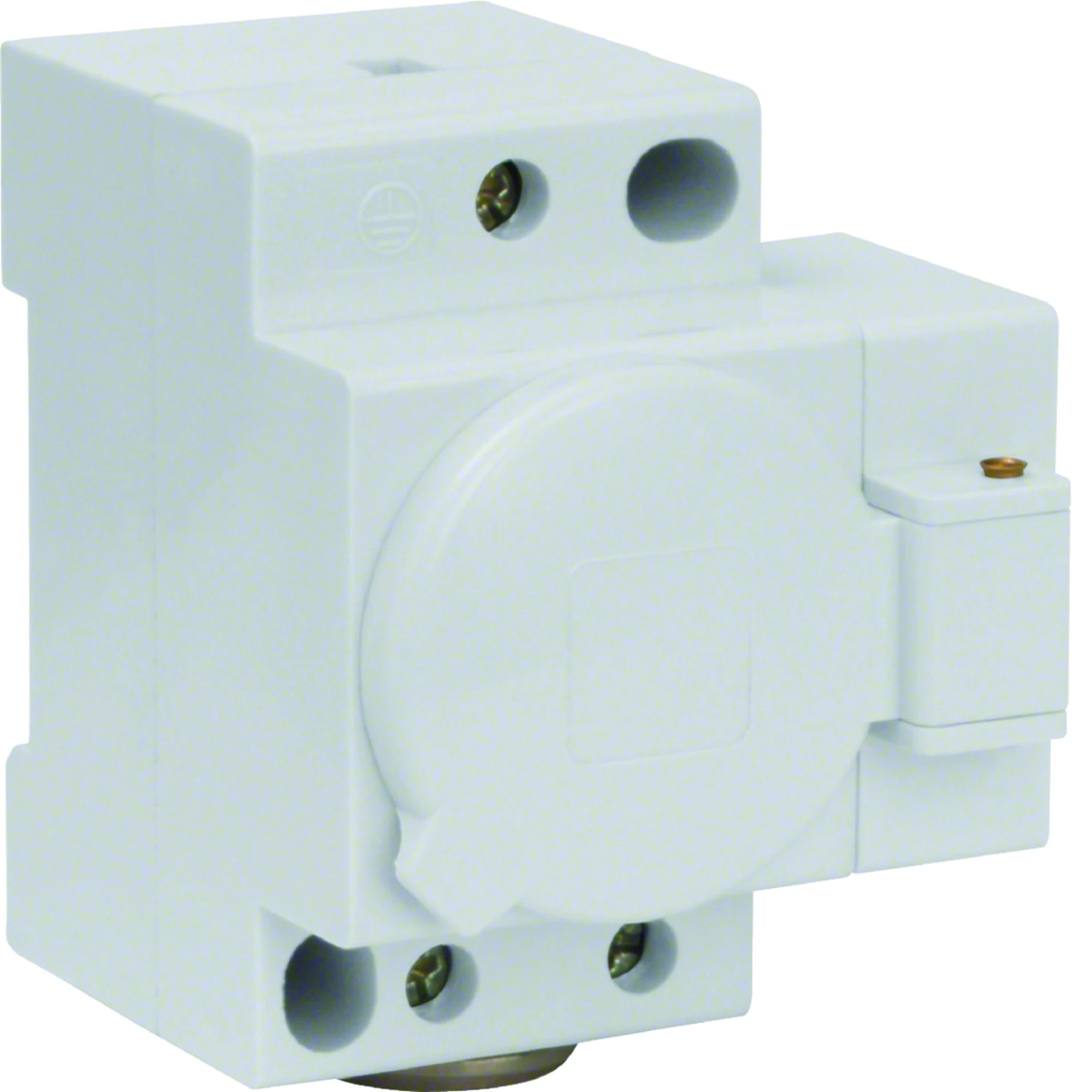

Socket with cover 10/16A, 230V, for switchgear class II. SN017

local index:
RRR5A7HAGE
Catalog No:
SN017
EAN code:
3250615640178
Manufacturer: HAGER
Rated frequency [Hz]: 50
Depth [mm]: 70
Rated current [A]: 16
Price:
34,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SCHUKO rail socket with cover. Number of wires - stranded: 6mm2, number of wires - solid: 10mm2.

Technical data

  • Rated frequency [Hz]
    50
  • Rated current [A]
    16
  • Width [mm]
    61.25
  • Number of modules
    3.5
  • Depth [mm]
    70
  • Type of connecting cable
    With a screw
  • Height [mm]
    76
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    2
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With hinged lid
    Yes
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    No special power supply
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Device width
    61.25 mm
  • Device depth
    70 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of modules (module system)
    2
  • Connection type
    Screwed terminal
  • Label space/information surface
    No
  • RAL-number (similar)
    7044
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Type of fastening
    Other
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    76 mm
  • Min. depth of built-in installation box
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 36 pcs. 864 pcs.
Weight (kg) 0,100 0,450 5,835 163,040
Width (m) 0,080 0,100 0,315 0,800
Length (m) 0,080 0,080 0,240 1,078
Depth (m) 0,080 0,230 0,360 1,200
