208921
0

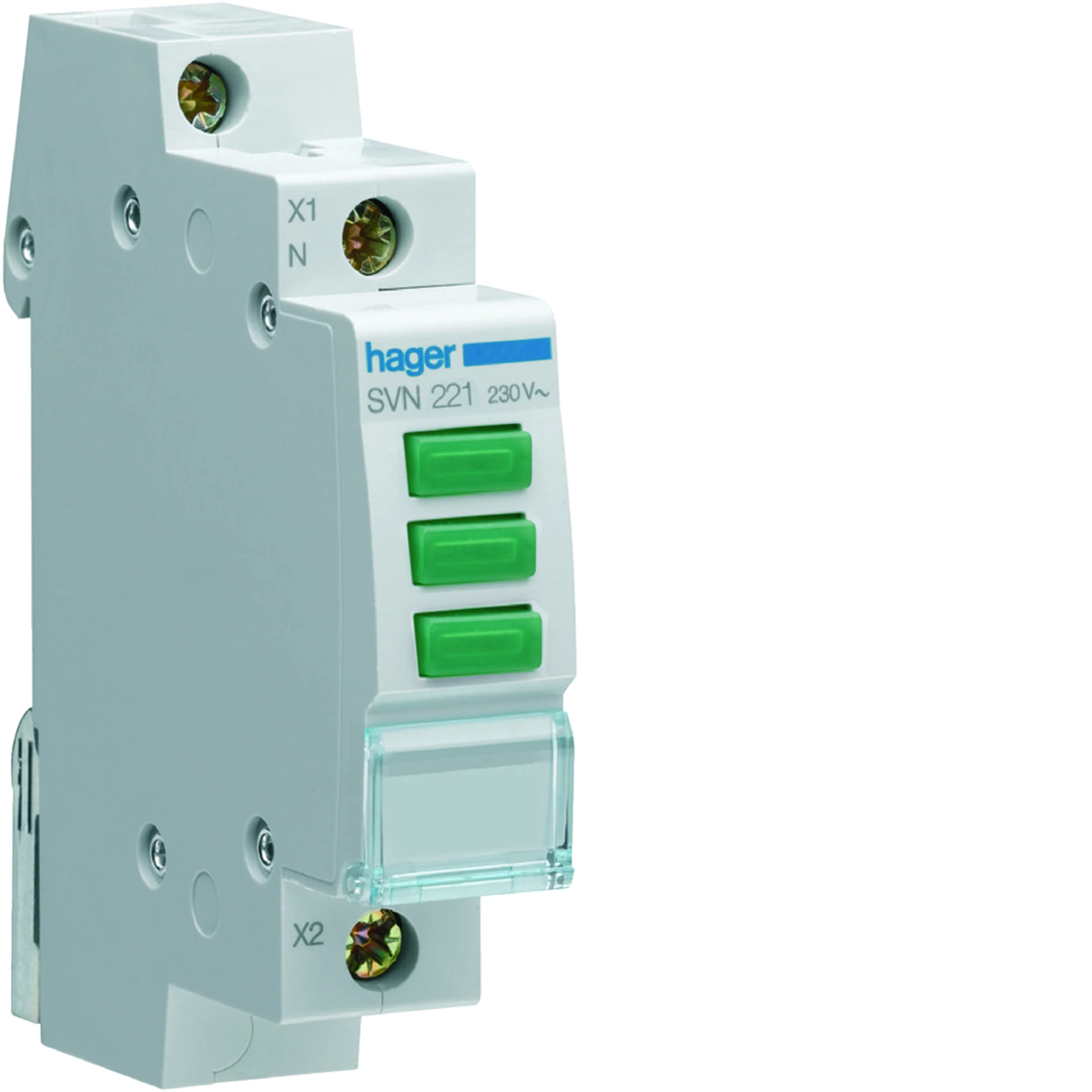

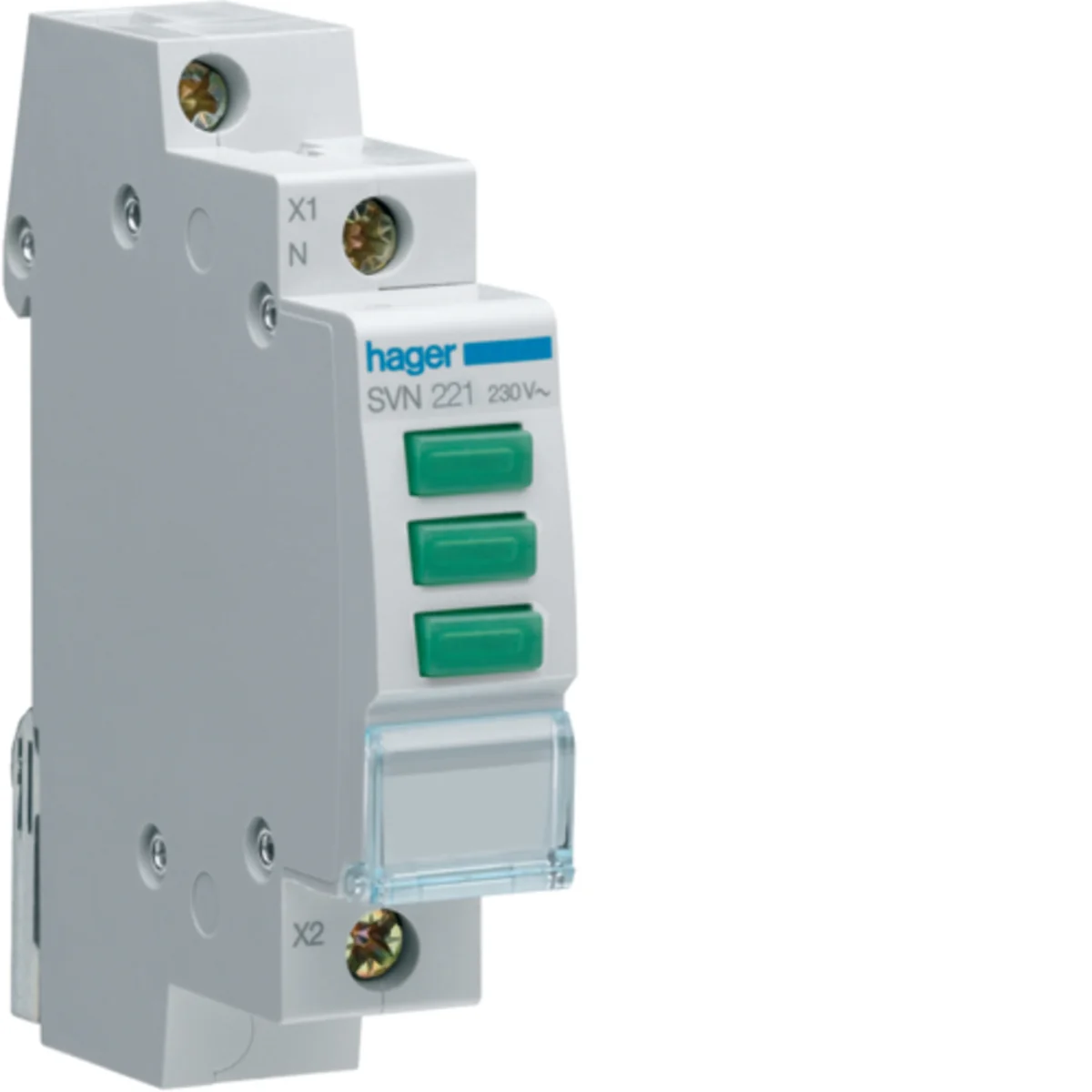

Triple indicator lamp, green, 230V AC SVN221
local index:
AKS034HAGE
Catalog No:
SVN221
EAN code:
3250615725523
Price:
17,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
| Specifications | |
|---|---|
| Number of modules: | 1 |
| Rated operational voltage Ue (AC): | 230V |
| Rated insulation voltage Ui: | 250V |
| Rated impulse withstand voltage Uimp: | 4000V |
| Rated frequency: | 50/60 Hz |
| Connection type: | with screw |
| Total power loss for rated current: | 0.8W |
| Number of wires - line: | 0.75/6mm² |
| Number of wires - wire: | 0.75/10mm² |
| Operating temperature: | -20 to 50 °C |
| Storage temperature: | -40 to 80 °C |
| Height of installed product: | 83mm |
| Installed product width: | 17.5mm |
| Depth of installed product: | 62mm |
Technical data
-
Depth [mm]62
-
ColorGreen
-
Width [mm]17.5
-
Source of lightLED
-
PKWIU27.12.23.0
-
Number of modules1
-
Rated voltage [V]230
-
Height [mm]83
-
Number of modules1
Other technical data
-
Colour calotteRed
-
Lamp socketOther
-
Rated voltage230 V
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
-
Lamp typeLED
-
Max. lamp power0.8 W
-
Voltage typeAC
-
Built-in depth62 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 144 pcs. | 3456 pcs. |
| Weight (kg) | 0,055 | 0,755 | 9,605 | 253,520 |
| Width (m) | 0,018 | 0,095 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,080 | 0,235 | 1,070 |
| Depth (m) | 0,067 | 0,225 | 0,360 | 1,200 |
