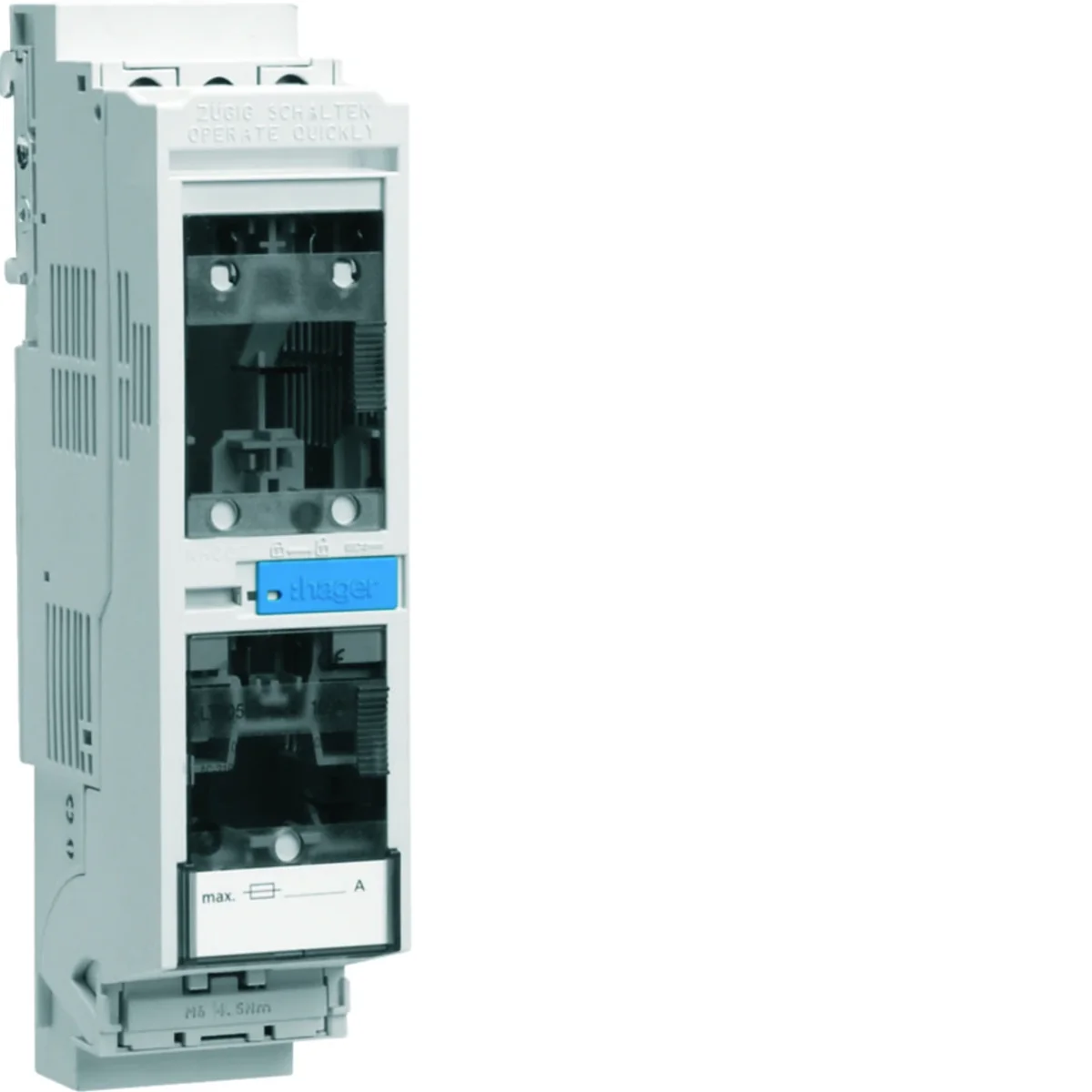

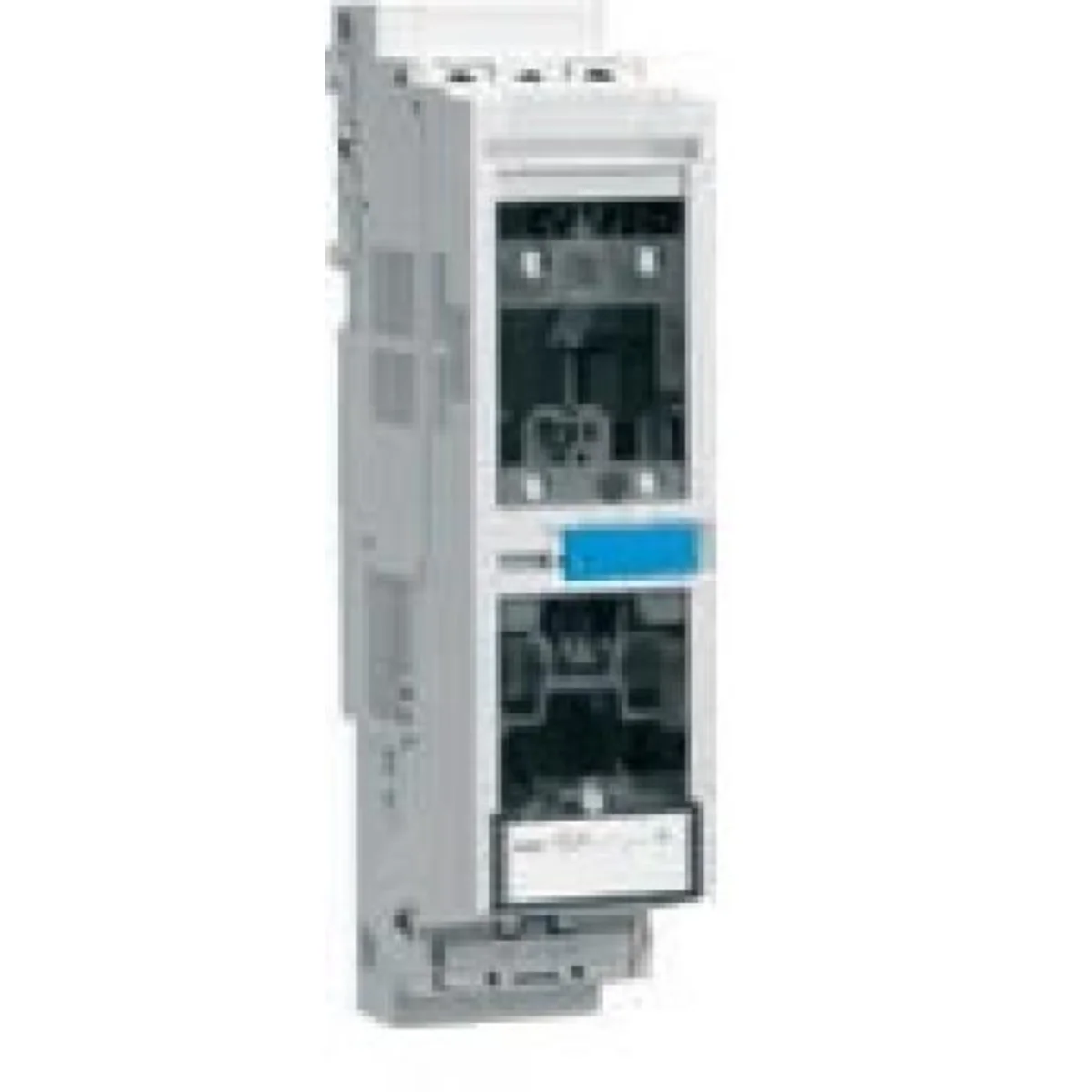

NH disconnector - size 000 3x100A mounted on TH35 rails LT0050
local index:
ALI047HAGE
Catalog No:
LT0050
EAN code:
3250614200595
Price:
56,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
NH fuse switch disconnectors for mounting plate or TS35 rails
Technical data
-
Depth [mm]82
-
Operating voltage [V]690
-
Rated insulation voltage [V]1000
-
Power dissipation [W]22.5
-
Fuse link sizeNH000
-
PKWIU27.33.11.0
-
Number of poles3
-
Surge voltage [kV]8000
-
Rated current [A]100
-
Width [mm]53
-
Height [mm]216
Other technical data
-
Wyposażenie obudowyZ rozłącznikiem bezpiecznikowym
-
Rated operation current Ie100 A
-
Rated insulation voltage Ui1000 V
-
With error protectionNo
-
Degree of protection (IP)IP3X
-
Number of poles3
-
Max. rated operation voltage Ue AC690 V
-
Construction size fuse insertsNH000
-
Height of housing216 mm
-
Degree of protection (NEMA)1
Manufacturer details
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 240 pcs. |
| Weight (kg) | 0,510 | 0,545 | 155,000 |
| Width (m) | 0,135 | 0,135 | 0,800 |
| Length (m) | 0,065 | 0,065 | 1,050 |
| Depth (m) | 0,235 | 0,240 | 1,200 |
