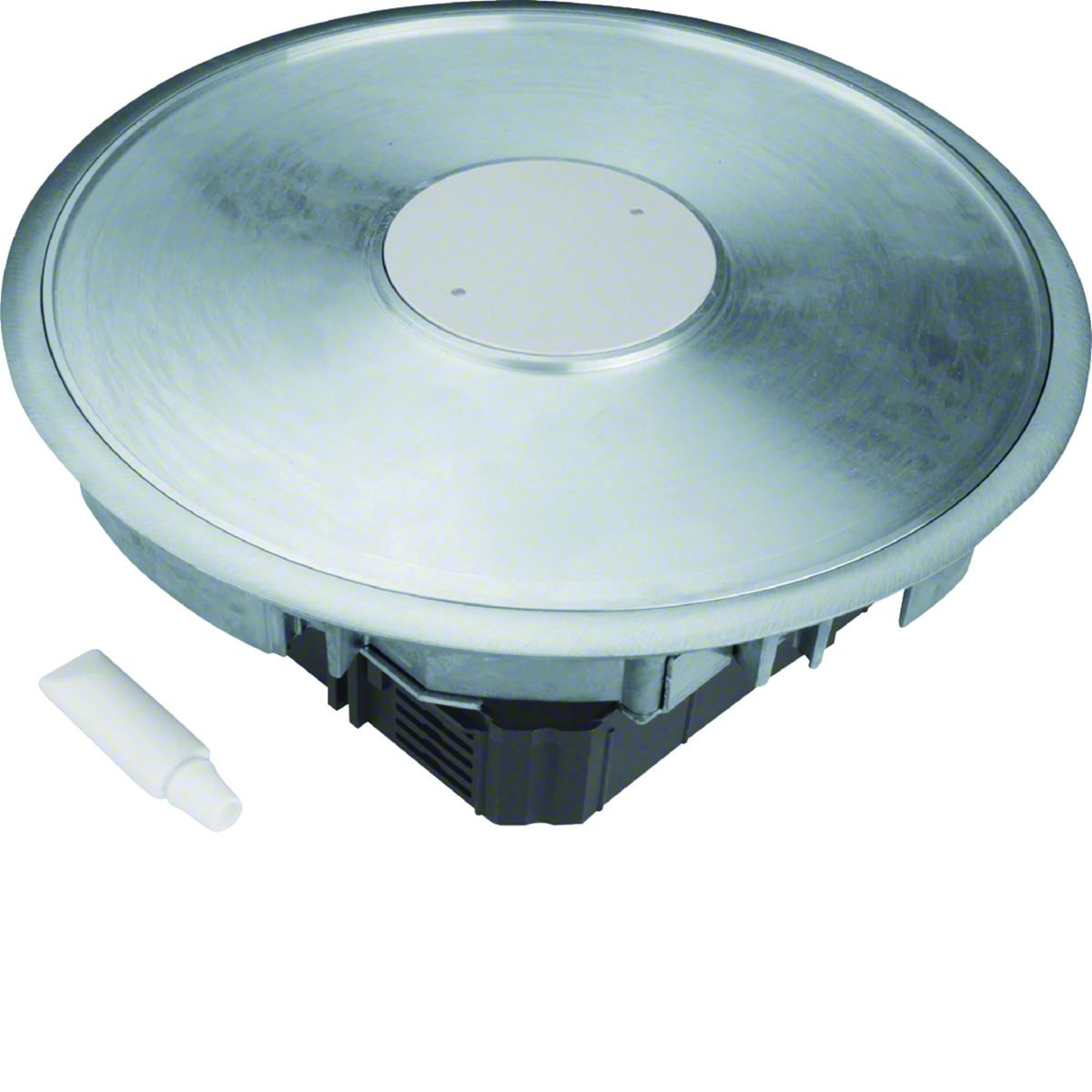

TEHALIT.VE-EE Floor power point Tube R12 3mm aluminum raised floor VANR12003

Místní index:
MVD060TEHA
Katalogové číslo.:
VANR12003
EAN kód:
4012002247860
Výrobce: TEHALIT
Halogen free: Yes
Length [mm]: 325
Color: Silver
Cena:
1 689,65 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Floor power point for IP66 wet-cleaned floors, for mounting the VANR12 aluminum tube, tehalit.VE-EE series.

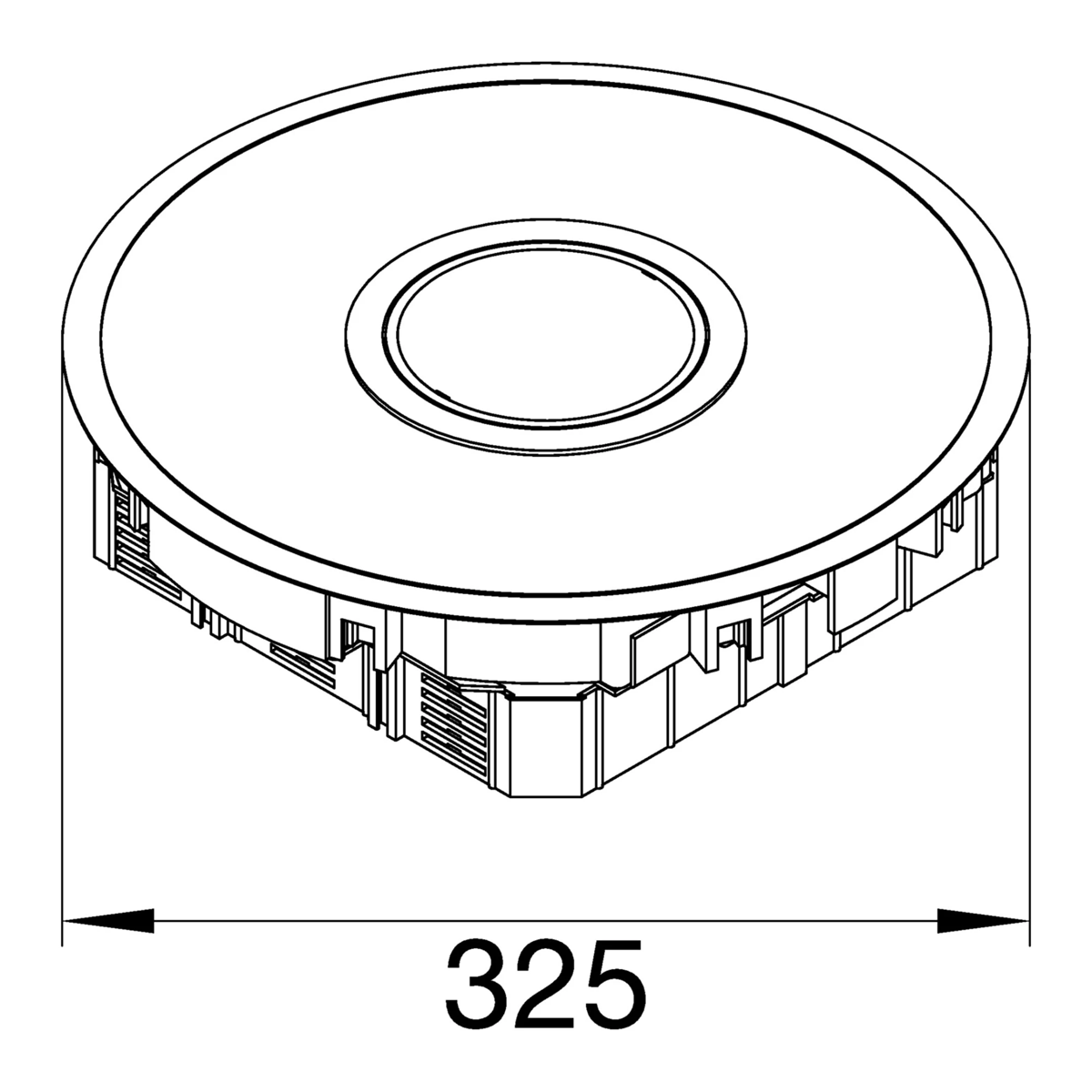

    < li> outer diameter: 325 mm
  • installation diameter: 306 mm
  • minimum installation depth: 90-95 mm
  • cover for carpet: 3 mm
  • material: aluminum
  • complete aluminum cover for bonding carpet thickness up to 3 mm
  • for 12 devices in 3 boxes GTVR400, GBVR400 or GTVD300
  • gradual lowering of the GTVR400, GBVR400, GTVD300 boxes to 18mm
  • mounting height from 90 mm to GBVR400 and GTVD300
  • mounting height from 95 mm to GTVR400

Technické údaje

  • Halogen free
    Yes
  • Color
    Silver
  • Material
    Aluminum
  • Surface finish
    Structure
  • Minimum installation depth [mm]
    90
  • PKWIU
    25.11.23.0
  • Length [mm]
    325
  • Shape
    Round
  • Family
    TEHALIT.VE-EE
  • Accurate color
    Aluminum
  • How to use and clean the floor
    Wet

Další technické údaje

  • Cover model
    Round
  • Number of device cups
    3
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • With cable outlet in cover
    Yes
  • Lock control
    Key
  • Surface protection housing
    Other
  • Surface protection cover
    Other
  • Obciążenie pionowe na małej powierzchni zgodnie z EN 50085-2-2
    3 kN
  • Stopień ochrony (IP) w użyciu (wyjście kablowe otwarte)
    IP20
  • Depth of flooring recess
    3 mm
  • Colour
    Other
  • Suitable for outdoor installation
    No
  • Suitable for hollow floor
    Yes
  • Suitable for concrete installation
    Yes
  • Suitable for wet cleaning
    Yes
  • Built-in diameter
    306 mm
  • Number of inlets
    3
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    12
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • Lockable cover
    Yes
  • Housing material
    Aluminium
  • Material cover
    Aluminium
  • Surface treatment cover
    Other
  • Obciążenie pionowe na dużej powierzchni (duże obciążenie) zgodnie z EN 50085-2-2
    10 kN
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • Suitable for indoor installation
    Yes
  • Suitable for subfloor duct
    No
  • Suitable for double floor built-in
    No
  • Suitable for floors in computer rooms
    Yes
  • Outer diameter
    325 mm
  • Min. built-in depth
    90 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Paleta Karton Paleta
Množství 1 kusů. 54 kusů. 1 kusů. 54 kusů.
Hmotnost (kg) 3,032 188,728 3,032 188,728
Šířka (m) 0,310 0,800 0,310 0,800
Délka (m) 0,100 0,900 0,100 0,900
Hloubka (m) 0,350 1,200 0,350 1,200
