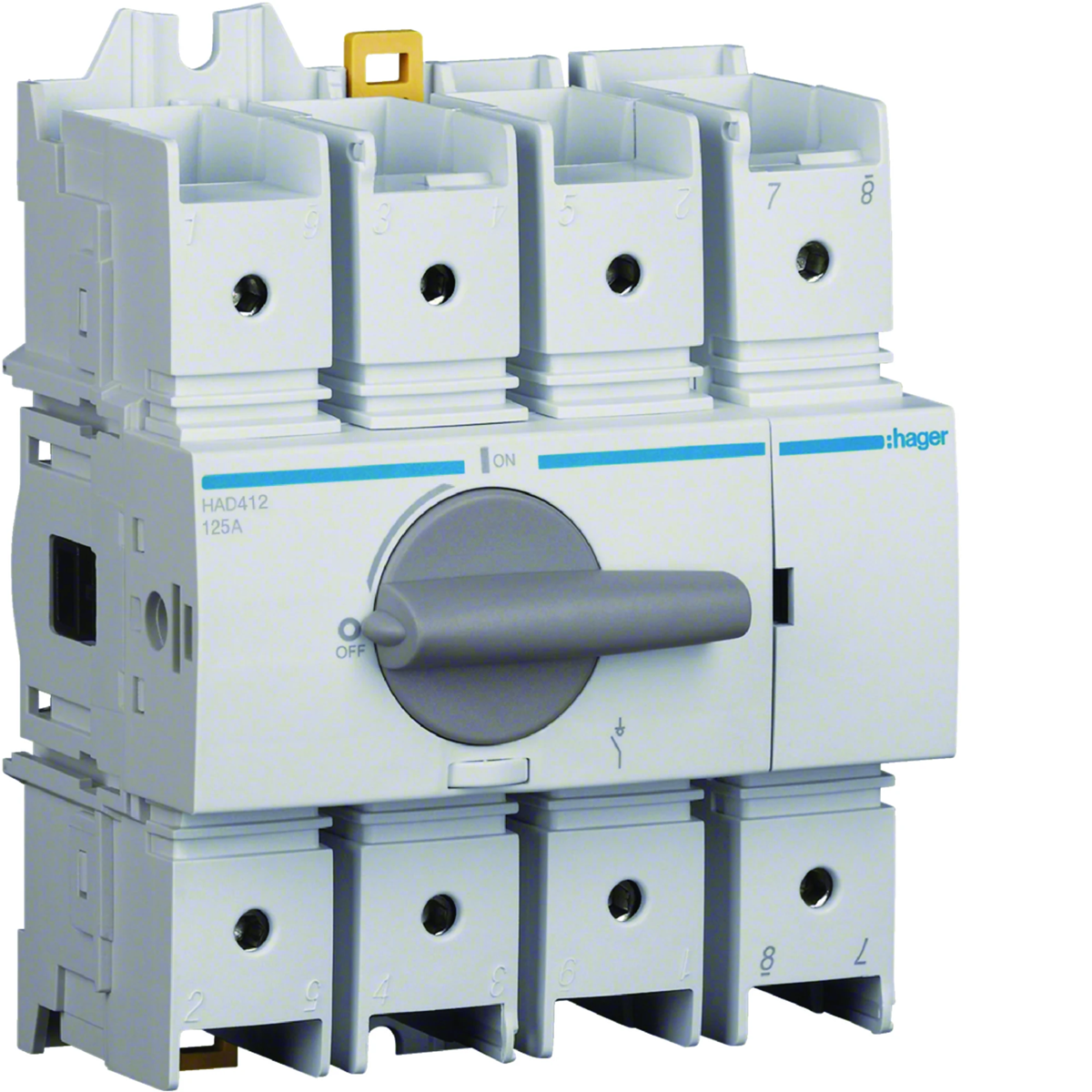

Disconnect switch, size 3, 4P, 125A HAD412
local index:
ALI068HAGE
Catalog No:
HAD412
EAN code:
3250613140465
Price:
112,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product features:
- modular switch-disconnectors, mounting on a TS35 mounting rail or on a mounting plate
- handle directly on the device, with the possibility of locking the pins In the off state
- possibility of using a rotary mechanism on the cabinet door, auxiliary contacts, connection covers
Characteristics:
- size 1, 2, 3 with visible indication of the contact status
- size 4 with visible insulating gap
- degree of protection: IP20
Cage terminal connections:
(wire data)
- size 1: 1.5-16 mm2
- size 2 : 2.5-35mm2
- size 3, 4: 10-70mm2 HIM402,
- HIM404: 1.5-16mm2 HIM406,
- HIM408 : 2.5-35 mm2
Norm: PN-EN 60947-3
Technical data
-
Rated frequency [Hz]50
-
Rated insulation voltage [V]800
-
Surge voltage [V]8000
-
Rated switching voltage [V]380/415
-
PKWIU27.12.22.0
-
Number of poles4
-
ConnectionScrew
-
Rated current [A]125
-
Number of modules5.95
Other technical data
-
Version as main switchYes
-
Version as safety switchYes
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC415 V
-
Rated permanent current Iu125 A
-
Rated permanent current at AC-21, 400 V125 A
-
Rated operation power at AC-23, 400 V56 kW
-
Conditioned rated short-circuit current Iq25 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage380 ... 415 V
-
Rated permanent current at AC-23, 400 V100 A
-
Rated short-time withstand current lcw2.75 kA
-
Switching power at 400 V82 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementShort thumb-grip
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)Other
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 9 pcs. | 216 pcs. |
| Weight (kg) | 0,824 | 0,825 | 7,780 | 209,720 |
| Width (m) | 0,132 | 0,115 | 0,315 | 0,800 |
| Length (m) | 0,075 | 0,090 | 0,210 | 0,610 |
| Depth (m) | 0,079 | 0,160 | 0,360 | 1,200 |
