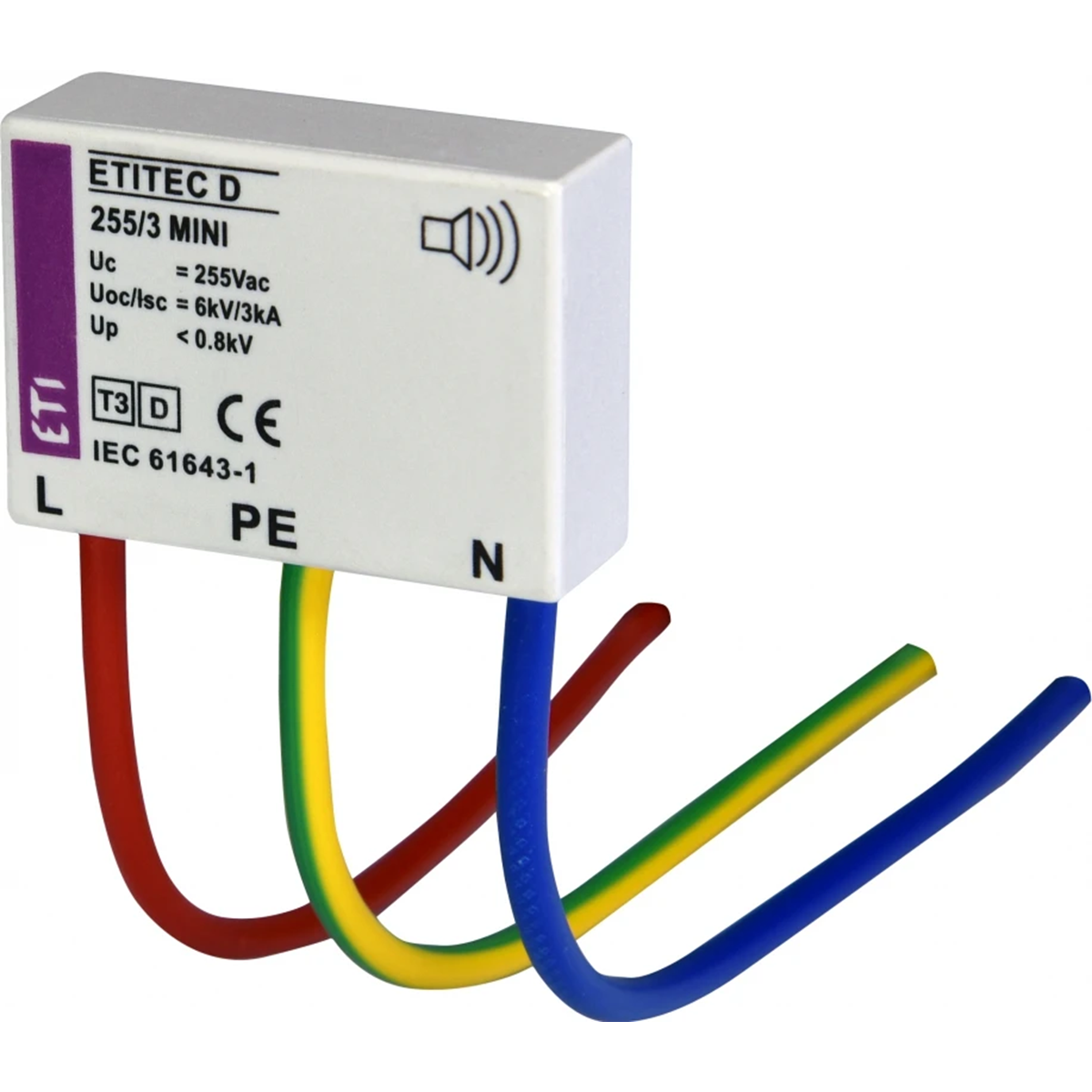

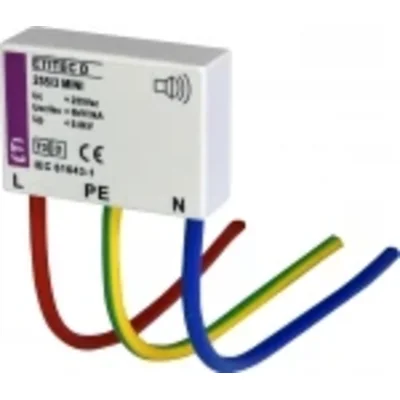

Class D surge arrester ETITEC D 255/3 MINI 002441632

Místní index:
AOC070ETIP
Katalogové číslo.:
002441632
EAN kód:
3838895551584
Výrobce: ETI POLAM
Rated voltage [V]: 230
Type: d
Weight [g]: 25
Cena:
147,86 zł
gross / kusů.
(včetně DPH 23%)
5914,40 zł gross/kg.
do 2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Application - ETITEC class D MINI surge arresters are used for precise protection against surges (Type 3) of receivers, especially sensitive to short-term overvoltages, whose level of surge voltage withstood by their insulation does not exceed 1.5 kV. They are designed to be mounted in a network socket installation box or in a structural installation channel. The limiter has a sound signaling of damage to the layered element (the need to replace it).

Technické údaje

  • Rated voltage [V]
    230
  • Weight [g]
    25
  • Type
    d
  • PKWIU
    27.12.23.0

Další technické údaje

  • Nominal voltage AC
    230 V
  • Nominal discharge surge current (8/20) (L-N)
    3 kA
  • Number of poles
    2
  • Max. conductor cross section solid (solid, stranded)
    1.5 mm²
  • With remote signalling contact
    Yes
  • Category type 3
    Yes
  • Degree of protection (IP)
    IP20
  • Max. continuous voltage AC
    255 V
  • Voltage protection level
    1.7 kV
  • Mounting method
    Wall socket
  • Max. conductor cross section flexible (fine-strand)
    1.5 mm²
  • Signalling at the device
    Acoustic
  • With interference suppressor filter
    No

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 30 kusů.
Hmotnost (kg) 0,520
Objem (m3) 0,003
Šířka (m) 0,115
Délka (m) 0,305
Hloubka (m) 0,083
