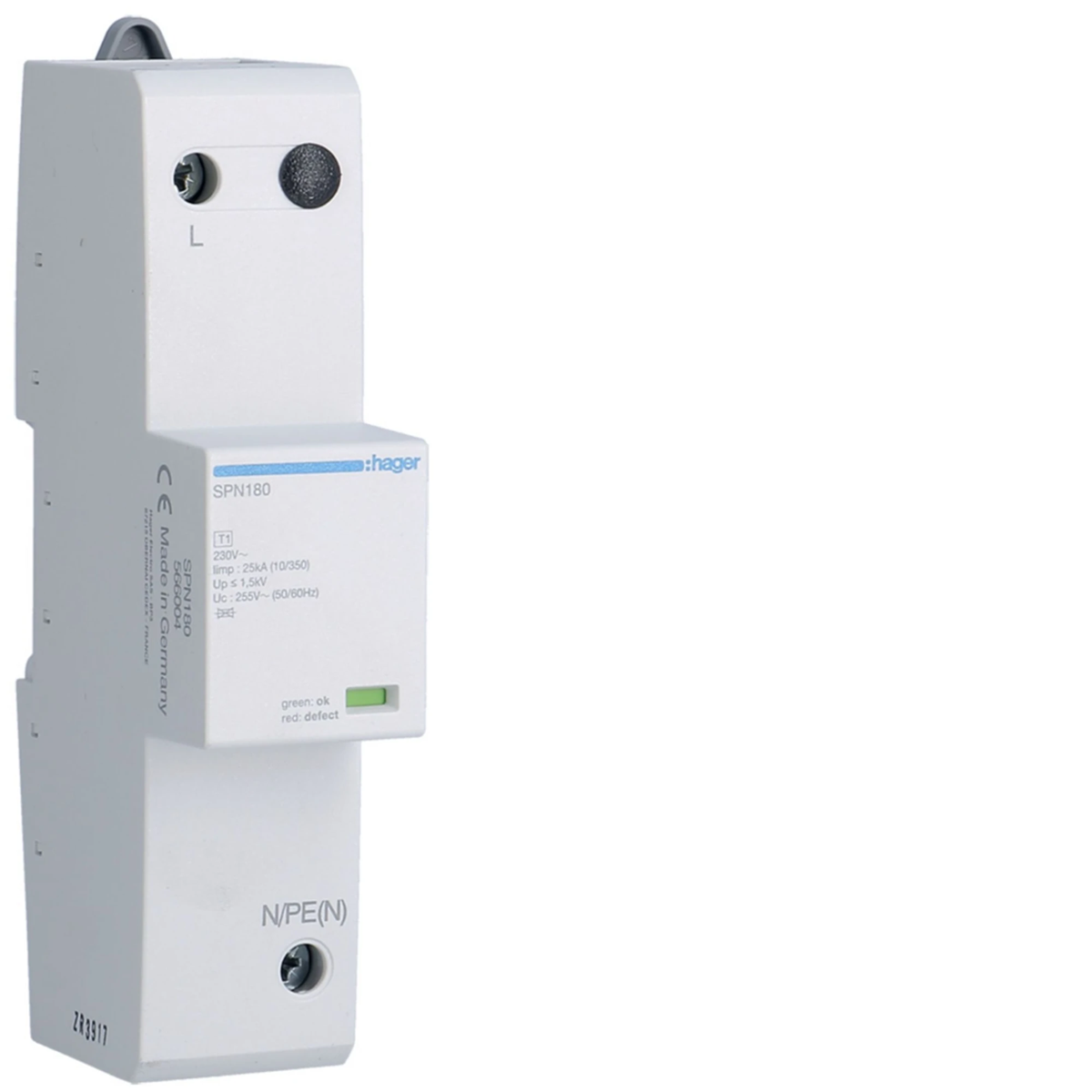

SPD Surge arrester T1+T2, 1P, Iimp = 25 kA, In = 25 kA, Up ≤ 1.5 kV SPN180
local index:
AOC017HAGE
Catalog No:
SPN180
EAN code:
3250615660046
Price:
471,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SPD Surge arrester T1+T2, 1P, Iimp = 25 kA, In = 25 kA, Up ≤ 1.5 kV
Technical data
-
Rated frequency [Hz]60
-
Tightening torque [Nm]3.6
-
Maximum continuous operating voltage [V]255
-
Operating temperature range [°C]From -40 to 80
-
Remote contactNO
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]50
-
Number of poles1
-
InstallationOn the TH-35 rail
-
Level of securityIP20
-
Rated switching voltage [V]230
-
BeaconFailure indication
-
Wire cross-section (cord) [mm²]35
-
PKWIU27.12.23.0
Other technical data
-
Lightning impulse current (10/350 µs)25 kA
-
Nominal voltage AC230 V
-
Voltage protection level1.5 kV
-
Voltage protection level N-PE1.5 kV
-
Mounting methodDIN rail (top hat rail) 15 mm
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
ExhaustingNo
-
Category type 1Yes
-
Degree of protection (IP)IP20
-
Max. continuous voltage AC255 V
-
Nominal voltage DC0 V
-
Voltage protection level L-N1.5 kV
-
Follow current extinguishing capability50 kA
-
Max. conductor cross section solid (solid, stranded)50 mm²
-
With remote signalling contactNo
-
Signalling at the deviceOptical
-
Suitable for outdoor useNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. | 240 pcs. |
| Weight (kg) | 0,350 | 0,505 | 5,450 | 153,800 |
| Width (m) | 0,035 | 0,120 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,080 | 0,215 | 1,014 |
| Depth (m) | 0,070 | 0,210 | 0,365 | 1,200 |
