SPD Replaceable module T2 1P IT network Imax 40kA Up≤2kV SPN013

Name: SPD Replaceable module T2 1P IT network Imax 40kA Up≤2kV
Brand: HAGER
SKU: AOC026HAGE
Price: 73.20 PLN

local index:

AOC026HAGE

Catalog No:

SPN013

EAN code:

3250615660664

SPD Replaceable module T2 1P IT network Imax 40kA Up≤2kV

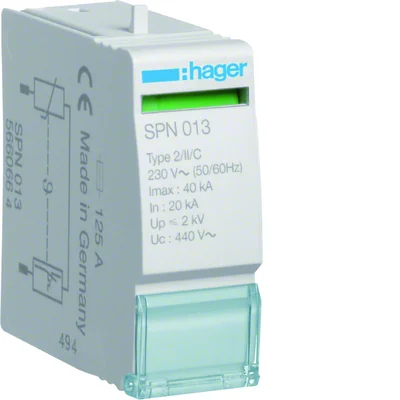

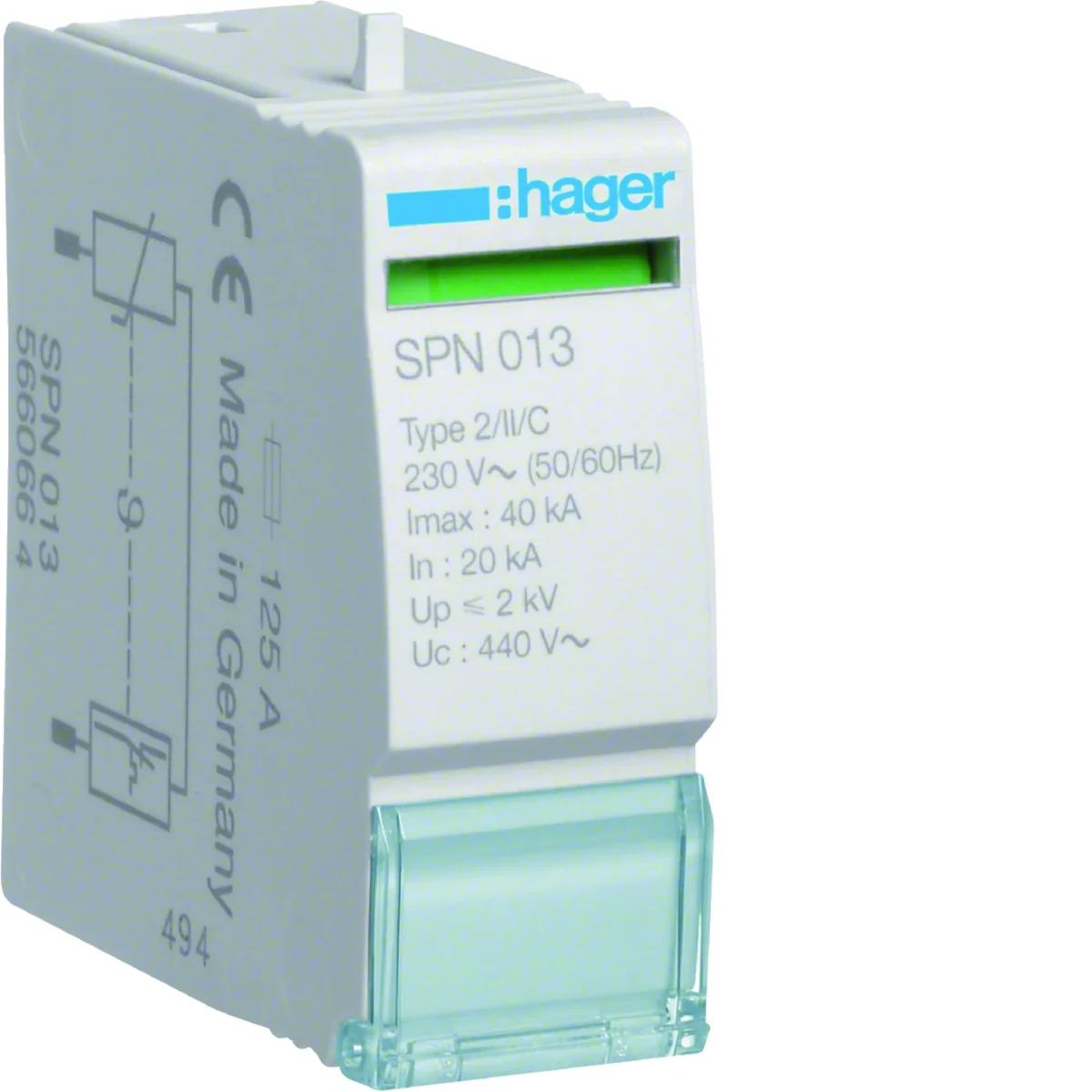

Click on the photo to enlarge

Manufacturer: HAGER

Rated frequency [Hz]: 60

Number of poles: 1

Maximum continuous operating voltage [V]: 440

See full description

Price:

73,20 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Replacement module for surge arresterstype 2, IT network, SPD series.

Series characteristics:< /p>

They protect receiving devices and installations against the effects of induced atmospheric overvoltages and switching overvoltages. They can be installed behind type 1 surge arresters, while maintaining the distance of wires between them > 15 m or using decoupling inductances.

Technical data

Rated frequency [Hz]

60
Maximum continuous operating voltage [V]

440
Operating temperature range [°C]

from -40 to 60
Number of modules

1
Beacon

Failure indication
Wire cross-section (cord) [mm²]

25
PKWIU

27.12.10.0

Number of poles

1
Family

SPD
Rated switching voltage [V]

230
Remote contact

NO
storage temperature [°C]

From -40 to 80
Conductor cross-section (wire) [mm²]

35

Other technical data

Nominal discharge surge current (8/20)

20 kA
Max. continuous voltage AC

440 V
Mounting method

DIN rail (top hat rail) 35 mm
Voltage protection level

2 kV
Signalling at the device

Optical
Degree of protection (IP)

IP20

Nominal voltage AC

230 V
Max. discharge surge current (8/20)

40 kA
Max. PV-voltage

0 V
With remote signalling contact

No
Category type 2

Yes

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	108 pcs.	2592 pcs.
Weight (kg)	0,051	0,075	8,540	229,960
Width (m)	0,018	0,080	0,315	0,800
Length (m)	0,045	0,018	0,214	1,006
Depth (m)	0,045	0,097	0,370	1,200
