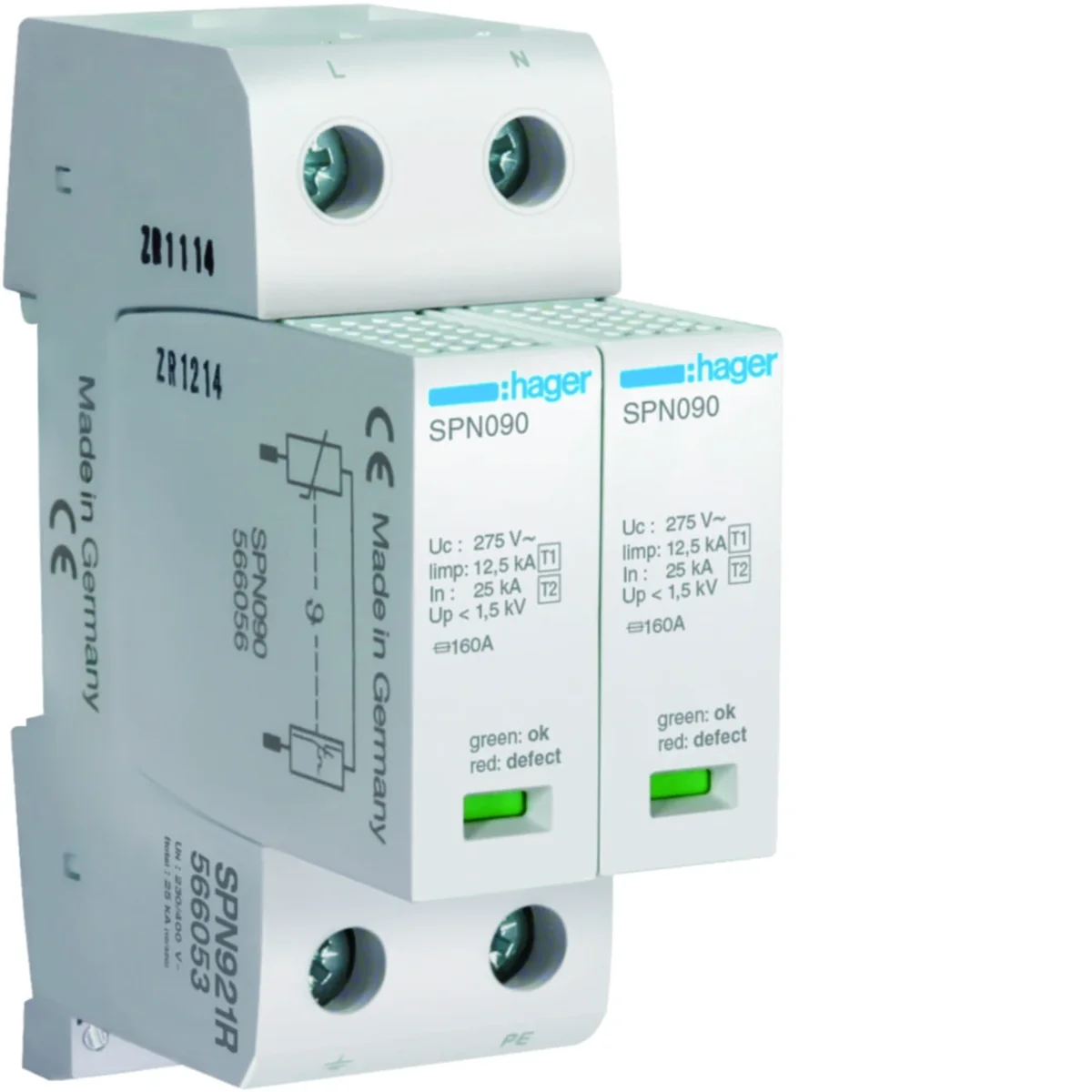

SPD 2P surge arrester with signaling contact, MOV T1+T2, 12.5 kA, TN-S SPN921R

local index:
AOC046HAGE
Catalog No:
SPN921R
EAN code:
3250615660534
SPD 2P surge arrester with signaling contact, MOV T1+T2, 12.5 kA, TN-S
SPD 2P surge arrester with signaling contact, MOV T1+T2, 12.5 kA, TN-S

Click on the photo to enlarge

Manufacturer: HAGER
Rated frequency [Hz]: 60
Number of poles: 2
Tightening torque [Nm]: 4
See full description
Price:
946,49 zł
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

SPD 2P surge arrester with signaling contact, MOV T1+T2, 12.5 kA, TN-S

Technical data

  • Rated frequency [Hz]
    60
  • Tightening torque [Nm]
    4
  • Maximum continuous operating voltage [V]
    275
  • Operating temperature range [°C]
    From -40 to 80
  • Number of modules
    2
  • Beacon
    Failure indication
  • Supply voltage type
    AC
  • Conductor cross-section (wire) [mm²]
    1.5 - 35
  • Number of poles
    2
  • Installation
    On the TH-35 rail
  • Level of security
    IP20
  • Rated switching voltage [V]
    230/400
  • Remote contact
    Yes
  • storage temperature [°C]
    From -40 to 80
  • Wire cross-section (cord) [mm²]
    1.5 - 25
  • PKWIU
    27.12.23.0

Other technical data

  • System configuration DC
    No
  • System configuration TN
    Yes
  • System configuration TN-C-S
    No
  • System configuration TT
    No
  • Number of poles
    2
  • Max. continuous voltage AC
    275 V
  • Max. PV-voltage
    0 V
  • Voltage protection level L-N
    1.5 kV
  • Voltage protection level N-PE
    1.5 kV
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    35 mm²
  • Remote signalling
    Yes
  • Test class
    Type 1 + 2
  • System configuration IT
    No
  • System configuration TN-C
    No
  • System configuration TN-S
    Yes
  • System configuration other
    Yes
  • Lightning impulse current (10/350 µs)
    12.5 kA
  • Nominal voltage AC
    400 V
  • Voltage protection level
    1.5 kV
  • Voltage protection level L-PE
    1.5 kV
  • Max. overcurrent protection device, parallel connection (fuse)
    160 A
  • Construction size
    2 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    25 mm²
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,350 21,060 505,440
Width (m) 0,080 0,310 0,800
Length (m) 0,030 0,210 1,010
Depth (m) 0,090 0,360 1,200
