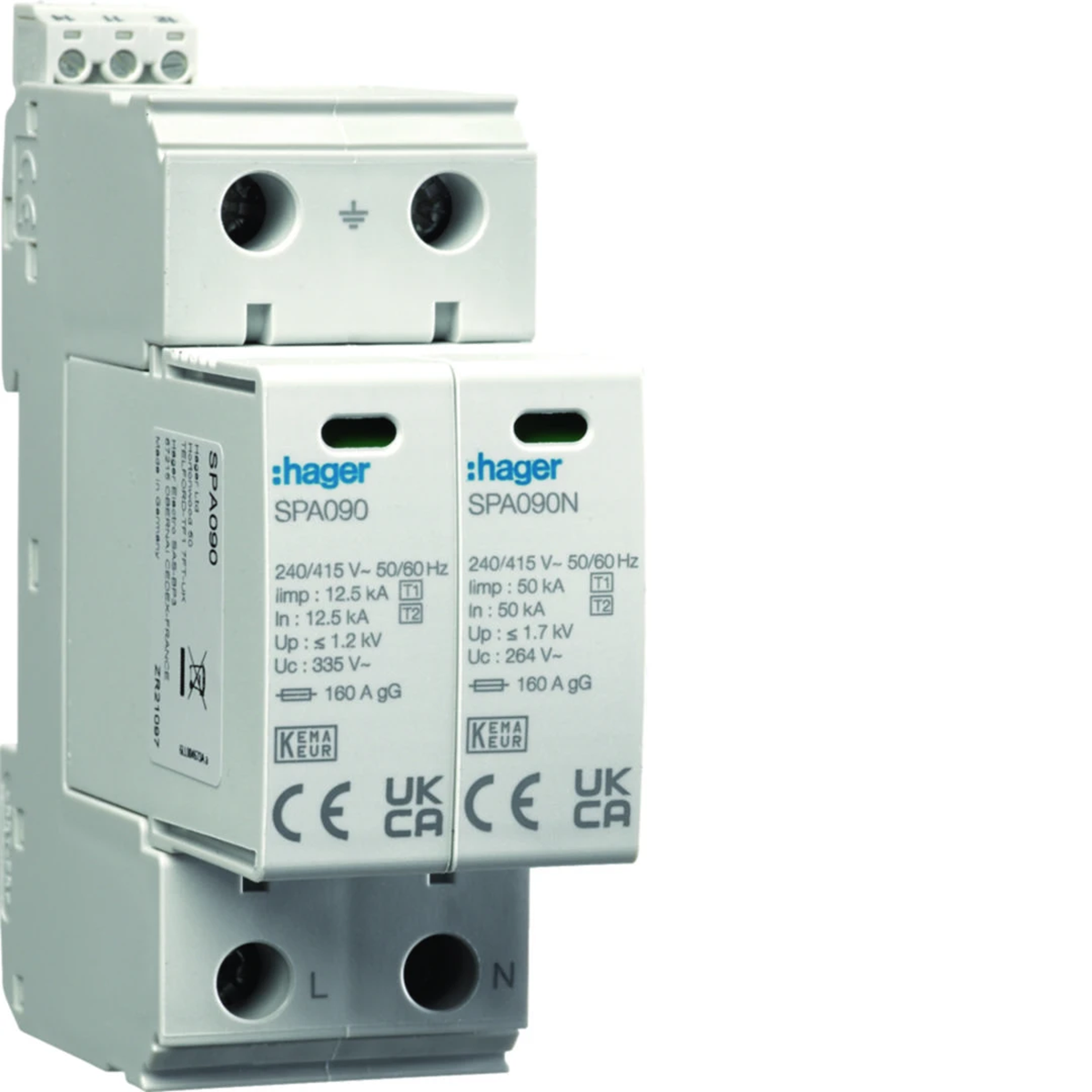

SPD Varistor surge arrester T1+T2 MOV 2P TN-S/TT 25kA 50kA 1.2kV SPA911
local index:
AOC064HAGE
Catalog No:
SPA911
EAN code:
3250615515162
Manufacturer:
HAGER
Family: SPD
Price:
158,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
SPD Varistor surge arrester T1+T2 MOV 2P TN-S/TT 25kA 50kA 1.2kV
Technical data
-
FamilySPD
Other technical data
-
System configuration DCNo
-
System configuration TNNo
-
System configuration TN-C-SYes
-
System configuration TTYes
-
Number of poles2
-
Max. continuous voltage AC335 V
-
Voltage protection level1.2 kV
-
Voltage protection level L-PE1.7 kV
-
Max. overcurrent protection device, parallel connection (fuse)160 A
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Remote signallingYes
-
Test classType 1 + 2
-
Voltage switching spark gap technologyYes
-
System configuration ITNo
-
System configuration TN-CNo
-
System configuration TN-SYes
-
System configuration otherNo
-
Lightning impulse current (10/350 µs)12.5 kA
-
Nominal voltage AC415 V
-
Voltage protection level L-N1.2 kV
-
Voltage protection level N-PE1.7 kV
-
Max. overcurrent protection device, series connection (fuse)80 A
-
Construction size2 modular spacing
-
Max. conductor cross section flexible (fine-strand)25 mm²
-
Signalling at the deviceOptical
-
Integrated backup fuseNo
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 42 pcs. | 1008 pcs. |
| Weight (kg) | 0,331 | 0,355 | 15,355 | 391,520 |
| Width (m) | 0,036 | 0,085 | 0,315 | 0,800 |
| Length (m) | 0,099 | 0,050 | 0,210 | 1,010 |
| Depth (m) | 0,078 | 0,115 | 0,365 | 1,200 |
