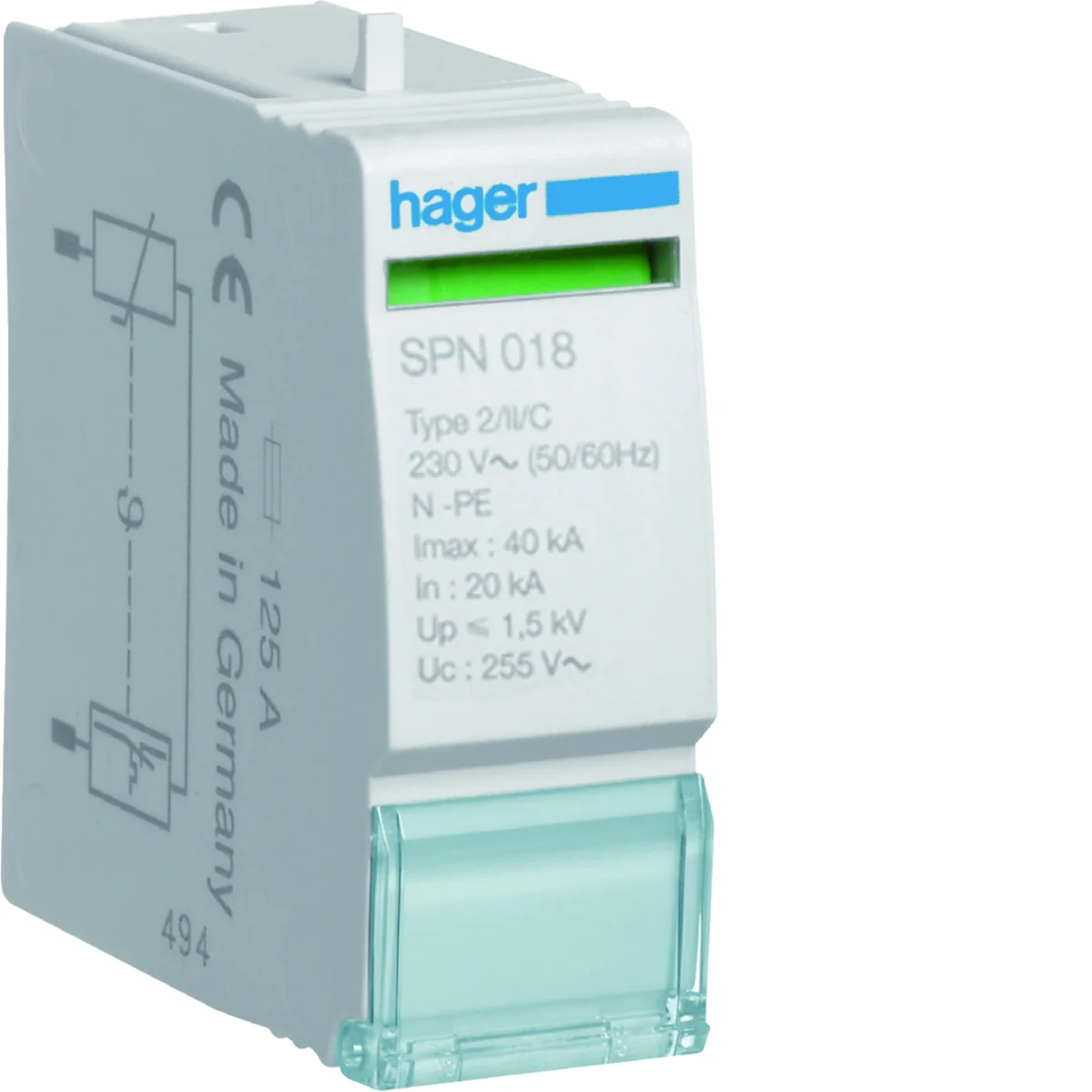

SPD Replaceable module T2 1P N-PE network TT Imax 40kA Up≤1.5kV SPN018
local index:
AOC028HAGE
Catalog No:
SPN018
EAN code:
3250615660688
Manufacturer:
HAGER
Rated frequency [Hz]: 60
Number of poles: 1
Maximum continuous operating voltage [V]: 255
Price:
88,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Replaceable module for surge arresters type 2, N-PE, TT network, SPD series.
Series characteristics:
They protect receiving devices and installations against the effects of induced atmospheric overvoltages and switching overvoltages. They can be installed behind type 1 surge arresters, while maintaining the distance of wires between them > 15 m or using decoupling inductances.
Technical data
-
Rated frequency [Hz]60
-
Maximum continuous operating voltage [V]255
-
Operating temperature range [°C]from -40 to 60
-
Number of modules1
-
BeaconNO
-
Wire cross-section (cord) [mm²]25
-
PKWIU27.12.10.0
-
Number of poles1
-
FamilySPD
-
Rated switching voltage [V]230
-
Remote contactNO
-
storage temperature [°C]From -40 to 80
-
Conductor cross-section (wire) [mm²]35
Other technical data
-
Nominal discharge surge current (8/20)20 kA
-
Max. continuous voltage AC255 V
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Voltage protection level1.5 kV
-
Signalling at the deviceNone
-
Degree of protection (IP)IP20
-
Nominal voltage AC230 V
-
Max. discharge surge current (8/20)40 kA
-
Max. PV-voltage0 V
-
With remote signalling contactNo
-
Category type 2Yes
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 2592 pcs. |
| Weight (kg) | 0,032 | 0,044 | 5,132 | 146,168 |
| Width (m) | 0,018 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,090 | 0,021 | 0,216 | 1,014 |
| Depth (m) | 0,045 | 0,095 | 0,365 | 1,200 |
