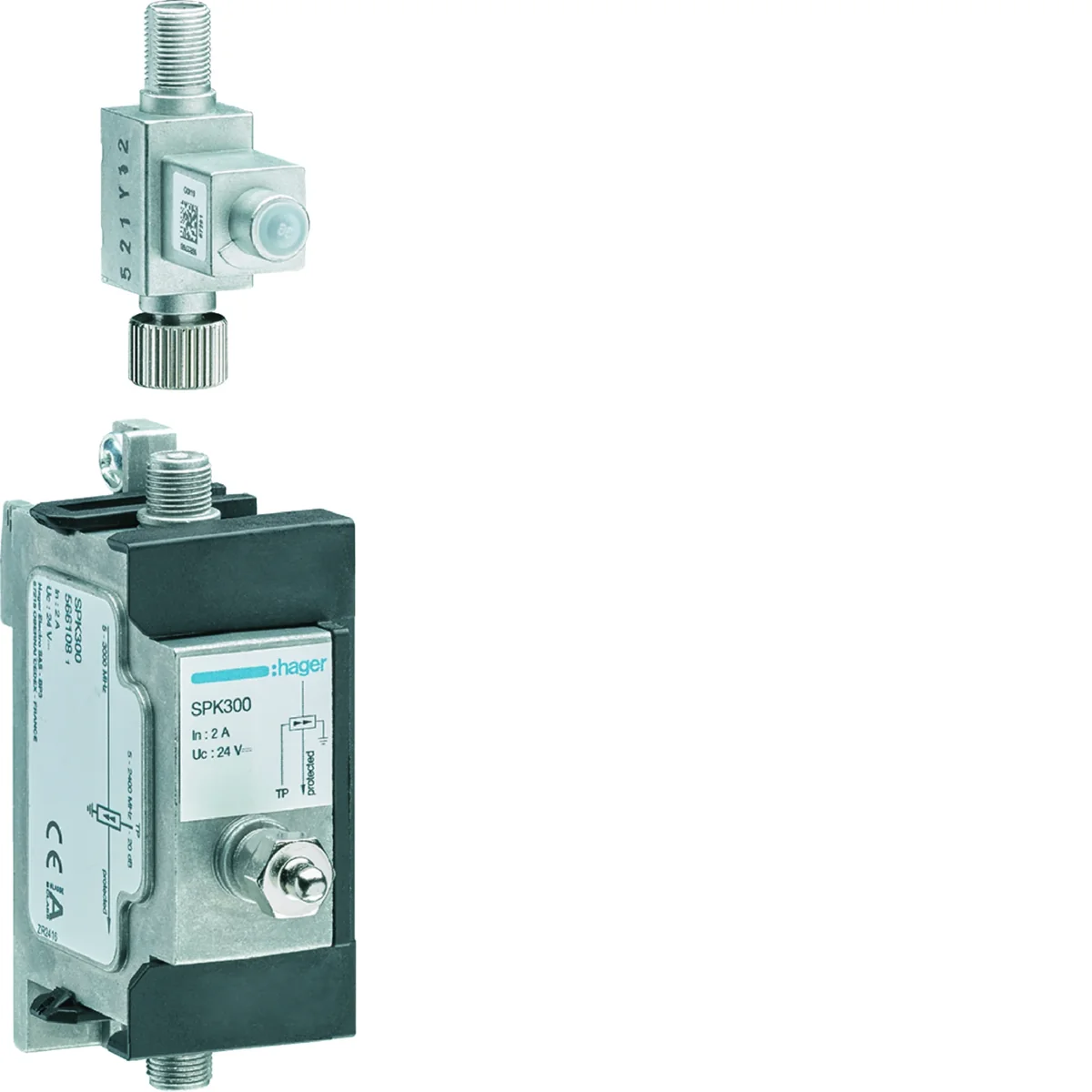

Surge arrester for television installations, SPD series. Dedicated to networks: TV, SatTV, CTV, SkyDSL, CCTV. Connector: F connectors.

Series characteristics:

An efficient ICT system is the basis in the modern world. Starting from large production plants, through medium-sized companies and craft workshops, to households, we are dealing with electronic devices everywhere. Unfortunately, one of their features is high susceptibility to overvoltage. The risk of damage and the resulting costs of restoring full functionality and losses related to downtime in enterprises cannot be ignored. When designing and implementing modern control systems, data exchange, ICT networks or systems that increase the level of security, it is absolutely necessary to remember to ensure the appropriate level of overvoltage protection.

Installation

On the TH-35 rail
Level of security

IP30
Remote contact

NO
PKWIU

27.33.13.0

Family

SPD
Operating temperature range [°C]

From -40 to 80
Beacon

NO

Other technical data

Max. continuous voltage DC

24 V
Voltage protection level core/core

230 V
Mounting method

DIN rail (top hat rail) 35 mm
With remote signalling contact

No

Nominal load current

2 A
Limiting frequency

2400 MHz
Pro-active thermo-control

No
Signalling at the device

None

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	15 pcs.	270 pcs.
Weight (kg)	0,283	0,285	4,775	108,950
Width (m)	0,081	0,082	0,315	0,800
Length (m)	0,027	0,056	0,115	0,495
Depth (m)	0,131	0,093	0,360	1,200
