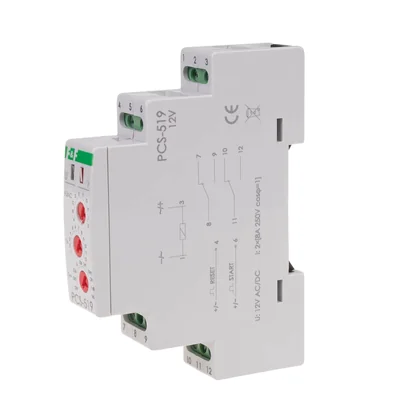

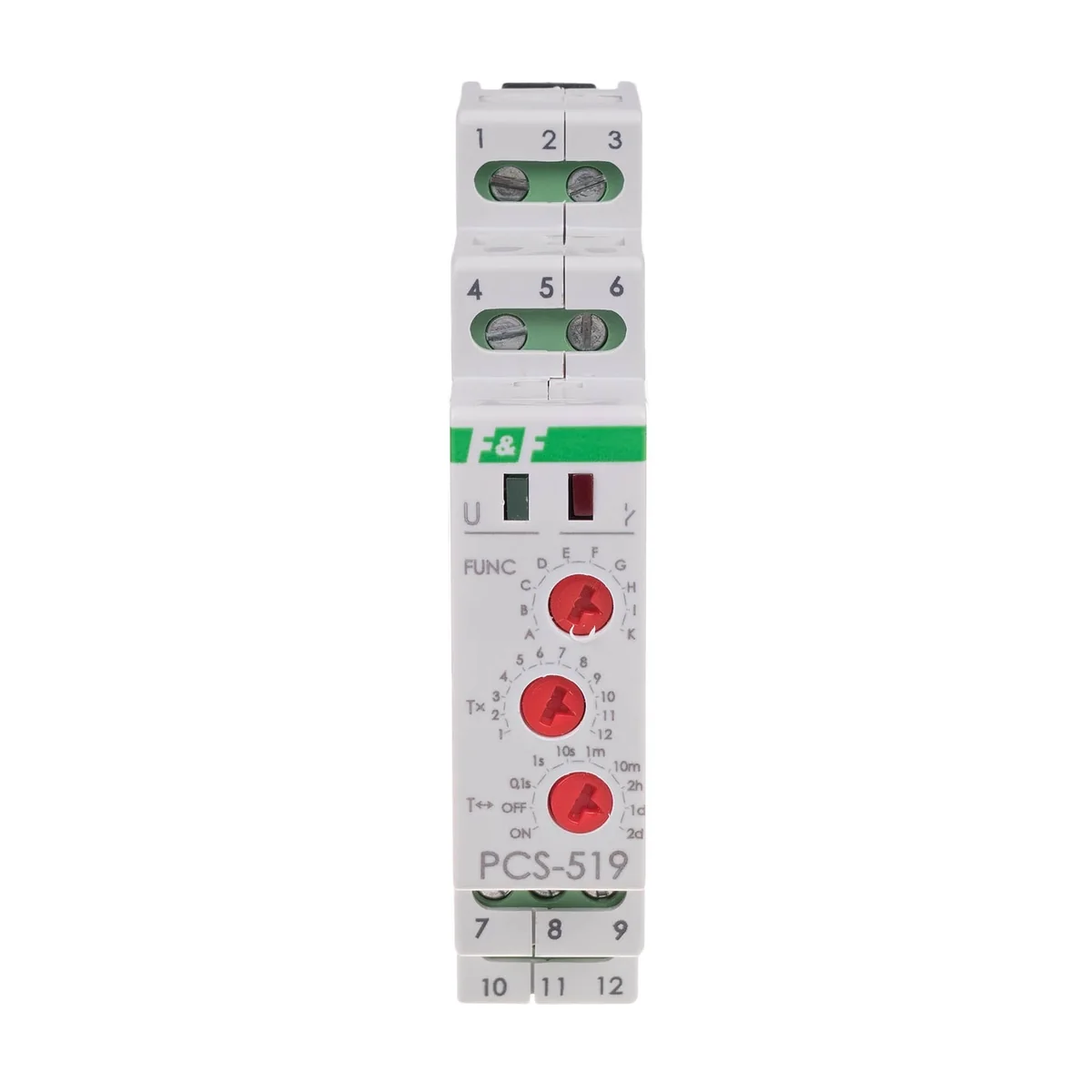

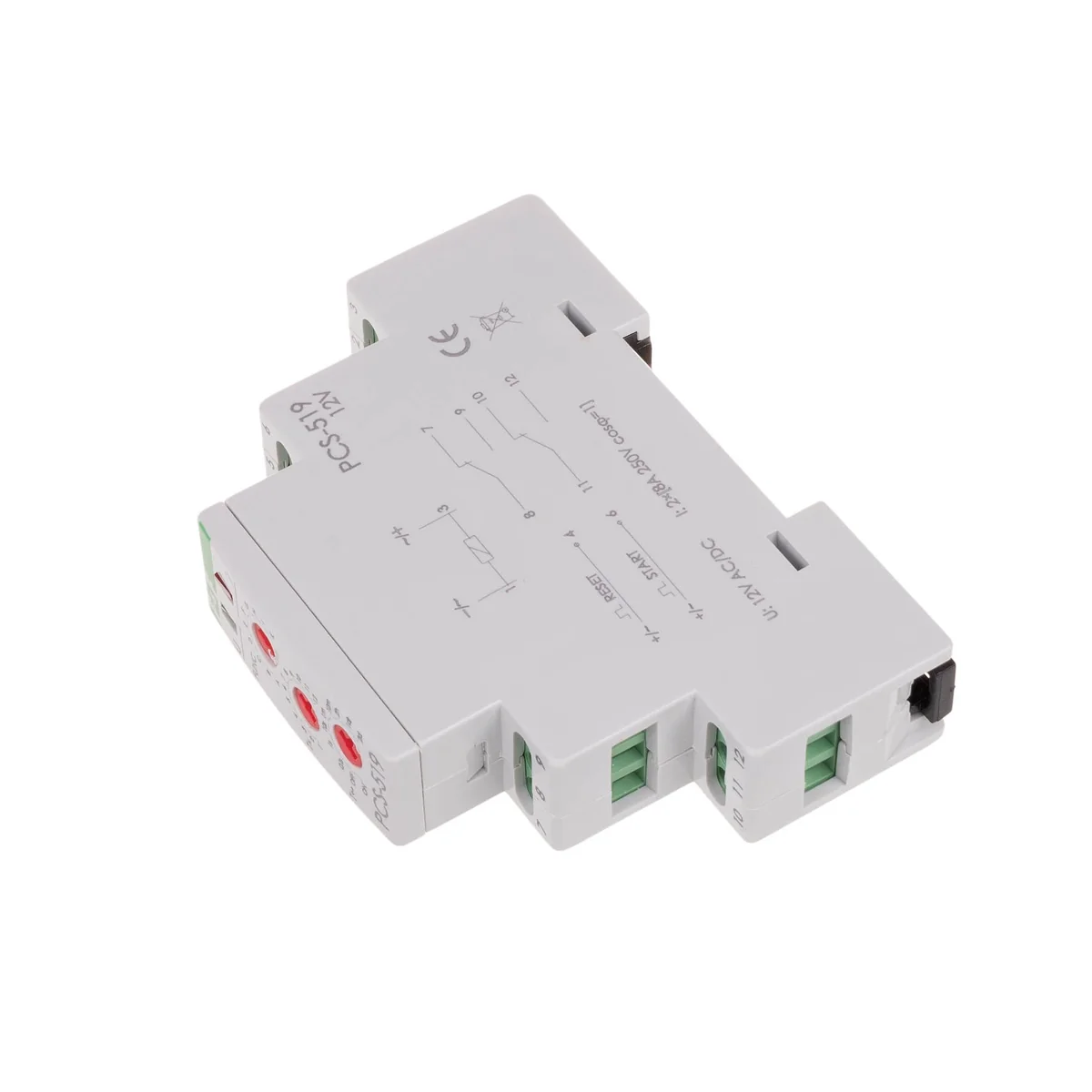

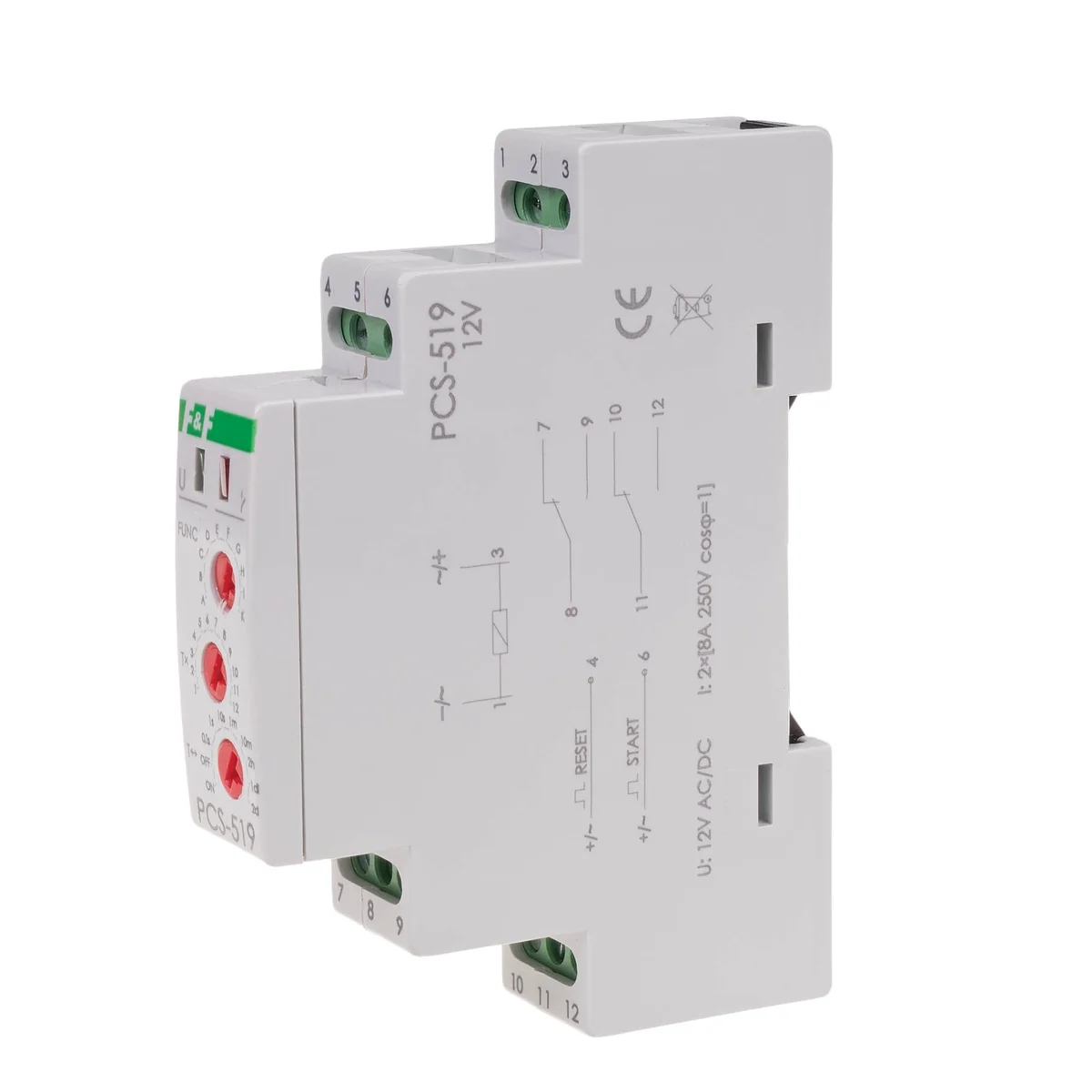

Time relay 10-function contacts 2P 12V PCS-519-12V PCS-519-12V

local index:
APC008FIFQ
Catalog No:
PCS-519-12V
EAN code:
5908312593942
Manufacturer: F&F
Number of changeover contacts: 2
Power [W]: 0.8
Signaling: LED green/red
Price:
39,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


Purpose

Relays  time switches are used for time control in industrial and home automation systems (e.g. ventilation, heating, lighting, signaling, etc.).


Operation

The relay performs the selected operation function in accordance with the set time regime. The selection of a specific time range and relay operation function consists in setting the appropriate combination of rotary code switches.




Attention!

* Applying the RESET voltage while performing the function results in:

   - for functions A, B, C, D, F implementation of the operating mode from the beginning.

   - for functions F, G, H, I, the relay returns to its initial state and waits for the START signal.

   - for the K function, the relay contact is permanently switched on in position 11-12.

* Setting the rotary switch of the time range in the position:

* When the power supply is on, the system does not react to the change of the range settings

* Operation with the newly set time range takes place after the power is turned off and on again.

* When the power is turned on within the set time range, it is possible to smoothly adjust the time within the




Time ranges










< br/>









< td bgcolor="eaeaea">
10÷120 min.













0.1s:

0.1÷1.2s

   1s:

1÷12 sec

 10s:

10÷120s

  1m:

1÷12 min.

10m:

   2h:

2÷24h

   1d:

1÷12 days (24÷288 hours)

   2d:


2÷24 days (48÷576 hours)


< /td>





ON - when the power is on, the contact is permanently switched to position 11-12.

OFF - when the power is on, it causes permanent activation of the contact in position 11-10.




Specifications





< br/>





< td bgcolor="eaeaea">
     PCS-516 UNI


< br/>



< td bgcolor="eaeaea">
     PCS-519 12V






















< td bgcolor="#eaeaea">
contact










< br/>













< br/>











< br/>









power



     PCS-516 DUO

230V AC / 24V AC/DC

12÷264V AC/DC

     PCS-519 DUO

230V AC / 24V AC/DC

12V AC/DC

load current



     PCS-516 DUO

<8A

     PCS-516 UNI

<8A

     PCS-519 DUO

2×[<8A]

     PCS-519 12V

2×[<8A]



     PCS-516

separated 1×NO/NC

     PCS-519

separated 2×NO/NC

working time setting range

0.1s÷24days

trigger delay

<50ms< /td>

power indication

green LED

contact status indication

LED red

power consumption

0.8W

temperature work

-25÷50°C

connection

2.5mm screw terminals²

dimensions

1 module (18mm)

mounting

on TH-35 rail

degree of protection
IP20




Enclosure typeDigital multifunction



Technical data

  • Number of changeover contacts
    2
  • Signaling
    LED green/red
  • Power [V]
    12
  • Package width [mm]
    25
  • PKWIU
    26.52.24.0
  • Power [W]
    0.8
  • Working temperature [°C]
    -25-50
  • Package height [mm]
    150
  • Package weight [kg]
    0.2

Other technical data

  • Type of excitation
    Digital with multi function
  • 1st interval unit
    Seconds/minutes
  • Number of changeover switches
    2
  • Voltage type (supply voltage)
    AC/DC
  • Switch capacity incandescent lamps
    1100 W
  • Switch capacity fluorescent lamp parallel
    350 VA
  • Function
    Multi function
  • Mounting method
    DIN rail
  • Type of control voltage 1
    AC/DC
  • Nominal switching current at 250 V AC
    8 A
  • Switch capacity fluorescent lamp DUO
    550 VA
  • Switch capacity fluorescent lamp inductive
    550 VA

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,077
Width (m) 0,019
Length (m) 0,095
Depth (m) 0,070
