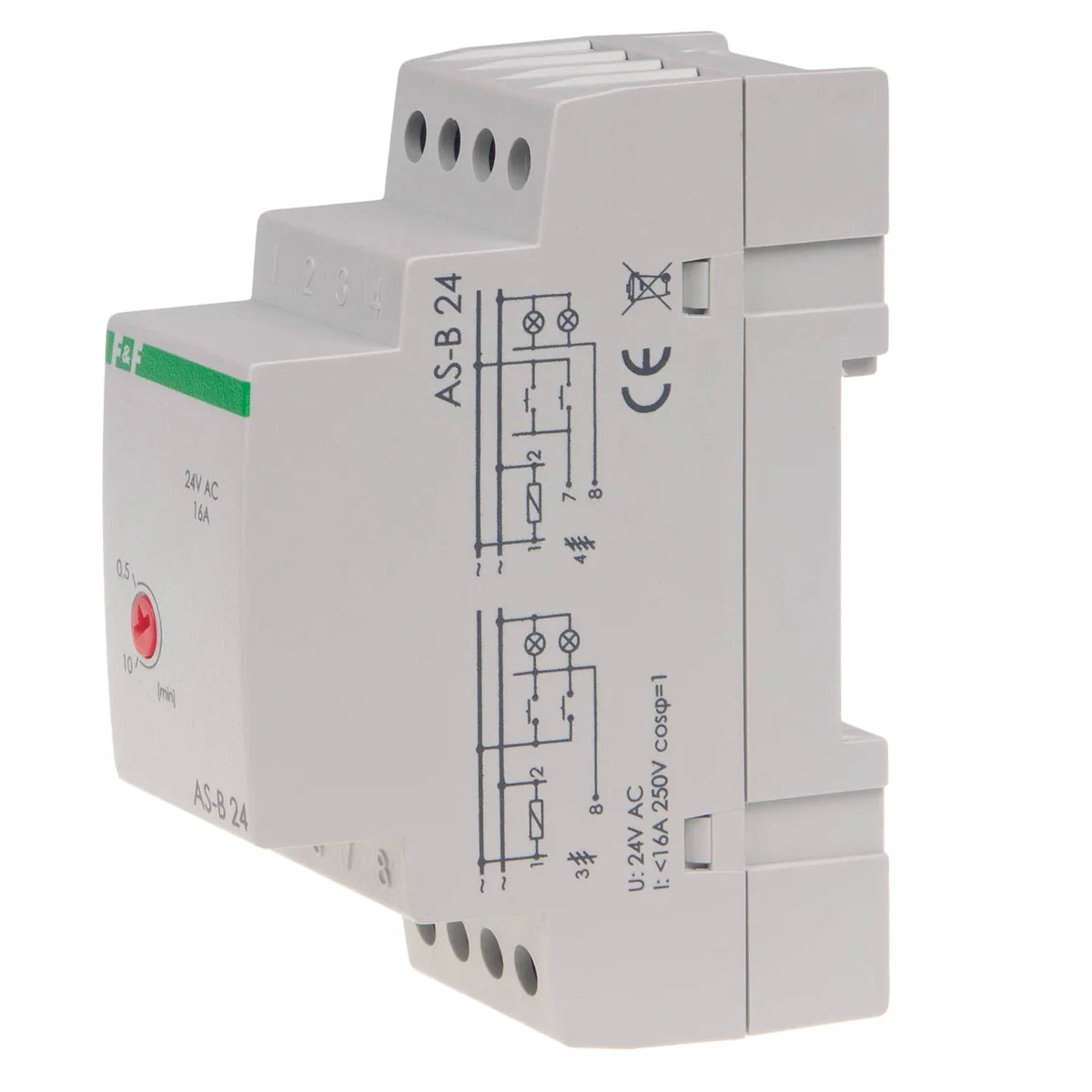

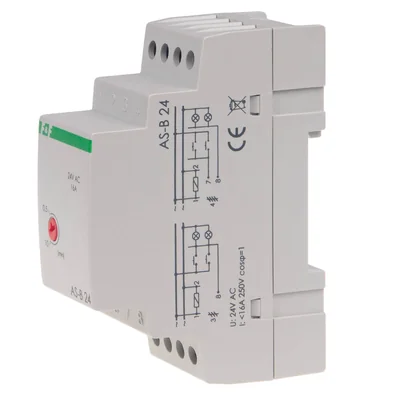

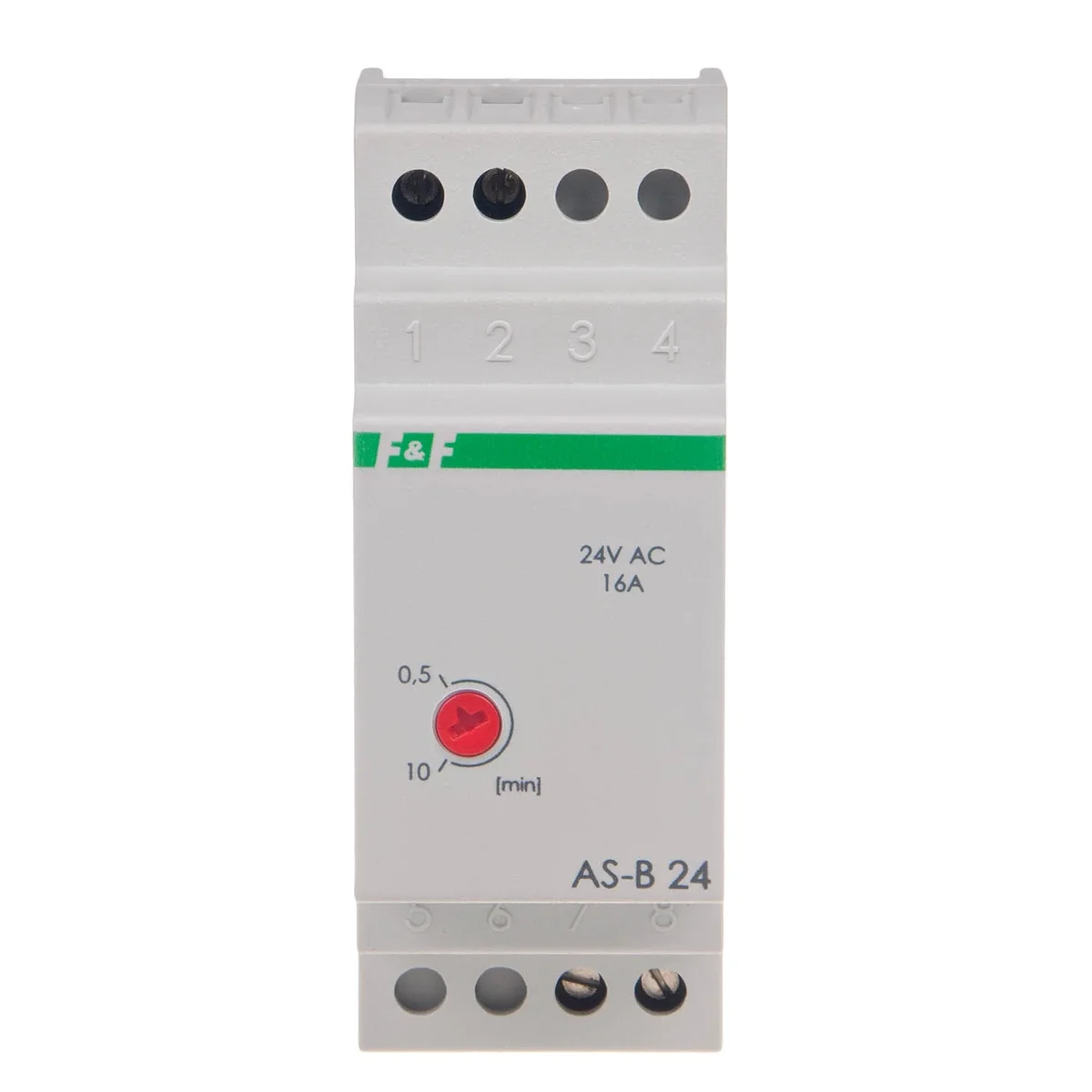

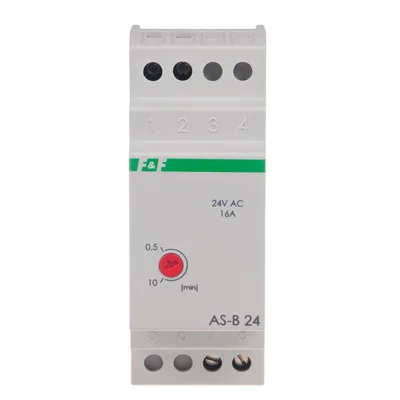

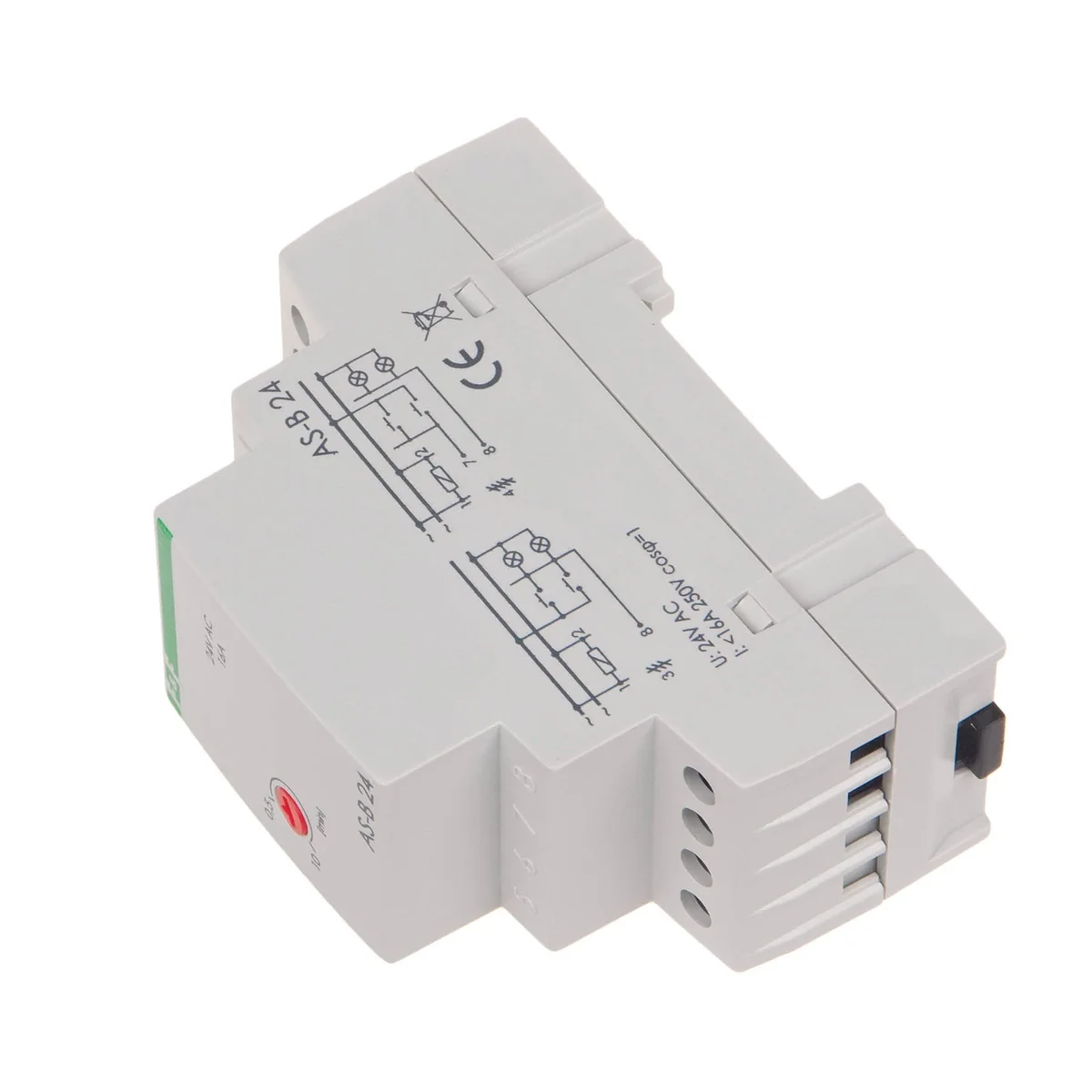

AS-B24 staircase automatic switch AS-B24
local index:
APC112FIFQ
Catalog No:
AS-B24
EAN code:
5908312592112
Price:
17,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Purpose:
Staircase automatics are used to keep the lighting of corridors, staircases or other objects on for a specified period of time, after which the lighting will be switched off automatically.
Operation
Automators cannot work directly with fluorescent lamps, compact fluorescent lamps and other lamps with electronic starters.
Technical data
-
Power [W]1.2
-
Rated voltage [V]24
-
Rated current [A]16
-
Level of securityIP20
-
Dimensions2 modules (35mm)
-
Package width [mm]40
-
PKWIU27.12.23.0
-
InstallationOn the TH-35 rail
-
Delay [min]lens shape0.5-10
-
connection2.5mm screw terminals
-
Working temperature [°C]-25-50
-
Package height [mm]150
-
Package weight [kg]0.1
Other technical data
-
FunctionElectronic with switching-off pre-warning
-
Width in number of modular spacings2
-
Type of control voltage 1AC
-
Type of control voltage 2AC/DC
-
Release-delay0.5 ... 10 min
-
Pre-warning of switching-offDimming up to 0 %
-
Supply voltage230 ... 230 V
-
Max. incandescent lamp load1500 W
-
Max. load fluorescent lamp (Duo circuit)650 VA
-
Mounting methodDIN rail
-
Control voltage 124 ... 24 V
-
Frequency control voltage 150 ... 50 Hz
-
Rated switch current10 A
-
Wiring system3 and 4 wire configuration
-
RepetitiveRepetitive + continuous light
-
Voltage type (supply voltage)AC
-
Max. load fluorescent lamp350 VA
-
Max. load fluorescent lamp (parallel compensated)500 VA
Manufacturer details
-
ManufacturerF&F Filipowski Spółka Komandytowa
-
Address95-200 Pabianice ul. Konstantynowska 79/81
-
Phone number
-
E-mail
-
Tax identification number7310005314
-
GLN5900009915815
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,083 |
| Width (m) | 0,041 |
| Length (m) | 0,095 |
| Depth (m) | 0,070 |
