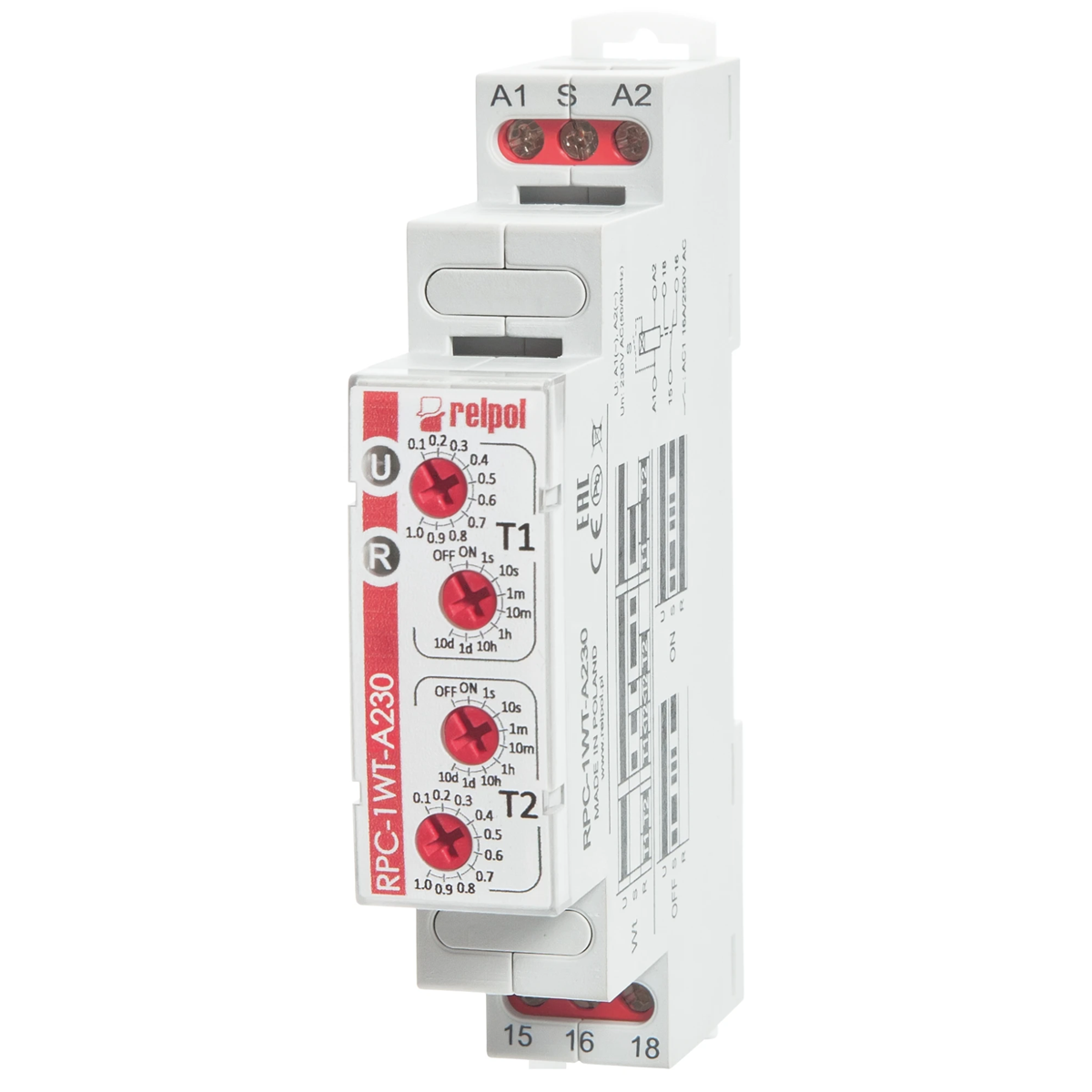

Single-function - two-time relay. WsWa function - switching on for the set times T1 and T2, controlled by the contact S. Independent T1 and T2 settings. 8 time ranges. Output: 1P - one changeover contact. Supply voltage - 230VAC
Technical data
Color
Gray
Width [mm]
17.5
Terminal type
screw terminals
Installation
On the TH-35 rail
Height [mm]
90
Other technical data
Type of electric connection
Screw connection
Function delay on de-energization
No
Function floating contact on de-energization
No
Function pulse shaping
No
Function flashing, starting with pulse, fixed time
Yes
Clock function, starting with pulse, variable
No
Remote operation possible
No
Pluggable on auxiliary contact block
No
Rated control supply voltage AC 60 Hz
230 ... 230 V
Voltage type for actuating
AC
Time range
0.1 ... 864000 s
Number of outputs, delayed, change-over contact
1
With semiconductor output
No
Width
17.5 mm
Depth
64.5 mm
Function delay-on energization
No
Function floating contact on energization
No
Function star-delta
No
Function flashing, starting with pause, fixed time
