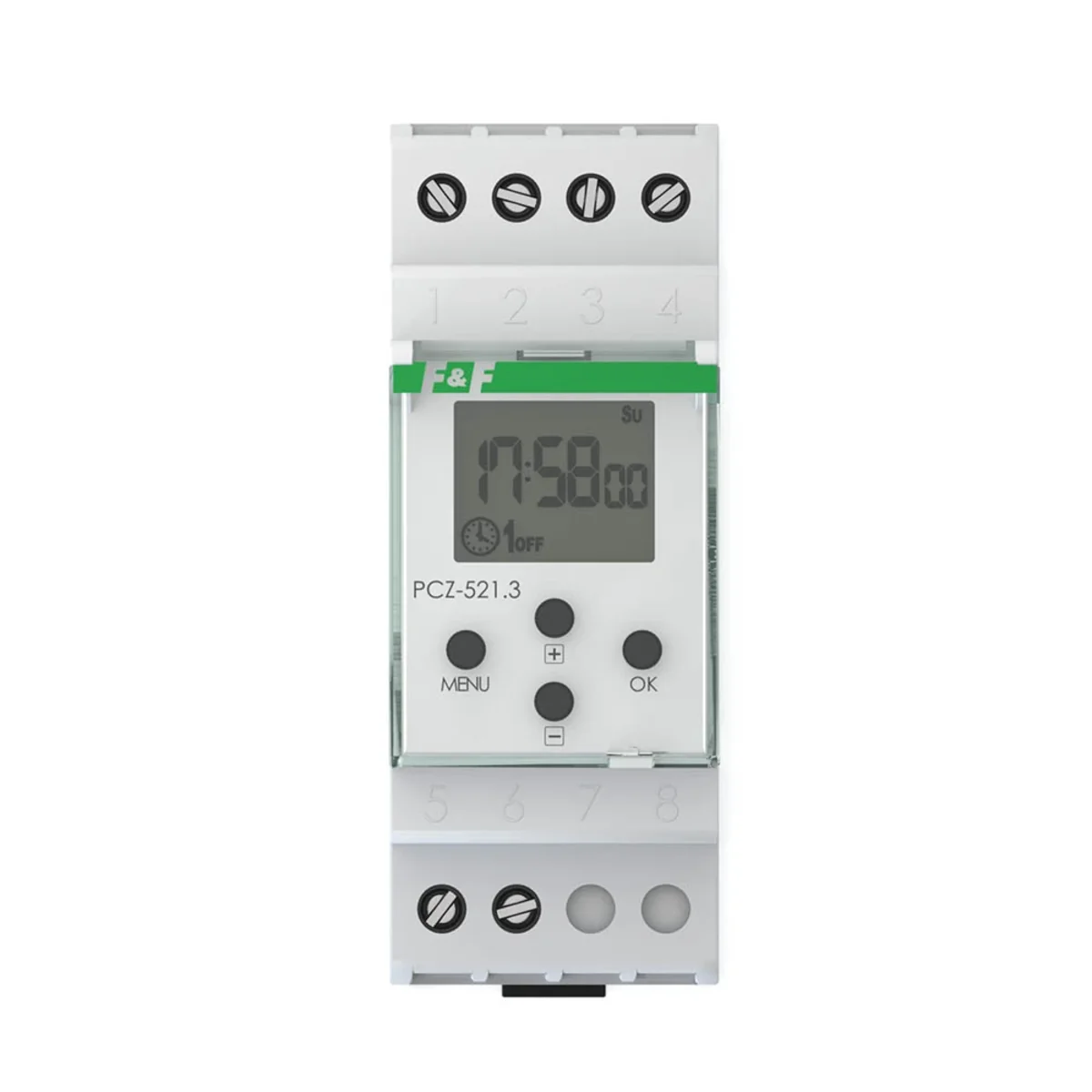

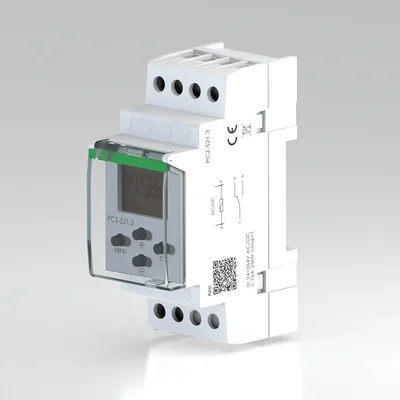

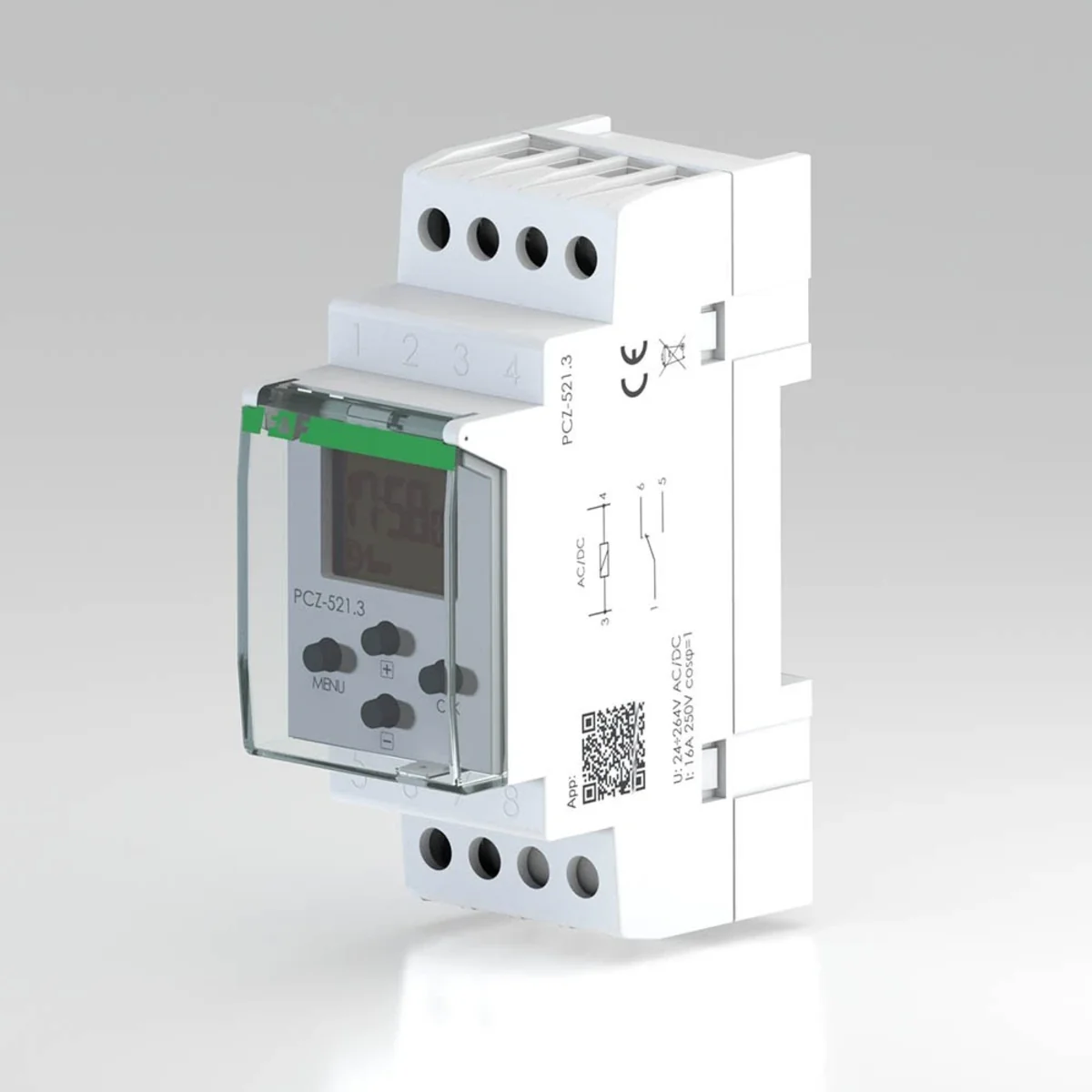

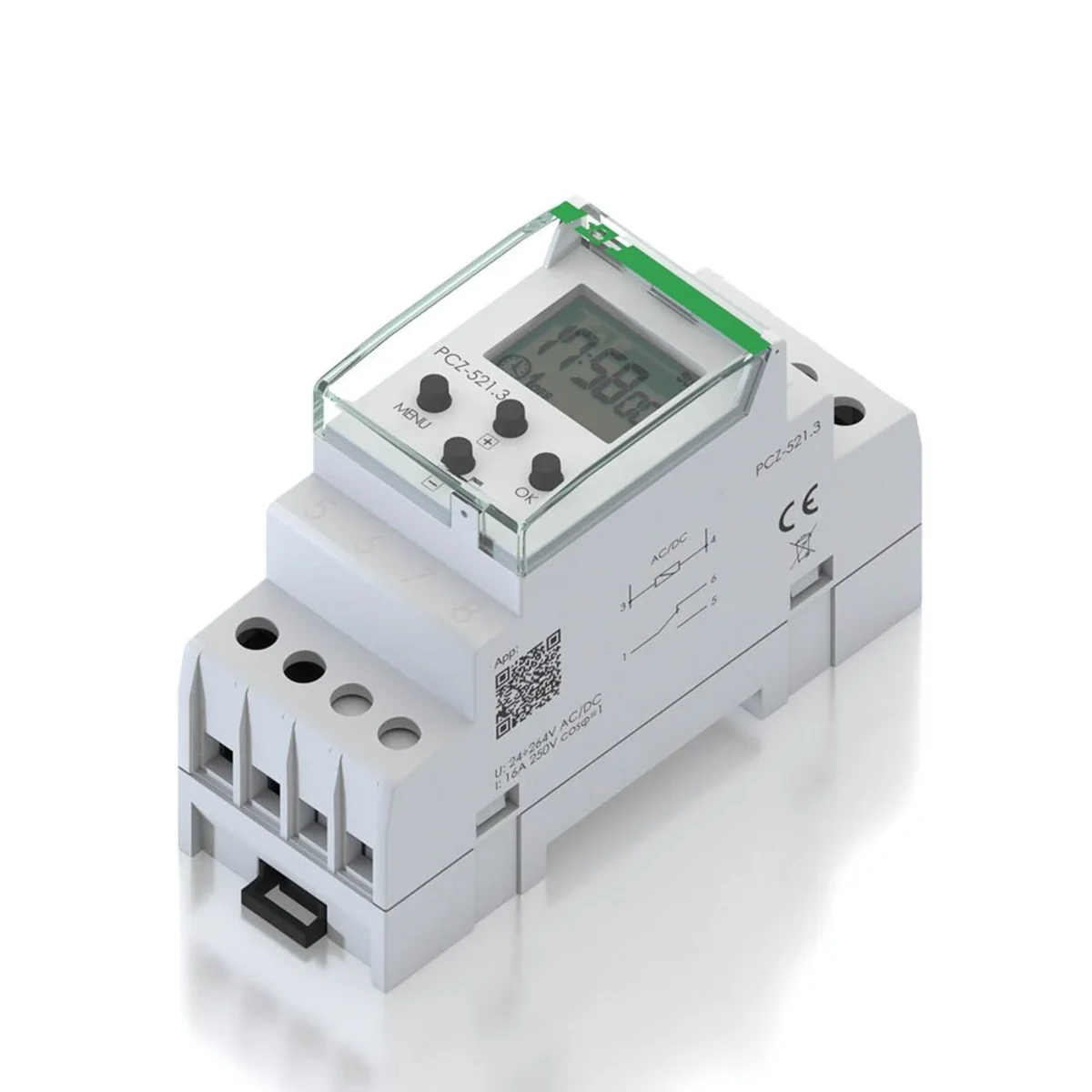

PCZ-521 programmable timer PCZ-521

local index:
APC170FIFQ
Catalog No:
PCZ-521
EAN code:
5908312593249
Manufacturer: F&F
Time error: 1s/24h
Display backup time: Lack
Clock back-up time: 6 years (lithium battery)
Price:
46,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 38 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
The programmable control clock is used for time control of devices in home or industrial automation systems according to an individual time program set by the user. Operation
The clock switches the device or electrical circuit on and off at programmed hours in cycles: daily, weekly, working days (Mon-Fri) or weekends (Sat, Sun). Timer functions
AUTOMATIC OPERATION - operation according to the ON-OFF COMMAND programmed by the user in the clock memory.

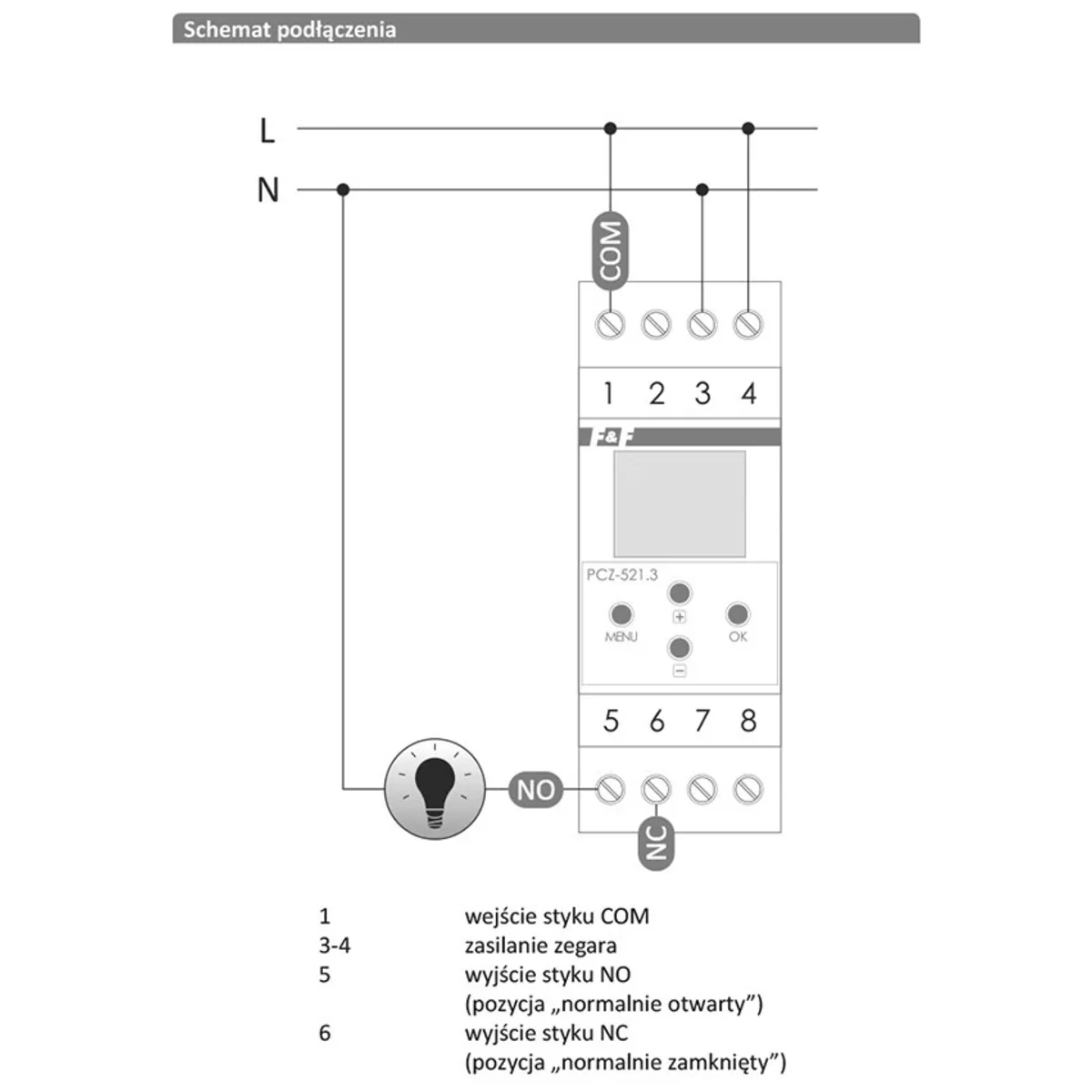

MANUAL OPERATION - [ON] permanent closing of the contact (pos. 1-5) or [OFF] permanent disconnection of the contact (pos.1-6)
COMMAND ON-OFF - program entry according to which the receiver will be switched on or off.
WORKING CYCLE - adjustable, weekly cycle in which the receiver is switched on in accordance with with programmed ON-OFF COMMANDS:
 * single day of the week: Mo; Here; In; th; Fr; Sa or Su.
 * working days: Mo TuWe Th Fr (Monday to Friday).
 * weekend days: SaSu (Saturday and Sunday)
 * daily: Mo TuWe ThFr SaSu (Monday to Sunday).
AUTOMATIC TIME CHANGE - The change from winter to summer time is made automatically at night, on the last Sunday in March at 2.00 (by adding 1 hour to the current time). The change from summer to winter time is made automatically at night, on the last Sunday in October at 3.00 am (by subtracting 1 hour from the current time).
DST - Daylight Saving Time - global name of summer time solar). A function that allows you to disable the automatic time change.
DATE VIEW - In the AUTOMATIC OPERATION mode, pressing the OK button displays the set date (dd-mm-yy). after 5 sec. the clock will automatically go to the main level.
RESTART - Restarting the processor with a special button - necessary when the clock function is suspended. It does not erase the DATE and TIME settings and the CONFIGURATION entries in the memory. NOTE!
Currently, the PCZ-521 clock with index 2 is sold.
This is an index indicating the software version of the clock.
Check what software version your clock has and download the correct manual.

Technical data

  • Time error
    1s/24h
  • Clock back-up time
    6 years (lithium battery)
  • Setting accuracy
    1min
  • The number of program memory cells
    250 (125 pairs of ON/OFF COMMANDS)
  • Installation
    On the TH-35 rail
  • screw connection
    2.5mm screw terminals
  • Dimensions
    2 modules (35mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.2
  • PKWIU
    26.52.24.0
  • Display backup time
    Lack
  • Accuracy [min]
    1min
  • Number of contacts
    0NO 0NC
  • Power [W]
    1.5
  • load current [A]
    <16
  • Working temperature [°C]
    -20-50
  • Power
    24-264V AC/DC
  • Package width [mm]
    40
  • Accuracy [s]
    1

Other technical data

  • Mounting method
    DIN rail
  • Supply voltage
    24 ... 264 V
  • Accuracy per day
    1 s
  • With memory card
    No
  • 24 h program
    Yes
  • Annual program
    No
  • Cycle program
    Yes
  • Radio-controlled
    Yes
  • GPS (global positioning system)
    No
  • Shortest switching time channel 1
    1 min
  • Number of memory locations
    500
  • Suitable for manual operation
    Yes
  • Nominal switching current at 250 V AC
    16 A
  • Width in number of modular spacings
    2
  • Number of channels
    1
  • Voltage type (supply voltage)
    AC/DC
  • External programming
    Yes
  • 60 min program
    Yes
  • Weekly program
    Yes
  • Impulse program
    Yes
  • Quartz controlled
    Yes
  • Radio-controlled (DCF77)
    No
  • Contact type
    Change-over contact (NO/NC)
  • Shortest switching time channel 2
    1 min
  • Automatic switching summer-/winter time
    Yes
  • External pushbutton input
    Yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,110 -
Width (m) 43,000 -
Length (m) 70,000 -
Depth (m) 103,000 -
