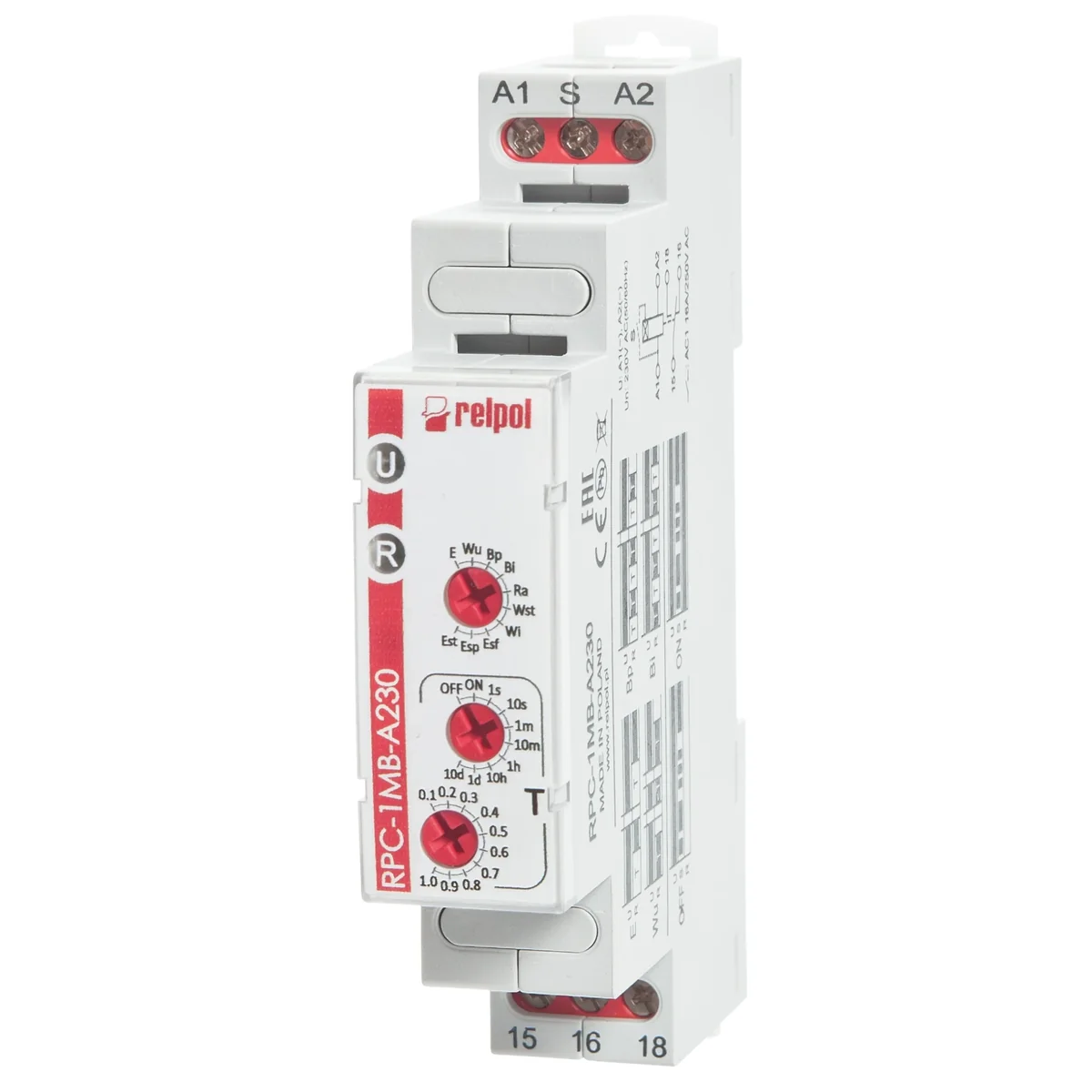

Time Relay 230V AC 1P AgSnO2 8A / 250V AC 863199

local index:
APC054RELP
Catalog No:
863199
EAN code:
5900005230752
Manufacturer: RELPOL
Color: Gray
Installation: On the TH-35 rail
Width [mm]: 17.5
Price:
34,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Multifunctional time relay - 10 time functions E, Wu, Bp, Bi, R, Ws, Wa, Esa, B, T;

  • 8 time ranges,
  • Output: 1P - one changeover contact.
  • Power supply voltage - 230VAC
  • Technical data

    • Color
      Gray
    • Width [mm]
      17.5
    • Terminal type
      screw terminals
    • Installation
      On the TH-35 rail
    • Height [mm]
      90

    Other technical data

    • Type of electric connection
      Screw connection
    • Function delay on de-energization
      Yes
    • Function floating contact on de-energization
      Yes
    • Function pulse shaping
      Yes
    • Function flashing, starting with pulse, fixed time
      Yes
    • Clock function, starting with pulse, variable
      Yes
    • Remote operation possible
      No
    • Pluggable on auxiliary contact block
      No
    • Rated control supply voltage AC 60 Hz
      230 ... 230 V
    • Nominal current
      16 A
    • Number of outputs, undelayed, change-over contact
      1
    • Outputs, reversible delayed/undelayed
      No
    • Suitable for DIN rail (top hat rail) mounting
      Yes
    • Height
      90 mm
    • Function delay-on energization
      Yes
    • Function floating contact on energization
      Yes
    • Function star-delta
      No
    • Function flashing, starting with pause, fixed time
      Yes
    • Clock function, starting with pause, variable
      Yes
    • Z gniazdem wtykowym
      No
    • Suitable as remote control
      No
    • Rated control supply voltage AC 50 Hz
      230 ... 230 V
    • Voltage type for actuating
      AC
    • Time range
      0.1 ... 864000 s
    • Number of outputs, delayed, change-over contact
      1
    • With semiconductor output
      No
    • Width
      17.5 mm
    • Depth
      64.5 mm
