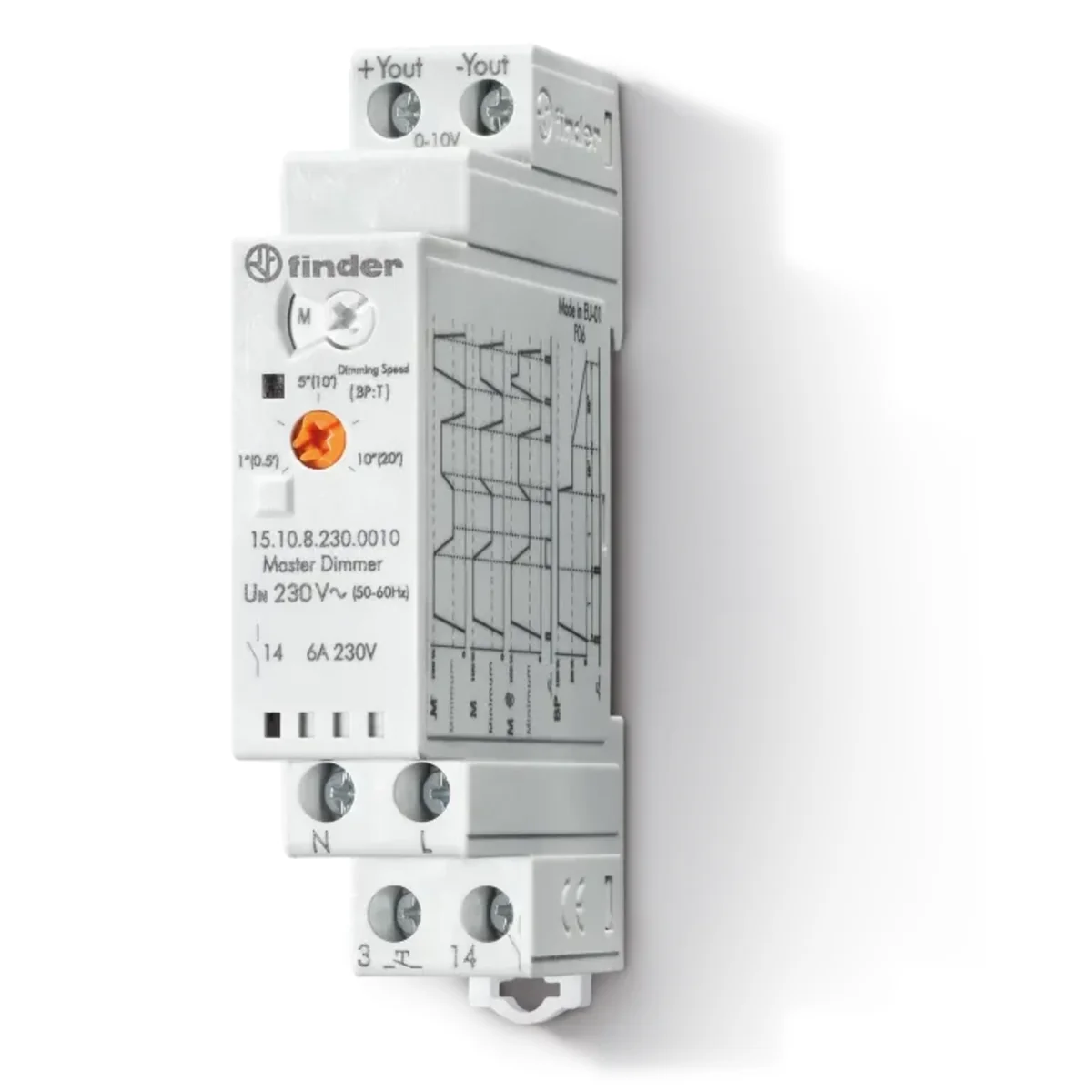

SERIES 15 “Master” dimmer 0-10V/1-10V output to control up to 32 15.11 "slave" dimmers 151082300010PAS

local index:
APL004FIND
Catalog No:
151082300010PAS
EAN code:
8012823393018
Manufacturer: FINDER
Level of security: IP20
Width [mm]: 17.5
AC rated voltage [V]: 110-230
Price:
50,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 30 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

The “Master” dimmer from the 15 series, from the manufacturer FINDER. The product catalog number is 15.10.8.230.0010PAS.

  • Pressing the control button sends the control signal to up to 32 slave dimmers 15.11 or other units or luminaires receiving a standard 0-10V/1-10V signal.
  • For 4-wire installations.
  • Soft switching on and off.
  • Linear dimming.
  • Selection of operating mode with or without memory of the last selected brightness level.
  • Multifunctional (with or without memory, including special “CFL function with memory”).
  • Setting the dimming speed.
  • Function of an automatic staircase timer with early warning function by dimming the lamps.
  • Power supply 230  ;V AC, 50/60 Hz with automatic frequency recognition.
  • Output contact 6A (Max. switching current for 30 A contact 230 V AC. To switch loads exceeding this value contactor or power relay must be used.)
  • Modular, 35mm rail mounting.
  • Control signal (output mode automatically adapts to the input mode of the connected device):
      < li>0-10 V, +35 mA max (active power, source).
    • 1-10 V, –35 mA max (reactive power, sink).< /li>
  • Coil Specifications:
    • Rated Voltage (UN): 110…230V AC (50/60 Hz).
    • Supply voltage range: (0.8…1.1) UN.
    • Standby power consumption: 0.5 W.
  • Coil-contact insulation strength (1.2/50 µs): 6 kV.
  • Dimming speed (total dimming time): 1.5…10 s.
  • Settable time (staircase automatic) ): 0.5…20 min.
  • Max. number of backlit buttonsó(≤ 1 mA): 15.

Technical data

  • Level of security
    IP20
  • AC rated voltage [V]
    110-230
  • Width [mm]
    17.5
