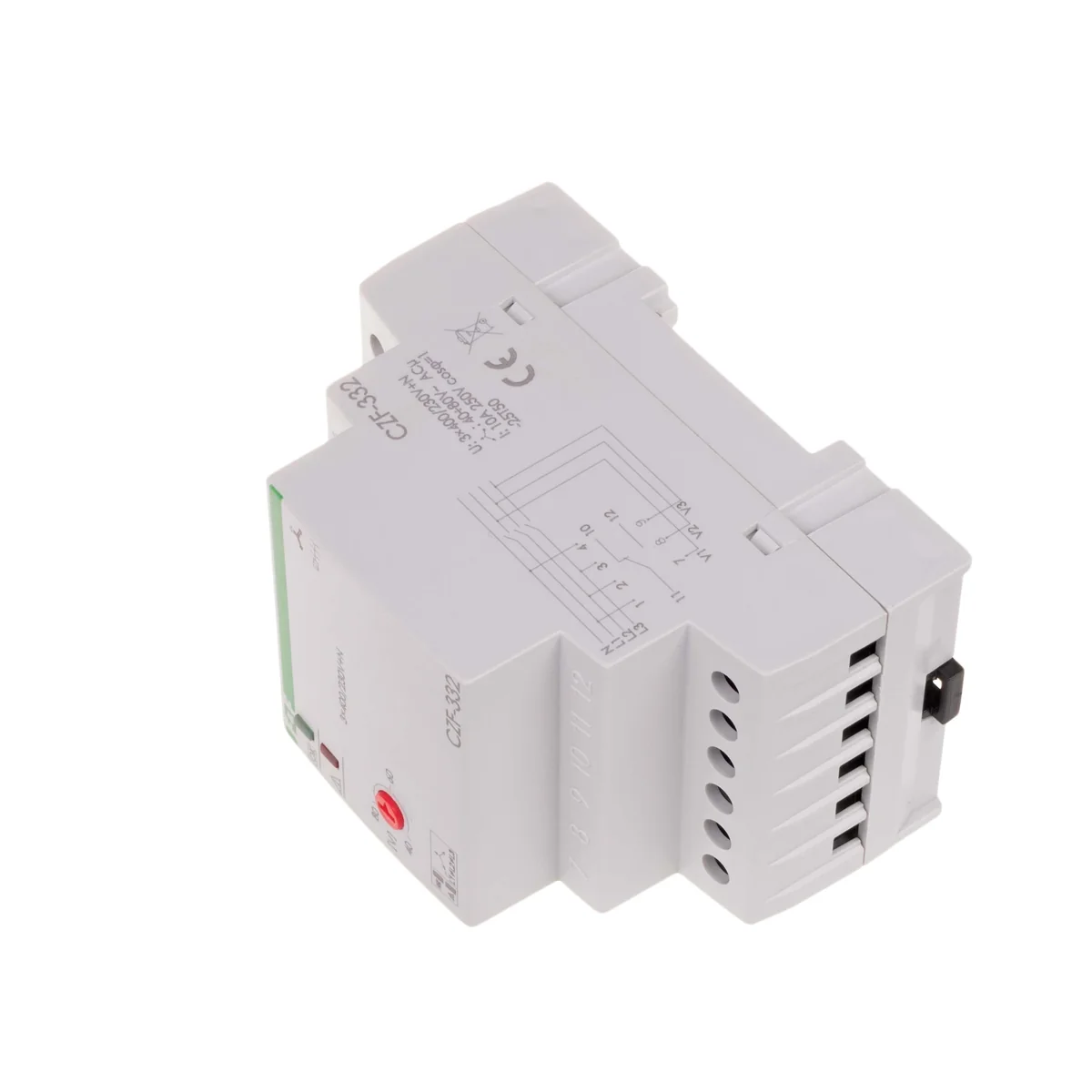

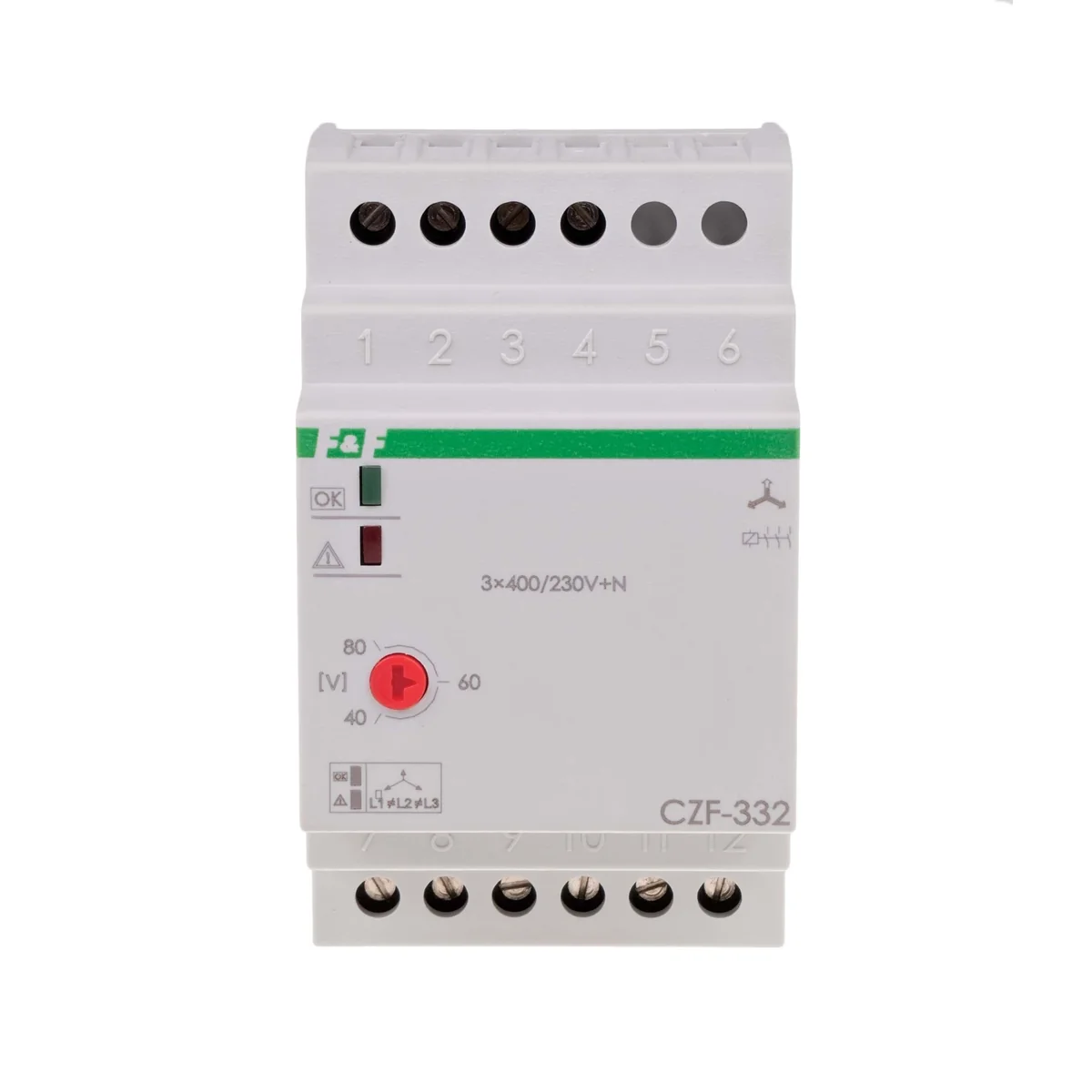

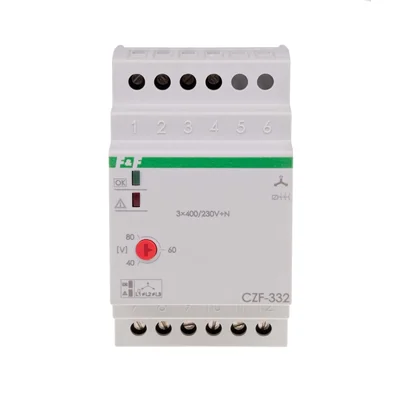

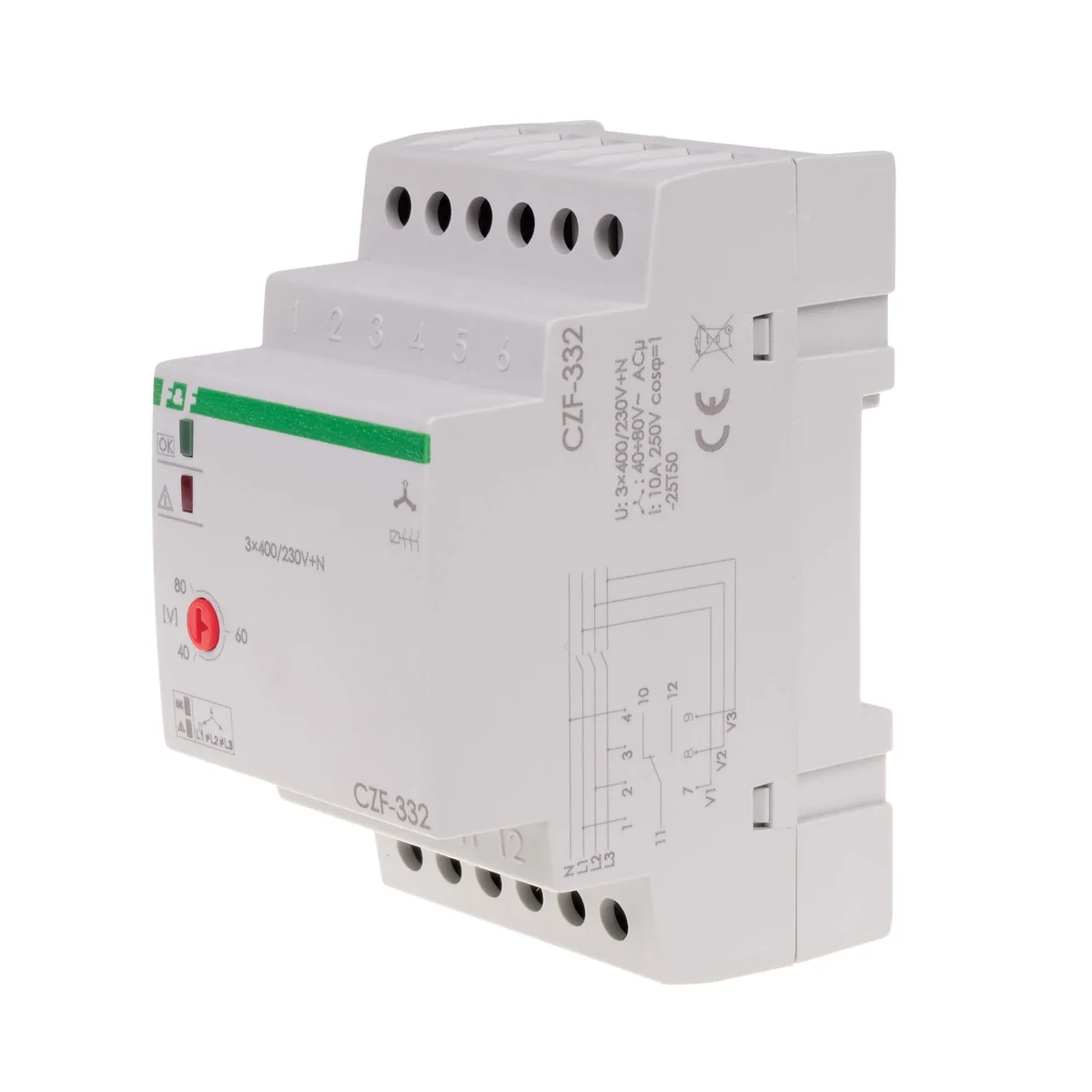

Phase failure sensor with tangent control CZF-332 CZF-332

local index:
APL205FIFQ
Catalog No:
CZF-332
EAN code:
5908312593218
Manufacturer: F&F
Trip voltage unbalance [V]: 40-55
Voltage hysteresis [V]: 5V~
Number of contacts: 0NO 0NC
Price:
31,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use
Phase loss sensor with control of contactor contacts are designed to protect motors  supplied from a three-phase network in the event of a voltage decay in at least one phase or voltage asymmetry between the phases, and damage to the contacts of the switching contactor, which may result in the destruction of the motor. Action
Voltage failure in at least one, any phase or Trip voltage asymmetry [V] between phases above the tripping threshold will cause the motor to turn off. The switch-off will take place with a delay of 4 seconds, which prevents the motor from being disconnected in the event of a momentary voltage drop. Reactivation will occur automatically when  voltage increase by 5V above the activation voltage (i.e. by the value of the voltage hysteresis). Failure of any of the contacts of the motor-enabled contactor will permanently disable the motor. Restarting is possible only after complete disconnection of the power supply, removal of the contactor fault and reconnection. With the above anomalies, the engine cannot be started.

Technical data

  • Trip voltage unbalance [V]
    40-55
  • Number of contacts
    0NO 0NC
  • Operate voltage [V]
    175-190
  • load current [A]
    10
  • Mounting method
    For screws
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    150
  • Package weight [kg]
    0.1
  • Voltage hysteresis [V]
    5V~
  • Power [W]
    1.6
  • Shutdown delay [s]
    4
  • connection
    2.5mm screw terminals
  • Working temperature [°C]
    -25-40
  • Power
    3×400/230V+N
  • Package width [mm]
    60
  • PKWIU
    27.12.24.0

Other technical data

  • Type of electric connection
    Screw connection
  • Rated control supply voltage AC 50 Hz
    3 ... 400 V
  • Phase sequence monitoring
    No
  • Function under voltage detection
    No
  • Phase imbalance monitoring
    Yes
  • Min. adjustable off-delay time
    4 s
  • Number of contacts as change-over contact
    1
  • Depth
    65 mm
  • With detachable clamps
    No
  • Voltage type for actuating
    AC
  • Phase failure detection
    Yes
  • Function over voltage detection
    No
  • Voltage measuring range
    140 ... 270 V
  • Max. permitted off-delay time
    4 s
  • Height
    90 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,121
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
