CP-734 voltage relay CP-734

local index:
APL098FIFQ
Catalog No:
CP-734
EAN code:
5908312591337
Manufacturer: F&F
Power recovery time [s]: 1.5
Tripping time [ns]: 0.5 sec
Return voltage hysteresis [V]: 5
Price:
53,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Intended use

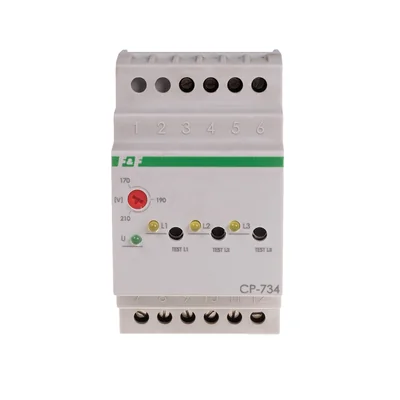

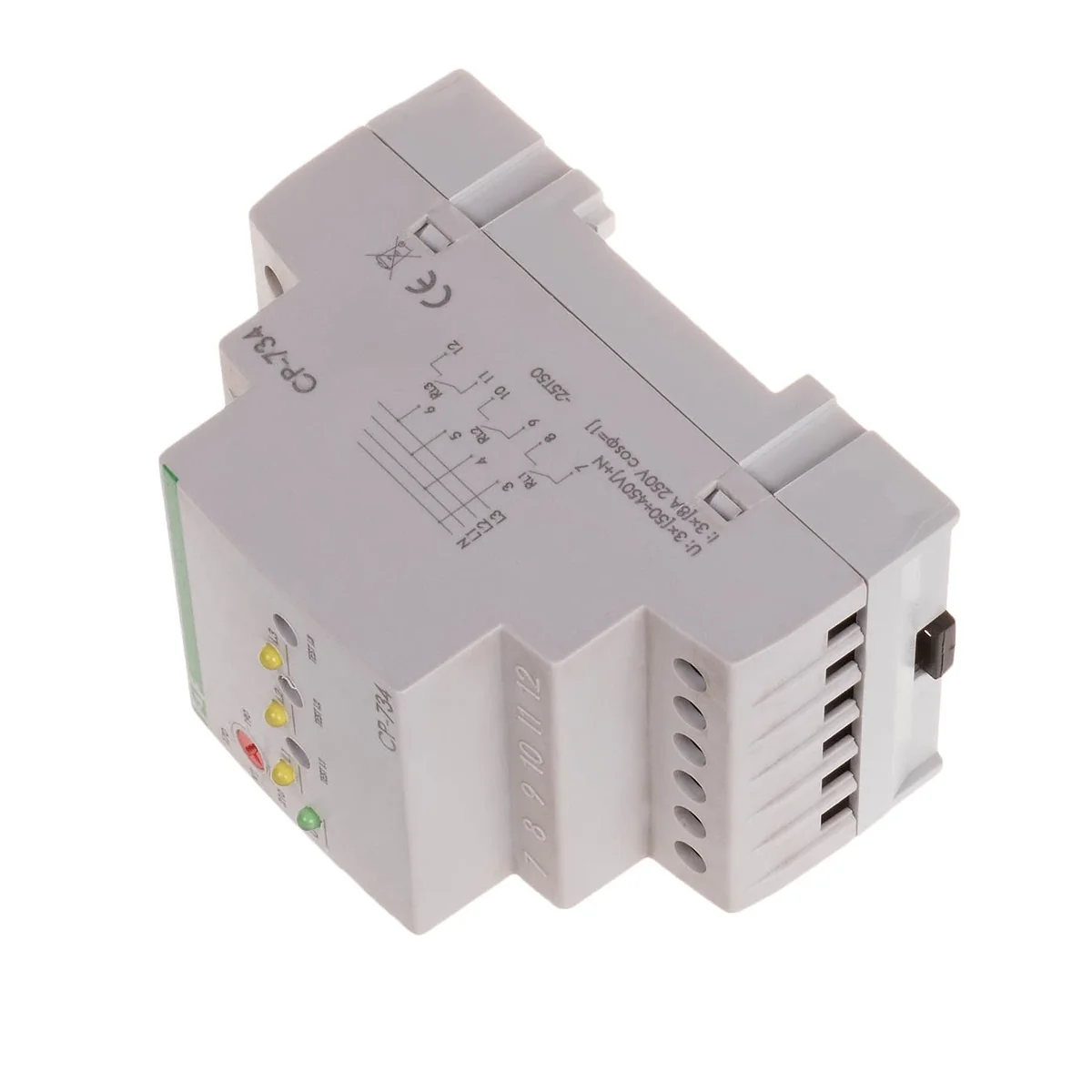

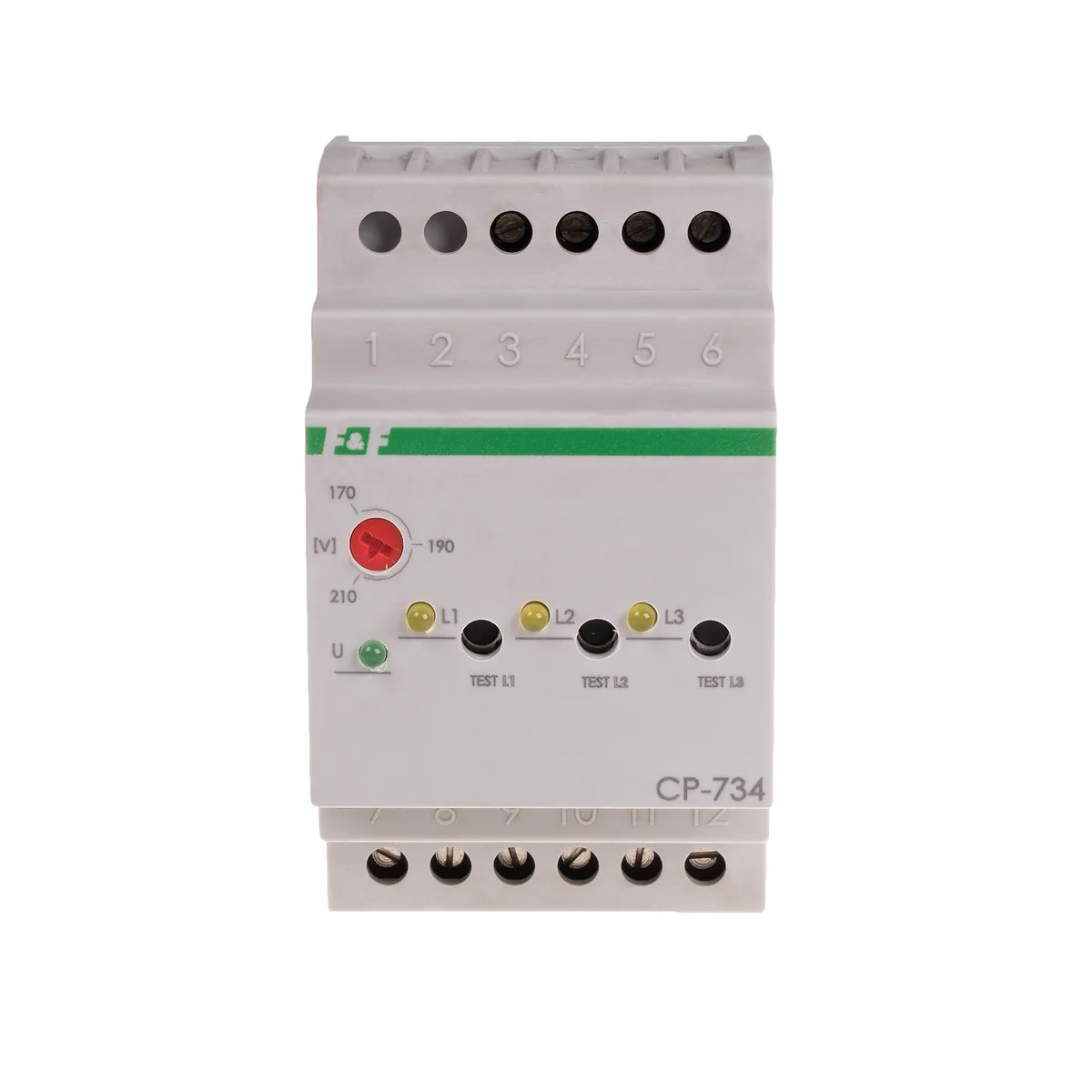

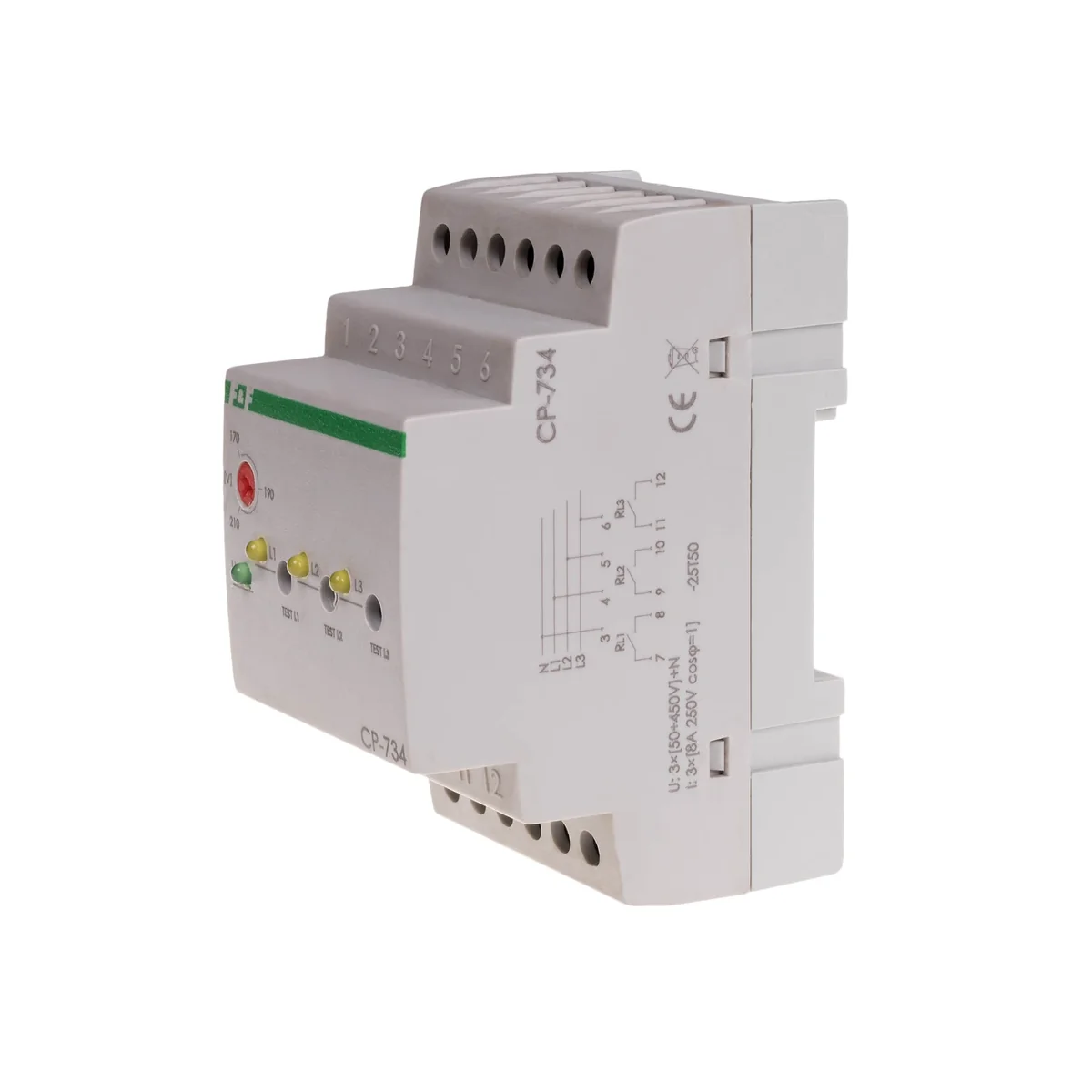

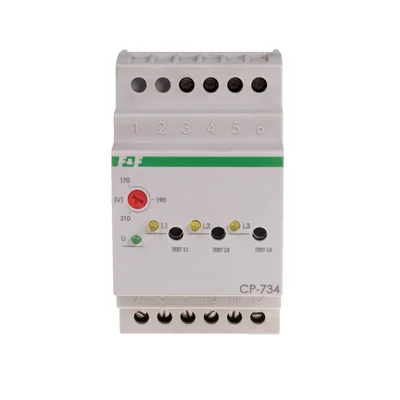

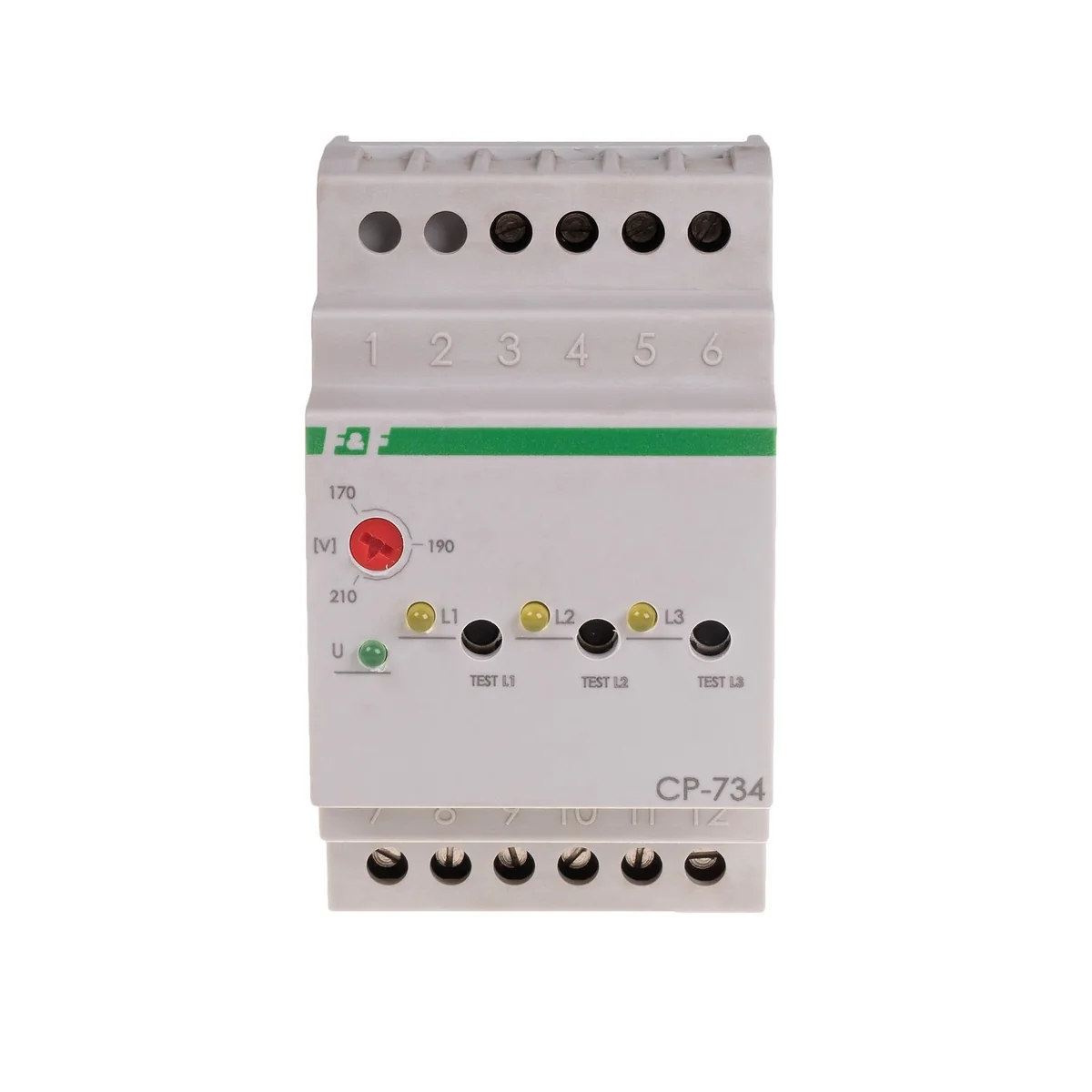

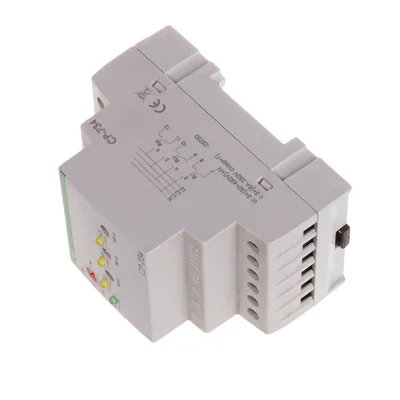

The CP-734 voltage relay is used to control the voltage of a three-phase network and protect a single-phase receiver against the effects of a voltage drop below the set value. Operation
The power supply of the relay is indicated by the green U LED. Proper mains voltages are indicated by the yellow L1, L2 and L3 LEDs in the circuit of each phase (relay contacts closed). Voltage decay in a phase or its drop below the set activation voltage threshold will cause opening of the relay contact corresponding to this phase (yellow LED is off in the circuit of this phase). The contact will be activated automatically after the voltage returns in the phase or the voltage increases by 5V above the set threshold (i.e. by the value of the voltage hysteresis). this phase as long as the button is held down.

Technical data

  • Power recovery time [s]
    1.5
  • Return voltage hysteresis [V]
    5
  • Power [W]
    0.8
  • load current [A]
    3x16
  • connection
    2.5mm screw terminals
  • Power indication
    LED green
  • Dimensions
    3 modules (52.5mm)
  • Package height [mm]
    90
  • Package weight [kg]
    0.25
  • Tripping time [ns]
    0.5 sec
  • Number of contacts
    3NO 0NC
  • Installation
    On the TH-35 rail
  • Actuation voltage threshold - adjustable [V]
    170-210
  • Phase indication
    3×LED yellow
  • Working temperature [°C]
    From -25-50
  • Power
    3×(50-450V)+N
  • Package width [mm]
    60
  • PKWIU
    27.12.23.0

Other technical data

  • Type of electric connection
    Screw connection
  • Single-phase under voltage possible
    No
  • Single-phase over voltage possible
    No
  • Single-phase hysteresis possible
    Yes
  • Contains function DC-under voltage
    No
  • Contains function DC-voltage hysteresis
    No
  • Type of voltage measuring range
    AC
  • Voltage type for actuating
    AC
  • Min. adjustable off-delay time
    0.5 s
  • Number of contacts as normally closed contact
    1
  • Height
    90 mm
  • With detachable clamps
    No
  • Three-phase under voltage possible
    Yes
  • Three-phase over voltage possible
    No
  • Three-phase hysteresis possible
    No
  • Contains function DC-over voltage
    No
  • Voltage measuring range 1
    3 ... 150 V
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Response value voltage
    170 ... 210 V
  • Max. permitted off-delay time
    1.5 s
  • Width
    52.5 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,140
Width (m) 0,056
Length (m) 0,095
Depth (m) 0,070
