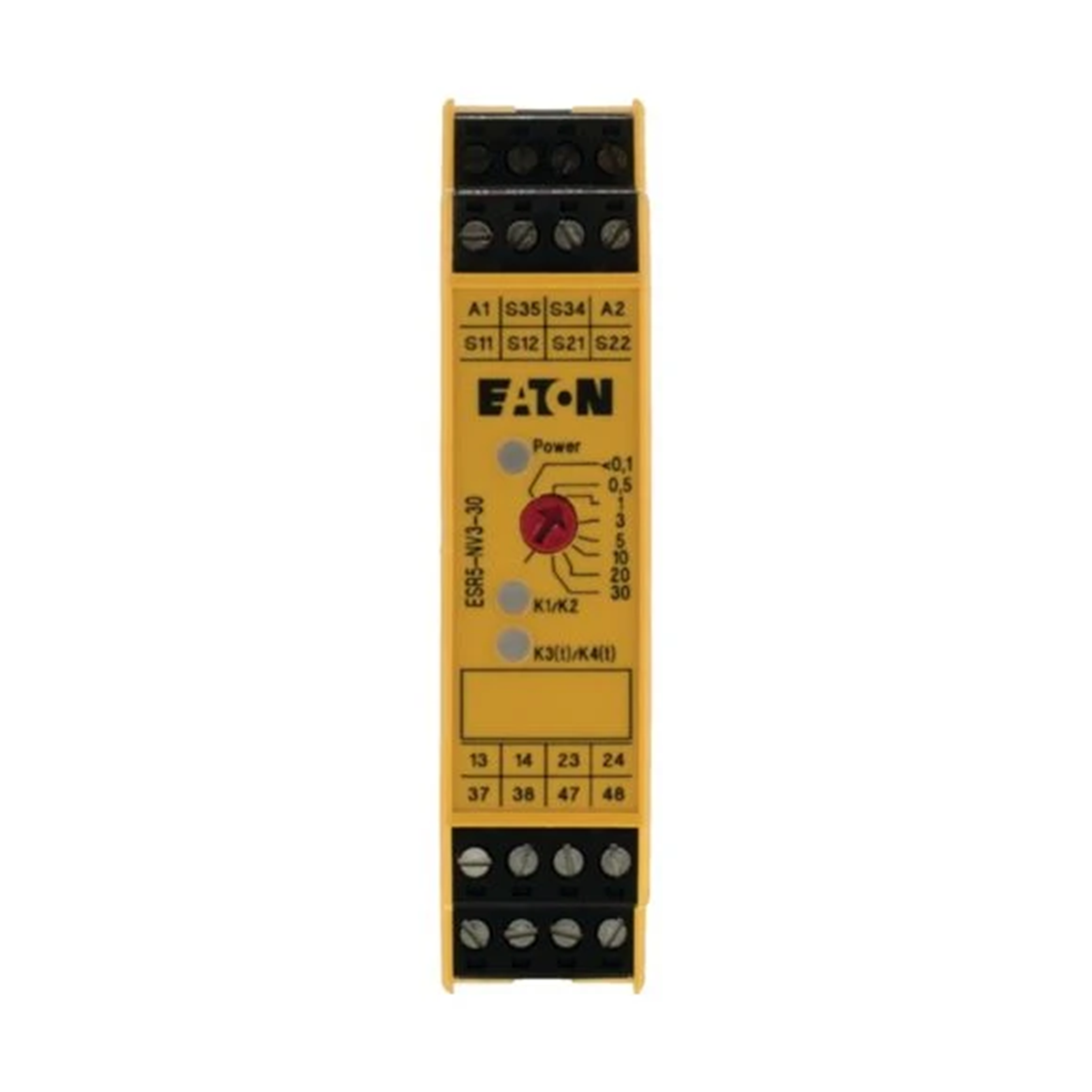

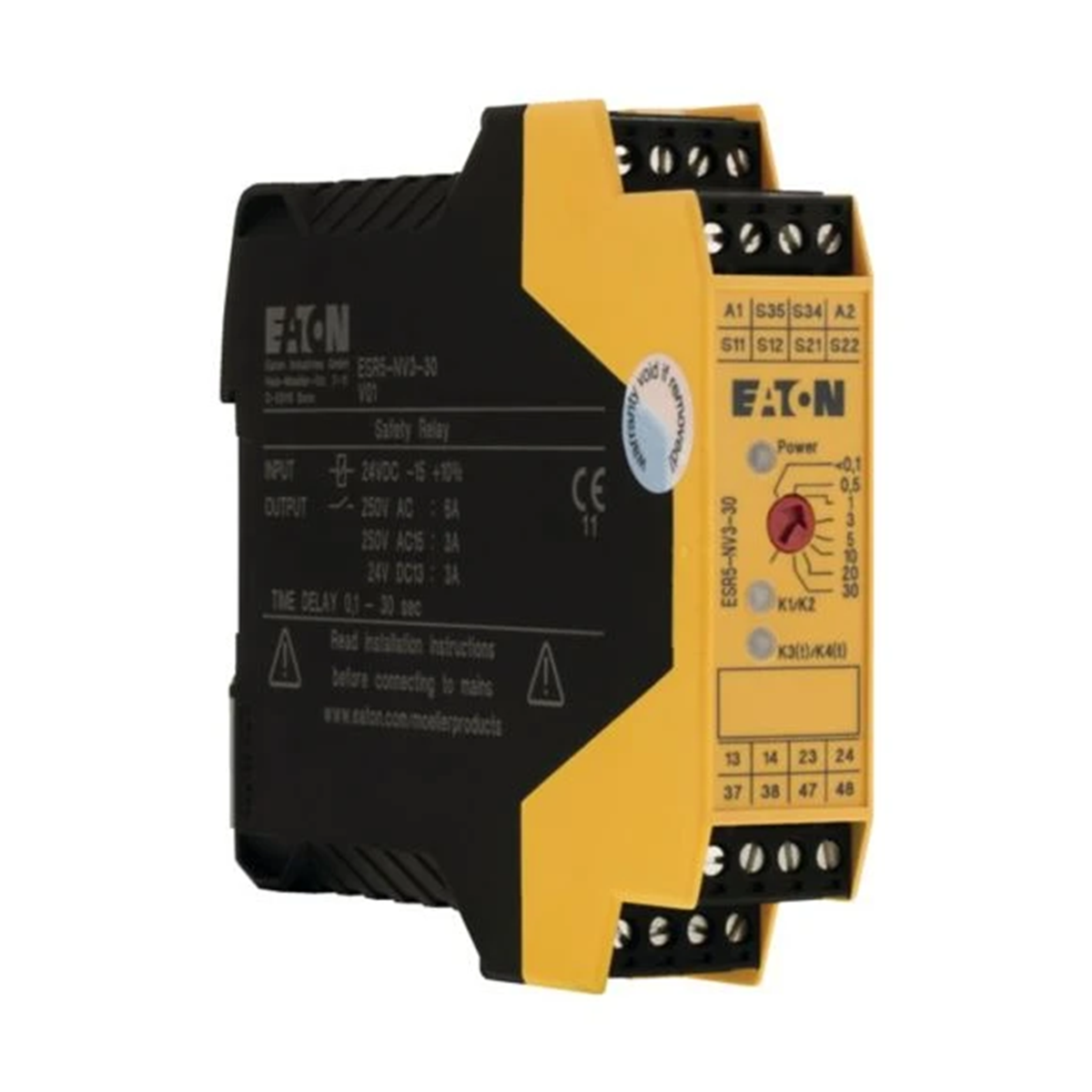

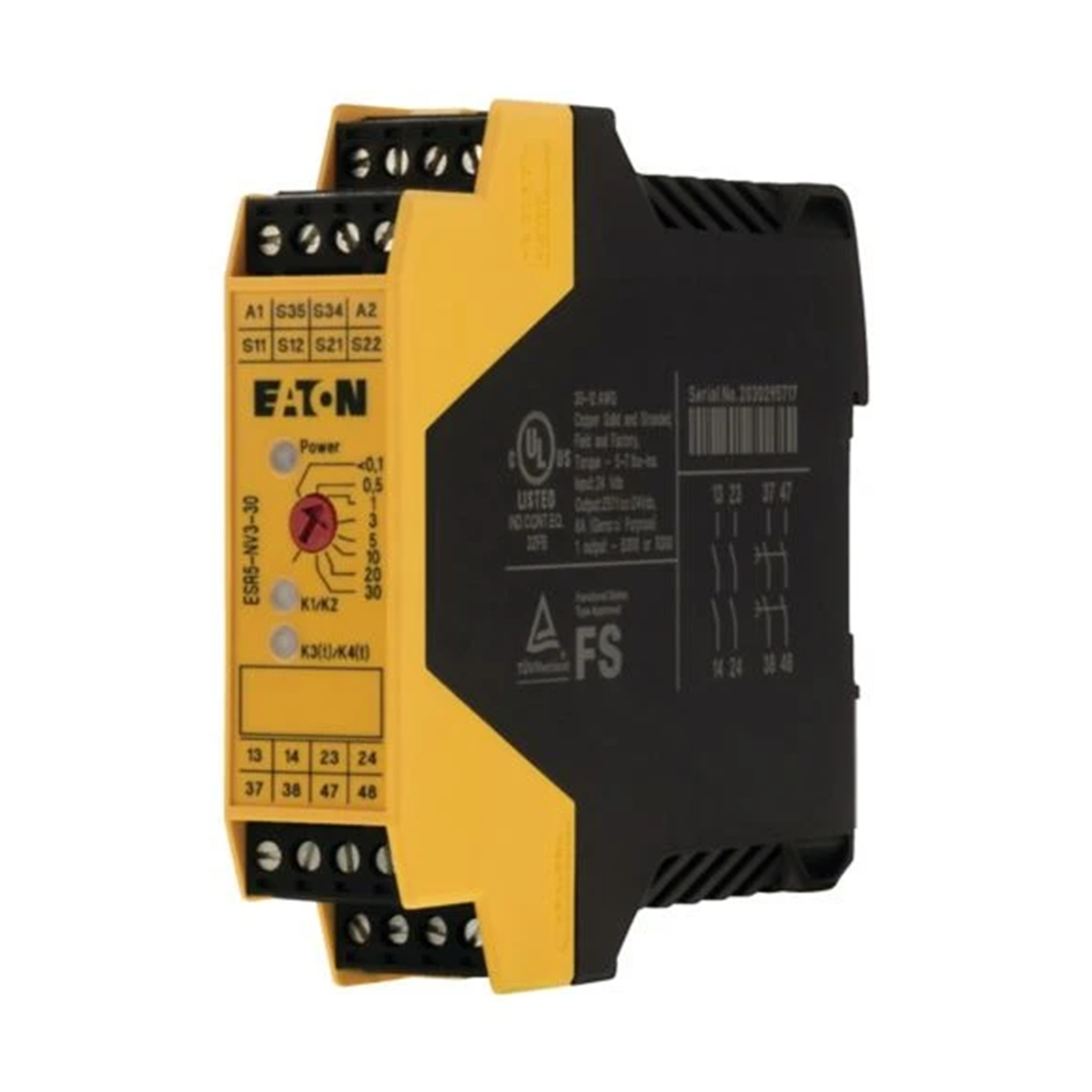

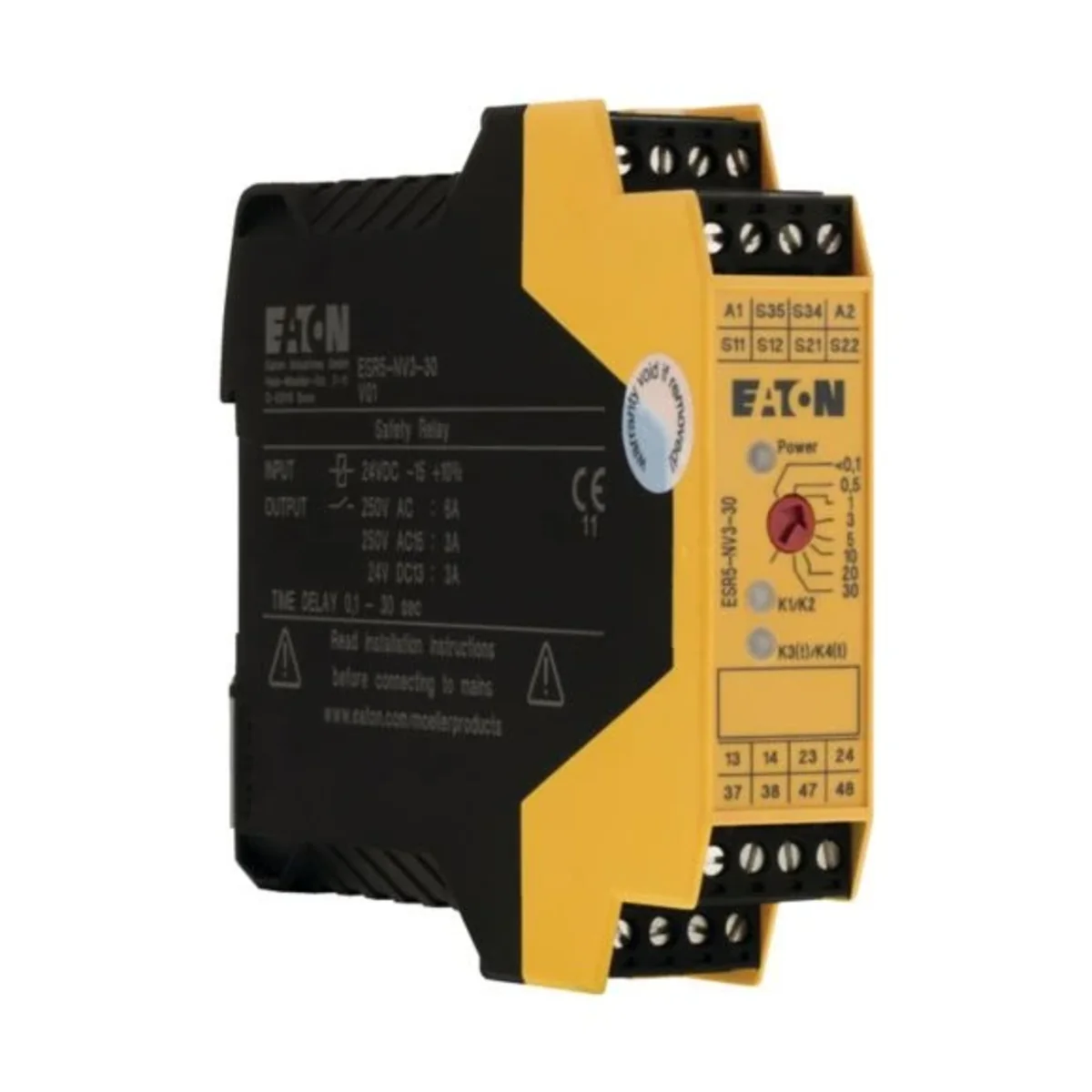

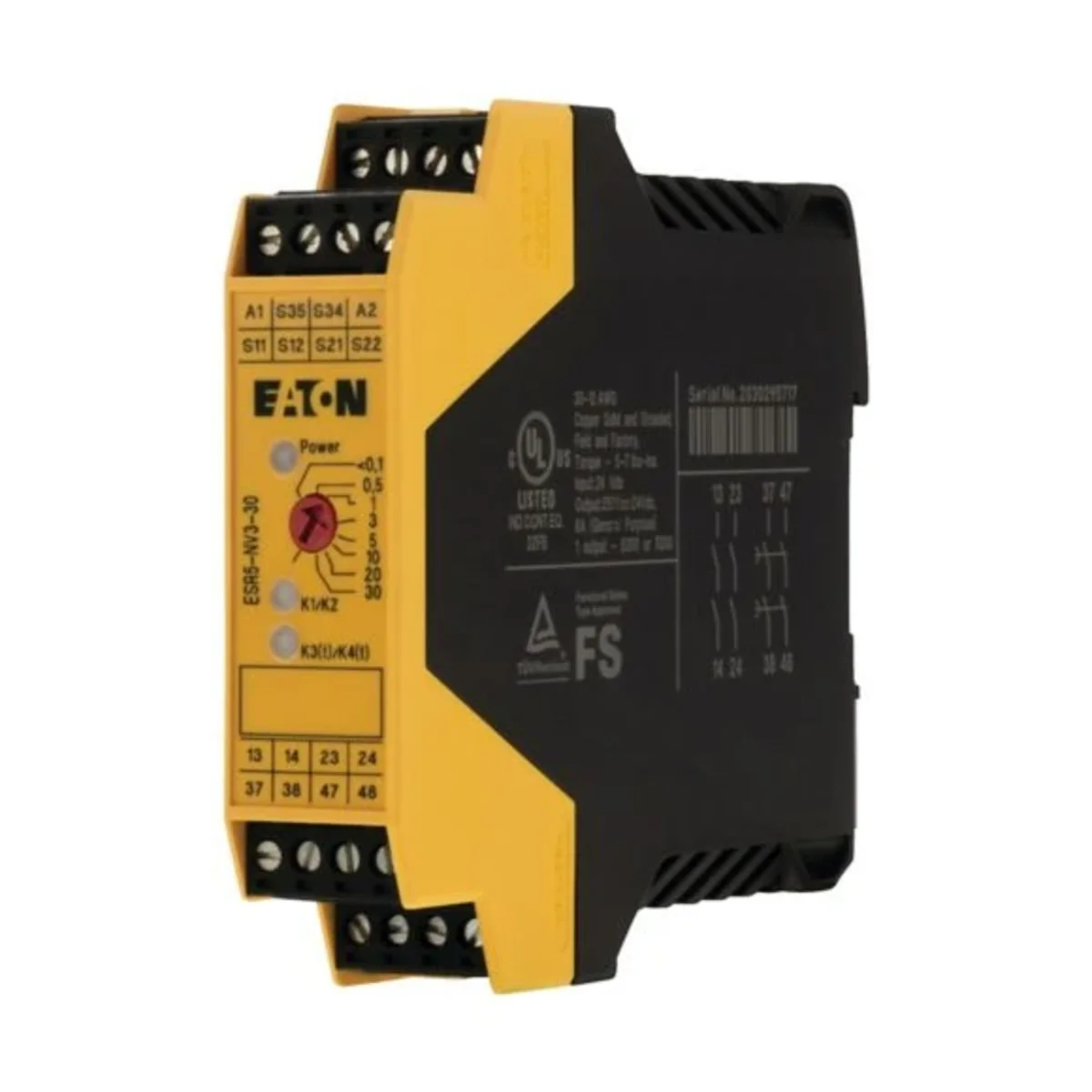

Safety relay, ESR5-NV3-30 118705
Místní index:
APL005MOEL
Katalogové číslo.:
118705
EAN kód:
4015081168453
Výrobce:
EATON
Number of enabling circuits according to IEC/EN 60204 [Stop category]: 2
Control voltage [V]: 24
2 489
13
zł
gross / kusů.
(včetně DPH 23%)
Dostupnost
Dostępne do 2 týdnů
Na zakázku
Dostępność w oddziale
Vyberte si svého velkoobchodníka
Vyberte
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu
ESR5 electronic safety relays. Safety relays for controlling safety buttons, safety gates and optical barriers. (delayed-off*)
*Suitable for LS-S…MT-ZBZ safety limit switches.
*Suitable for LS-S…MT-ZBZ safety limit switches.
Technické údaje
-
Number of enabling circuits according to IEC/EN 60204 [Stop category]2
-
Control voltage [V]24
Další technické údaje
-
ModelBasic device
-
Suitable for monitoring of emergency-stop circuitsYes
-
Suitable for monitoring of optoelectronic protection equipmentYes
-
Suitable for monitoring of magnetic switchesNo
-
Type of electric connectionScrew connection
-
Rated control supply voltage AC 50 Hz0 ... 26.4 V
-
Rated control supply voltage DC0 ... 24 V
-
With detachable clampsYes
-
With start inputYes
-
With feedback circuitYes
-
Number of outputs, safety related, undelayed, with contact2
-
Number of outputs, safety related, undelayed, semiconductors0
-
Number of outputs, signalling function, undelayed, with contact0
-
Number of outputs, signalling function, undelayed, semiconductors0
-
Type of safety according to IEC 61496-1None
-
Performance level according to EN ISO 13849-1Level e
-
With approval for BG BIANo
-
Width22.5 mm
-
Depth114.5 mm
-
Suitable for monitoring of position switchesYes
-
Suitable for monitoring of valvesNo
-
Suitable for monitoring of tactile sensorsNo
-
Suitable for monitoring of proximity switchesNo
-
Rail mounting possibleYes
-
Rated control supply voltage AC 60 Hz20.4 ... 26.4 V
-
Voltage type for actuatingDC
-
Evaluation inputsOne- and two-channel
-
With muting functionNo
-
Release-delay0.1 ... 30 s
-
Number of outputs, safety related, delayed, with contact2
-
Number of outputs, safety related, delayed, semiconductors0
-
Number of outputs, signalling function, delayed, with contact0
-
Number of outputs, signalling function, delayed, semiconductors0
-
Stop category according to IEC 602040
-
SIL according to IEC 615083
-
With approval according to ULYes
-
Height99 mm
-
With approval for TÜVYes
Podrobnosti o výrobci
-
VýrobceEaton Electric Sp. z o.o.
-
Adresa80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Velkoobjemová balení
| Typ obalu | Skrzynia |
| Množství | 1 kusů. |
| Hmotnost (kg) | 0,234 |
| Objem (m3) | 0,001 |
| Šířka (m) | 0,110 |
| Délka (m) | 0,118 |
| Hloubka (m) | 0,039 |
