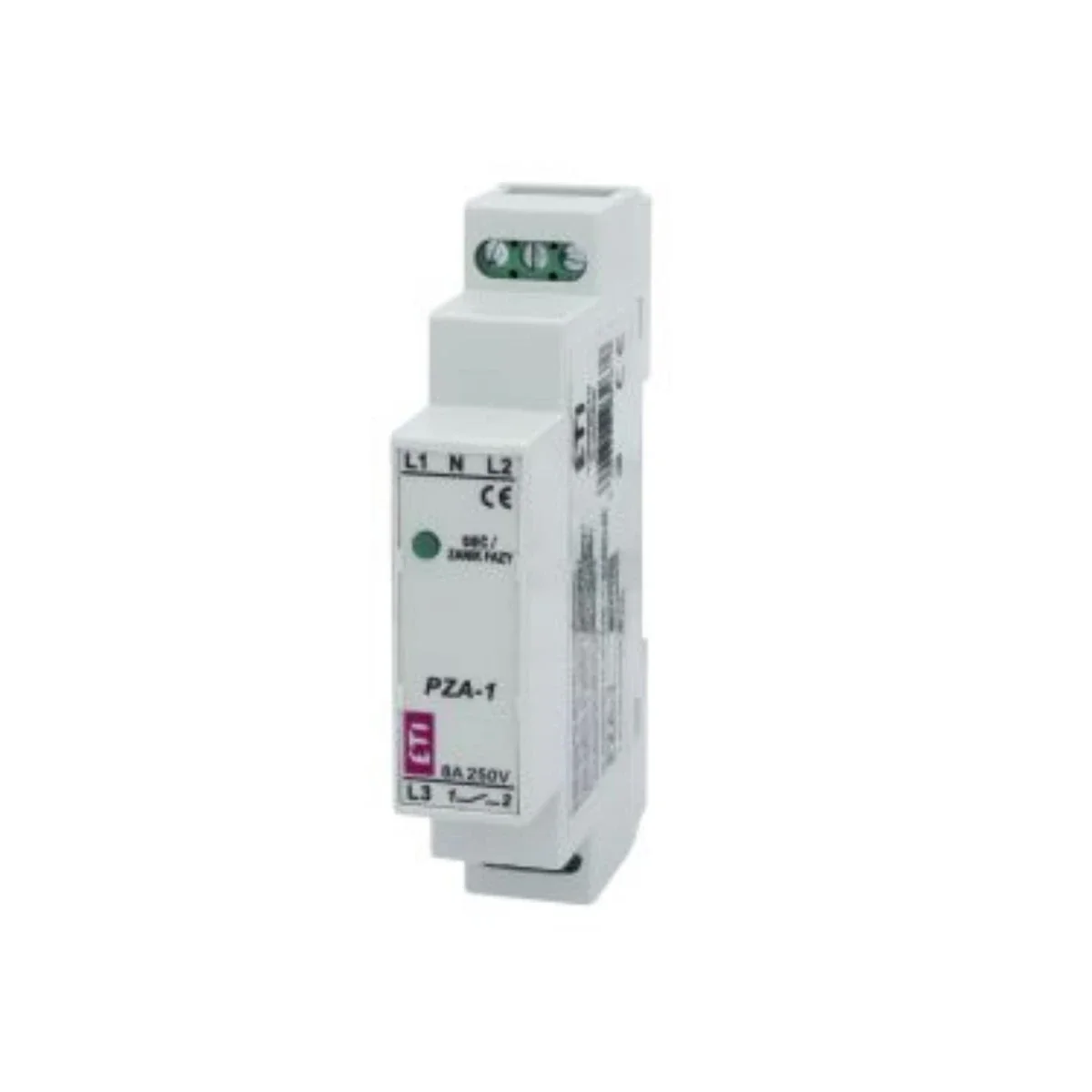

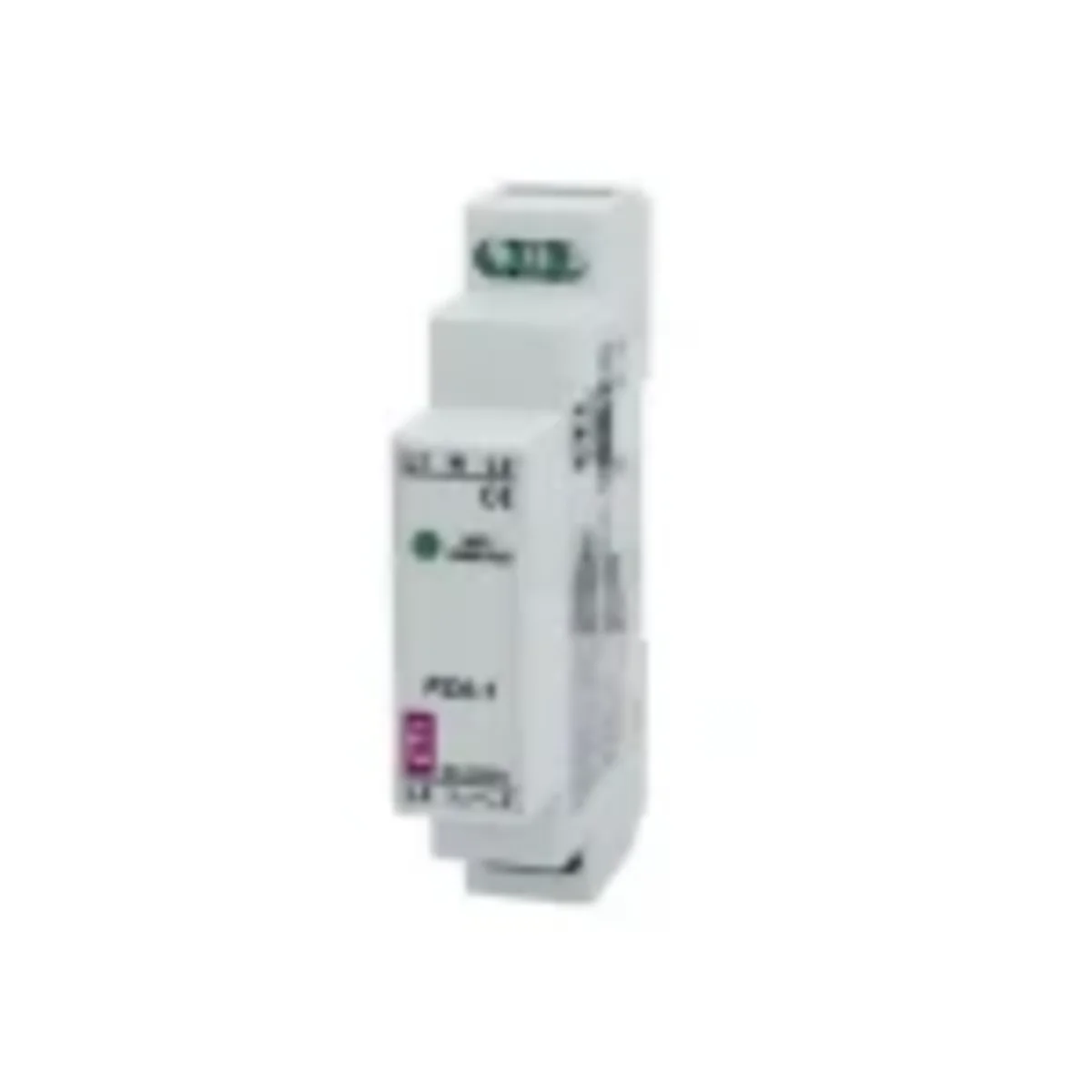

PZA-1 voltage decay and asymmetry relay 002471408

local index:
APL006ETIP
Catalog No:
002471408
EAN code:
5904722934610
Manufacturer: ETI POLAM
Rated voltage [V]: 230
Current carrying capacity [A]: 8
Cable connectivity [mm]: 4mm2
Price:
47,61 €
gross / pcs.
(including VAT 23%)
690,00 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

They are used to protect motors of any power against the effects of a break in the supply circuit, voltage drop (asymmetry) or incorrect phase sequence. The PZA-2 and PZA-2 R relays additionally control the three-phase network downstream of the contactor, preventing damage to the motor in the event of suspension or burnout of the contactor's contacts. The PZA-2 R has an additional activation threshold adjustment in the voltage range of 170 - 190V and activation times from 0 - 6s.

Technical data

  • Rated voltage [V]
    230
  • Cable connectivity [mm]
    4mm2
  • Weight [g]
    69
  • PKWIU
    27.12.24.0
  • Current carrying capacity [A]
    8
  • Contact type
    1Z
  • Power terminals
    L1, L2, L3, N

Other technical data

  • Type of electric connection
    Clip connection
  • Phase failure detection
    Yes
  • Voltage measuring range
    175 ... 400 V
  • Width
    18 mm
  • Depth
    65 mm
  • Rated control supply voltage AC 50 Hz
    400 ... 400 V
  • Phase imbalance monitoring
    Yes
  • Number of contacts as normally closed contact
    1
  • Height
    90 mm

Bulk packaging

A kind of package Pudełko
Quantity 12 pcs.
Weight (kg) 0,702
