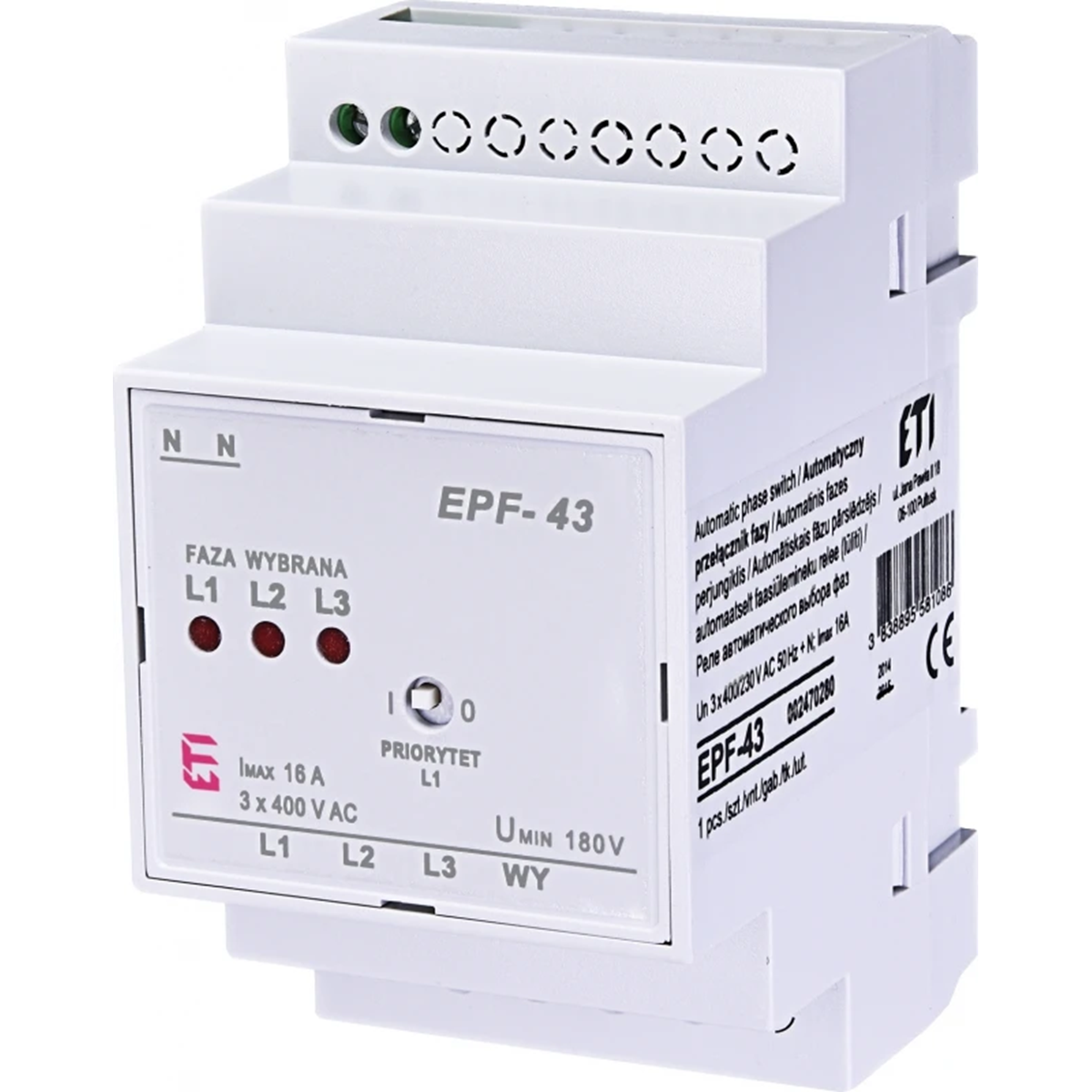

Automatic phase switch EPF-43 - A 002470280

local index:
APL003ETIP
Catalog No:
002470280
EAN code:
3838895581086
Manufacturer: ETI POLAM
Switching time [s]: <200ms
Rated voltage [V]: 230
Terminal capacity: 2.5
Price:
121,92 €
gross / pcs.
(including VAT 23%)
846,67 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Automatic phase switches are used to ensure the continuity of power supply to single-phase devices in the event of a voltage drop or loss of one or two phases of a three-phase network. They have the ability to choose the priority phase. They are used to power: automation of ATS systems, medical and telecommunications equipment, furnace controllers, etc.

Technical data

  • Switching time [s]
    <200ms
  • Terminal capacity
    2.5
  • Working temperature [°C]
    from -25 to +70
  • PKWIU
    27.12.24.0
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Weight [g]
    144

Other technical data

  • Type of electric connection
    Clip connection
  • Voltage type for actuating
    AC
  • Max. permitted off-delay time
    0.2 s
  • Width
    54 mm
  • Depth
    65 mm
  • Rated control supply voltage AC 50 Hz
    400 ... 400 V
  • Response value voltage
    180 ... 180 V
  • Number of contacts as normally open contact
    1
  • Height
    90 mm
