ZAMEL

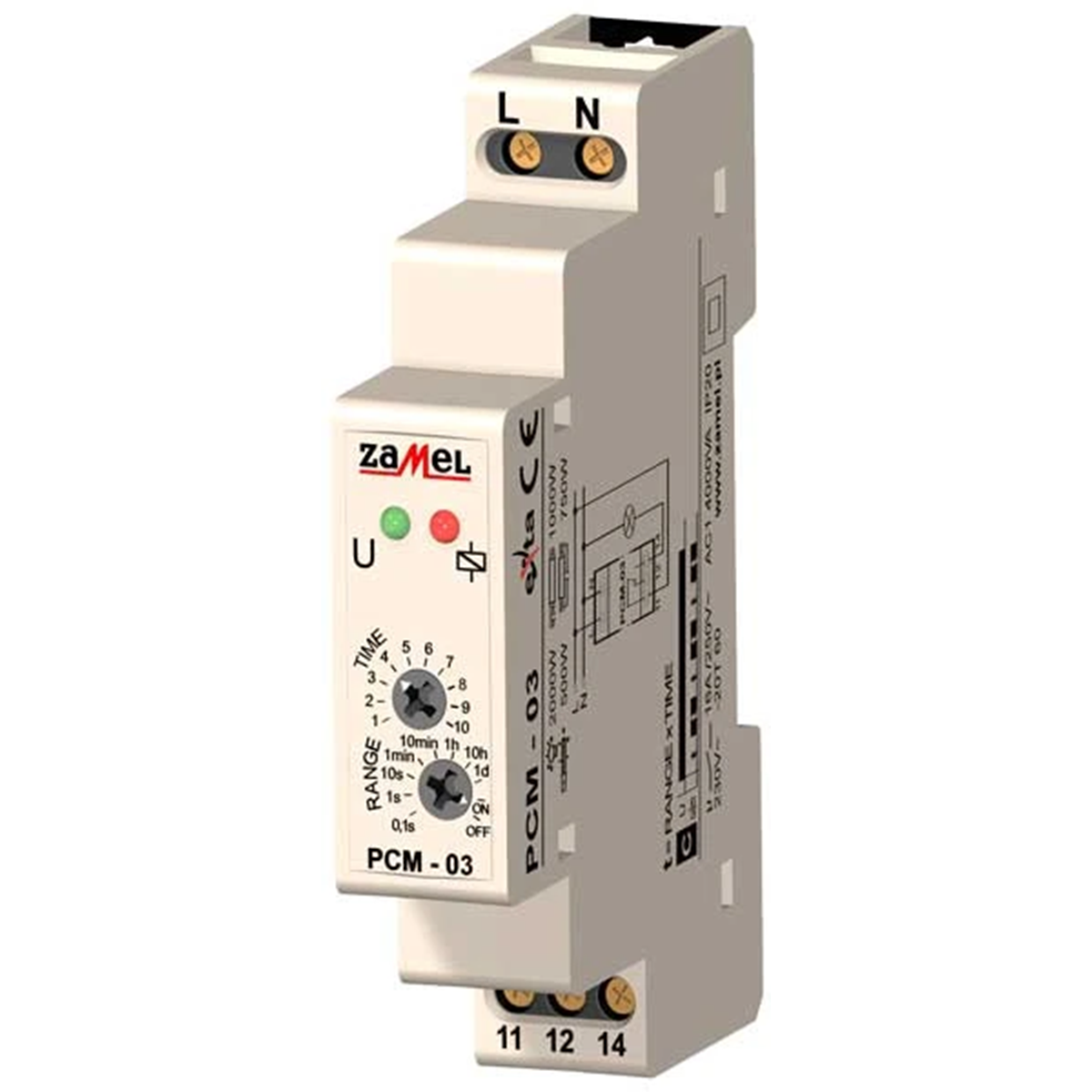

Time relay 230V AC TYPE: PCM-03 EXT10000078

local index:
APL004ZAME
Catalog No:
EXT10000078
EAN code:
5903669021995
Price:
27,00 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

The single-function time relay PCM-03 is used to perform the function of cyclic switching in automation and control systems. The relay is triggered by the supply voltage. It is characterized by a very wide range of time settings from 0.1 second to 10 days. Additional ON / OFF functions enable permanent switching on or off of the receiver. The system has indicators of: supply voltage, relay status and time measurement - realized by means of LEDs. Time setting range t: discrete 0.1 ÷ 1 s; discrete 1 ÷ 10 s; discreetly 0.2 ÷ 1.7 min; discreetly 1 ÷ 10 min; discreetly 0.2 ÷ 1.7 h; discreetly 1 ÷ 10 h; discreetly 0.4 ÷ 4.2 days; discreetly 1 ÷ 10 days.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Contact
    1NO/NC
  • Type
    Relays
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Width [mm]
    17.5
  • Height [mm]
    90
