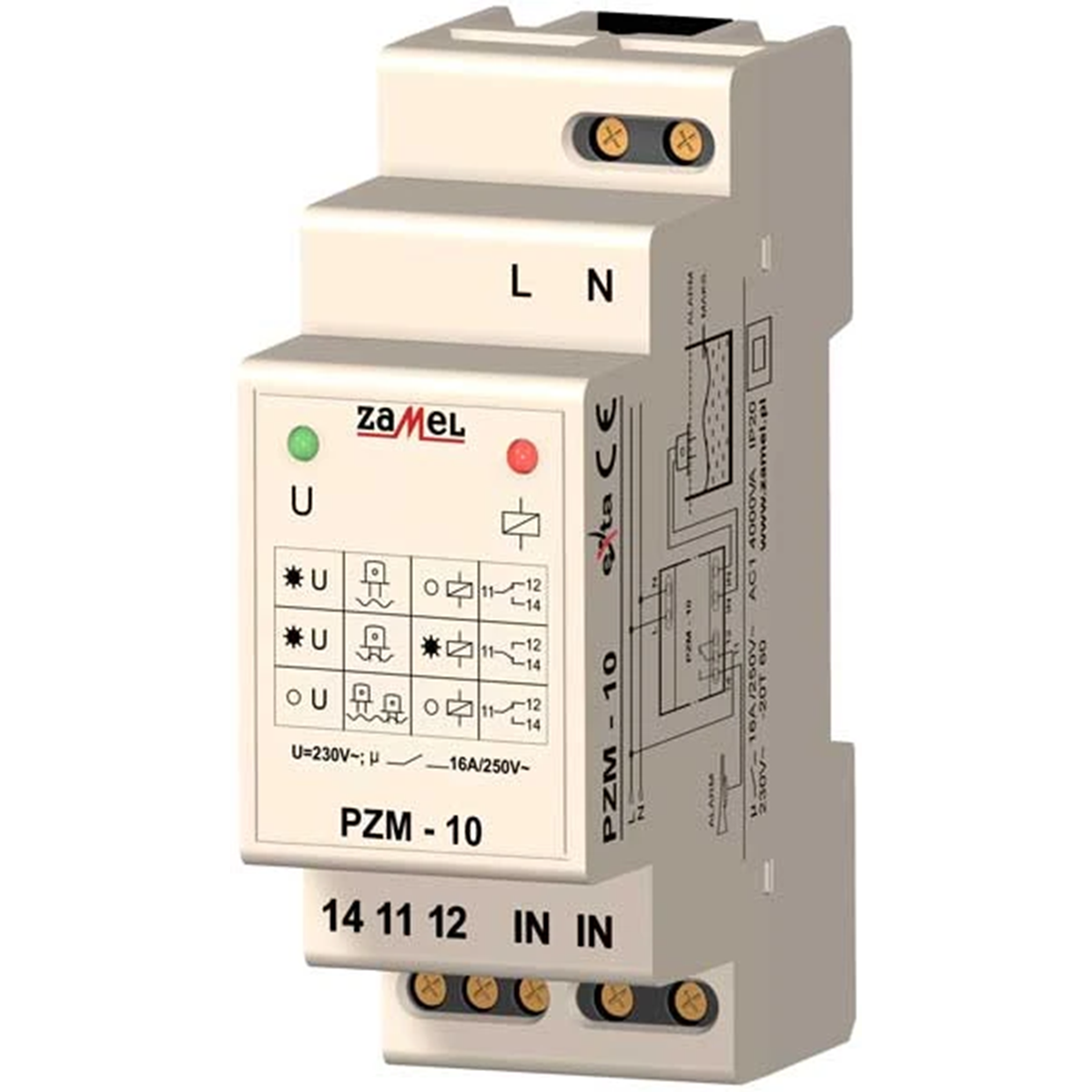

Flooding relay with probe szh-03 230V AC TYPE: PZM-10 EXT10000112

local index:
APL024ZAME
Catalog No:
EXT10000112
EAN code:
5903669024958
Manufacturer: ZAMEL
Length [mm]: 66
Maximum relay power [VA]: 4000
Installation: On the TH-35 rail
Price:
35,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 8 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PZM10 flooding relay is used to detect the presence of conductive liquids (e.g. water) at the height of the mounted flooding probe (SZH03). The system can be used to alarm about the appearance of water in places exposed to flooding. It can also be used in control and fluid level control systems. The external flood probe is galvanically separated, which ensures the reliability and safety of the device.

Technical data

  • Length [mm]
    66
  • Installation
    On the TH-35 rail
  • Relay current [A]
    16
  • Contact
    1NO/NC
  • Type
    Relays
  • PKWIU
    27.12.40.0
  • Maximum relay power [VA]
    4000
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Width [mm]
    35
  • Height [mm]
    90
