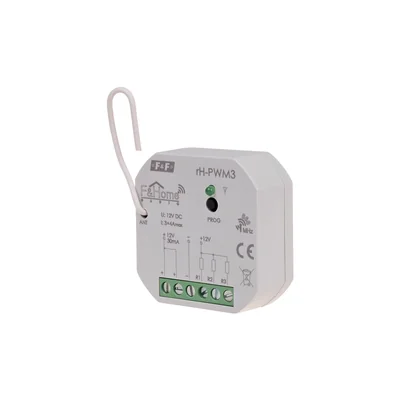

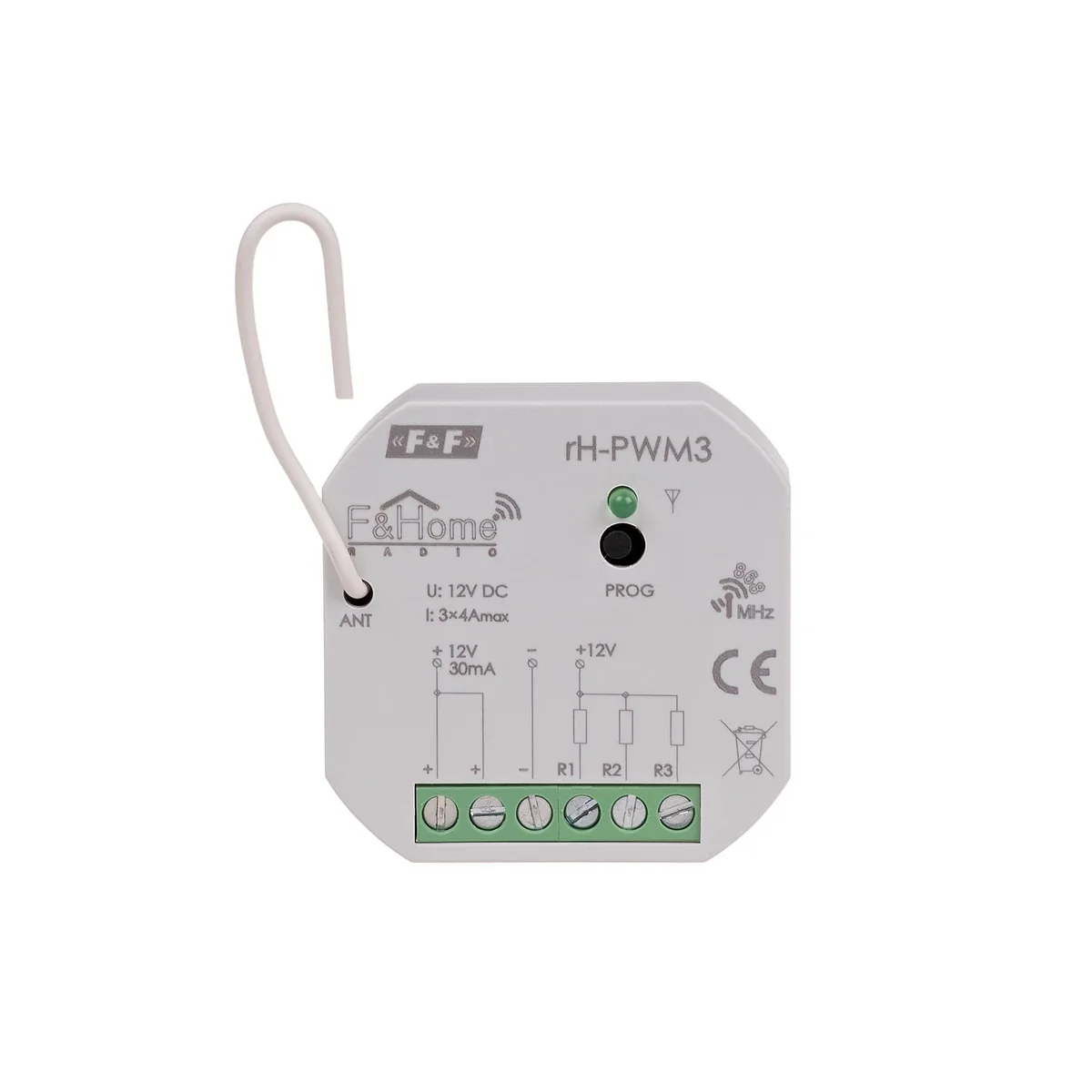

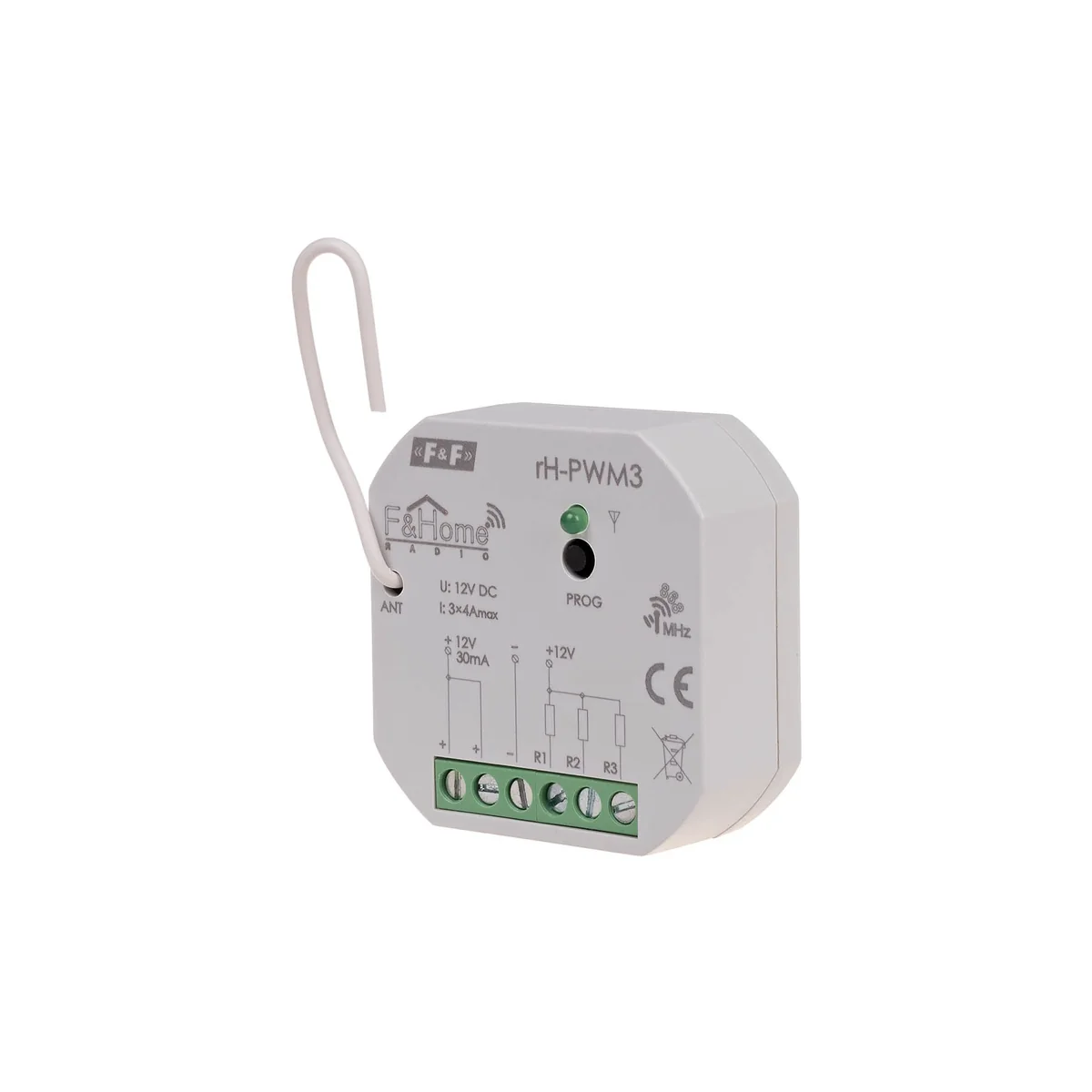

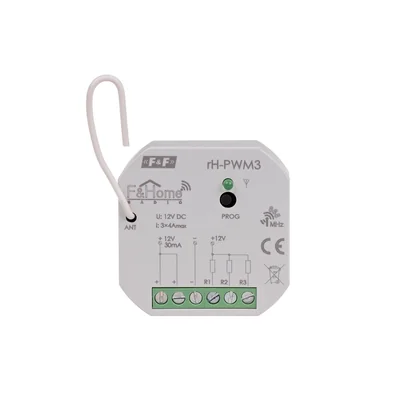

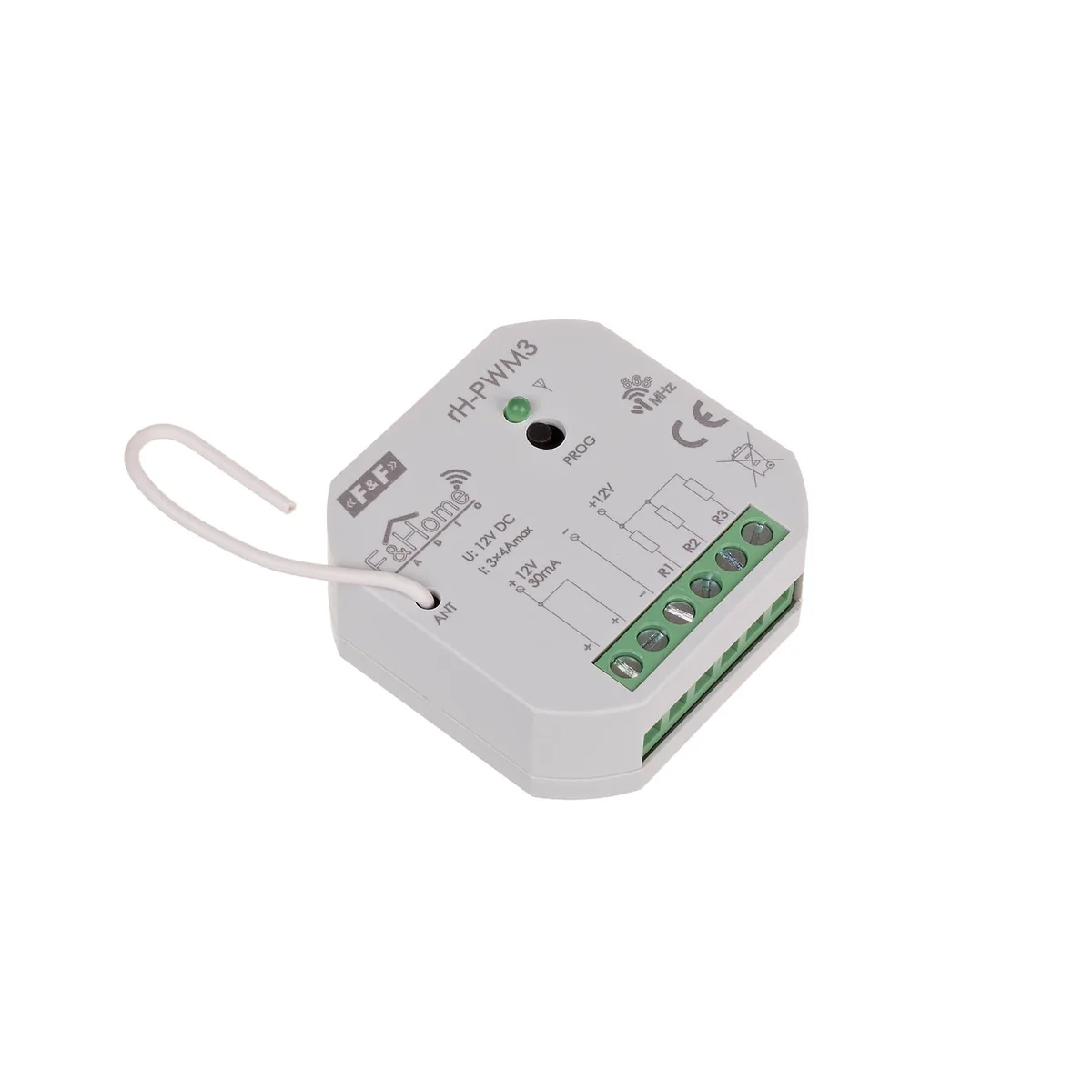

Low voltage three-channel PWM controller RH-PWM3

local index:
APL004FIFQ
Catalog No:
RH-PWM3
EAN code:
5908312596486
Manufacturer: F&F
Number of outputs: 3
Maximum power [W]: 150
Installation: Flush-mounted
Price:
112,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

rH-PWM3 is used to control three low-voltage receivers powered from an external power supply. Power regulation is done by pulse width modulation that activates the receiver (PWM).

Technical data

  • Number of outputs
    3
  • Installation
    Flush-mounted
  • Level of security
    IP20
  • Package width [mm]
    65
  • Maximum switching current [A]
    4
  • Maximum power [W]
    150
  • Family
    F&HOME RADIO
  • Package height [mm]
    65
  • Package weight [kg]
    0.2
  • PKWIU
    27.11.42.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • With bus connection
    No
  • Local operation/hand operation
    No
  • Interface 1-10 V
    No
  • Max. switching current (resistive load)
    4 A
  • Number of outputs
    3
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    Other
  • Mounting method
    Flush-mounted
  • Substation input
    No
  • With LED indication
    Yes
  • Number of inputs for light sensor
    0
  • Max. switching power
    150 W
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 0,060
