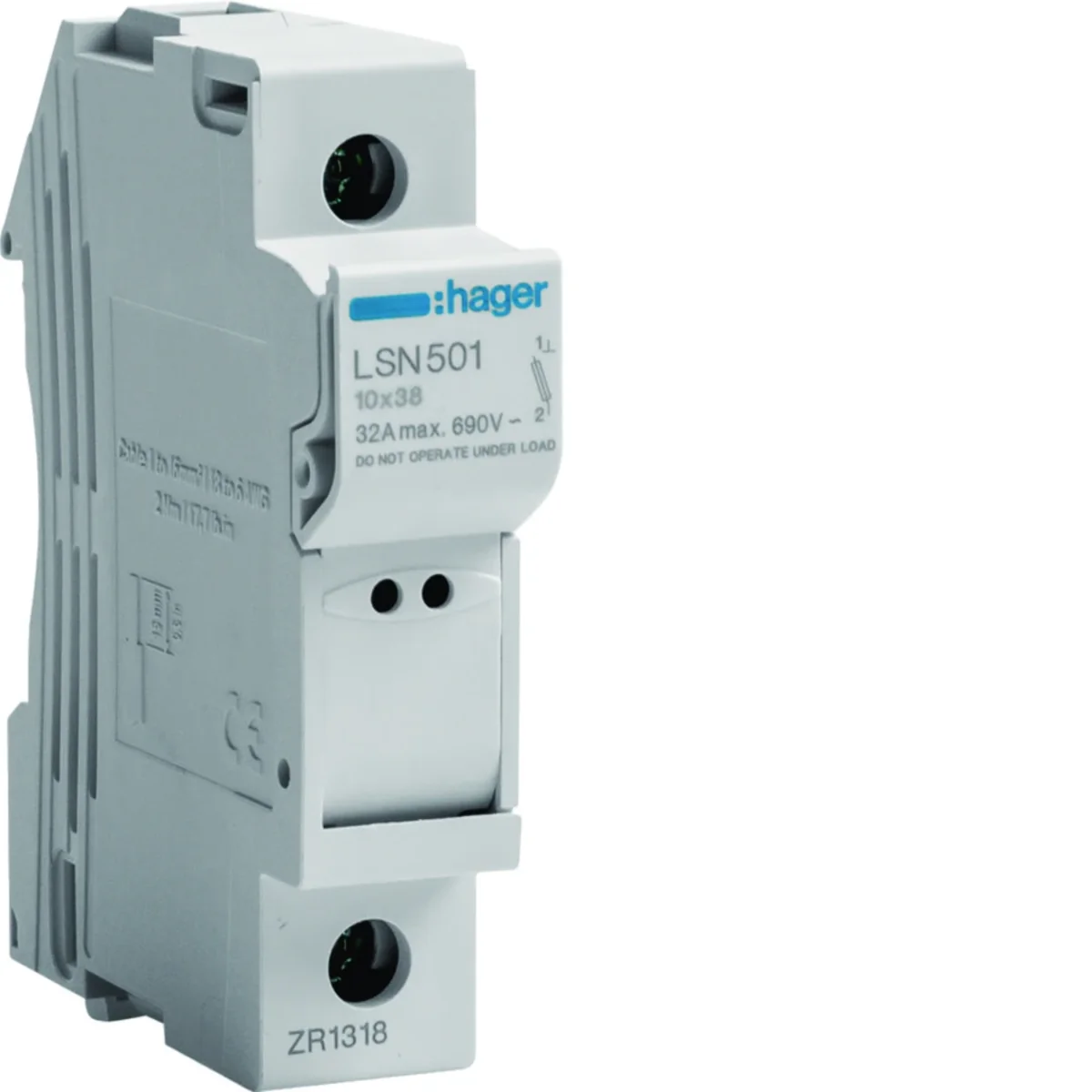

Modular fuse base 1P 32A 690V L38 fuse link 10x38 LSN501
local index:
ALB004HAGE
Catalog No:
LSN501
EAN code:
3250614120077
Price:
7,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Fuse base1P 32A 690V L38 1M. Modular fuse bases Series L38
- for cylindrical fuses with dimensions: 10 x 38 mm gG and aM type
- maximum rated current 32 A, 690 V AC
- construction allows replacement of a blown fuse, ensuring protection against contact
- bases are delivered without fuses
- possibility of sealing both in closed and open position
- 1 pole
- mounting on TS35 rail
- cage terminals:
- wire up to 25 mm2
- strand wire up to 16 mm2 < /ul>
- standards:
- EN/IEC 60269-2
- EN/IEC 60269-2-1
- EN/IEC 60947 -3
Technical data
-
Depth [mm]75
-
Number of poles1
-
Rated insulation voltage [V]690
-
FamilyL38
-
Width [mm]18
-
Height [mm]83
-
Fuse link rated current [A]2/4/6/8/10/12/16/20/25/32
-
ColorWhite
-
Tightening torque [Nm]2.2
-
Rated current [A]32
-
Level of securityIP20
-
Fuse link size10x38
-
Accurate colorWhite
-
PKWIU27.12.21.0
Other technical data
-
Nominal voltage690 V
-
For fuse size10x38 mm
-
Concurrently switching neutral conductorNo
-
With optical defect indicationNo
-
Built-in depth76.5 mm
-
Mounting methodDIN rail
-
Number of poles1
-
LockableYes
-
Width in number of modular spacings1
-
Degree of protection (IP)IP2X
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 12 pcs. | 192 pcs. | 4608 pcs. |
| Weight (kg) | 0,046 | 0,565 | 9,415 | 250,960 |
| Width (m) | 0,018 | 0,085 | 0,315 | 0,800 |
| Length (m) | 0,086 | 0,070 | 0,225 | 1,050 |
| Depth (m) | 0,064 | 0,220 | 0,362 | 1,200 |
