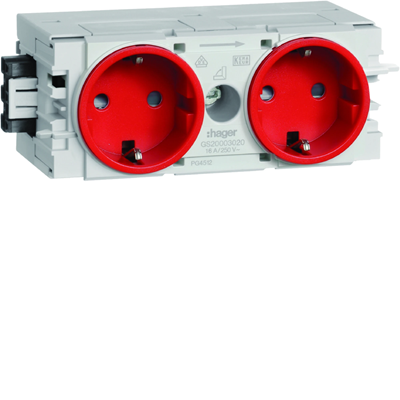

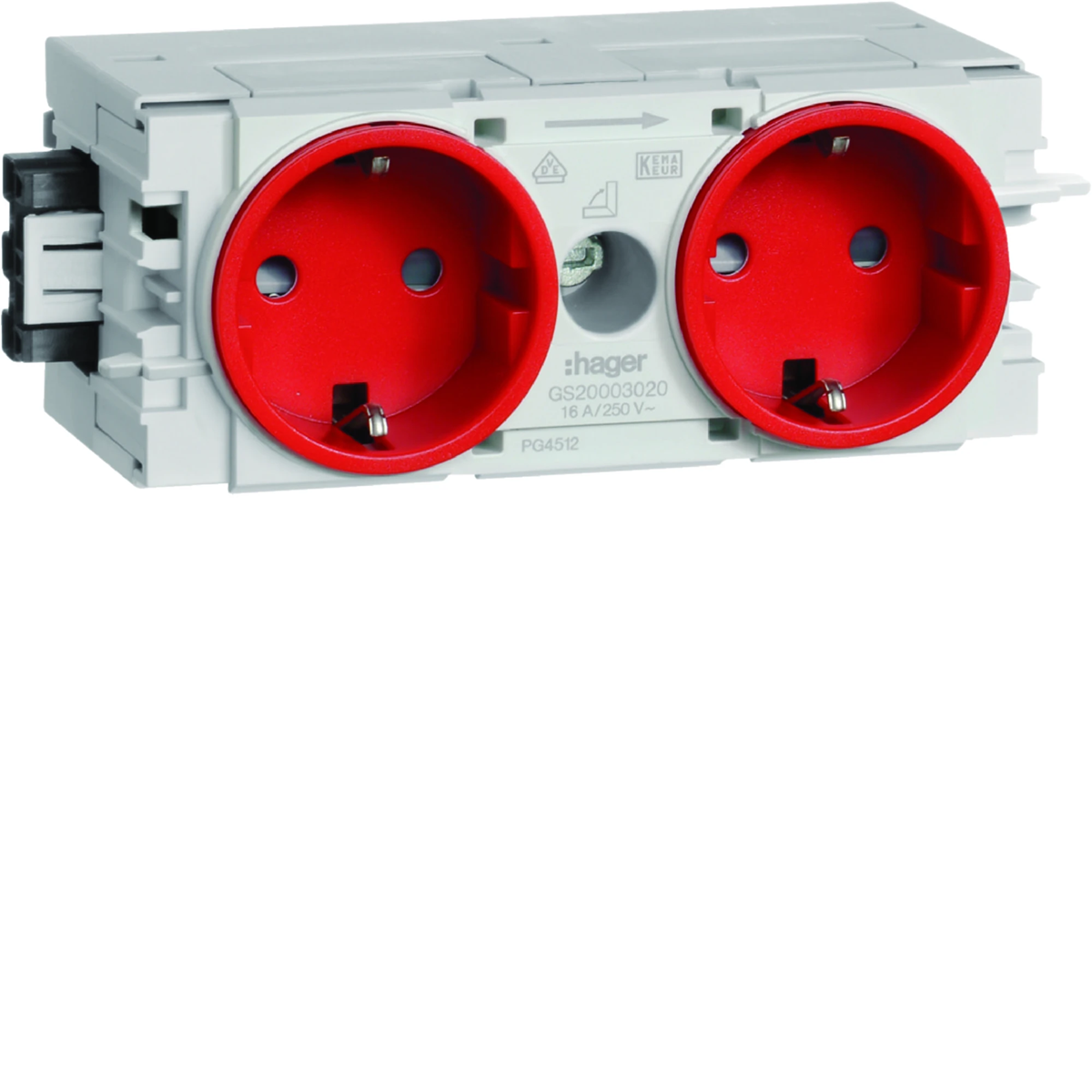

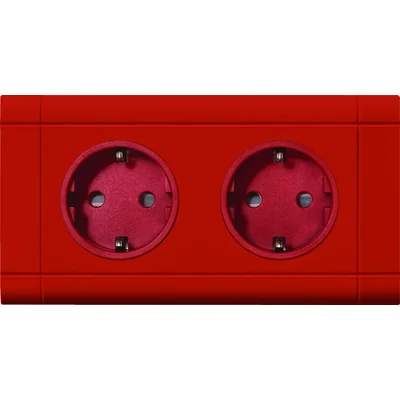

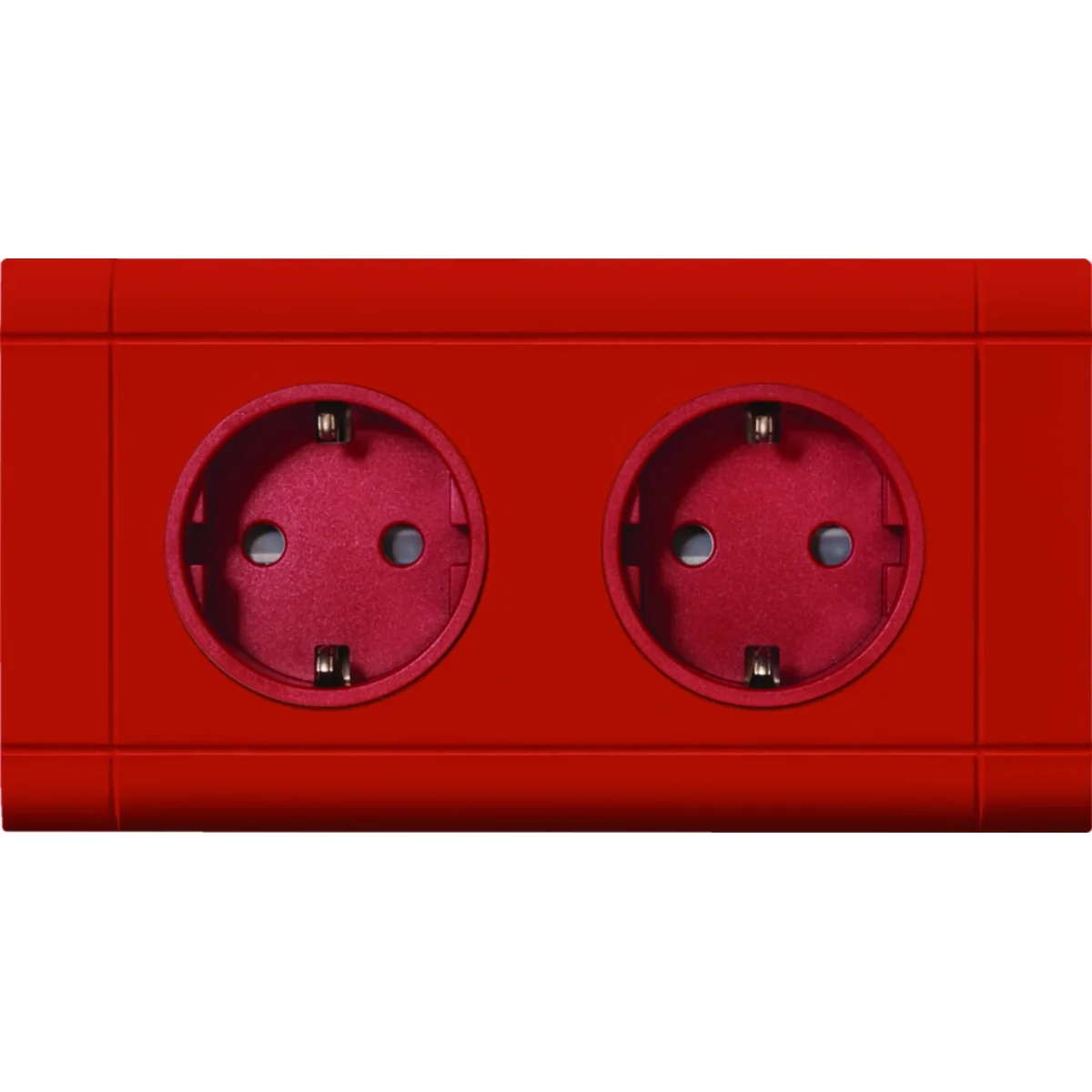

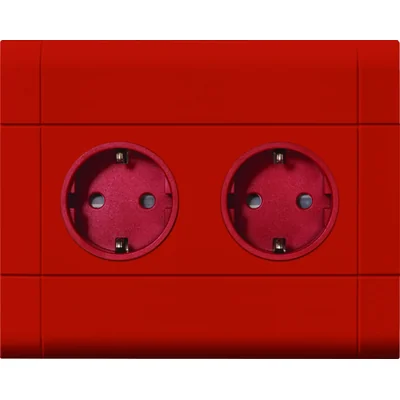

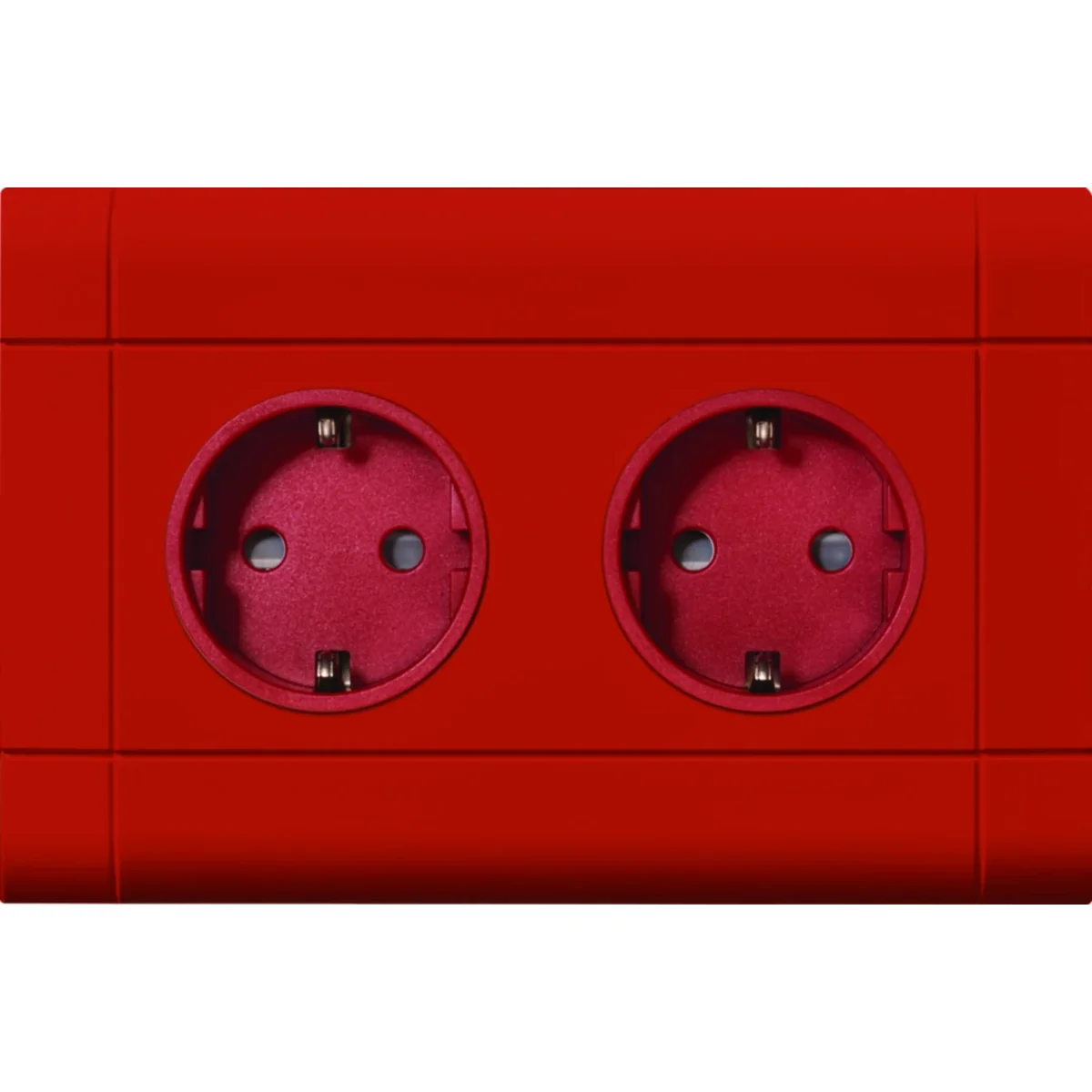

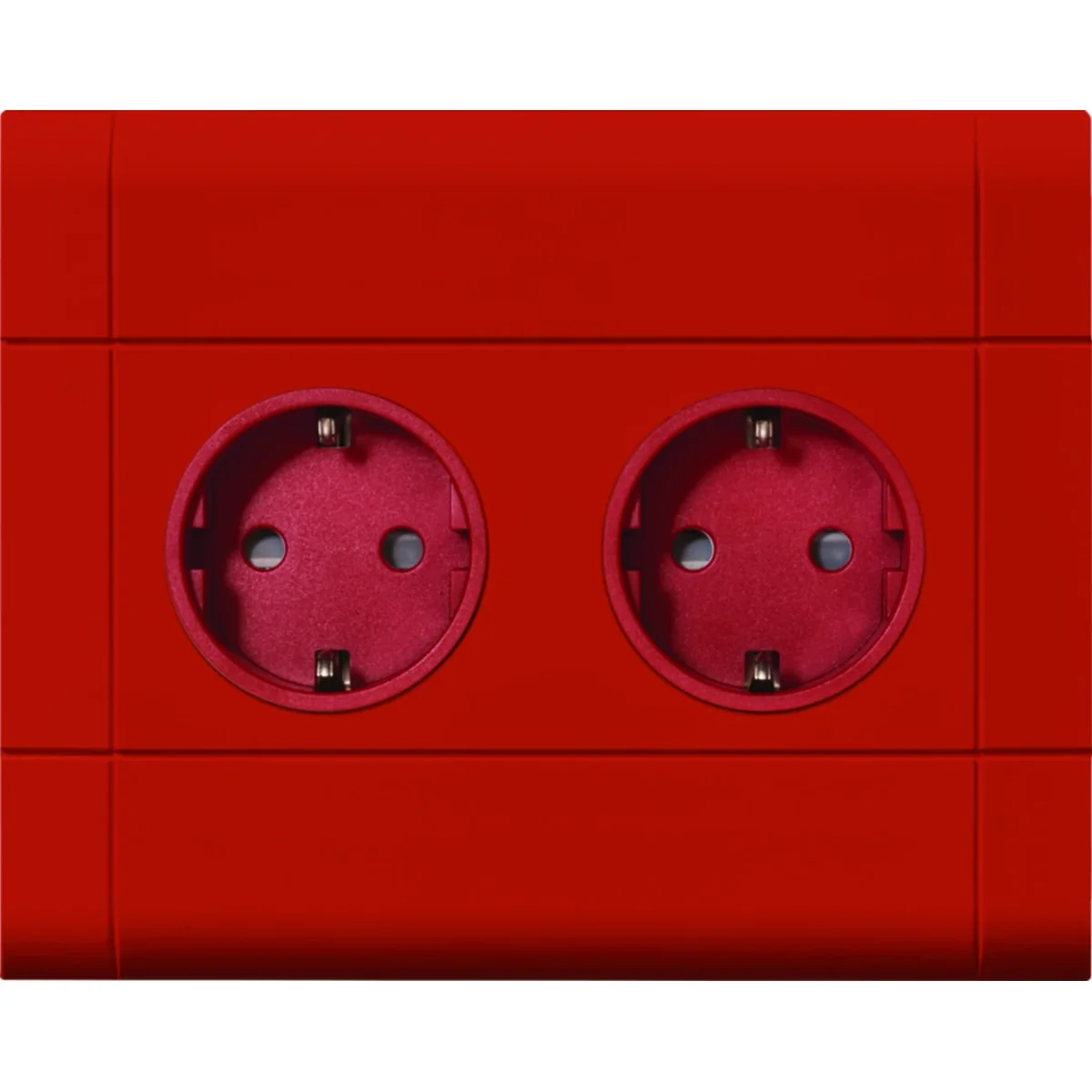

2-way SCHUKO socket, WAGO, C-profile, red

Click on the photo to enlarge

2-way SCHUKO socket, WAGO, C-profile, red
TEHALIT

2-way SCHUKO socket, WAGO, C-profile, red GS20003020

local index:
MGE015TEHA
Catalog No:
GS20003020
EAN code:
4012740851138
Price:
28,56 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Channel electrical socket from the tehalit.WA series, from the manufacturer Hager. The product catalog number is GS20003020< /strong>.



FEATURES

  • Double.
  • With ground SCHUKO.
  • Extended contact protection.
  • Color red.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Connection system: Wago Winsta.
  • Mounting: wall duct.
  • Clamp connection.
  • Mounting method:  profile C.
  • Number of module locations: 2.
  • Number of available phases: 1.
  • Connection type: Quick Connect.
  • Number of conduit entries: 2.
  • Number of strain reliefs: 2.
  • Insulated.
Print the product sheet Report an error

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Color
    Red
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Canal
  • Ground
    schuko
  • Surface protection
    Natural
  • Surface finish
    matte
  • Wire cross-section (cord) [mm²]
    0.5/4
  • Standard
    European
  • On the DATA key
    NO

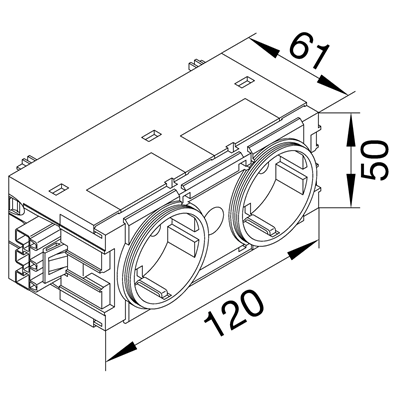

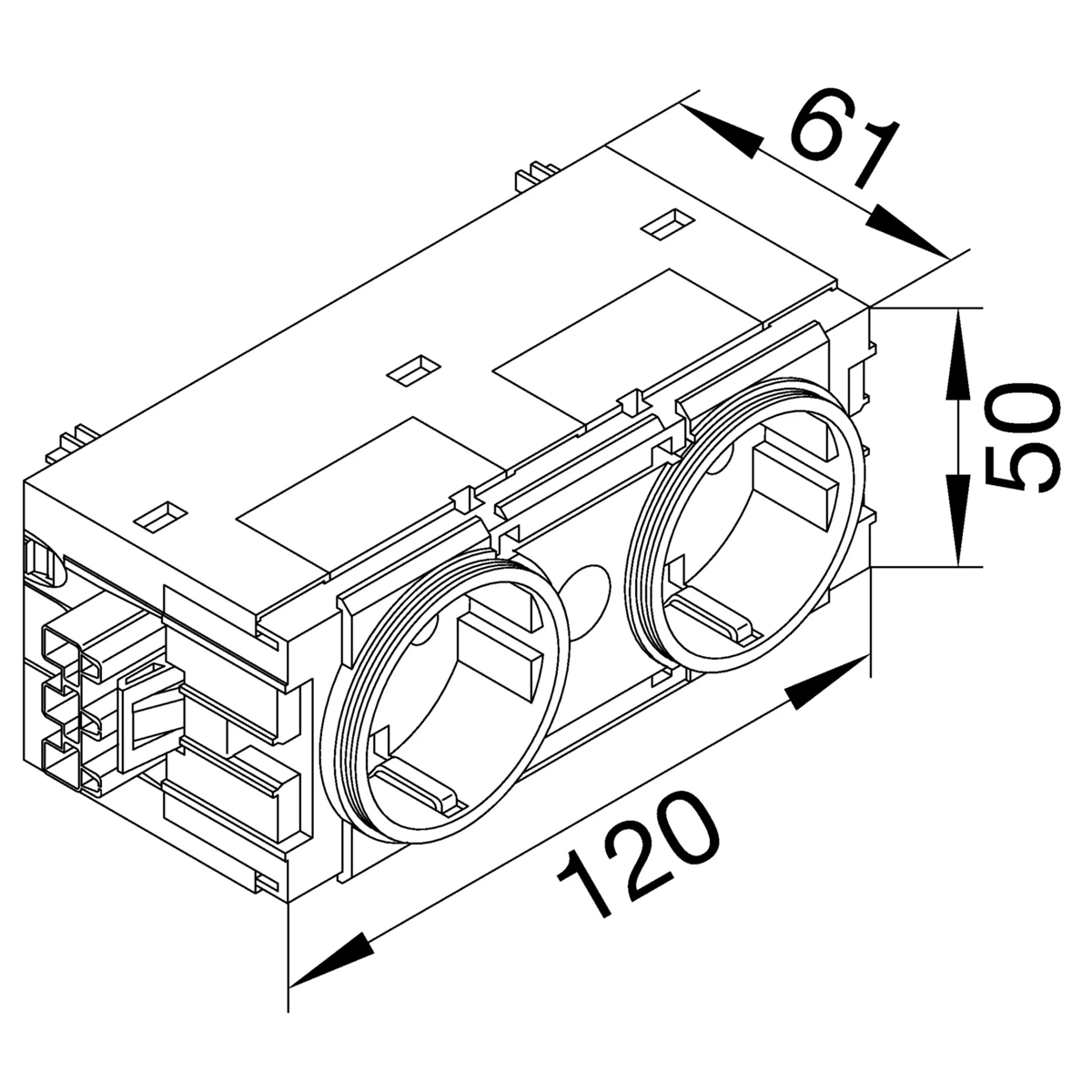

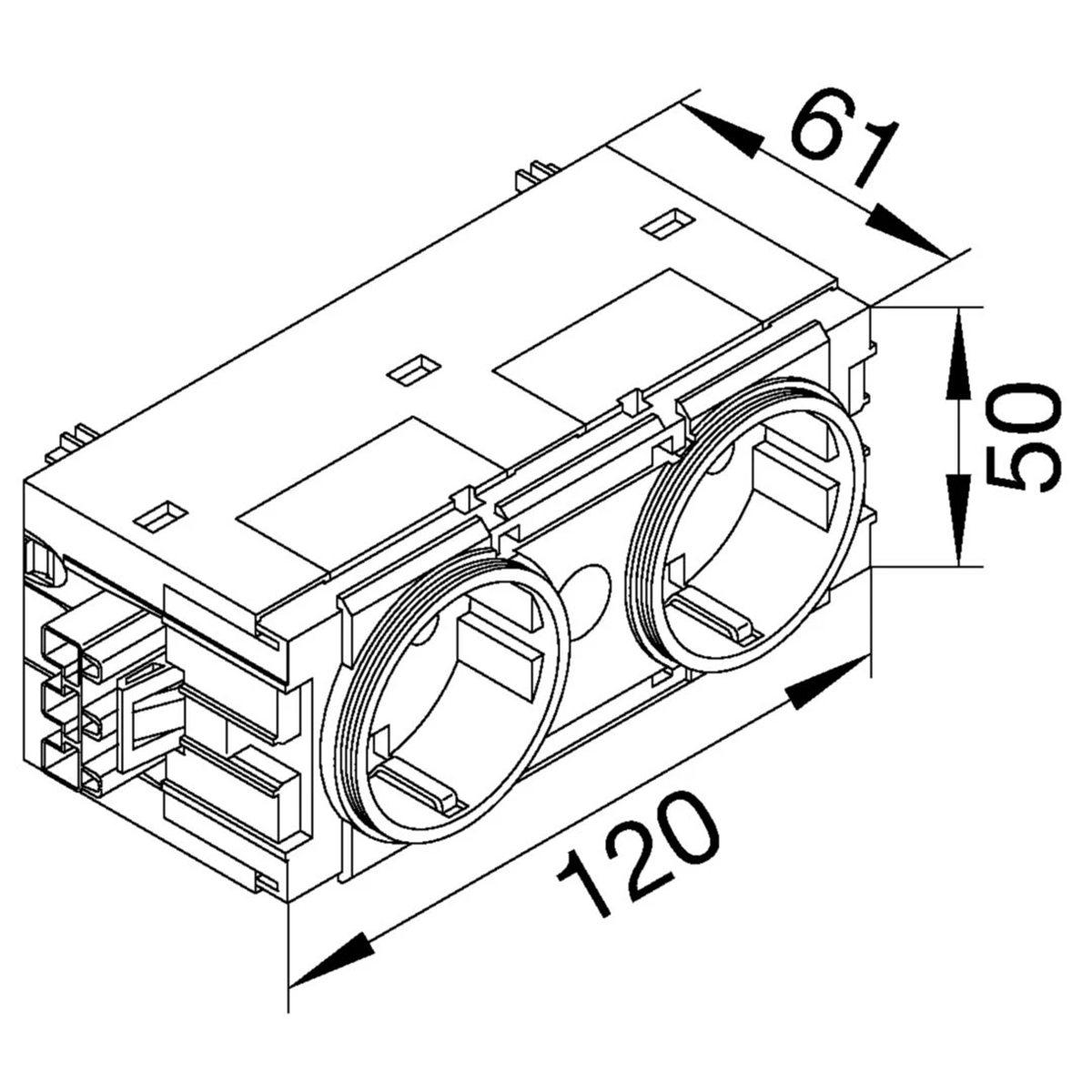

  • Depth [mm]
    61
  • Number of modules
    2
  • Shape
    Rectangular
  • Installation
    C profile
  • Rated current [A]
    16
  • Family
    TEHALIT.WA
  • Width [mm]
    120
  • Connection type
    Quick Connect
  • Height [mm]
    50
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • With built-in USB power supply
    no
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With hinged lid
    no
  • Label space/information surface
    yes
  • RAL-number (similar)
    3020
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    Additional safety power supply (red)
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    120 mm
  • Device depth
    61 mm
  • Protective contact
    yes
  • With signal lamp
    no
  • Number of units
    2
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    yes
  • Colour
    Red
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Wall duct
  • Material
    Other
  • Halogen free
    yes
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    50 mm
