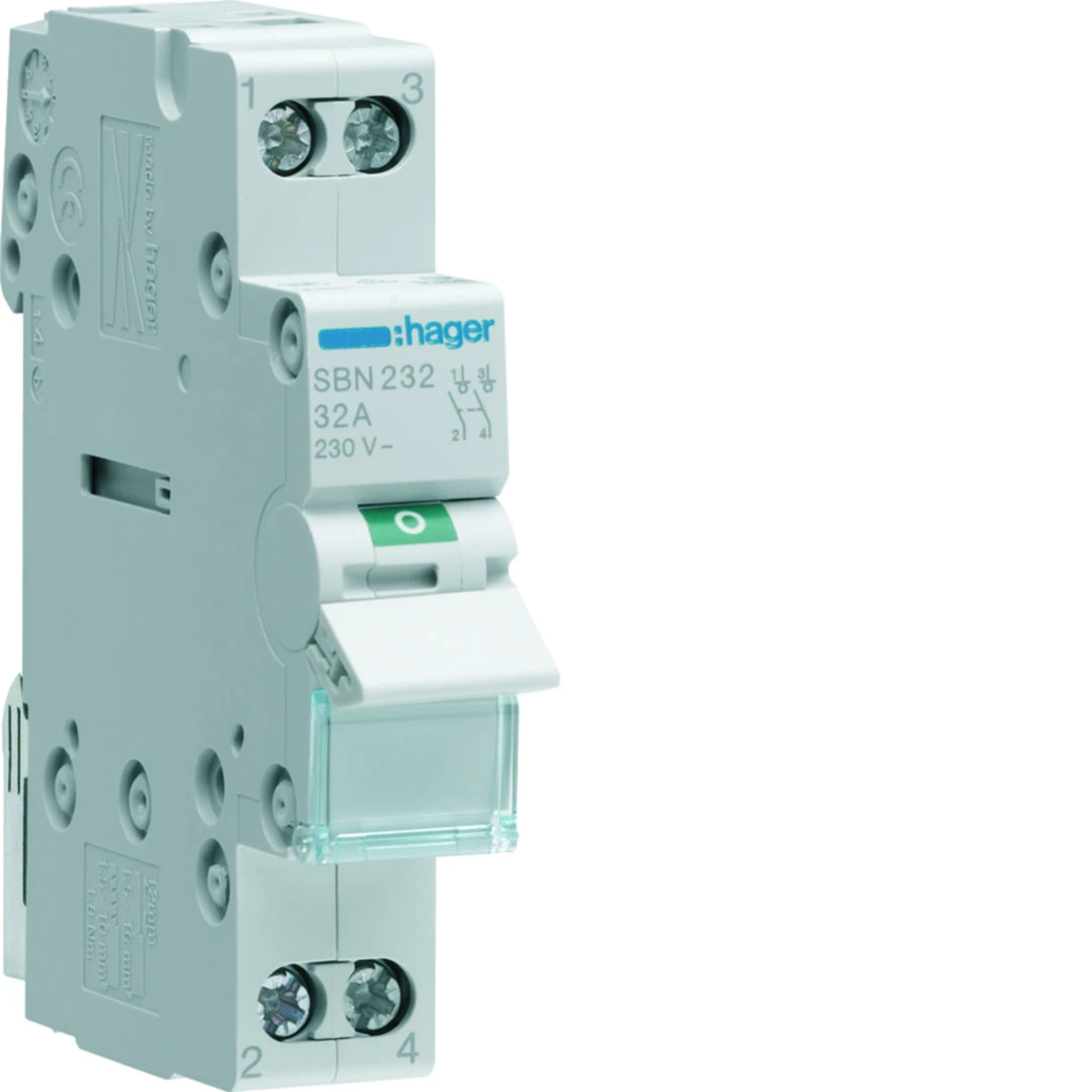

Modular switch disconnector, 2P 32A SBN232
local index:
ALI081HAGE
Catalog No:
SBN232
EAN code:
3250615510136
Price:
15,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
| Specifications | |
|---|---|
| Rated current In: | 32A |
| Number of poles: | 2 P |
| Number of modules: | 1 |
| Rated operational voltage Ue (AC): | 230V |
| Rated insulation voltage Ui: | 440V |
| Rated impulse withstand voltage Uimp: | 4000V |
| Rated frequency: | 50/60 Hz |
| Connection type: | with screw |
| Total power loss for rated current: | 3W |
| Mechanical durability (Number of cycles): | 200000 |
| Number of wires - line: | 1.5/10mm² |
| Number of wires - wire: | 1.5/16mm² |
| Working temperature: | -20 to 50 °C |
| Storage temperature: | -40 to 80 °C |
| Installed product height: | 83mm |
| Width of installed product: | 17.5mm |
| Depth of installed product: | 68mm |
Technical data
-
Depth [mm]68
-
Number of poles2
-
Width [mm]17.5
-
Number of modules1
-
Number of modules1
-
Rated current [A]32
-
Height [mm]83
-
PKWIU27.33.11.0
Other technical data
-
Switching functionOff switch
-
Number of contacts as normally closed contact0
-
Number of poles2
-
Rated voltage230 V
-
Rated switching capacity0.677 kA
-
Voltage typeAC
-
Max. lamp power0 W
-
Built-in depth68 mm
-
Number of contacts as normally open contact2
-
Number of contacts as change-over contact0
-
Rated current32 A
-
Min. rated voltage230 V
-
Short-circuit breaking capacity (Icw)0.48 kA
-
With signal lampNo
-
Width in number of modular spacings1
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 108 pcs. | 1728 pcs. |
| Weight (kg) | 0,071 | 0,080 | 9,020 | 167,320 |
| Width (m) | 0,018 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,083 | 0,025 | 0,215 | 1,050 |
| Depth (m) | 0,073 | 0,095 | 0,360 | 1,200 |
