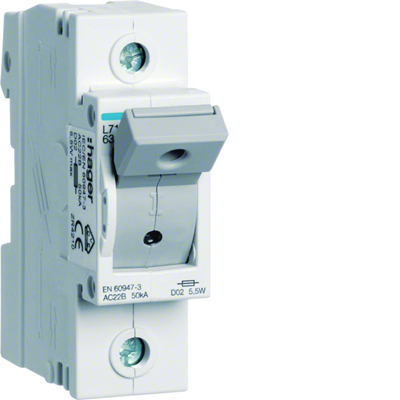

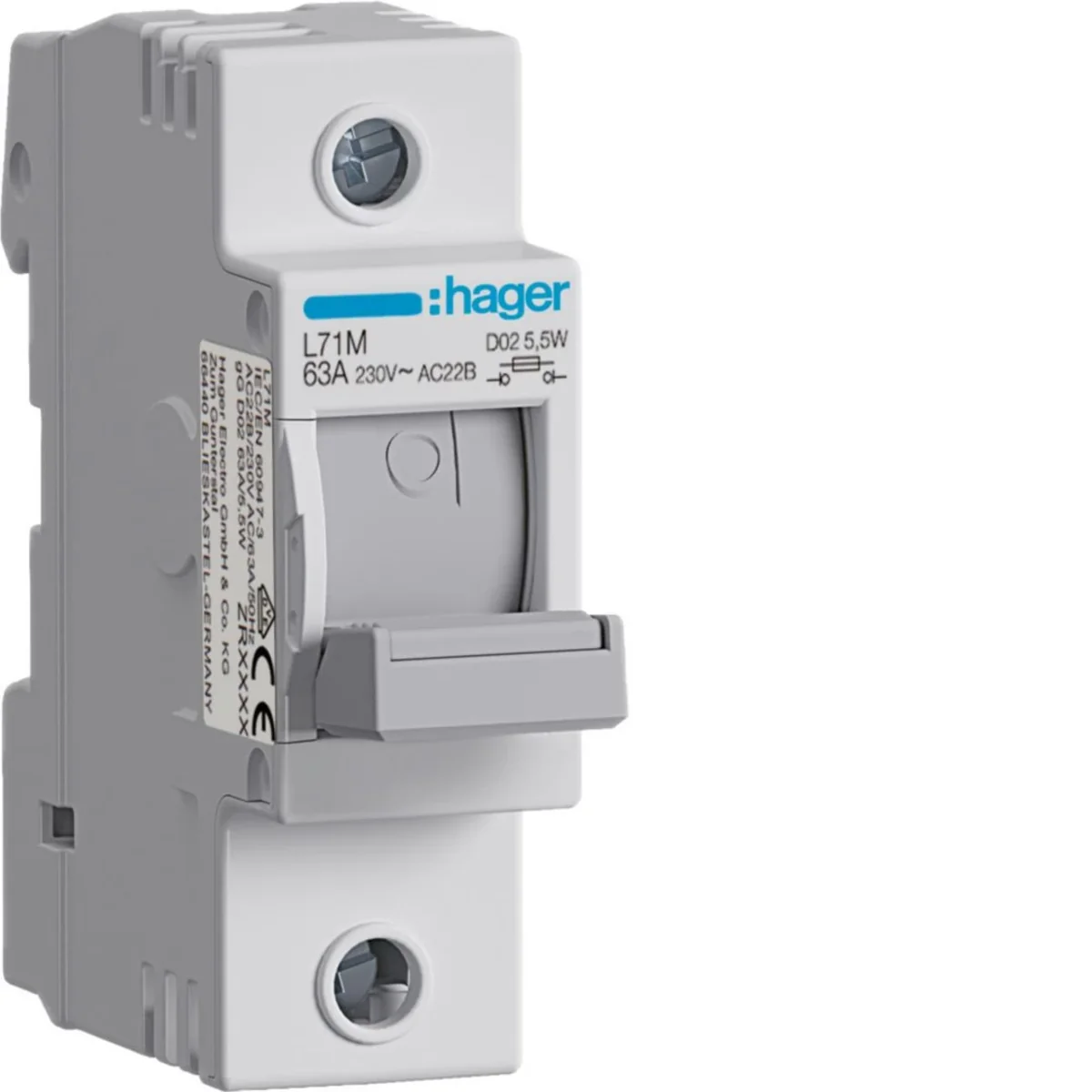

Switch disconnector Fuse D02 1P 63A L71M

local index:
ALB021HAGE
Catalog No:
L71M
EAN code:
3250610740569
Manufacturer: HAGER
Number of modules: 1.5
Number of poles: 1
Rated current [A]: 63
Price:
56,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 44 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

D02 modular fuse switch disconnectors • standards: DIN VDE 0660 part 107, EN 60947-3
• rated current 63A
• rated voltage
- AC 400 V
- DC 1-pole 110V, 2-pole 220V
• short-circuit withstand current Icm 50kA - AC22B
• fuse blown indication (blinking LED)
• mounting on TS35 rail
• circuit N disconnectable, equipped with a jumper

Technical data

  • Number of modules
    1.5
  • Rated current [A]
    63
  • PKWIU
    27.12.23.0
  • Number of poles
    1
  • Number of modules
    1.5

Other technical data

  • Number of poles
    1
  • Rated voltage
    230 V
  • Construction size
    D02
  • Rated current
    63 A

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 12 pcs. 72 pcs. 1728 pcs.
Weight (kg) 0,121 1,465 9,220 244,280
Width (m) 0,027 0,100 0,315 0,800
Length (m) 0,085 0,090 0,210 1,030
Depth (m) 0,044 0,330 0,360 1,200
