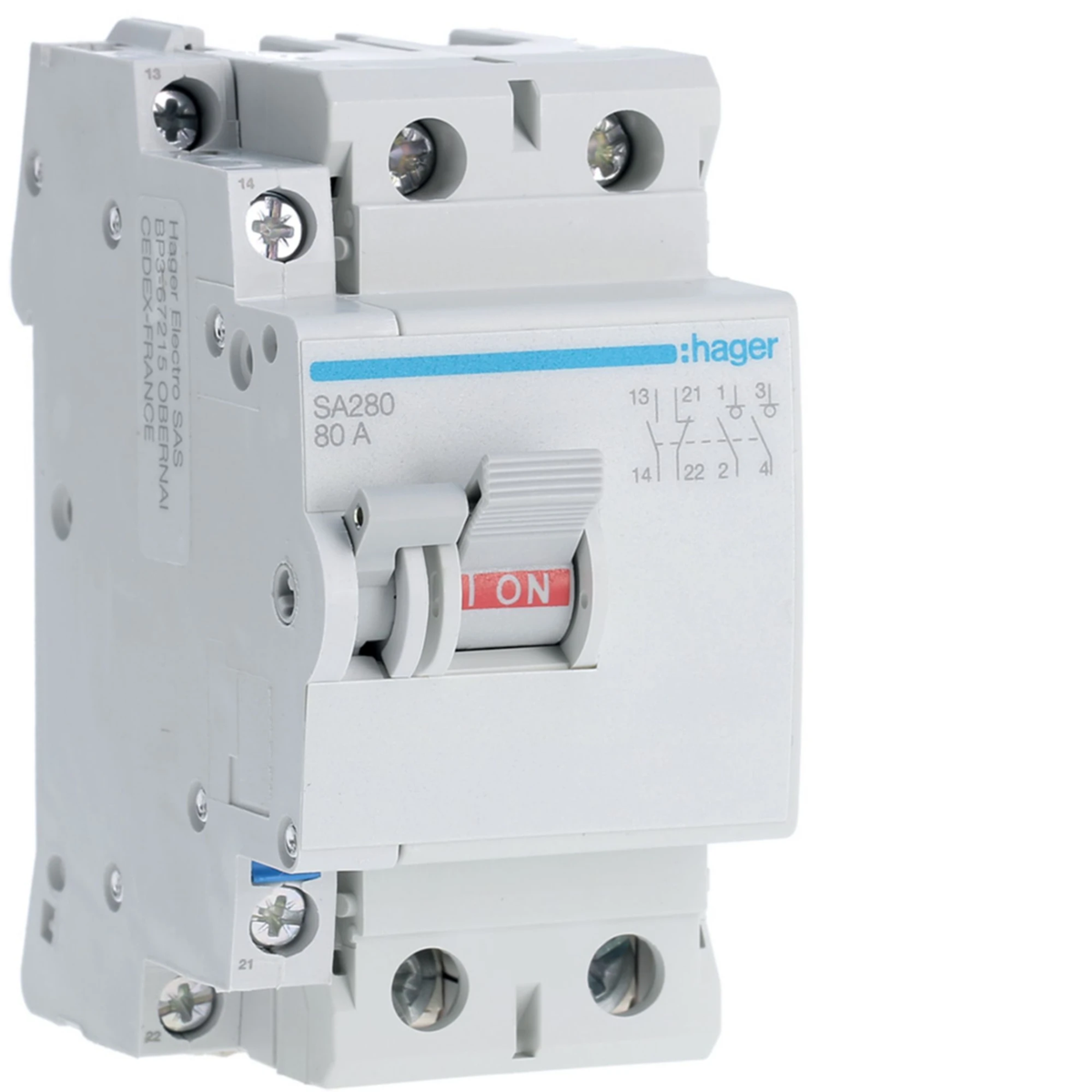

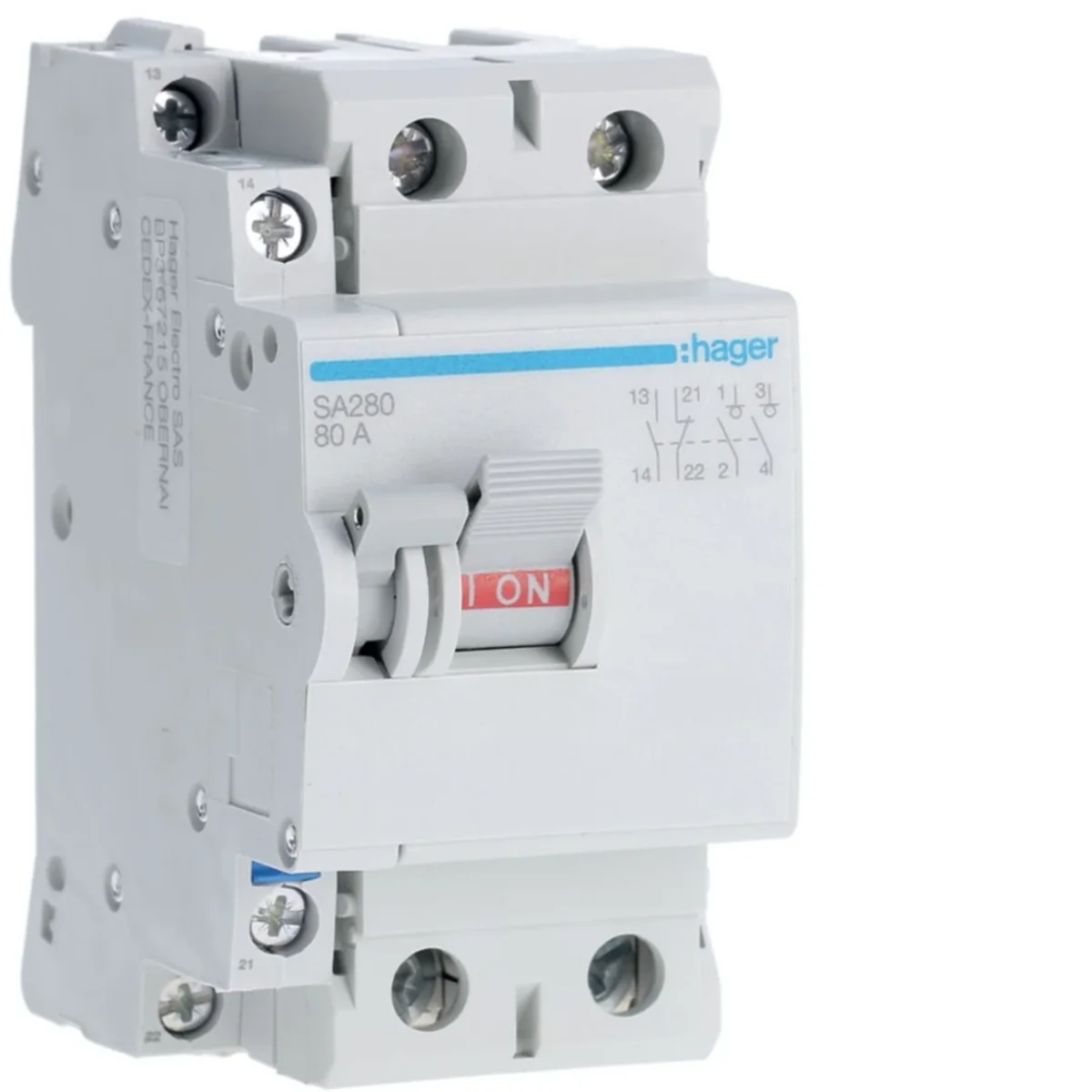

Switch disconnector with auxiliary contact, 2-pole, 80A SA280

local index:
ALB049HAGE
Catalog No:
SA280
EAN code:
3250615512802
Manufacturer: HAGER
Depth [mm]: 68
Number of poles: 2
Tightening torque [Nm]: 2.7
Price:
94,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Remote breaking
Switch disconnectors equipped with auxiliary contacts CA 1NO+1NC for connection of contact position signalling. Additional SD signaling contacts, triggers or a locking mechanism can be added as additional equipment.
Connection:
Switch main contacts:
• 16 mm² - stranded
• 25 mm² - wire
Switch disconnector auxiliary contacts:
• 0.5 to 4 mm² - stranded
• 1 to 6 mm² - wire
Compliance with the standards: PN-EN 60947-2 and PN-EN 60947-3
Connection category: AC-23A

Technical data

  • Depth [mm]
    68
  • Tightening torque [Nm]
    2.7
  • power loss [W]
    12.33
  • Working temperature [°C]
    -25 to 40
  • Connection type
    With a screw
  • AC rated voltage [V]
    230
  • Number of poles
    2
  • Rated current [A]
    80
  • Width [mm]
    44
  • Height [mm]
    83
  • Number of modules
    2.5
  • PKWIU
    27.12.22.0

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    1
  • Number of poles
    2
  • Rated voltage
    230 V
  • Voltage type
    AC
  • Max. lamp power
    0 W
  • Built-in depth
    68 mm
  • Number of contacts as normally open contact
    3
  • Number of contacts as change-over contact
    0
  • Rated current
    80 A
  • Min. rated voltage
    230 V
  • With signal lamp
    No
  • Width in number of modular spacings
    2.5
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,215 0,231 11,528 301,672
Width (m) 0,044 0,080 0,315 0,800
Length (m) 0,087 0,056 0,239 1,106
Depth (m) 0,072 0,095 0,370 1,200
