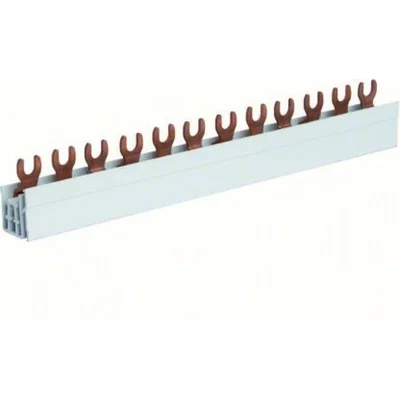

Phase rail 3 pole. 10qmm 12mod KDN363A

local index:
RPU005HAGE
Catalog No:
KDN363A
EAN code:
3250613740924
Manufacturer: HAGER
Number of modules: 12
Number of poles: 3
Rated current [A]: 63
Price:
12,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

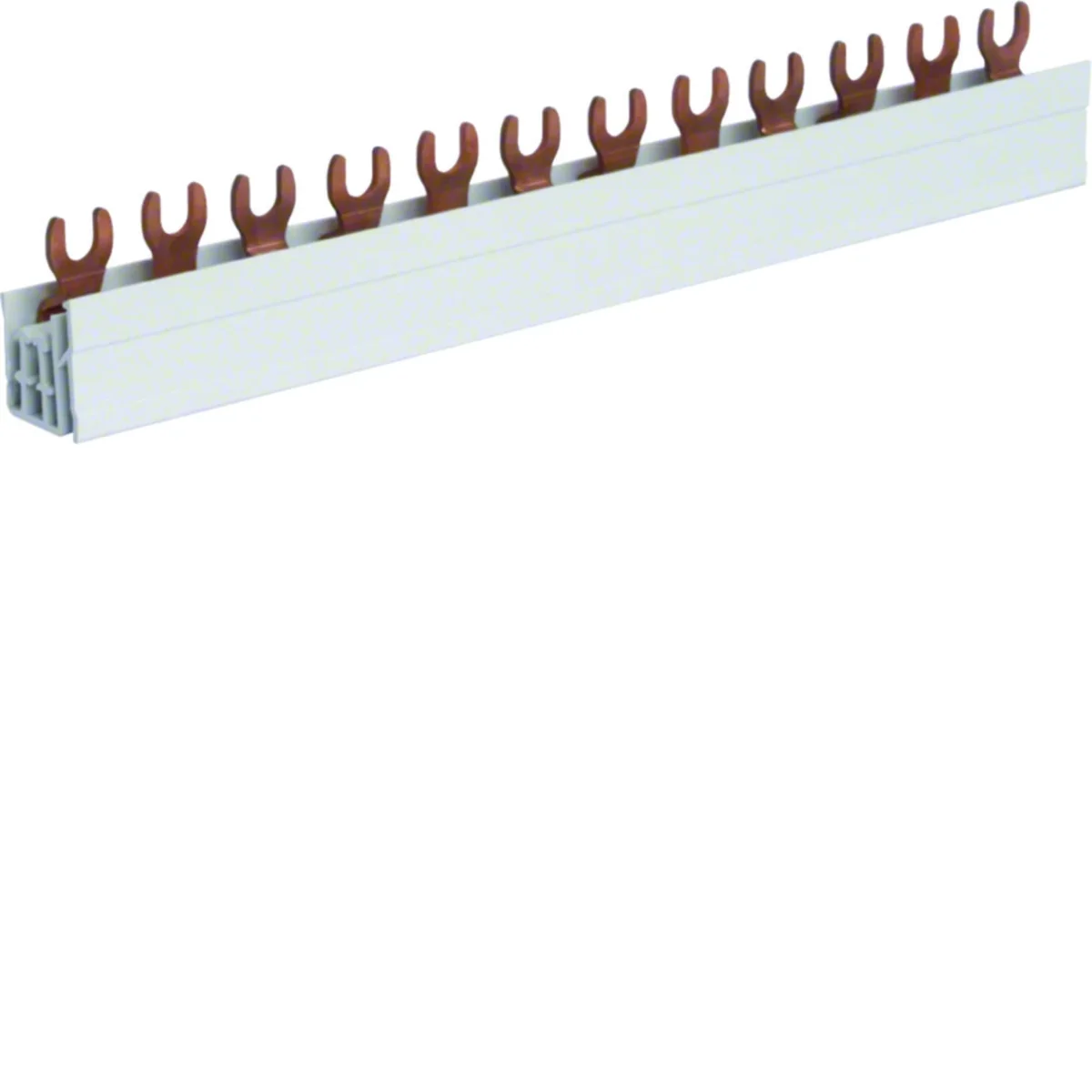

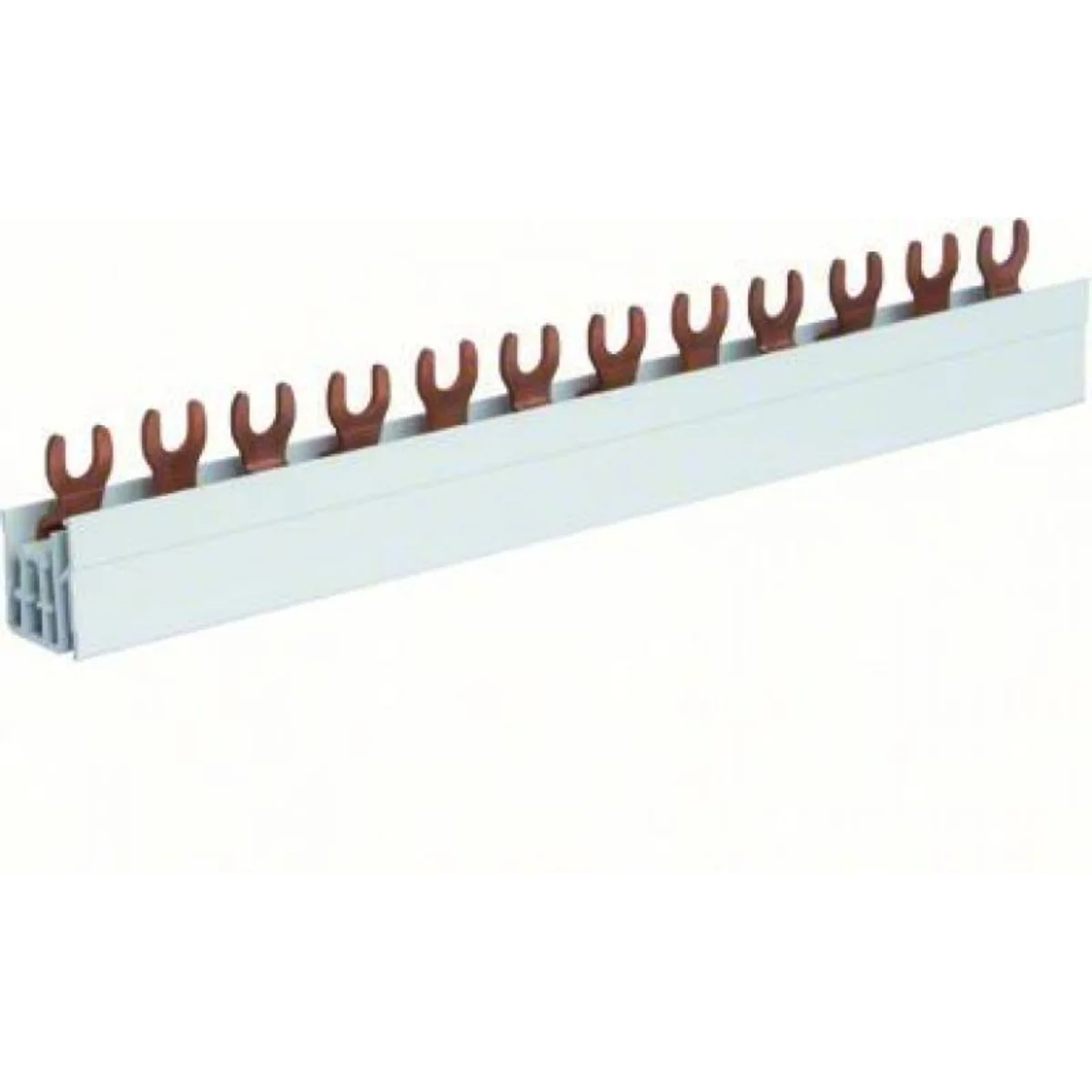

3-pole fork comb phase busbar for 4 3-pole MCBs

Technical data

  • Number of modules
    12
  • Rated current [A]
    63
  • PKWIU
    27.33.13.0
  • Number of poles
    3
  • Number of modules
    12

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    4
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    400 V
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    3
  • Module width
    17.8 mm
  • Length
    210 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    4.5 kV
  • Suitable for devices with N-conductor
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 50 pcs. 4500 pcs.
Weight (kg) 0,106 5,810 545,900
Width (m) 0,020 0,225 0,840
Length (m) 0,029 0,130 1,120
Depth (m) 0,210 0,235 1,240
