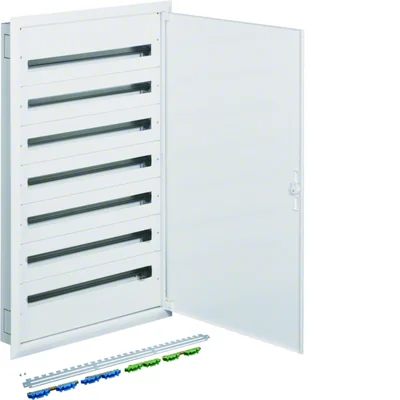

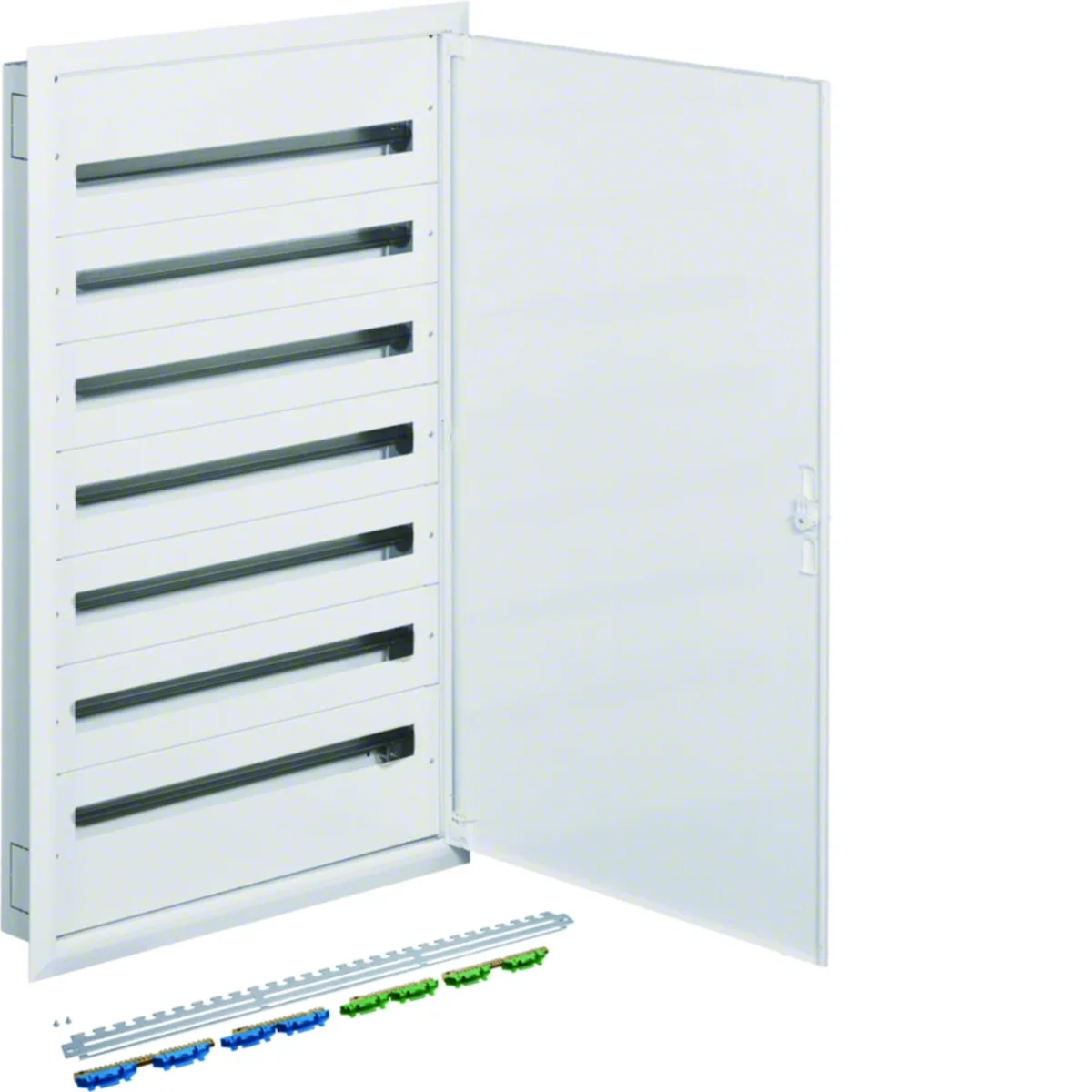

Complete switchgear 7x36 modules + PE/N terminals, IP30/I class pt. FW736FT
local index:
RIP020HAGE
Catalog No:
FW736FT
EAN code:
3250614300936
Price:
598,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product advantages and technical characteristics:
- Complete flush-mounted switchgear with doors, mounting grid, metal covers and a set of PE/N screw terminals mounted on a special bracket, for devices up to 125 A,
- flat masking frame,
- I protection class, protection degree IP30,
- depth 110 mm, width 334-766 mm, < li>height: 620-1220 mm, from 3 to 7 rows,
- perforated cable entries - top and bottom,
- material: steel sheet, powder coated, white color (RAL 9010),
- door closure: lever handle,
- compliance with the standard: PN-EN 61439-1.
Technical data
-
Depth [mm]110
-
InstallationFlush-mounted
-
Width [mm]766
-
Number of modules252
-
Number of rows7
-
Level of securityIP30
-
Height [mm]1220
-
PKWIU27.12.40.0
Other technical data
-
Mounting methodFlush-mounted
-
Width in number of modular spacings36
-
Cover modelClosed
-
Housing materialSteel
-
Width766 mm
-
Built-in depth110 mm
-
DIN-railYes
-
Extension possibleYes
-
RAL-number9010
-
With lockNo
-
Number of rows7
-
Type of coveringDoor
-
Transparent cover/doorNo
-
Height1220 mm
-
Depth110 mm
-
Inner depth110 mm
-
With mounting plateNo
-
ColourWhite
-
Degree of protection (IP)IP30
-
Type of closureOther
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 6 pcs. |
| Weight (kg) | 36,800 | 38,690 | 577,000 |
| Width (m) | 0,850 | 0,050 | 0,800 |
| Length (m) | 1,300 | 1,300 | 1,450 |
| Depth (m) | 0,170 | 0,845 | 1,200 |
