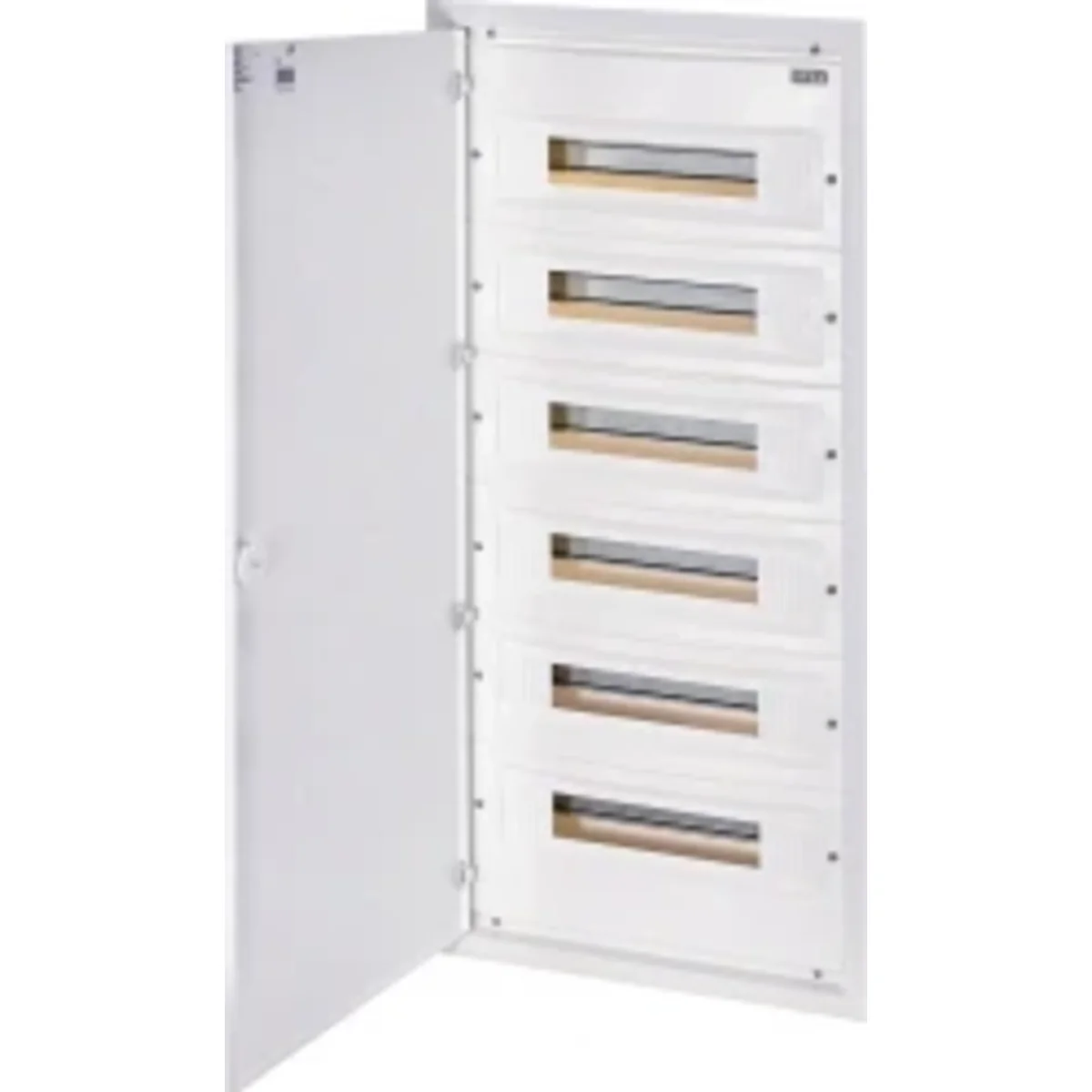

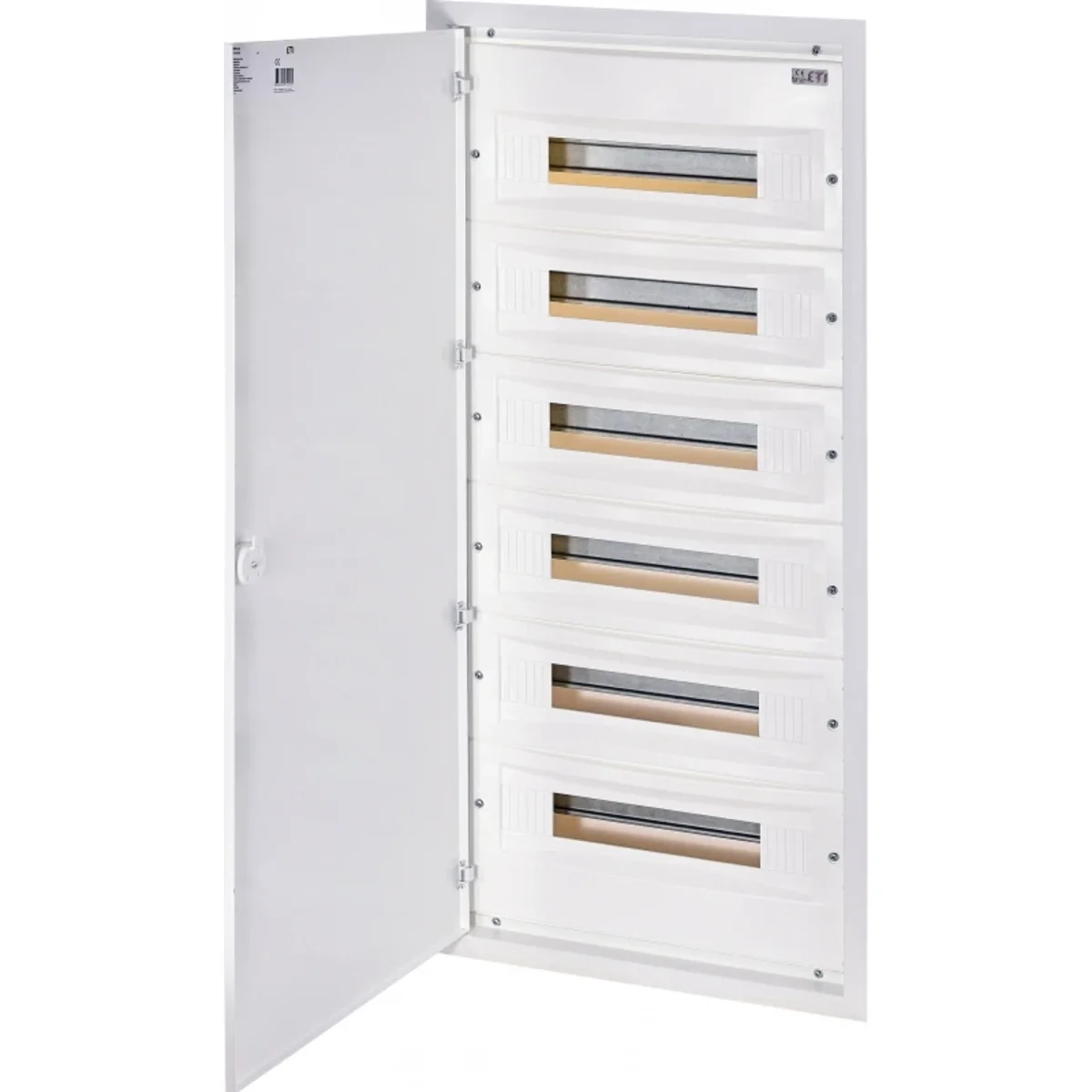

Switchgear housing above ERP18-6 001101218
local index:
RIP003ETIP
Catalog No:
001101218
EAN code:
3838895610045
Price:
253,77 €
gross / pcs.
(including VAT 23%)
23,07 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Flush-mounted switchgears are used in residential and industrial construction for the assembly of modular apparatus in order to ensure the appropriate degree of apparatus protection. The switchgear with a lock and a key prevents unauthorized access.
Technical data
-
Number of modules108
-
Rated voltage [V]400
-
Weight [g]11000
-
Number of rows6
-
Working temperature [°C]from -25 to +60
-
PKWIU27.12.31.0
Other technical data
-
Mounting methodFlush-mounted
-
Width in number of modular spacings18
-
Height983 mm
-
Depth120 mm
-
DIN-railYes
-
EMC-versionYes
-
RAL-number9016
-
Number of rows6
-
Housing materialPlastic
-
Width451 mm
-
Built-in depth125 mm
-
With mounting plateNo
-
ColourWhite
-
Degree of protection (IP)IP40
